CCU1041-E: DescriptionPotentiometer, 2W, 100000ohm, 1 Turn(s), ROHS COMPLIANT; CategoryPassive components The resistor; File Size104KB，1 Pages; ManufacturerOhmite; Websitehttps://www.ohmite.com; Environmental Compliance

Download Datasheet Parametric Compare View All

CCU1041-E Overview

Potentiometer, 2W, 100000ohm, 1 Turn(s), ROHS COMPLIANT

CCU1041-E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	unknown
Actuator direction	HORIZONTAL
Actuator type	SHAFT
gang number	2
Manufacturer's serial number	CCU
Installation features	PANEL MOUNT
Number of terminals	6
number of turns	1
Maximum operating temperature	120 °C
Minimum operating temperature	-55 °C
Package shape	CIRCULAR PACKAGE
Rated power dissipation(P)	2 W
Rated temperature	70 °C
resistance	100000 Ω
resistance law	LINEAR
Resistor type	POTENTIOMETER
surface mount	NO
Terminal shape	LUG
Base Number Matches	1

Preview

Download Datasheet

View All

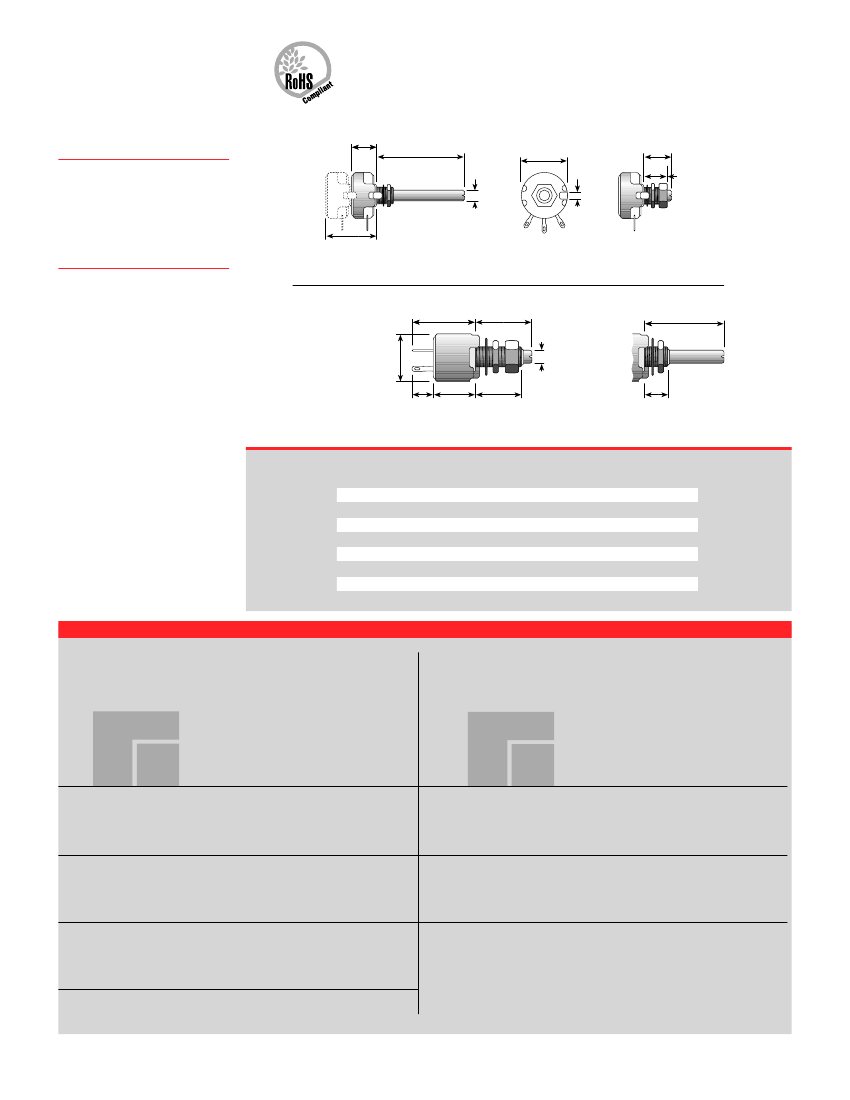

Ohmite molded composition

potentiometers are available in

various models for applications

in military devices, industrial

equipment and in equipment

requiring a convenient resis-

tance control device.

Potentiometers

Molded composition

0.625"

15.88mm

0.5"

12.7mm

lock nut,

slotted bushing,

locking shaft,

0.125"/3.18mm

panel (max.)

0.625"

15.9mm

(max.)

FEATURES

• Low noise, smooth operation

• In accordance with “Mil” RV4N,

RV4L, RV6L, RV6N, 2RV7N

types

• RoHS compliant; non-RoHS ver-

sion unavailable.

Type AB

2"/50.8mm

(CU, CA,

CB, CCU)

0.875"

22.2 mm

/

(CMU)

Style CU, CA,

CB, CCU, CMU

1.16"

29.4mm

0.25"

0.125"

6.35 mm

3.18mm

Style CLU

SPECIFICATIONS

Electrical

Derating:

linear from 100% at

+70°C to 0% at +120°C

Operating temp. range:

-55°C to

120°C

1.266"

32.1mm

(CCU)

(max.)

0.375-32 thread,

round shaft,

0.25"/6.35mm

panel (max.)

Style AS

0.5"

0.703"

17.9mm

0.625"

±.016

15.9mm

(max.)

Style ASM

0.875"

±.016

22.2mm

Material

Construction:

Elements molded

into a single, integral structure.

Metal cover protects and shields

the internal parts.

Sealing:

synthetic resin containing

non-mercurial fungicide

Since all rheostats/potentiometers

are electro-mechanical devices,

they are subject to mechanical

wear and, therefore, have a finite

life.

Type AS

12.7mm

0.234"

6.0mm

(max.)

0.125"

3.18mm

0.25-32 bushing,

0.469"

0.5"

locking type,

11.9mm 12.7mm

(max.)

mounting nut &

lock nut

0.25"

6.4mm

0.25-32 bushing,

standard type

Model

AS

ASM

CA

CB

CU

CCU

CLU

CMU

Watts

0.5

2.0

Ohmic

range

50-5M

Behind panel

(In./mm)

0.703/17.9

0.625/15.9

1.266/32.1

0.625/15.9

Diameter

(In./mm)

0.50/12.7

1.16/29.4

Rotation

295° ±5°

312° ±3°

Voltage

(RMS)

350

500

S TA N D A R D PA RT N U M B E R S F O R P O T E N T I O M E T E R S

RV4NAYSJ––– CCW log

RV4NAYSJ––– CW log

RV4NAYSJ––– CCW log

RV4NAYSJ––– CW log

RV4NAYSJ––– Linear

CLU–––

RV4LAYSA––– Linear

CCU–––

2RV7NYSJ––– Linear

Dual*

CMU–––

RV4NAYSD––– Linear

CLU–––

RV4LAYSA––– Linear

CCU–––

2RV7NYSJ––– Linear

Dual*

CMU–––

RV4NAYSD––– Linear

RV4NAYSJ––– Linear

RV6LAYSA––– Linear

RV6NAYSD––– Linear

RV6LAYSA––– Linear

Ohmic value

CU–––

CA–––

CB–––

50

100

150

250

350

500

750

1,000

1,500

2,500

3,500

5,000

7,500

10,000

15,000

25,000

35,000

–––500A

–––101A

–––151A

–––251A

–––351A

–––501A

–––751A

–––102A

–––152A

–––252A

–––352A

–––502A

–––752A

–––103A

–––153A

–––253A

–––353A

–––5001

–––1011

–––1511

–––2511

–––3511

–––5011

–––7511

–––1021

–––1521

–––2521

–––3521

–––5021

–––7521

–––1031

–––1531

–––2531

–––3531



AS3601E



AS3602E



AS3603E



AS3604E



AS3605E



AS3606E



AS3607E



AS3608E



ASM6661E



ASM6662E



ASM6663E



ASM6664E



ASM6665E



ASM6666E



ASM6667E



ASM6668E

50,000

75,000

100,000

150,000

250,000

350,000

500,000

750,000

1,000,000

1,500,000

2,000,000

2,500,000

3,500,000

5,000,000

–––503A

–––753A

–––104A

–––154A

–––254A

–––354A

–––504A

–––754B

–––105B

–––155B

–––205B

–––255B

–––355B

–––505B

–––5031

–––7531

–––1041

–––1541

–––2541

–––3541

–––5041

–––7542

–––1052

–––1552

–––2052

–––2552

–––3552

–––5052

CB–––

MIL Designation

Prefix



Suffix

Part No.

Prefix



Suffix



MIL Designation

Prefix



Suffix

Part No.

Prefix



Suffix





AS3609E



AS3610E



AS3611E



AS3612E



AS3613E



AS3684E



AS3614E



AS3615E



ASM6669E



ASM6670E



ASM6671E



ASM6672E



ASM6673E



ASM6674E



ASM6675E



ASM6676E



= Standard values; check availability

* add “-E” for RoHS-compliant lead-free zinc-nickel plated product

Check product availability at

www.ohmite.com

RV6NAYSD––– Linear

Ohmite Mfg. Co.

1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com

79
