BCU83

Description
Small Signal Bipolar Transistor, TO-92, TO-92, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size87KB,4 Pages
ManufacturerTT Electronics plc
Websitehttp://www.ttelectronics.com/
Download Datasheet Parametric View All

BCU83 Overview

Small Signal Bipolar Transistor, TO-92, TO-92, 3 PIN

BCU83 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionCYLINDRICAL, O-PBCY-T3
Reach Compliance Codecompliant
JEDEC-95 codeTO-92
JESD-30 codeO-PBCY-T3
JESD-609 codee0
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formCYLINDRICAL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal locationBOTTOM
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1
BCU83
MECHANICAL DATA
Dimensions in mm
6 .0
5 .0
NPN EPITAXIAL PLANAR
SILICON TRANSISTOR
Ideal for high current driver
applications requiring
efficient low loss devices
8 .5
3 .0
1 4 .0
FEATURES
• LOW V
CE(SAT)
• HIGH CURRENT
• HIGH ENERGY RATING
1 .4 5 P IT C H
0 .5
T Y P
APPLICATIONS
4 .7
E
C
B
0 .5
• Any High Current Driver Applications
Requiring Efficient Low Loss Devices.
TO92(EXTENDED)
ABSOLUTE MAXIMUM RATINGS
(T
case
= 25°C unless otherwise stated)
V
CBO
V
CEO
V
EBO
I
C
I
C(PK)
P
tot
T
stg
T
j
Collector – Base voltage
Collector – Emitter voltage
Emitter – Base voltage
Collector current
Peak Collector current
Total Dissipation at T
case
= 25°C
Storage Temperature
Maximum Operating Junction Temperature
60V
20V
6V
5A
8A
0.9W
–55 to 150°C
150°C

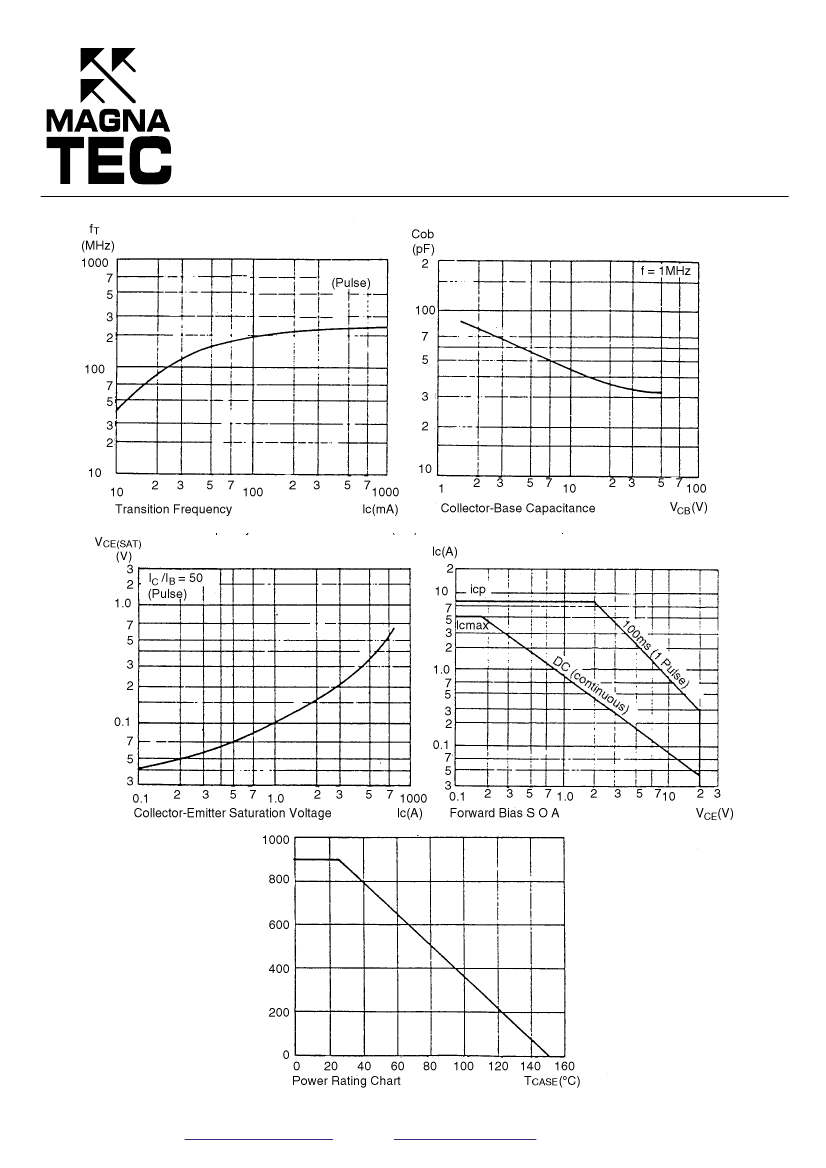

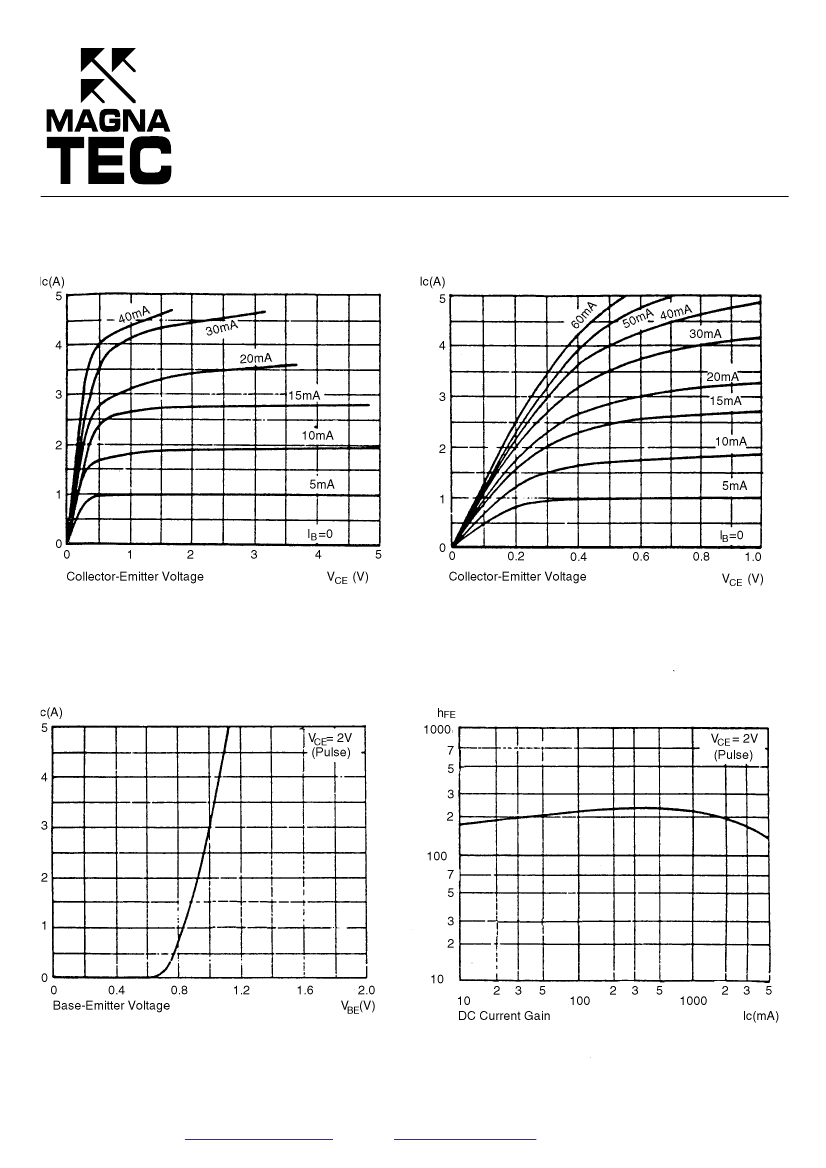

Magnatec.
Telephone +44(0)1455 554711.
Fax +44(0)1455 558843.
E-mail:
magnatec@semelab.co.uk
Website:
http://www.semelab.co.uk
Prelim 6/99
