MCBC2450 Overview

Microprocessor based burst-fire controller / SSR

Preview

Download Datasheet

View All

MCBC Series

•

Microprocessor based burst-fire controller / SSR

Ratings from 25A to 90A @ 48-530 VAC

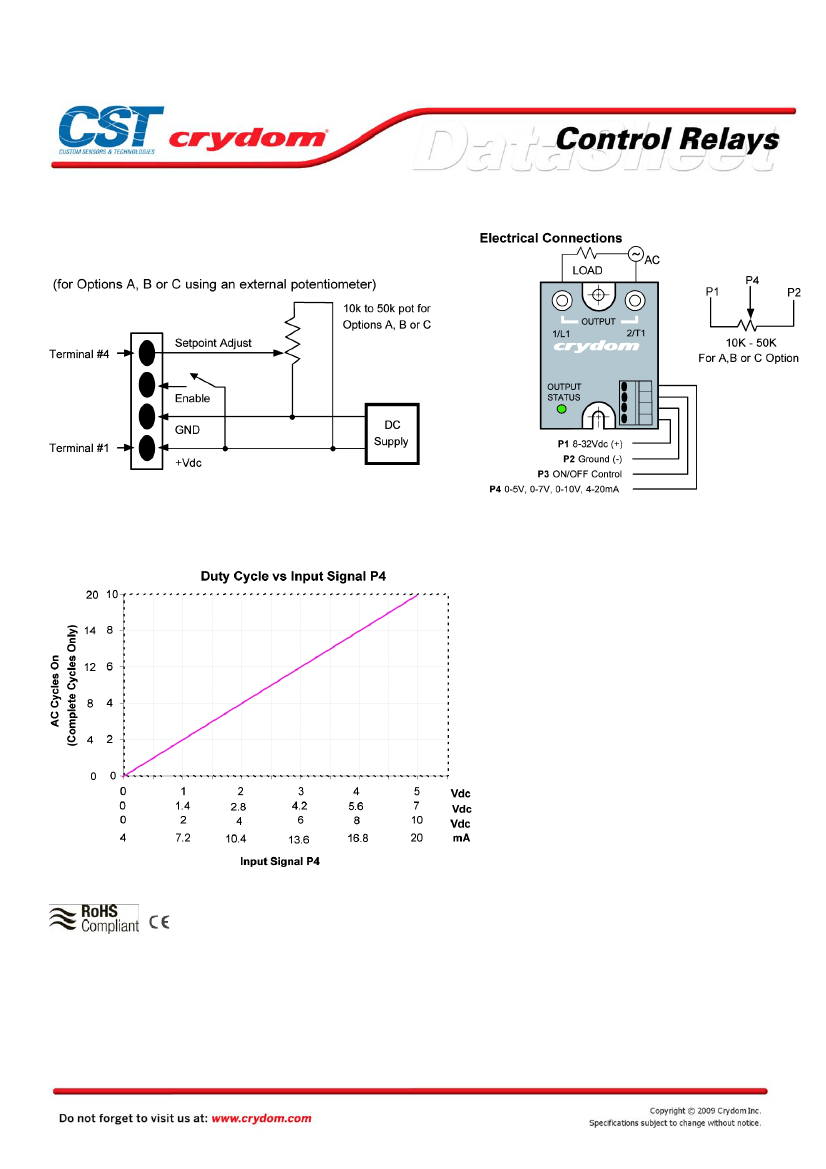

Low-voltage, current, or potentiometer control

Output status indicator

Separate output enable / disable control

Two time-base periods available

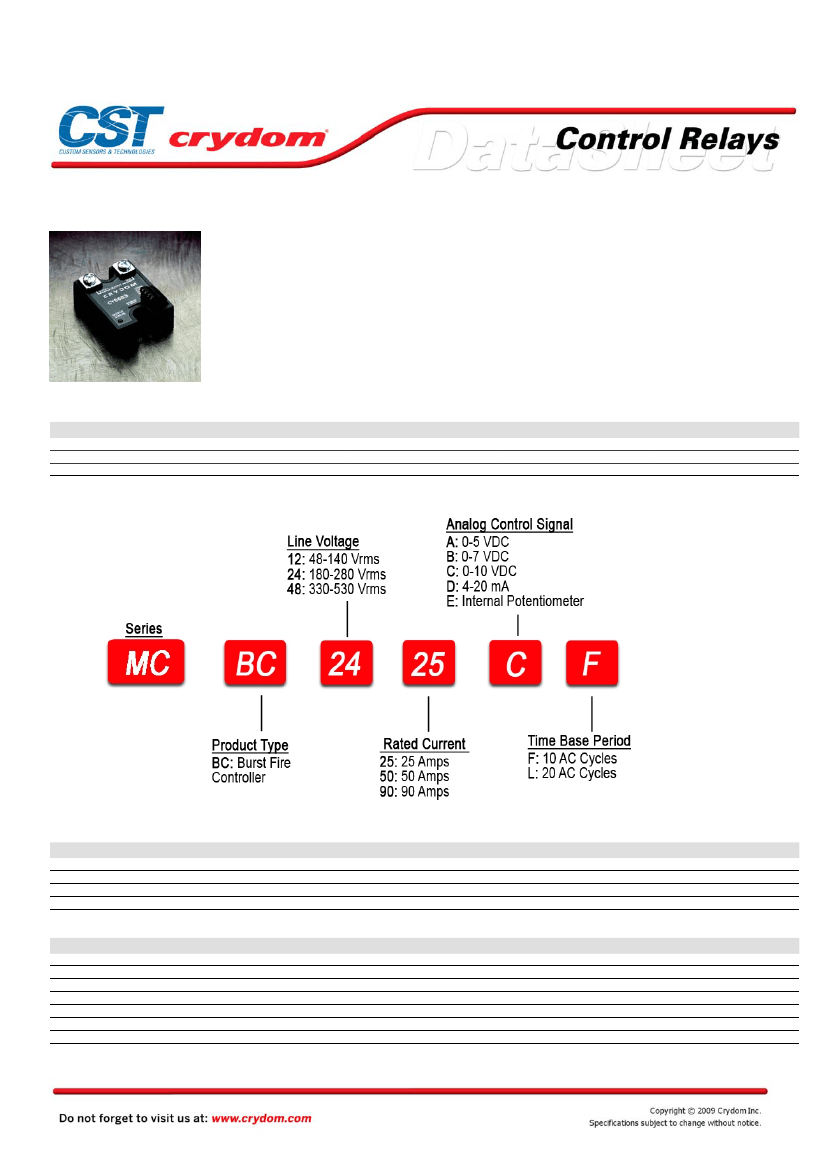

PRODUCT SELECTION

Line Voltage

40-140 VAC

180-280 VAC

300-530 VAC

25 A

MCBC1225

MCBC2425

MCBC4825

50 A

MCBC1250

MCBC2450

MCBC4850

90 A

MCBC1290

MCBC2490

MCBC4890

AVAILABLE OPTIONS

OUTPUT SPECIFICATIONS (voltage)

Description

Operating Voltage (47-63Hz) [Vrms]

Transient Overvoltage [Vpk]

Maximum Off-State Leakage Current @ Rated Voltage [mArms]

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2)

120 VAC

48-140

400

200

240 VAC

180-280

600

200

480 VAC

300-530

1200

200

OUTPUT SPECIFICATIONS (current)

Description

Maximum Load Current (3) [Arms]

Minimum Load Current [mArms]

Maximum Surge Current (16.6ms) [Apk]

Maximum On-State Voltage Drop @ Rated Current [Vpk]

Thermal Resistance Junction to Case (Rjc) [°C/W]

Maximum I² t for Fusing (8.3 msec) [A²sec]

Minimum Power Factor (with Maximum Load)

25 A

150

250

1.6

1.02

260

0.5

50 A

150

625

1.6

0.63

1620

0.5

90 A

150

1200

1.6

0.28

6000

0.5
