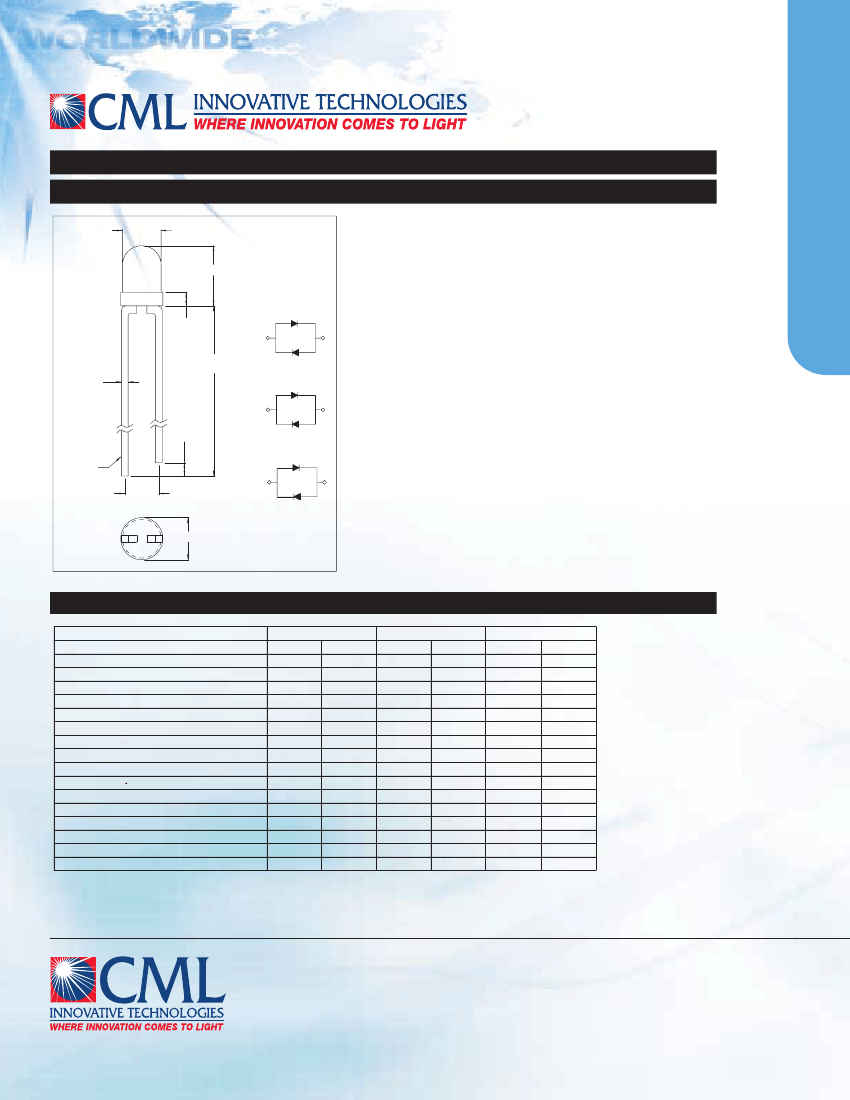

T-1 Super Brite Bi-Color LED Lamps

DESCRIPTION AND FEATURES

Ø.114

.177

These T-1 Bi-Color LED lamps provide exceptional light

output in a variety of color combinations. These lamps

can provide three-state status indication when their

off-state White is included. They are available in a variety

of color combinations, in wide view angle diffused packages.

Y

.040

1.00

MIN.

.020 S Q.

TYP.

G

E

.040

Y

E

ANODE

.100

G

Ø.126

All dimensions in inches.

ELECTRO-OPTICAL CHARACTERISTICS AND RATINGS

P AR T NUMB E R

Output C olor

Diffusion

P ackage C olor

T est C urrent (mA)

F orward Voltage Typ. (V)

F orward V oltage Max. (V )

Luminous Intensity Min. (mcd)

Luminous Intensity T yp. (mcd)

Luminous Intensity Max. (mcd)

P eak Wavelength (nm)

Viewing Angle 20 1/2 (degrees)

P ower Dissipation (mW)

Operating Temperature (°C )

S torage T emperature (°C )

P eak Forward C urrent (T<10 mS )

R everse V oltage (IR =100µA) (V )

Lead S older T ime @ 260°C

C MD264-3E G W

H.E .R ed

G reen

Diffused

White

20

2.0

2.1

2.8

7.0

6.5

16

15

-

635

565

60

105

-40 to +85 -40 to +85

150

5

C MD264-3E Y W

H.E .R ed

Y ellow

Diffused

White

20

2.0

2.8

6.0

7.0

16

14

-

585

635

60

105

-40 to +85 -40 to +85

150

5

C MD264-3Y G W

G reen

Y ellow

Diffused

White

20

2.1

2.0

2.8

6.5

6.0

15

14

-

565

585

60

105

-40 to +85 -40 to +85

150

5
