CLK19W439 datasheet, PDF - EEWORLD Datasheet

CLK19W439: DescriptionProcessor Specific Clock Generator, 133MHz, CMOS, PDSO48, SSOP-48; CategoryThe embedded processor and controller Microcontrollers and processors; File Size314KB，22 Pages; ManufacturerSMSC; Websitehttp://www.smsc.com/

Download Datasheet Parametric Compare View All

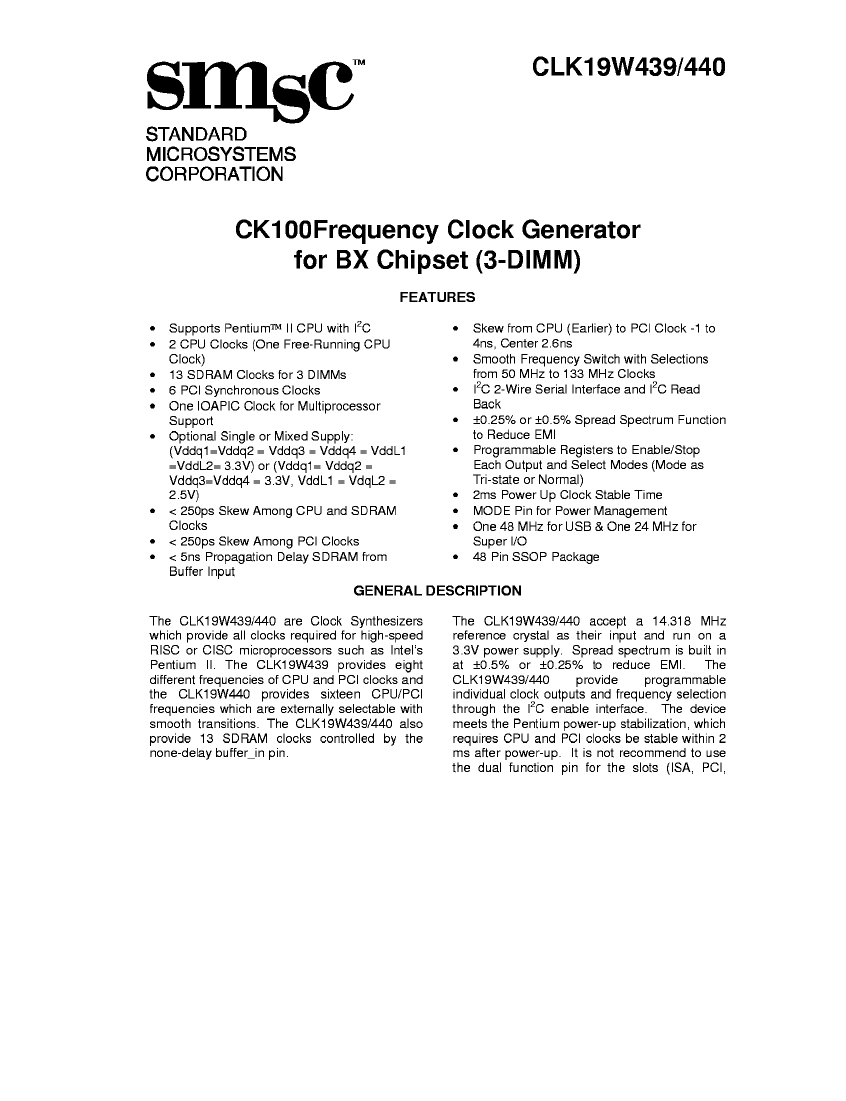

CLK19W439 Overview

Processor Specific Clock Generator, 133MHz, CMOS, PDSO48, SSOP-48

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SSOP
package instruction	SSOP, SSOP48,.4
Contacts	48
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
length	15.875 mm
Number of terminals	48
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	133 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP48,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	235
power supply	2.5/3.3,3.3 V
Master clock/crystal nominal frequency	14.318 MHz
Certification status	Not Qualified
Maximum seat height	2.794 mm
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC
Base Number Matches	1

	CLK19W439	CLK19W440
Description	Processor Specific Clock Generator, 133MHz, CMOS, PDSO48, SSOP-48	Processor Specific Clock Generator, 133MHz, CMOS, PDSO48, SSOP-48
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	SSOP	SSOP
package instruction	SSOP, SSOP48,.4	SSOP, SSOP48,.4
Contacts	48	48
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
JESD-30 code	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0
length	15.875 mm	15.875 mm
Number of terminals	48	48
Maximum operating temperature	70 °C	70 °C
Maximum output clock frequency	133 MHz	133 MHz
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP
Encapsulate equivalent code	SSOP48,.4	SSOP48,.4
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	235	235
power supply	2.5/3.3,3.3 V	2.5/3.3,3.3 V
Master clock/crystal nominal frequency	14.318 MHz	14.318 MHz
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.794 mm	2.794 mm
Minimum supply voltage	3.135 V	3.135 V
Nominal supply voltage	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.5 mm	7.5 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC
Base Number Matches	1	1
