CL-200TLY-TS: DescriptionSINGLE COLOR LED, TOP HIGH BRIGHT LEMON YELLOW, 2.6 mm; CategoryLED optoelectronic/LED photoelectric; File Size417KB，1 Pages; ManufacturerCITIZEN; Websitehttp://ce.citizen.co.jp/e/index.html

Download Datasheet Parametric Compare View All

CL-200TLY-TS Overview

SINGLE COLOR LED, TOP HIGH BRIGHT LEMON YELLOW, 2.6 mm

CL-200TLY-TS Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
color	TOP HIGH BRIGHT LEMON YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	NONDIFFUSED
Nominal luminous intensity	130.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2.4 mm
method of packing	TAPE AND REEL
peak wavelength	590 nm
shape	RECTANGULAR
size	2.6 mm
surface mount	YES
Terminal pitch	3.15 mm
Base Number Matches	1

Preview

Download Datasheet

View All

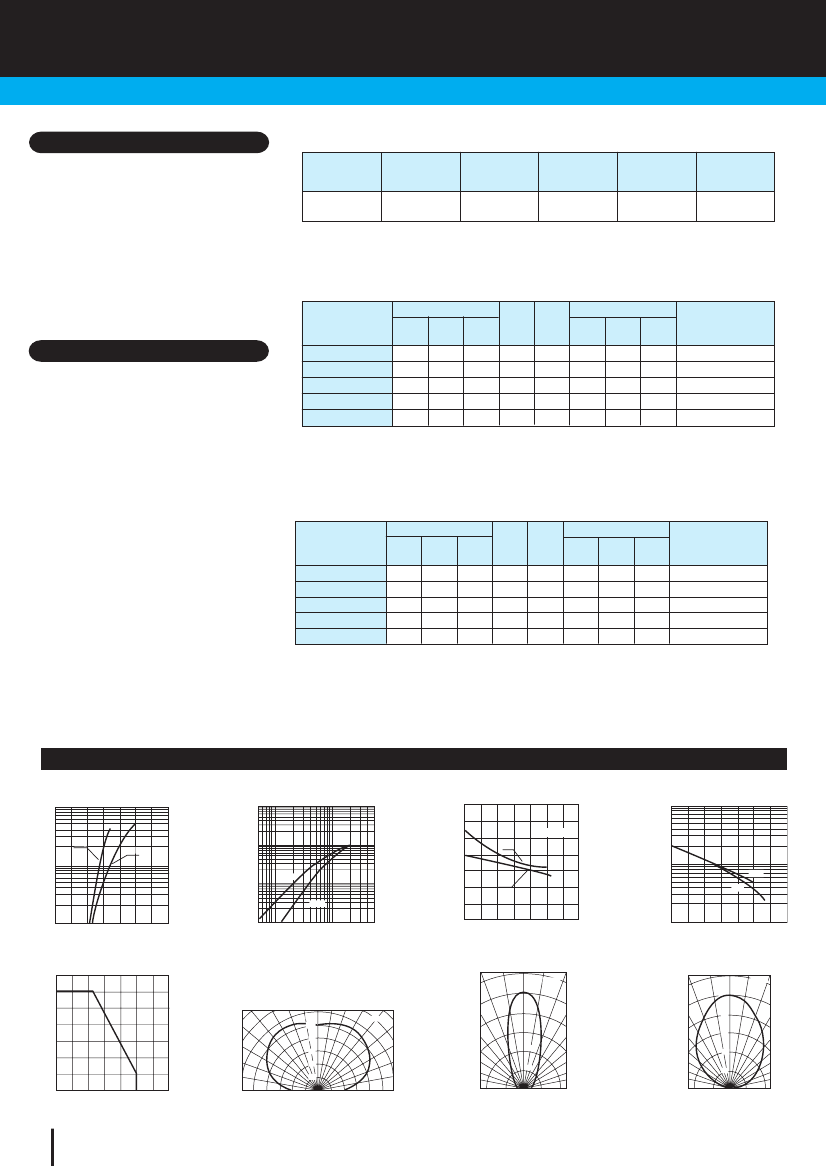

4元素系超高輝度LED SYG・TLY
