CX-49G-4.000MHZ-STBY1-TOL1-CL datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> CX-49G-4.000MHZ-STBY1-TOL1-CL

CX-49G-4.000MHZ-STBY1-TOL1-CL: DescriptionQuartz Crystal, QUARTZ CRYSTAL RESONATOR, 4 MHz; CategoryPassive components Crystal/resonator; File Size118KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric View All

CX-49G-4.000MHZ-STBY1-TOL1-CL Overview

Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 4 MHz

CX-49G-4.000MHZ-STBY1-TOL1-CL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
frequency stability	0.0015%
frequency tolerance	15 ppm
load capacitance	16 pF
Manufacturer's serial number	CX-49G
Installation features	SURFACE MOUNT
Nominal operating frequency	4 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L10.8XB4.8XH4.5 (mm)
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

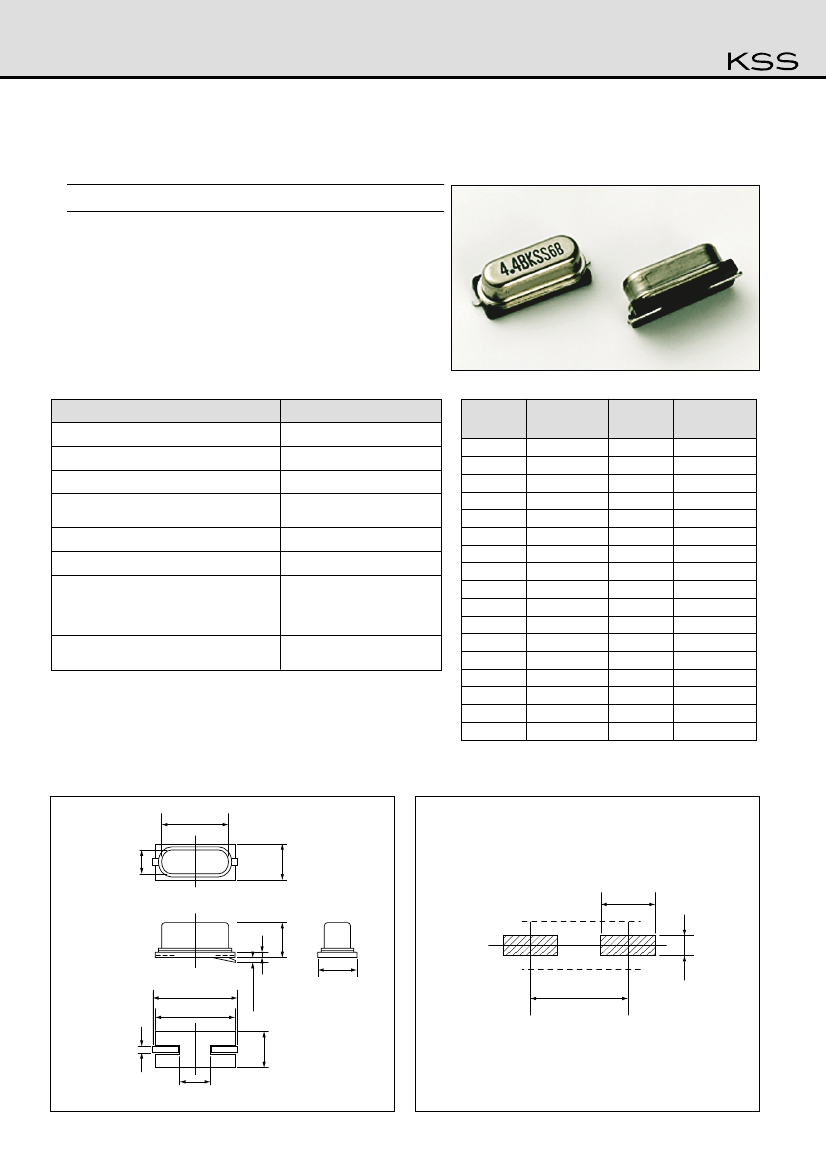

CX-49G

SMD

Features

¡It

is a 4.5mm high, compact, crystal unit for surface mounting.

¡It

is able to cope by means of a metal case and completely

sealed high resolution characteristics.

¡Copes

with high density mounting and is optimum for mass

production models.

Specifications

Type

Frequency Range

Standard Frequency

Frequency Tolerance (at 25:)

Frequency Tolerance Over the Operating Temp. Range

Operating Temp. Range

Storage Temp. Range

CX-49G

3.2~54MHz

Table 1

±15, ±30, ±50×10

–6

Table 1 Standard Frequencies

Frequency

(MHz)

3.2000

3.579545

3.6864

4.000

4.194304

4.332

4.433619

40~+85:

3.2~9.999MHz

4.194303MHz

7.2MHz

10~54MHz

16pF

11.5pF

10pF

12pF

4.500

4.9152

6.000

6.144

7.200

7.3728

8.000

8.4872

9.8304

10.000

Equivalent Series

Resistance

(ΩMAX.)

300

150

120

100

Frequency

(MHz)

10.240

10.738635

11.000

11.0592

12.000

12.288

13.500

14.31818

16.000

16.9344

17.734476

20.000

21.47727

24.000

24.576

27.000

Equivalent Series

Resistance

(ΩMAX.)

±15, ±30, ±50×10

–6

(referred to 25:)

-10~+70:

Load Capacitance

Equivalent Series Resistance

* Taping item packaging : one unit 1,000 pcs

Table 1

(3rd O.T. 150Ω)

* Please inquire about frequencies other than the above.

Outline

CX-49G

10.21MAX.

3.81MAX.

4.8MAX.

Land Pattern(reference)

5.5

4.5MAX.

0.7

0.2MAX.

4.8MAX.

9.5

12.3±0.2

10.8±0.2

4.5±0.1

Dimensions(mm)

4.8MAX.

0.6±0.1

2.0
