SC61-40 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> SC61-40

Preview

SC61-40: DescriptionTransistor Output SSR, 1-Channel, 1500V Isolation, PLASTIC, SURFACE MOUNT, MINIDIP-6; CategoryLED optoelectronic/LED photoelectric; File Size777KB，2 Pages; ManufacturerTeledyne Technologies Incorporated; Websitehttp://www.teledyne.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SC61-40 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SC61-40	-	-	View	Buy Now

SC61-40 Overview

Transistor Output SSR, 1-Channel, 1500V Isolation, PLASTIC, SURFACE MOUNT, MINIDIP-6

SC61-40 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	PLASTIC, SURFACE MOUNT, MINIDIP-6
Reach Compliance Code	compliant
Configuration	SINGLE
Maximum forward current	0.05 A
Maximum insulation voltage	1500 V
Number of components	1
Maximum on-state current	0.4 A
Maximum on-state resistance	2 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR
Base Number Matches	1

Preview

Download Datasheet

View All

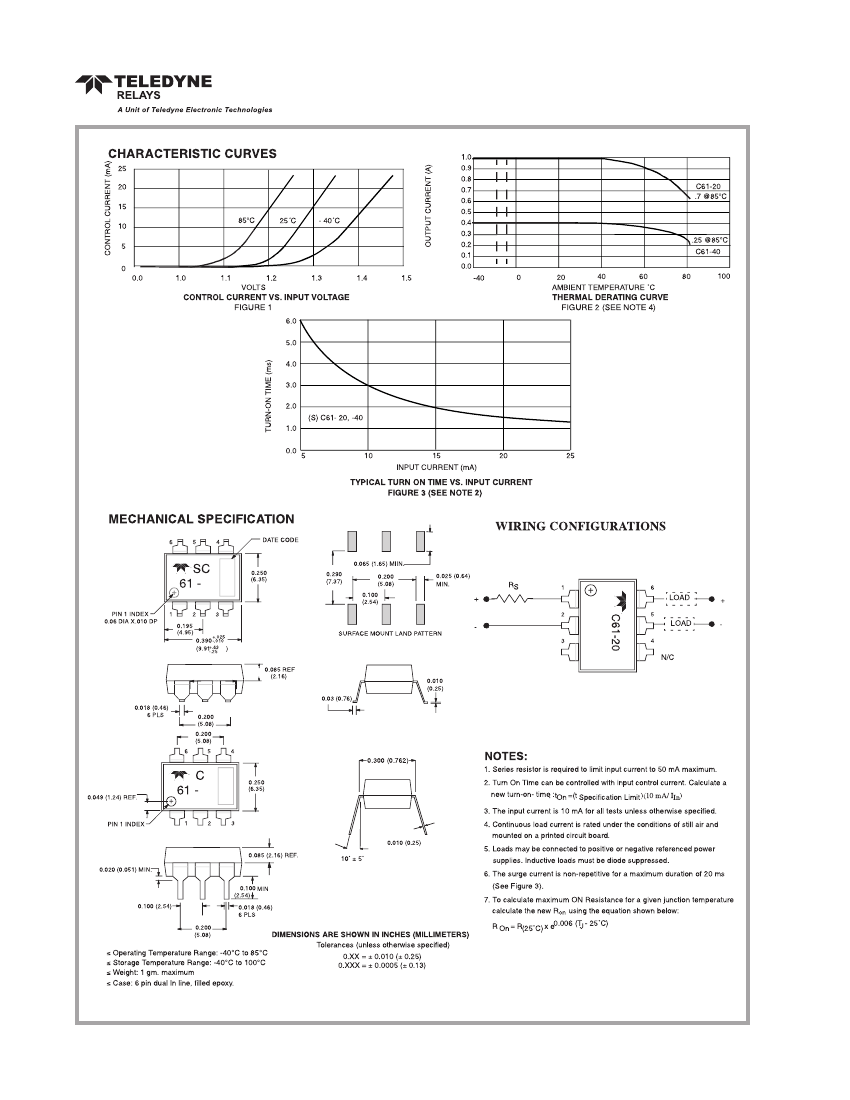

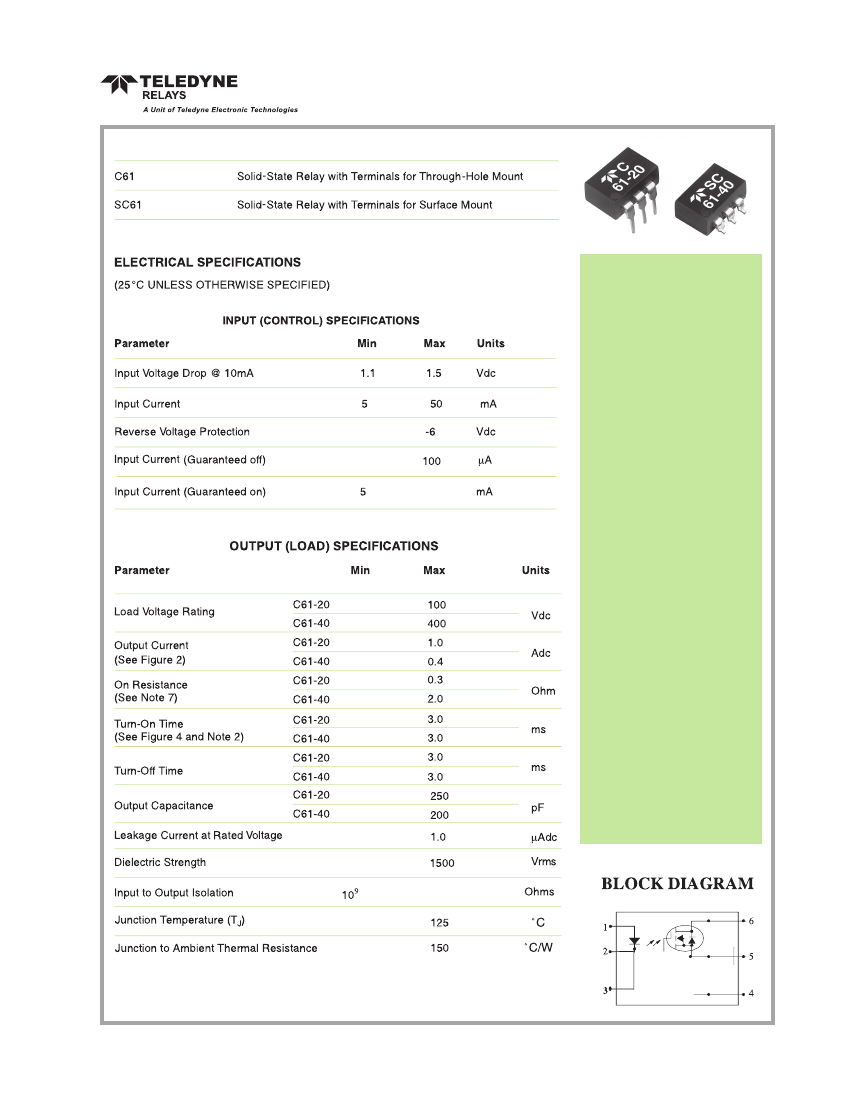

Series C61

Optically Isolated 0.3 to 1.0A

DC Solid-State Relay

Part Number

Relay Description

FEATURES/BENEFITS

• Optical Isolation: Isolates

control elements from load

transients. Eliminates

ground loops and signal

ground noise.

• Low On Resistance power

FET Output: Low leakage

and voltage drop.

• Switches High Voltages

and Currents: Voltages to

400 Vdc; Currents to

1.0 Adc

• Floating Output: Allows for

high and low side

switching

• High Noise Immunity:

Control circuit can not be

triggered by output

switching noise.

• 6-Pin Mini DIP Package:

Through-hole or surface-

mount available

DESCRIPTION

The Series C61 solid-state

relay is an advanced design

capable of switching heavy

loads in a physically small 6

pin mini-DIP package. These

relays have a power FET

output that ensures low On

Resistance, and low leakage

current.

Optical isolation ensures

complete protection of signal

lines, power and ground bus

and control circuits from

switching noise and EMI.

(800) 284-7007 • www.teledynerelays.com

C61 5

C61\072002\Q1

SC61-40 Related Products

	SC61-40	C61-40	C61-20	SC61-20
Description	Transistor Output SSR, 1-Channel, 1500V Isolation, PLASTIC, SURFACE MOUNT, MINIDIP-6	Transistor Output SSR, 1-Channel, 1500V Isolation, PLASTIC, MINIDIP-6	Transistor Output SSR, 1-Channel, 1500V Isolation, PLASTIC, MINIDIP-6	Transistor Output SSR, 1-Channel, 1500V Isolation, PLASTIC, SURFACE MOUNT, MINIDIP-6
package instruction	PLASTIC, SURFACE MOUNT, MINIDIP-6	PLASTIC, MINIDIP-6	PLASTIC, MINIDIP-6	PLASTIC, SURFACE MOUNT, MINIDIP-6
Reach Compliance Code	compliant	compliant	compliant	compliant
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.05 A	0.05 A	0.05 A	0.05 A
Maximum insulation voltage	1500 V	1500 V	1500 V	1500 V
Number of components	1	1	1	1
Maximum on-state current	0.4 A	0.4 A	1 A	1 A
Maximum on-state resistance	2 Ω	2 Ω	0.3 Ω	0.3 Ω
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
