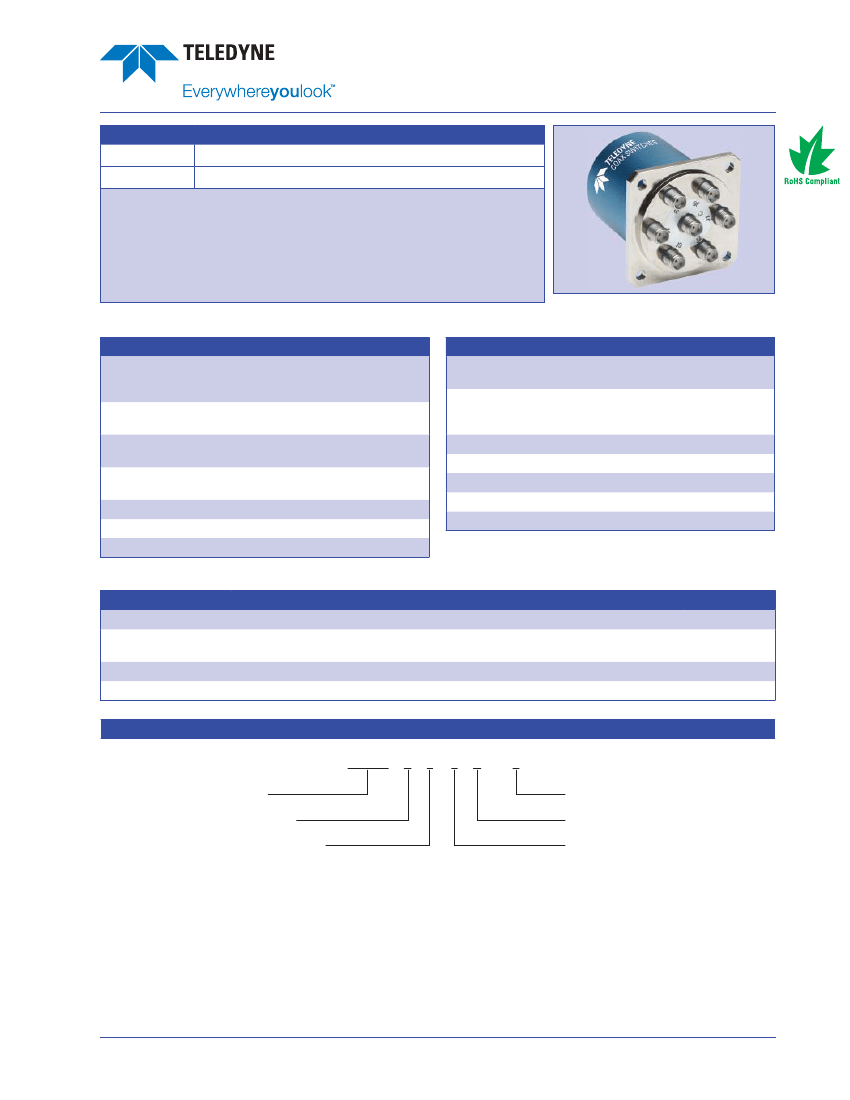

COAX SWITCHES
PART NUMBER
CCR-38S
CR-38S
DESCRIPTION
Commercial Normally Open Multi-throw, DC-18GHz
Elite Normally Open Multi-throw, DC-22GHz
Series CCR-38S/CR-38S
Multi-Throw DC–18 GHz/DC-22 GHz
Normally Open Coaxial Switch
The CCR-38S/CR-38S is a broadband, multi-throw, electromechanical coaxial switch designed to switch
a microwave signal from a common input to any of 3, 4, 5, or 6 outputs. The characteristic impedance
is 50 Ohms. The switches are small using the popular connector spacing on a 1.062” dia. circle. Each
position has an individual actuator mechanism allowing random position selection. This also gives the
minimum switching time.
With the normally open actuator, all paths are open when the switch is de-energized.
ENVIRONMENTAL AND PHYSICAL CHARACTERISTICS
Operating Temperature
Commercial Model, CCR-38S
Elite Model, CR-38S
Vibration (MIL-STD-202 Method 214,
Condition D, non-operating)
Shock (MIL-STD-202 Method 213,
Condition D, non-operating)
Standard Actuator Life
Actuator Life w/ Additional Features
Connector Type
Humidity (Moisture Seal)
Weight
–40°C to 65°C
–55°C to 85°C
10 g’s RMS
500 g’s
5,000,000 cycles
1,000,000 cycles
SMA
Available
6 oz. (170.1g) (max.)
ELECTRICAL CHARACTERISTICS
Form Factor
Frequency Range
CCR-38S
CR-38S
Characteristic Impedance
Operate Time
Release Time
Actuation Voltage Available
Actuation Current, max. @ ambient
Multi-Throw,
break before make
DC–18 GHz
DC-22 GHz
50 Ohms
15 ms (max.)
15 ms (max.)
12
15
24
28 V
400 205 170 140 mA
PERFORMANCE CHARACTERISTICS
Frequency
Insertion Loss, dB,
max.
Isolation, dB, min.
VSWR , max.
DC–4 GHz
0.1
80
1.05:1
4–8 GHz
0.2
80
1.1:1
8–12 GHz
0.2
80
1.2:1
12–16 GHz
0.3
80
1.2:1
16-20 GHz
0.3
75
1.2:1
20-22 GHz
0.4
70
1.2:1
PART NUMBERING SYSTEM
CCR-38
S
1
6
C
-
T
**
Series
Connectors
Actuator Voltage
CONNECTOR
S
:
SMA FEMALE
ACTUATOR VOLTAGE
NUMBER OF POSITIONS
ACTUATOR TYPE
Options
Actuator Type
Number of Positions
OPTIONS
T
:
TTL DRIVERS WITH DIODES
D
:
COIL TRANSIENT SUPPRESSION DIODES
S
:
D
-
SUB CONNECTOR
*
TD
:
DECODERS AND TTL DRIVERS WITH
DIODES
1: 28
VDC NORMALLY OPEN
2: 15
VDC NORMALLY OPEN
3: 12
VDC NORMALLY OPEN
4: 24
VDC NORMALLY OPEN
3:
SP
3
T
4:
SP
4
T
5:
SP
5
T
6:
SP
6
T
0
:
NO INDICATOR CONTACTS
C
:
INDICATOR CONTACTS
**
SEE PARTS LIST ON PAGE
12-13
M
:
MOISTURE SEAL
For additional options, please contact factory.
© 2013 TELEDYNE RELAYS
(800) 284-7007 • www.teledynecoax.com
* D-Sub Connector may be 9 or 15 pin depending on
number of throws. (See Connector Pinout page)
CCR-38S/CR-38S Page 1
CCR-38S\CR-38S\072013\Q3
Series CCR-38S/CR-38S
Multi-Throw DC–18 GHz/DC-22 GHz
Normally Open Coaxial Switch

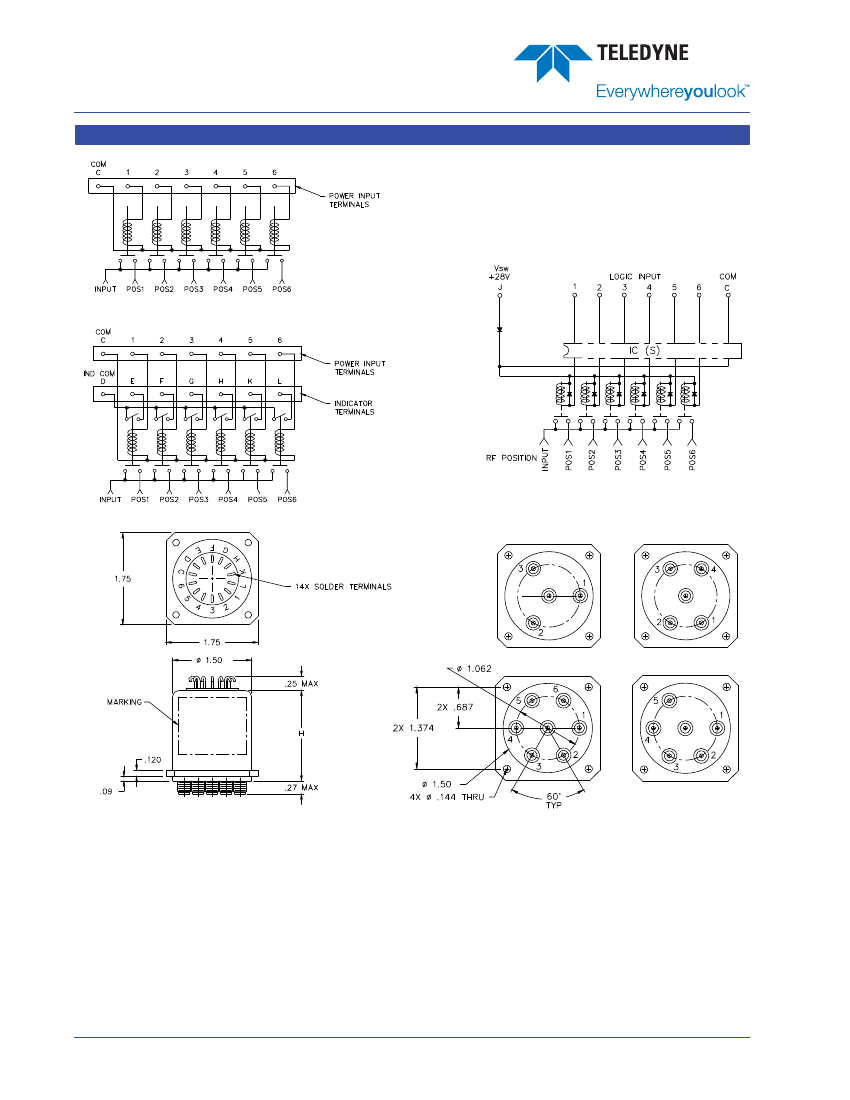

SCHEMATICS AND MECHANICAL OUTLINE
COAX SWITCHES
Analog
Indicators
TTL
SP3T
SP4T
SP5T
H = 1.75 STD & Indicator Model
H = 2.00 D-Sub Model
H = 2.25 Indicator with D-Sub Model
H = 2.50 TTL, TTL with Indicators & TTL with D-Sub Model
SP6T
“-
S OPTION
”
9
-
PIN D
-
SUB OR
15-
PIN D
-
MICRO CONNECTOR
(
EXAMPLE
:
CCR
-38
S
160-
S
)
CCR-38S/CR-38S Page 2
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
© 2013 TELEDYNE COAX SWITCHES
CCR-38S\CR-38S\072013\Q3
COAX SWITCHES
CONNECTOR PINOUT FOR NORMALLY OPEN SP3T MULTI-THROW SWITCHES
E
XAMPLE
I
NDICATOR
TTL
D
ECODERS
& TTL
PIN NO.
1
2
3
4
5
6
7
8
9
D I
NDICATOR
(COM)
C
OMMON
9-P
IN
P
ORT
1
P
ORT
2
P
ORT
3
9-P
IN
P
ORT
1
P
ORT
2
P
ORT
3
E I
NDICATOR
F I
NDICATOR
G I
NDICATOR
C
OMMON
C
OMMON
V
SW
9-P
IN
P
ORT
1
P
ORT
2
P
ORT
3
9-P
IN
P
ORT
1
P
ORT
2
P
ORT
3
E I
NDICATOR
F I
NDICATOR
G I
NDICATOR
C
OMMON
V
SW
D I
NDICATOR
(COM)
CR-38S130-S
CR-38S13C-S
Y
ES
Y
ES
CR-38S130-TS
CR-38S13C-TS
Y
ES
Y
ES
Series CCR-38S/CR-38S
Multi-Throw DC–18 GHz/DC-22 GHz
Normally Open Coaxial Switch
CR-38S130-TDS
CR-38S13C-TDS
Y
ES
Y
ES
9-P
IN
L
OGIC
1
L
OGIC
2
Y
ES
9-P
IN
L
OGIC
1
L
OGIC
2
E I
NDICATOR
F I
NDICATOR
G I
NDICATOR
C
OMMON
V
SW
C
OMMON
V
SW
D I
NDICATOR
(COM)
CONNECTOR PINOUT FOR NORMALLY OPEN SP4T MULTI-THROW SWITCHES
E
XAMPLE
I
NDICATOR
TTL
D
ECODERS
& TTL
PIN NO.
1
2
3
4
5
6
7
8
9
10
11
12
N
/
A
CR-38S140-S
CR-38S14C-S
Y
ES
CR-38S140-TS
CR-38S14C-TS
Y
ES
CR-38S140-TDS
CR-38S14C-TDS
Y
ES
Y
ES
Y
ES
Y
ES
Y
ES
15-P
IN
L
OGIC
1
L
OGIC
2
L
OGIC
3
9-P
IN
P
ORT
1
P
ORT
2
P
ORT
3
P
ORT
4
15-P
IN
P
ORT
1
P
ORT
2
P
ORT
3
P
ORT
4
9-P
IN
TTL 1
TTL 2
TTL 3
TTL 4
15-P
IN
TTL 1
TTL 2
TTL 3
TTL 4
9-P
IN
L
OGIC
1
L
OGIC
2
L
OGIC
3
C
OMMON
C
OMMON
C
OMMON
V
SW
C
OMMON
V
SW
D I
NDICATOR
(COM)
E I
NDICATOR
F I
NDICATOR
G I
NDICATOR
C
OMMON
V
SW
C
OMMON
V
SW
D I
NDICATOR
(COM)
E I
NDICATOR
F I
NDICATOR
G I
NDICATOR
D I
NDICATOR
(COM)
E I
NDICATOR
F I
NDICATOR
G I
NDICATOR
N
/
A
N
/
A
13
14
15
H I
NDICATOR
H I
NDICATOR
H I
NDICATOR
1
6
9-PIN D-SUB CONNECTOR
15-PIN D-MICRO CONNECTOR
© 2013 TELEDYNE RELAYS
(800) 284-7007 • www.teledynecoax.com
CCR-38S/CR-38S Page 3
CCR-38S\CR-38S\072013\Q3
Series CCR-38S/CR-38S
Multi-Throw DC–18 GHz/DC-22 GHz
Normally Open Coaxial Switch
CONNECTOR PINOUT FOR NORMALLY OPEN SP5T MULTI-THROW SWITCHES
E
XAMPLE
I
NDICATOR
TTL
D
ECODERS
& TTL
PIN NO.
1
2
3
4
5
6
7
8
9
10
11
12
N
/
A
COAX SWITCHES
CR-38S150-S
CR-38S15C-S
Y
ES
CR-38S150-TS
CR-38S15C-TS
Y
ES
CR-38S150-TDS
CR-38S15C-TDS
Y
ES
Y
ES
Y
ES
Y
ES
Y
ES
15-P
IN
L
OGIC
1
L
OGIC
2
L
OGIC
3
9-P
IN
P
ORT
1
P
ORT
2
P
ORT
3
P
ORT
4
P
ORT
5
15-P
IN
P
ORT
1
P
ORT
2
P
ORT
3
P
ORT
4
P
ORT
5
9-P
IN
TTL 1
TTL 2
TTL 3
TTL 4
TTL 5
15-P
IN
TTL 1
TTL 2
TTL 3
TTL 4
TTL 5
9-P
IN
L
OGIC
1
L
OGIC
2
L
OGIC
3
C
OMMON
C
OMMON
C
OMMON
V
SW
C
OMMON
V
SW
D I
NDICATOR
(COM)
E I
NDICATOR
F I
NDICATOR
G I
NDICATOR
C
OMMON
V
SW
C
OMMON
V
SW
D I
NDICATOR
(COM)
E I
NDICATOR
F I
NDICATOR
G I
NDICATOR
D I
NDICATOR
(COM)
E I
NDICATOR
F I
NDICATOR
G I
NDICATOR
N
/
A
N
/
A
13
14
15
H I
NDICATOR
K I
NDICATOR
H I
NDICATOR
K I
NDICATOR
H I
NDICATOR
K I
NDICATOR
CONNECTOR PINOUT FOR NORMALLY OPEN SP6T MULTI-THROW SWITCHES
E
XAMPLE
I
NDICATOR
TTL
D
ECODERS
& TTL
PIN NO.
1
2
3
4
5
6
7
8
9
10
11
12
N
/
A
CR-38S160-S
CR-38S16C-S
Y
ES
CR-38S160-TS
CR-38S16C-TS
Y
ES
CR-38S160-TDS
CR-38S16C-TDS
Y
ES
Y
ES
Y
ES
Y
ES
Y
ES
15-P
IN
L
OGIC
1
L
OGIC
2
L
OGIC
3
9-P
IN
P
ORT
1
P
ORT
2
P
ORT
3
P
ORT
4
P
ORT
5
P
ORT
6
C
OMMON
15-P
IN
P
ORT
1
P
ORT
2
P
ORT
3
P
ORT
4
P
ORT
5
P
ORT
6
C
OMMON
9-P
IN
TTL 1
TTL 2
TTL 3
TTL 4
TTL 5
TTL 6
C
OMMON
V
SW
15-P
IN
TTL 1
TTL 2
TTL 3
TTL 4
TTL 5
TTL 6
C
OMMON
V
SW
D I
NDICATOR
(COM)
E I
NDICATOR
F I
NDICATOR
G I
NDICATOR
9-P
IN
L
OGIC
1
L
OGIC
2
L
OGIC
3
C
OMMON
V
SW
C
OMMON
V
SW
D I
NDICATOR
(COM)
E I
NDICATOR
F I
NDICATOR
G I
NDICATOR
D I
NDICATOR
(COM)
E I
NDICATOR
F I
NDICATOR
G I
NDICATOR
N
/
A
N
/
A
13
14
15
H I
NDICATOR
K I
NDICATOR
L I
NDICATOR
H I
NDICATOR
K I
NDICATOR
L I
NDICATOR
H I
NDICATOR
K I
NDICATOR
L I
NDICATOR
CCR-38S/CR-38S Page 4
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
© 2013 TELEDYNE COAX SWITCHES
CCR-38S\CR-38S\072013\Q3
COAX SWITCHES
TRUTH TABLE Normally Open
CCR-38SX3C-T
Logic
Input
1
1
0
0
2
0
1
0
3
0
0
1
J1
On
Off
Off
RF Path
J2
Off
On
Off
J3
Off
Off
On
E
C
0
0
Indicator
Switches
F
0
C
0
G
0
0
C
Series CCR-38S/CR-38S
Multi-Throw DC–18 GHz/DC-22 GHz
Normally Open Coaxial Switch
TRUTH TABLE Normally Open
CCR-38SX3C-TD
Logic
Input
1
0
1
0
1
2
0
0
1
1
J1
On
Off
Off
Off
RF Path
J2
Off
On
Off
Off
J3
Off
Off
On
Off
E
C
0
0
0
Indicator
Switches
F
0
C
0
0
G
0
0
C
0
TRUTH TABLE Normally Open
CCR-38SX4C-T
Logic Input
1
1
0
0
0
2
0
1
0
0
3
0
0
1
0
4
0
0
0
1
J1
On
Off
Off
Off
RF Path
J2
Off
On
Off
Off
J3
Off
Off
On
Off
J4
Off
Off
Off
On
E
C
0
0
0
Indicator
Switches
F
0
C
0
0
G
0
0
C
0
H
0
0
0
C
TRUTH TABLE Normally Open
CCR-38SX4C-TD
Logic Input
1
0
1
0
1
1
2
0
0
1
1
1
3
0
0
0
0
1
J1
On
Off
Off
Off
Off
RF Path
J2
Off
On
Off
Off
Off
J3
Off
Off
On
Off
Off
J4
Off
Off
Off
On
Off
E
C
0
0
0
0
Indicator
Switches
F
0
C
0
0
0
G
0
0
C
0
0
H
0
0
0
C
0
© 2013 TELEDYNE RELAYS
(800) 284-7007 • www.teledynecoax.com
CCR-38S/CR-38S Page 5
CCR-38S\CR-38S\072013\Q3
京公网安备 11010802033920号
EEWORLD
