CFT-5NF: DescriptionRF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm,; CategoryWireless rf/communication Radio frequency and microwave; File Size69KB，1 Pages; ManufacturerComponent General Inc

Download Datasheet Parametric View All

CFT-5NF Overview

RF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm,

CFT-5NF Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	I/P POWER-MAX(PEAK)=2000W
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	36.99 dBm
Maximum operating frequency	12400 MHz
Minimum operating frequency
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

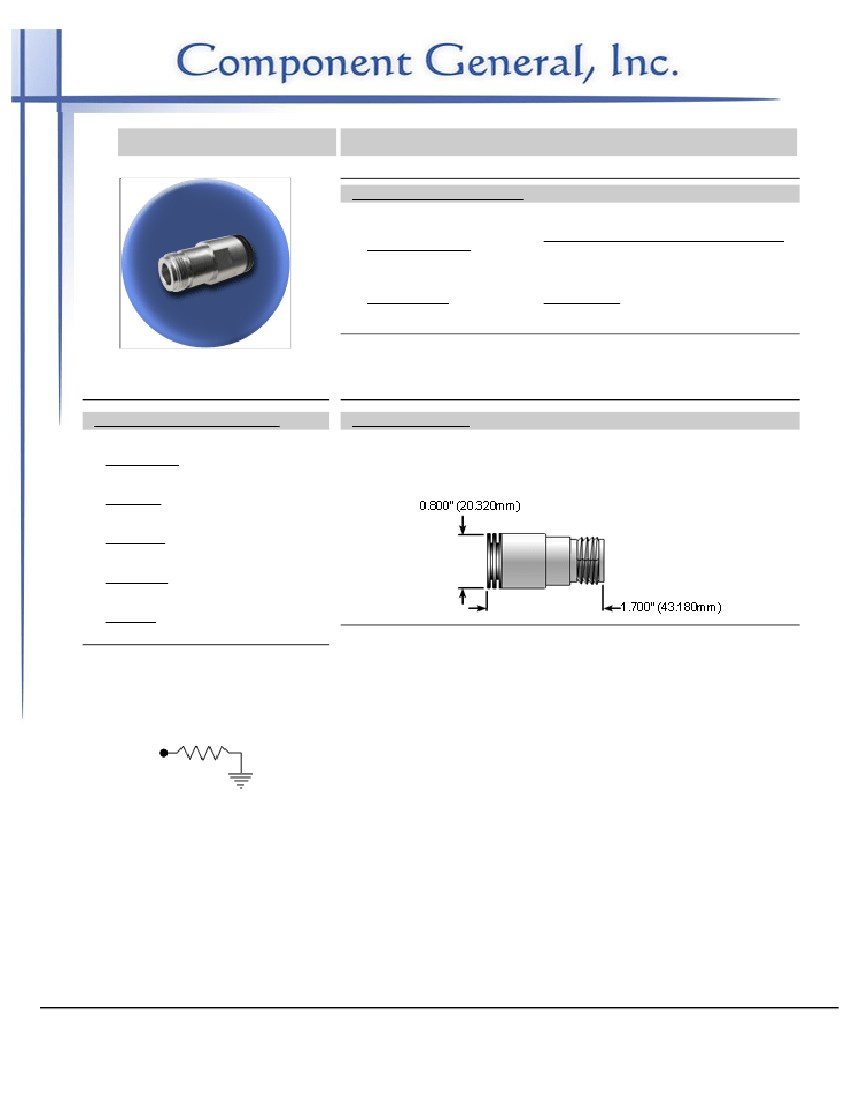

P/N:CFT - 5 NF

Coaxial Terminations

Electrical Specifications

Frequency Range:

DC - 6.0 GHz

6.0 - 12.4 GHz

Average Power:

5 W.

VSWR (Max.):

1.20:1

1.35:1

Peak Power:

2.0 K W.

Impedance:

50

Ω

Mechanical Specifications

Connector:

Brass, Nickel plated.

Part Dimensions

Contact:

Brass, Gold Plated.

Housing:

Aluminum, Black, Anodized.

Insulator:

PTFE, Virgin grade.

Weight:

45.0 Grams.

2445 Success Drive Odessa, FL 33556

727-376-6655 or 800-246-4084
