Base Station Antennas
ANTENNA SPECIFICATIONS
TM
ANTENNA TYPE:
Description:
Electrical Specifications
Frequency Band, MHz
Gain, dBd (dBi)
Azimuth Beamwidth, degrees
Elevation Beamwidth, degrees
Front-to-Back Ratio, dB
Return Loss, dB (VSWR)
Impedance, ohms
Intermodulation, dBc
Polarization Type
Electrical Downtilt, degrees
Maximum Input Power, watts
Lightning Protection
Connector Type
Connector Position
Number of Connectors
CTS08-06015-0D
824-894 MHz, single polarized, 60 degree azimuth beamwidth,
15 dBd gain panel antenna with 0 degrees of electrical downtilt
PerforMax
824-894
14.5 (16.7)
60
11
>25
>15.5 (<1.4)
50
<-150
Single, Vertical
0
500
DC Ground
7-16 DIN Female
Bottom
1
Mechanical Specifications
Antenna Dimensions - L x W x D, mm (in)
Antenna Weight, kg (lb)
Radome Color
Radome Material
2058 (81) x 267 (10.5) x 127 (5)
14.1 (31.0)
Gray
UV Protected PVC
Environmental Specifications
Survival Wind Speed, km/h (mph)
Wind Load - frontal, N (lbf)*
Wind Load - lateral, N (lbf)*
Wind Load - rear, N (lbf)*
Temperature Range, degrees C
Humidity, %
* Based on 100 mph (161 km/h)
201 (125)
845 (190)
196 (44)
1019 (229)
-40 to +65
Up to 100
Shipping Specifications
Shipping Dimensions - L x W x D, mm (in)
Shipping Weight, kg (lb)
2184 (86) x 406 (16) x 267 (10.5)
17.5 (38.4)
Mounting Hardware Specifications
Mounting Bracket Part Number
Mount Description
Mount Weight, kg (lb)
To include mounting bracket with antenna,
order part number:
Shipping Dimensions - mount with antenna -
L x W x D, mm (in)
Shipping Weight - mount with antenna, kg (lb)
Customer Support Center:
From North America: 1-800-255-1479
International: +1-708-873-2307
600899A-2
Adjustable downtilt, 0 to 15 degrees
4.1 (9.0)
CTS08-06015-0DM
2263 (89) x 406 (16) x 267 (10.5)
21.8 (48.1)
This Specification Sheet is for reference only and is subject to change without notice.
Copyright
2001 Andrew Corporation, Printed in the U.S.A.
Bulletin # 94013 - Rev. 9/17/2001
www.andrew.com
Base Station Antennas
TM
ANTENNA SPECIFICATIONS
ANTENNA TYPE:
CTS08-06015-0D
PerforMax
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
100
90
80
70
60
50
40
30
20
10
0
350
340
330
320
310
300
290

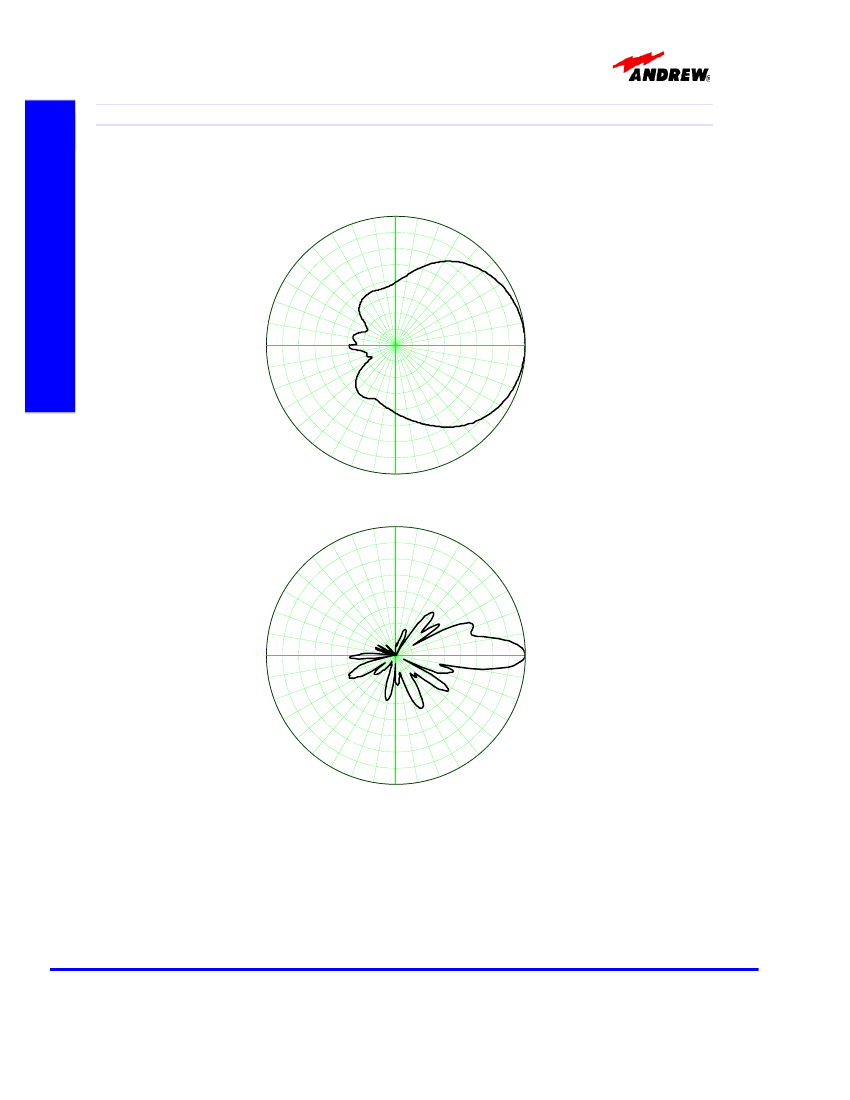

Azimuth Pattern
Polar Plot Center = -40dB
5 dB / radial division
10 degree / angular division
260
270
280
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
100
90
80
70
60
50
40
30
20
10
0
350
340
330
320
310
300
290
Elevation Pattern
Polar Plot Center = -40dB
5 dB / radial division
10 degree / angular division
260
270
280
Pattern File 6402151
Measured at 860 MHz
Page 2
Customer Support Center:
From North America: 1-800-255-1479
International: +1-708-873-2307
www.andrew.com
This Specification Sheet is for reference only and is subject to change without notice.
Copyright
2001 Andrew Corporation, Printed in the U.S.A.
Bulletin # 94013 - Rev. 9/17/2001
