Product Specifications
C-6-CPUSE-N-Ai6
CPUSE-

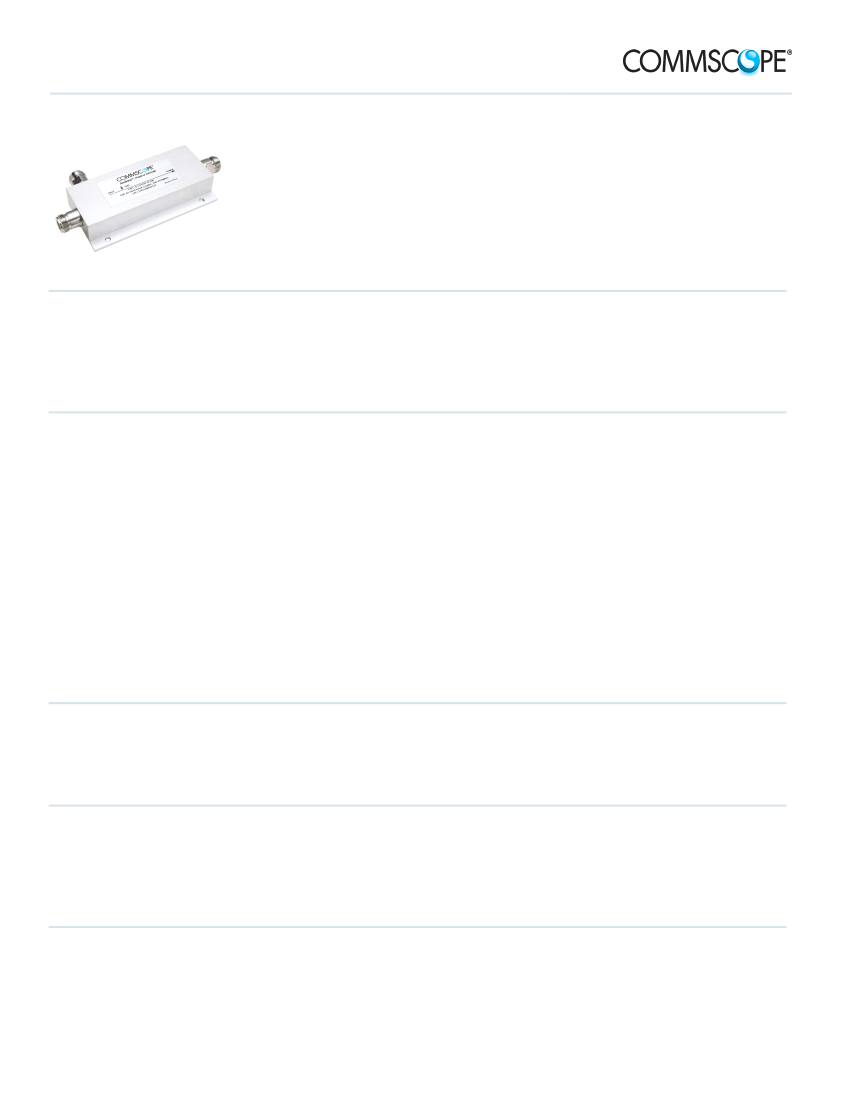

6 dB, Air Directional Coupler, 698–2700 MHz
General Specifications
Brand
Device Type
Interface
Color
Andrew®
Coupler
N Female
Silver
Electrical Specifications
Operating Frequency Band
3rd Order IMD
3rd Order IMD Test Method
Average Power, maximum
Coupling
Coupling Tolerance
Impedance
Isolation at Frequency Band
Peak Power, maximum
Reflected Power, maximum
Return Loss, minimum
VSWR
698 – 2700 MHz
160 dBc (relative to carrier)
Two +43 dBm carriers
200 W
6.0 dB
±1.0 dB
50 ohm
26 dB @ 698–2700 MHz
1 kW
40 W
20.8 dB
1.2:1
Insertion Loss at Frequency Band 1.6 dB @ 698–2700 MHz
Mechanical Specifications
Coupling Nut Proof Torque
Inner Contact Plating
Outer Contact Plating
4.50 Nm | 3.32 ft lb
Silver
Trimetal
Environmental Specifications
Application
Ingress Protection Test Method
Operating Temperature
Relative Humidity
Indoor/Outdoor
IEC 60529:2001, IP65
35 °C to +85 °C (31 °F to +185 °F)
Up to 100%
Dimensions
Height
Length
Width
Net Weight
©2016 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: January 16, 2016
page 1 of 2
May 9, 2016
22.00 mm
155.00 mm
75.00 mm
380.00 g
|
|
|
|
0.87 in
6.10 in
2.95 in
0.84 lb
Product Specifications
C-6-CPUSE-N-Ai6
CPUSE-
Packed Dimensions
Height
Length
Width
Shipping Weight
Volume
40.0 mm | 1.6 in
180.0 mm | 7.1 in
90.0 mm | 3.5 in
420.00 g
648.0 cc
|
0.93 lb
Regulatory Compliance/Certifications
Agency
ISO 9001:2008
Classification
Designed, manufactured and/or distributed under this quality management system
©2016 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: January 16, 2016
page 2 of 2
May 9, 2016
