104MCW400K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 104MCW400K

104MCW400K: DescriptionFilm Capacitor, Polycarbonate, 400V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount, AXIAL LEADED; CategoryPassive components capacitor; File Size83KB，5 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/

Download Datasheet Parametric Compare View All

104MCW400K Overview

Film Capacitor, Polycarbonate, 400V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount, AXIAL LEADED

104MCW400K Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED AC VOLTAGE (V): 200
capacitance	0.1 µF
Capacitor type	FILM CAPACITOR
Custom functions	Tape & Reel
dielectric materials	POLYCARBONATE
JESD-609 code	e0
Manufacturer's serial number	MCW
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
Package form	Axial
positive tolerance	10%
Rated (AC) voltage (URac)	200 V
Rated (DC) voltage (URdc)	400 V
series	MCW
surface mount	NO
Terminal surface	TIN LEAD
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

MCW

FEATURES

Temperature Stable

Self Healing

SPECIFICATIONS

+125°C Metallized

Polycarbonate,

Wrap and Fill Axial

Lead Capacitors

For all general purpose film capacitor applications

Capacitance Range .001µF to 22µF

Voltage Range 63 WVDC to 400 WVDC

PERFORMANCE RATINGS/TESTS

±10% at 1kHz, 25°C

-55°C to +125°C

Capacitance Tolerance

Operating Temperature Range

Voltage Range

WVDC

VAC

Dissipation Factor

Insulation Resistance

0.33 µF

>0.33 µF

VOLTAGE TEMPERATURE DERATING

Operating Temperature

+25°C

+85°C

+125°C

Voltage Rating

100%

80%

100

250

160

400

200

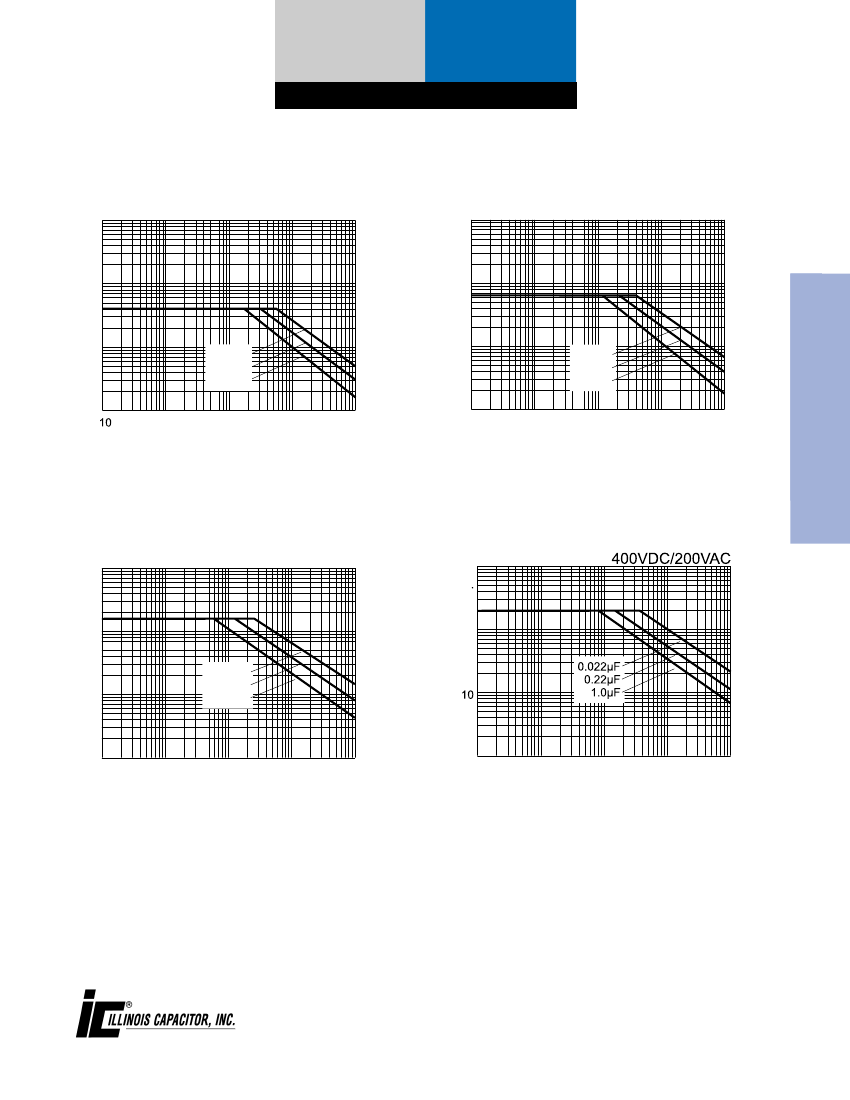

RATED AC VOLTAGE (VAC)

The AC working voltage must be derated when used

at frequencies other than 60Hz due to dielectric

effects.

NOTE:

The peak value of the AC voltage

super-imposed upon the DC voltage should not

exceed the rated DC voltage.

0.3% at 1 kHz, 25°C

Capacitance

Insulation Resistance

15,000M to 30,000 M

5,000 M to10,000 M x µF

5% maximum

specification

<200% maximum

specification

50% of minimum

initial limits

<5% of initial readings

@ +25°C, 1kHz

140% of initial

specification +25°C 1kHz

3000 M xµF

(need not exceed 5000M )

1,000 hours, +85°C with 125% rated DC voltage

Capacitance Change

DIELECTRIC STRENGTH

160% Rated DC for 1 minute at +25°C.

Load Life

Dissipation Factor

Change

Insulation

Resistance

INSULATION RESISTANCE (IR)

@+25°C (< 70%RH) for 1 minute

WVDC

100

>100

Capacitance (µF)

.33

> .33

.33

> .33

250 hours, 95% RH, 25°C and no applied voltage

Capacitance Change

Insulation

Resistance

15,000M

5,000M x µF

3,000M

10,000M x µF

Humidity Test

Dissipation Factor

Change

Insulation Resistance

Self-inductance

Capacitance Drift Factor

Capacitance Temperature

Coefficient

1 nH/mm along the capacitor body and wires

(after 2 years) 1.0% up to 40°C

+150 ppm/°C, ± 50ppm/°C

Rated WVDC

100 WVDC<400

<100

Test Voltage

100WVDC

50WVDC

CONSTRUCTION

Type

Dielectric

Electrodes

Leads

Coating

Extended metallized film

Polycarbonate film

Vacuum deposited aluminum layers

Tinned copper wire

(minimum lead content 5%)

Flame retardant epoxy end sealed resin

(UL94V-O) with polyester tape wrap (UL510)

Extended

metallized film de

Extended

metallized film design

3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com

118
