MCX240A5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MCX240A5

MCX240A5: DescriptionTRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX; CategoryLED optoelectronic/LED photoelectric; File Size502KB，4 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric Compare View All

MCX240A5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MCX240A5	-	-	View	Buy Now

MCX240A5 Overview

TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX

MCX240A5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Crydom
package instruction	ROHS COMPLIANT, PLASTIC, SIP-4
Reach Compliance Code	compli
Other features	UL RECOGNIZED, ZERO VOLTAGE CROSSING
control current	0.01 A
control voltage	90 V
Maximum forward current	0.015 A
input type	AC
Maximum insulation voltage	4000 V
JESD-609 code	e3
Number of components	1
Maximum on-state current	5 A
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRIGGER OUTPUT SSR
Output circuit type	Back to Back SCR
total height	25.4 mm
total length	43.1 mm
Terminal surface	Tin (Sn) - with Nickel (Ni) barrie

Preview

Download Datasheet

View All

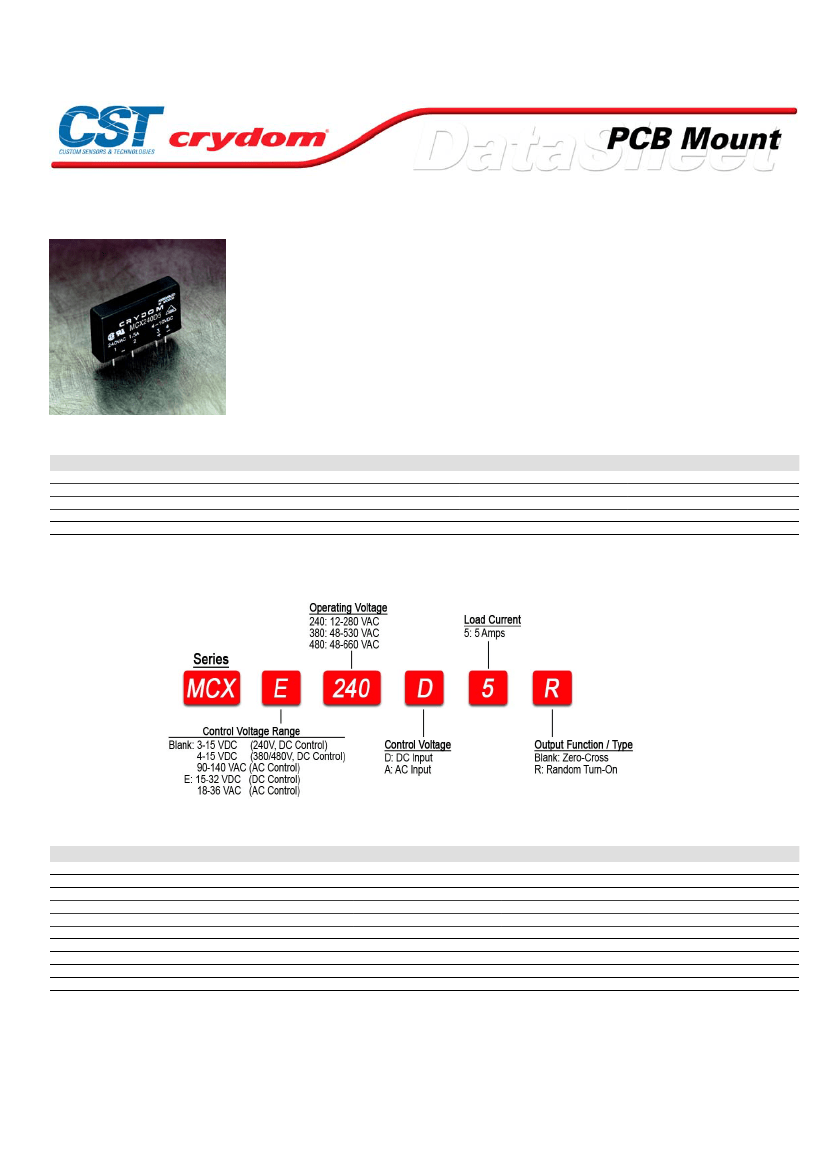

MCX Series

• SIP SSR

• Ratings to 5A @ 280 VAC

• SCR output for heavy industrial loads

• AC or DC control

• Zero-crossing (resistive loads) or random-fire (inductive loads) output

• Plastic encapsulated

PRODUCT SELECTION

Control Voltage

3-15 VDC

4-15 VDC

15-32 VDC

18-36 VAC

90-140 VAC

MCX240D5

MCXE240D5

MCXE240A5

MCX240A5

MCX380D5

MCXE380D5

MCX480D5

MCXE480D5

AVAILABLE OPTIONS

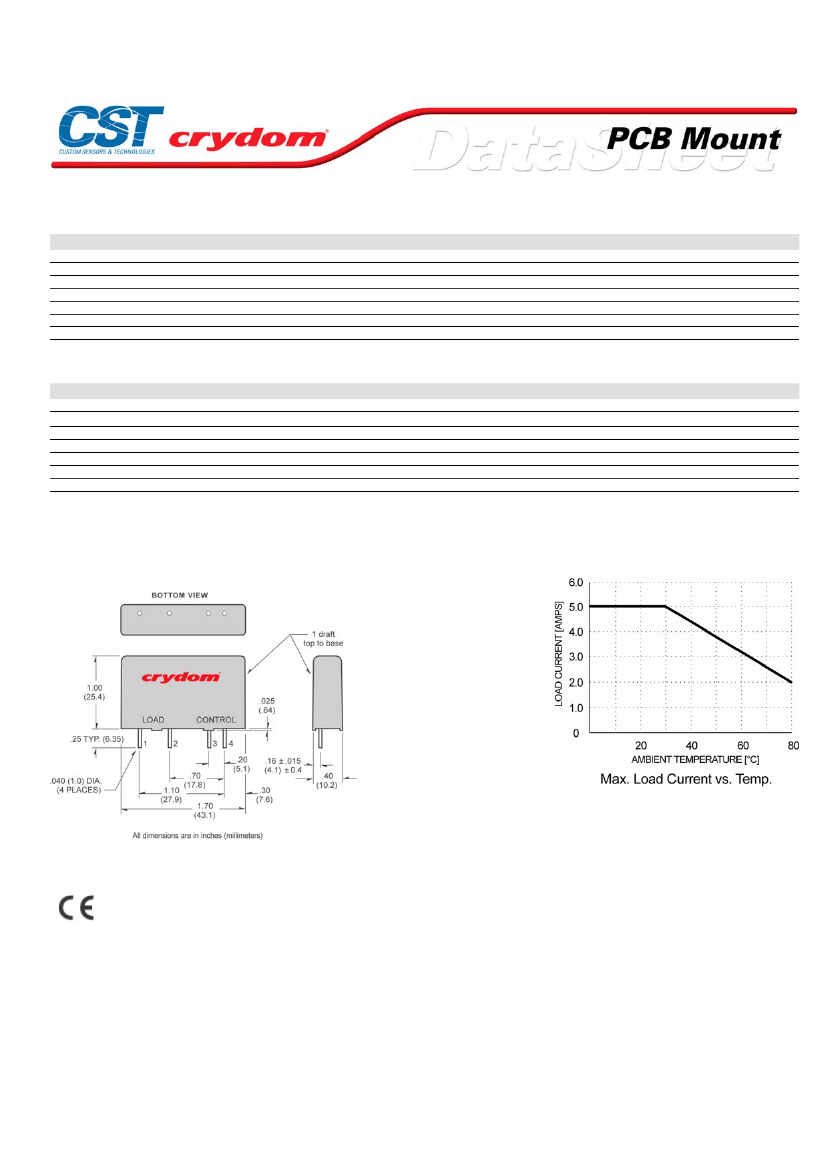

OUTPUT SPECIFICATIONS (1)

Description

Operating Voltage (47-63Hz) [Vrms]

Transient Overvoltage [Vpk]

Maximum Off-State Leakage Current @ Rated Voltage [mArms]

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2)

Maximum Load Current [Arms](3)

Minimum Load Current [Arms]

Maximum Surge Current (16.6ms) [Apk]

Maximum On-State Voltage Drop @ Rated Current [Vpk]

Maximum I²t for fusing (8.3 msec) [A²sec]

Minimum Power Factor (with Maximum Load)

12-280

600

0.1

500

0.06

250

1.4

260

0.5

48-530

1200

0.1

500

0.06

250

1.4

260

0.5

48-660

1200

0.1

500

0.06

250

1.4

260

0.5

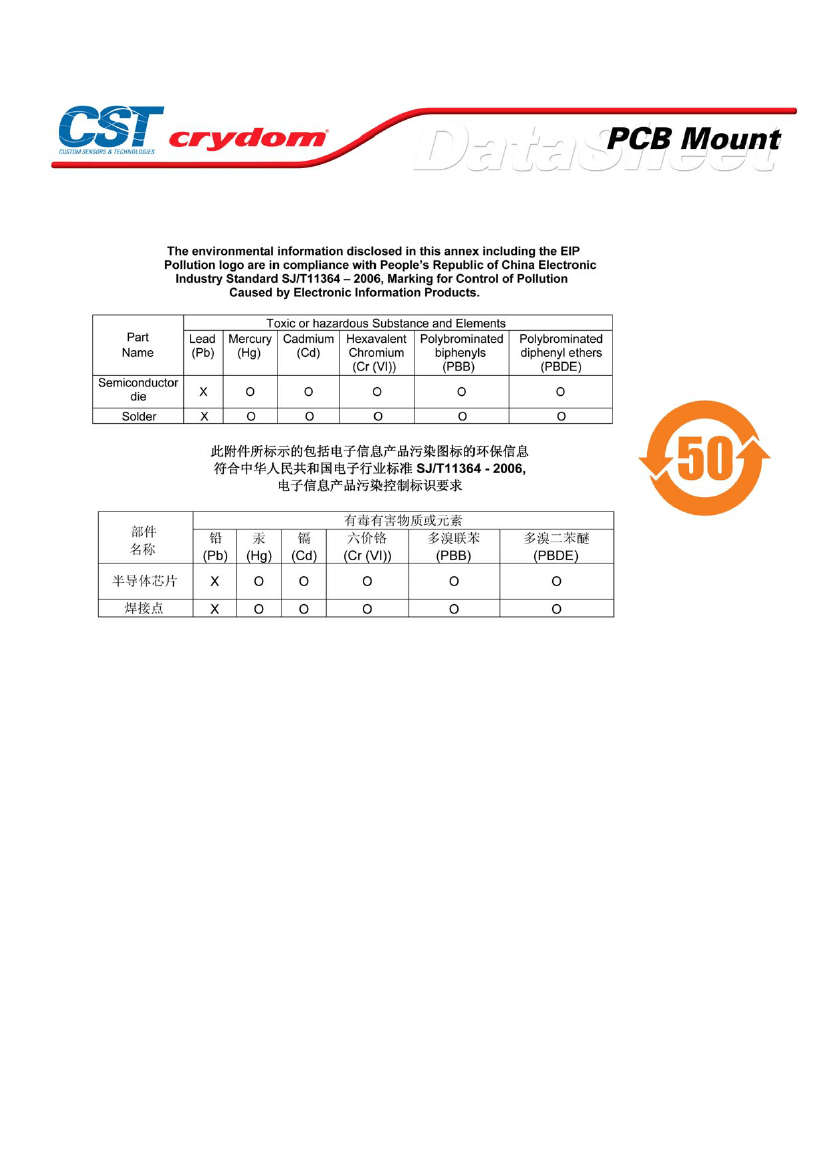

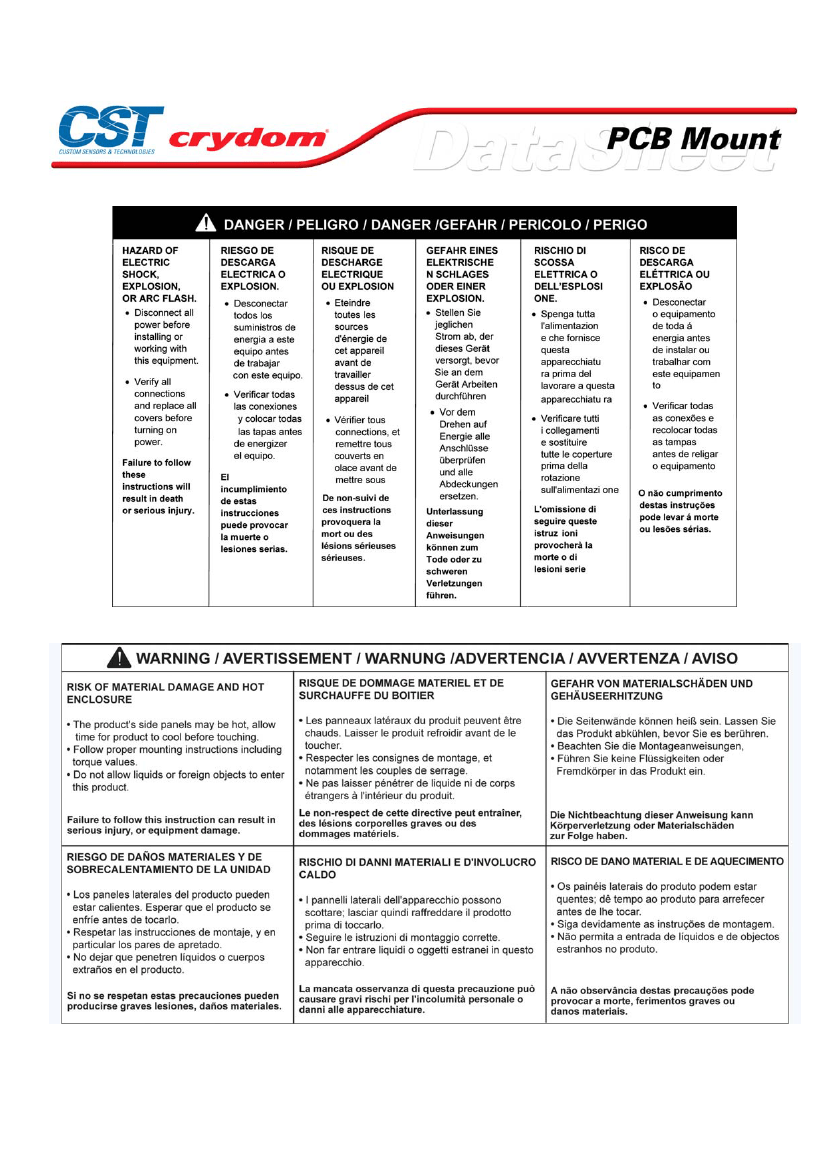

For Contact information visit our web

site.

www.crydom.com

Specifications subject to change without notice.

MCX240A5 Related Products

	MCX240A5	MCXE240D5R	MCX380A5R	MCX480A5R	MCX380A5	MCXE380A5	MCXE480A5R	MCXE480A5	MCX480A5	MCXE380A5R
Description	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX
Maximum insulation voltage	4000 V	4000 V	4000 V	4000 V	4000 V	4000 V	4000 V	4000 V	4000 V	4000 V
Maximum operating temperature	80 °C	80 °C	80 Cel	80 Cel	80 Cel	80 Cel	80 Cel	80 Cel	80 Cel	80 Cel
Minimum operating temperature	-40 °C	-40 °C	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel
Number of functions	-	-	1	1	1	1	1	1	1	1
Processing package description	-	-	ROHS COMPLIANT, PLASTIC, SIP-4	ROHS COMPLIANT, PLASTIC, SIP-4	ROHS COMPLIANT, PLASTIC, SIP-4	ROHS COMPLIANT, PLASTIC, SIP-4	ROHS COMPLIANT, PLASTIC, SIP-4	ROHS COMPLIANT, PLASTIC, SIP-4	ROHS COMPLIANT, PLASTIC, SIP-4	ROHS COMPLIANT, PLASTIC, SIP-4
Lead-free	-	-	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
EU RoHS regulations	-	-	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
state	-	-	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE
terminal coating	-	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Optoelectronic device type	-	-	TRIGGER OUTPUT	TRIGGER OUTPUT	TRIGGER OUTPUT	TRIGGER OUTPUT	TRIGGER OUTPUT	TRIGGER OUTPUT	TRIGGER OUTPUT	TRIGGER OUTPUT
Maximum input control current	-	-	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA
Maximum output current	-	-	5000 A	5000 A	5000 A	5000 A	5000 A	5000 A	5000 A	5000 A
