MD54-0005
Low Cost MMIC Mixer
800 - 1000 MHz
Features
•
•
•
•
•
•
Input Power @ 1 dB Compression: +15 dBm
High LO to RF Isolation: 35 dB
LO Drive Level: +3 to +8 dBm
DC - 200 MHz 3 dB IF Bandwidth
Does not require DC bias
Ultra-Miniature SOT-25 Plastic Package
3
2
Rev. V4
Functional Schematic
C1
L1
R1
Description
M/A-COM’s MD54-0005 is a passive mixer that
achieves the performance of a double balanced
diode mixer in an ultra-miniature SOT-25 package.
The MD54-0005 is ideally suited for use where high
level RF signals and very wide dynamic range are
required. Typical applications include frequency up/
down conversion, modulation, and demodulation in
receivers and transmitters for basestation and
portable systems.
The MD54-0005 employs GaAs FETs as mixing
elements to achieve a very wide dynamic range in a
low cost plastic pack-age. The mixer operates with
LO drive levels of +3 dBm to +8 dBm. The LO port
may be externally tuned for operation in various
frequency bands.
M/A-COM's GaAs IC is fabricated using a mature
0.5 micron gate length GaAs MESFET process. The
process features full passivation for increased
performance and reliability.
1
4
5
Pin Configuration
Pin No.
1
2
3
Function
LO
GND
GND
Pin No.
4
5
Function
RF
IF
External Circuitry Parts List
2
Ref.
Designation
LO = 840 MHz
820 Ohms
22 nH
3.3 pF
Ordering Information
1
Part Number
MD54-0005
MD54-0005TR
MD594-0005SMB
LO = 900 MHz
820 Ohms
18 nH
4 pF
Package
Bulk Packaging
1000 piece reel
Designers Kit
R1
L1
C1
1. Reference Application Note M513 for reel size information.
2. All off-chip components are low-cost surface mount
components obtainable from multiple sources.
(.060 in x .030 in or x .050 in)
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.

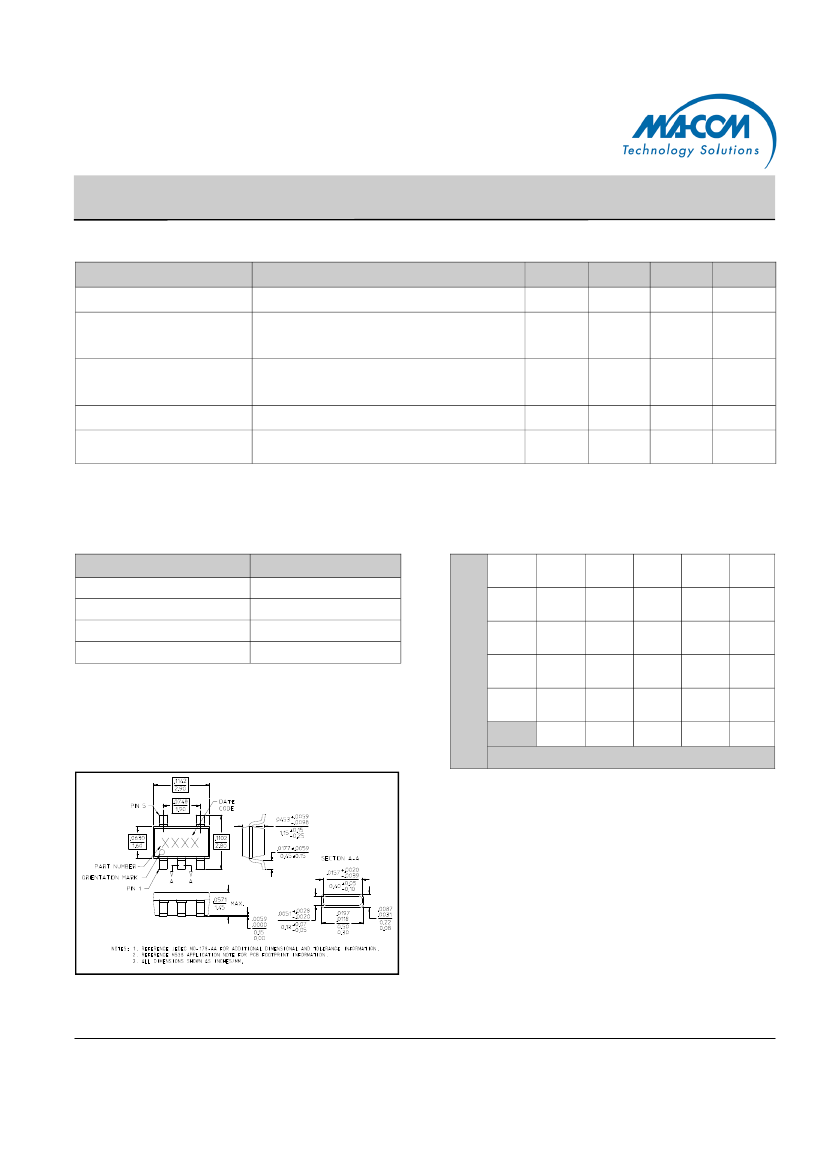

MD54-0005
Low Cost MMIC Mixer
800 - 1000 MHz
Rev. V4
Electrical Specifications:
RF=900 MHz (-10 dBm), LO=840 MHz (+5 dBm), IF=60 MHz, TA = 25°C
Parameter
Conversion Loss
Isolation
Test Conditions
—
LO to RF
LO to IF
RF to IF
RF Port
LO Port
3
IF Port
RF Freq. = 900 MHz, LO = +5 dBm
Two tones at –10 dBm each,
Tone spacing 100 kHz, IF = 60 MHz
Units
dB
dB
dB
dB
Ratio
Ratio
Ratio
dBm
dBc
Min
—
25
—
—
—
—
—
—
—
Typ
8.0
35
25
20
2.0:1
2.0:1
2.0:1
15
55
Max
9.0
—
—
—
—
—
—
—
—
VSWR
Input 1 dB Compression
Two-Tone IM Ratio
4
3. With external LO Port matching. See functional block diagram.
4. IMR vs. RF Drive can be calculated by the formula: IMR = 40-1.5* P
IN
Absolute Maximum Ratings
5
Parameter
RF Input Power
6
Low Drive Power
6
Storage Temperature
Operating Temperature
Spurious Table
4x
3x
Harmonic of LO
2x
1x
0x
23.0
10.6
34.1
21.3
17.7
6.6
14.3
4.0
X
X
36.5
39.9
21.6
21.8
44.0
44.8
0
0
13.9
13.4
53.8
56.1
53.9
57.6
51.6
55.5
57.0
57.6
50.2
53.1
63.8
58.3
53.4
59.3
65.2
58.4
63.7
56.3
59.1
56.5
68.6
58.8
67.3
57.2
66.2
56.3
67.0
56.9
67.2
57.1
Absolute Maximum
+27 dBm
+27 dBm
-65°C to +150°C
-40°C to +85°C
5. Exceeding any one or combination of these limits may cause
permanent damage to this device.
6. Ambient Temperature (
TA
) = +25°C.
0x
1x
2x
3x
4x
SOT-25 Plastic Package
Harmonic of RF
The spurious table shows the spurious signals resulting from the
mixing of the RF and LO input signals, assuming down
conversion. Mixing products are indicated relative to the IF. The
lower frequency mixing term is shown for two different RF input
levels. The top number is for an RF input power of 0 dBm, the
lower number is for -10 dBm.
|nF
RF
- mF
LO
|, RF = 0 dBm
|nF
RF
- mF
LO
|, RF = -10 dBm
RF Frequency = 900 MHz
LO Frequency = 840 MHz
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MD54-0005
Low Cost MMIC Mixer
800 - 1000 MHz
Recommended PCB Configuration
Layout View
Cross Section View
Rev. V4
The PCB dielectric between RF traces and RF ground
layers should be chosen to reduce RF discontinuities
between 50
Ω
lines and package pins.
M/A-COM
recommends an FR-4 dielectric thickness of 0.008” (0.2
mm) yielding a 50
Ω
line width of 0.015” (0.38 mm). The
recommended metalization thickness is 1 oz. copper.
Designer’s Kit MD54-005SMB
The MD54-0005SMB Designer's Kit allows for im-
mediate evaluation of M/A-COM's MD54-0005. The
evaluation board consists of an MD54-0005,
recommended external surface mount circuitry, and
RF connectors, all mounted to a multi-layer FR-4
PCB. Other items included in the Designer's Kit are
a floppy disk (with typical performance data and a
DXF file of the recommended PCB layout) and any
additional Application Notes. The MD54-0005SMB
evaluation PCB and block diagram are illustrated
below with all functional ports labeled.

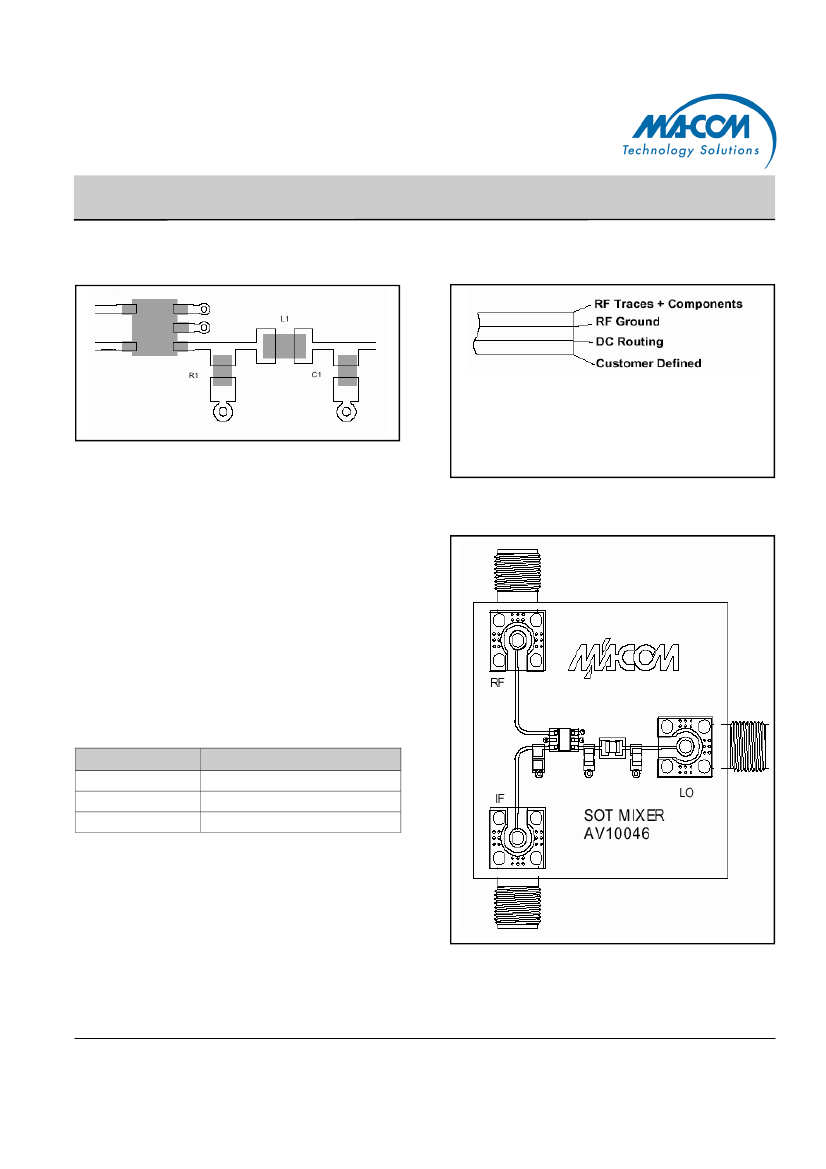

Mixer PCB
Evaluation PCB & RF Connector Losses
Port Reference
RF Port
LO Port
IF Port
Approximate RF Loss
0.10 dB @ 900 MHz
0.10 dB @ 900 MHz
0.05 dB @ 60 MHz
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MD54-0005
Low Cost MMIC Mixer
800 - 1000 MHz
Typical Performance Curves
7,8
Conversion Loss vs. Frequency
11.0
10.5
10.0
Rev. V4
VSWR vs. Frequency
5.0
4.5
4.0
3.5
RF
LO
9.5
9.0
8.5
8.0
3.0
2.5
2.0
1.5
1.0
7.5
7.0
800
0.5
0.0
800
850
900
950
1000
850
900
950
1000
RF Frequency (MHz)
RF Frequency (MHz)
Two-Tone IMR vs. Frequency
70
65
RF = -10dBm each tone
Isolation vs. Frequency
50
45
40
35
LO to RF
LO to IF
RF to IF
60
55
50
45
40
35
30
800
30
25
20
15
10
5
850
900
950
1000
0
800
850
900
950
1000
RF Frequency (MHz)
RF Frequency (MHz)
7. Test Conditions for Down Converter Application: RF=900 MHz (-10 dBm), IF=60 MHz, LO=840 MHz (+5 dBm), LO Port match shown
herein.
8. Test Conditions for Up Converter Application: LO=840 MHz (+5 dBm), IF=60 MHz (-10 dBm), RF=900 MHz, LO Port match shown herein.
4
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
