CT-68664 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power management> transformer> CT-68664

Preview

CT-68664: DescriptionTelecom Transformer; CategoryPower management transformer; File Size254KB，2 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric View All

CT-68664 Overview

Telecom Transformer

CT-68664 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TURNS RATIO 1:1/1.26
Certification	UL
high	6.35 mm
length	8.89 mm
Manufacturer's serial number	CT-68664
Installation features	THROUGH HOLE MOUNTED
physical size	L8.89XB12.7XH6.35 (mm)
surface mount	NO
Transformer type	TELECOM TRANSFORMER
width	12.7 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Telecommunication Components

ctparts.com

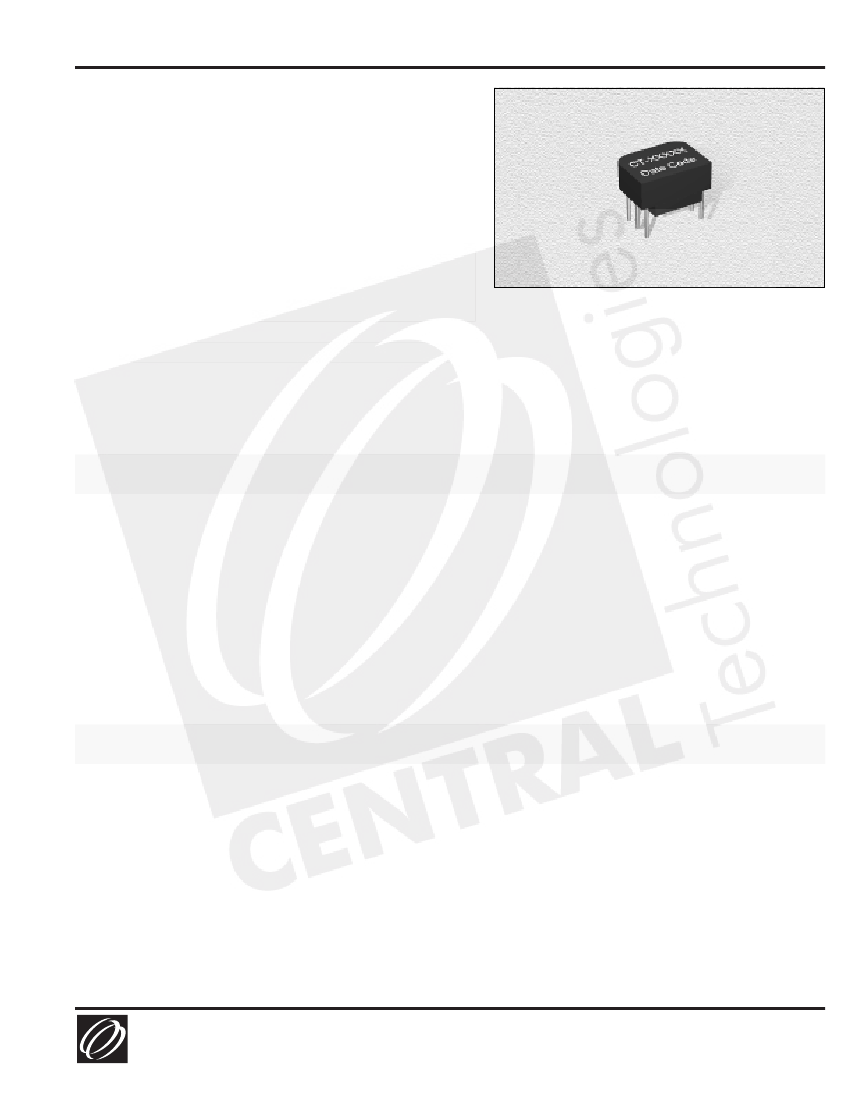

Not shown at actual size.

T1/CEPT/ISDN-PRI

6 Pin DIP

APPLICATIONS

l

Extended & standard temperature range models.

l

Dual surface mount package contains both transmit & receive.

l

Models matched to leading transceiver ICs.

l

UL 1459 Recognized

l

Isolation: 1500 Vrms

Electrical Specifications @ 25°C

ORDER INFO

Standard Temperature Range Single Transformers

Turns

Ratio

(pri:sec ± 5%)

1:1:1(1:2CS)

1CT:3CT

1:1

1CT:1

1:1.36

1:1:1.58(1.26CS:1)

1:1:2(1CS:1)

1:1:2.62(1CS:1.31)

1CT:2CT

1:2CT

1:4CT

1:1.14CT

1:1.15CT

1:1/1.26

1CT:2CT

1:2.3CT

1:1.36CT

1CT:1CT

Part Number

CT-64931

CT-64933

CT-64934

CT-64936

CT-64937

CT-64940

CT-64941

CT-64942

CT-64943

CT-65351

CT-65363

CT-65379

CT-65388

CT-65389

CT-65415

CT-65558

CT-65586

CT-65755

OCL@ 25°C

(mH min.)

1.20

0.30

0.80

1.20

0.50

1.20

1.50

1.20

Cw/w

(pF Max.)

25

30

25

35

30

40

35

30

35

25

LL sec.

(µH Max.)

0.50

0.80

0.60

0.40

0.55

0.50

1.00

0.80

0.60

0.55

0.80

DCR pri

(W Max.)

W

0.70

0.40 & 0.40

0.70

0.50

0.70

0.80

DCR sec

(W Max.)

W

0.70 & 0.70

1.60

1.70

0.70

0.80

0.60

1.20

1.30

1.50

0.80

0.90

1.20

1.40

0.90

0.80

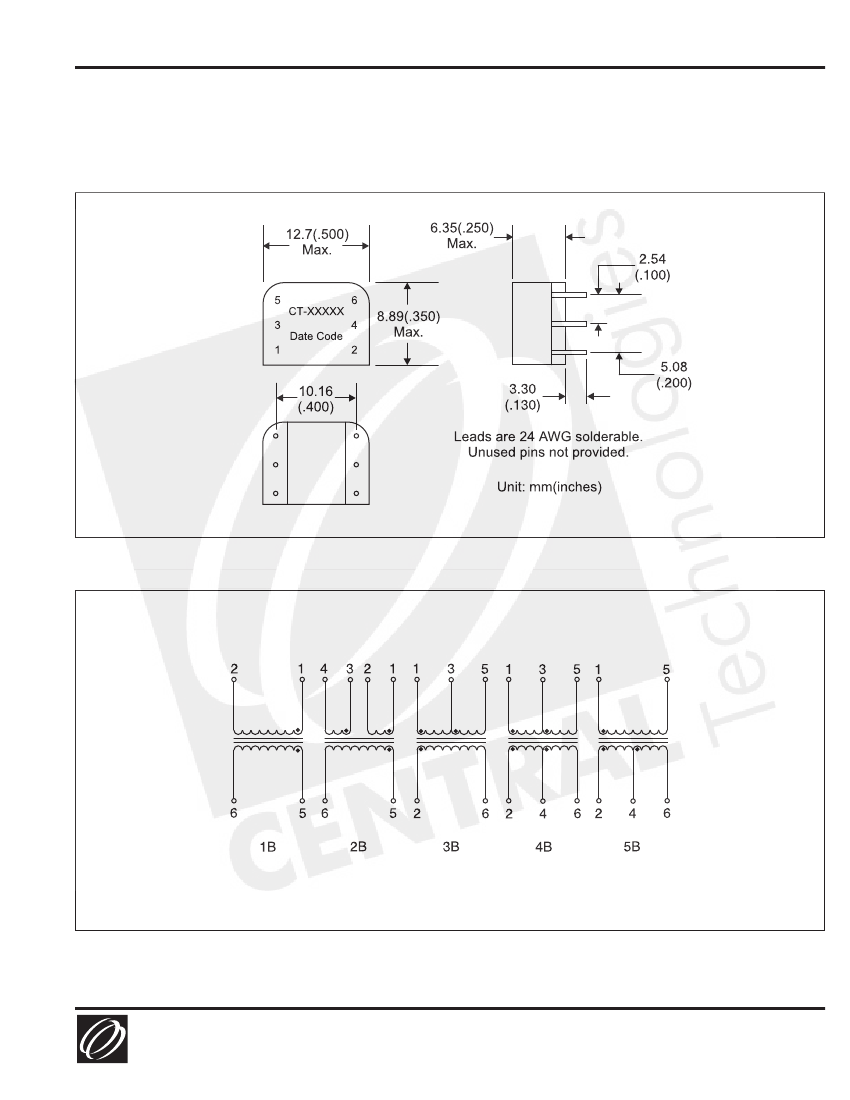

Schematic

2B

4B

1B

3B

1B

2B

4B

3B

5B

3B

4B

5B

4B

Primary

Pins

1-2

1-5

1-2

1-5

5-6

1-4(2.3sh)

1-5

2-6

1-5

2-6

1-5

Extended Temperature Range Single Transformers

Turns

Ratio

(pri:sec ± 5%)

1:1.36

1:1.15CT

1CT:2CT

1CT:1CT

1:1/1.26

1CT:3CT

Part Number

CT-65340

CT-65770

CT-65771

CT-65778

CT-68664

CT-68600

OCL@ 25°C

(mH min.)

1.20

1.50

1.20

1.50

1.20

Cw/w

(pF Max.)

35

40

45

40

50

60

LL sec.

(µH Max.)

0.80

0.60

1.00

0.80

DCR pri

W

(W Max.)

0.90

1.00

0.90

DCR sec

W

(W Max.)

1.20

1.00

2.00

1.00

1.10

2.70

Schematic

1B

3B

4B

3B

4B

Primary

Pins

5-6

2-6

1-5

2-6

1-5

03.10.03

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
