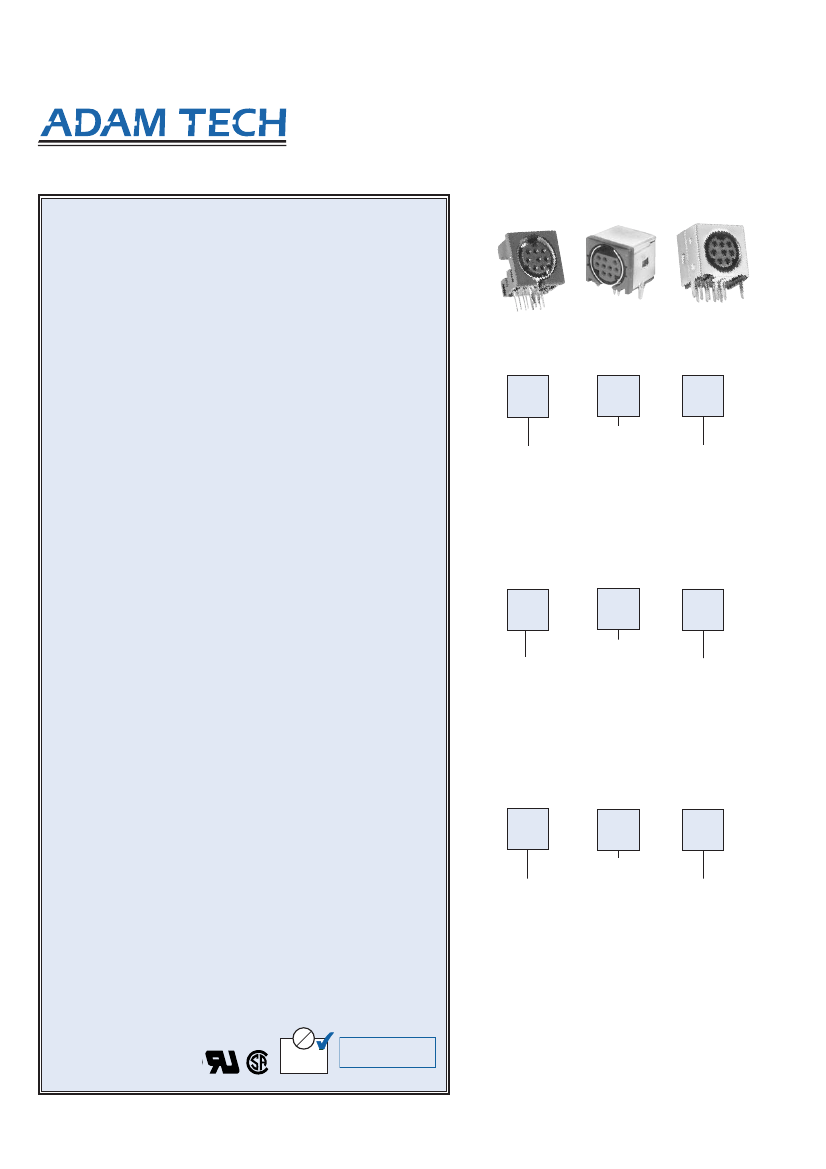

MINI DIN JACKS
Adam Technologies, Inc.
INTRODUCTION:
Adam Tech MDJ Series Mini DIN Jacks continue to be a popular,
high density, low cost, low profile interconnect solution. Available in
a multitude of styles and configurations, they are able to satisfy a
broad range of applications. This series offers jacks in 3 thru 9
positions with straight, right angle or panel mounting and offers
choice of four different shielding and panel grounding options. Color-
coded jacks for port identification are also available. Adam Tech’s
special contact design offers a high reliability connection with
extremely low contact resistance.
FEATURES:
Wide Range of Styles
Right Angle, Straight and Panel Mount types
Shielding Options for EMI/RFI suppression
Color-Coded versions
MATING PLUGS:
All industry standard circular Mini DIN plugs.
SPECIFICATIONS:
Material:
Standard insulator: PBT glass filled, rated UL94V-0
Optional Hi-Temp insulator: Nylon 6T, rated UL94V-0
Insulator Color: Black standard, custom colors available
Contacts: Phosphor Bronze
Shield: Copper Alloy, Tin Plated
Contact Plating:
Gold over Nickel underplate on contact area, tin over Copper
underplate on tails
Electrical:
Operating voltage: 100V AC / 12V DC max.
Current rating: 1 Amp max. / 2 Amps max
Contact resistance: 20 mΩ max. initial
Insulation resistance: 500 MΩ min.
Dielectric withstanding voltage: 500V AC for 1 minute
Mechanical:
Insertion force: 9.9 lbs max.
Withdrawal force: 0.8 lbs min
Mating durability: 5000 cycles min.
Temperature Rating:
Operating temperature: -25°C to +70°C
Soldering process temperature:
Standard insulator: 235°C
Hi-Temp insulator: 260°C
PACKAGING:
Anti-ESD plastic trays
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
PC BOARD & PANEL MOUNT
MDJ SERIES
ORDERING INFORMATION
RIGHT ANGLE MOUNT
MDJ
008
POSITIONS
003 thru 009
S
SERIES
INDICATOR
MDJ
= Right Angle
PCB Mount
MDJD
= Stacked
Right Angle
PCB Mount
SHIELDING
Blank
= No shield
S
= Four sided shield
FS
= Five sided shield
VERTICAL MOUNT
MDV
004
POSITIONS
003 thru 008
SERIES
INDICATOR
MDV
= Vertical,
PCB Mount
MOUNTING
Blank
= No mounting
provision
B
= Threaded outer
shell with
mounting nut
E
= Flanges with
mounting holes
PANEL MOUNT
MDE
006
POSITIONS
003 thru 008
W
SERIES INDICATOR
MDE
= Panel mount
jack with flanges
TERMINATION
W
= 6" wire leads
stripped .250"
WS
= 6" wire leads
with .250" spade
terminals
Pb
E
D
COMPLIANT
2002 / 95
/ EC
UL
®
®
®
RoHS
V
HI-TEMP
INSULATOR
AVA I L A B L E
OPTIONS:
Add designator(s) to end of part number
RT
= PC board retention feature. On shielded units, crimped
shield legs. On non-shielded units, forked grounding pin.
PG
= Spring panel ground
PG4
= Four finger panel ground
HT
= Hi-Temp insulator for Hi-Temp soldering processes
up to 260°C
TGBP
= Top port color Green / Bottom port color Purple
216
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
RoHS
COMPLIANT
