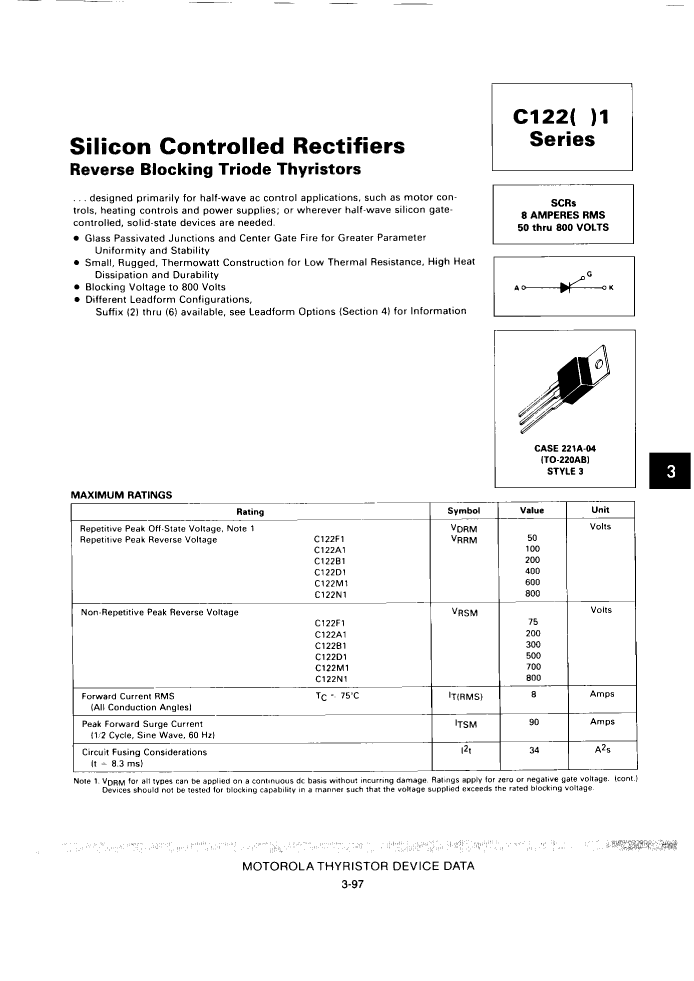

C122F1-L datasheet, PDF - EEWORLD Datasheet

C122F1-L: DescriptionSilicon Controlled Rectifier, 8A I(T)RMS, 50V V(DRM), 50V V(RRM), 1 Element, TO-220AB; CategoryAnalog mixed-signal IC Trigger device; File Size78KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

C122F1-L Overview

Silicon Controlled Rectifier, 8A I(T)RMS, 50V V(DRM), 50V V(RRM), 1 Element, TO-220AB

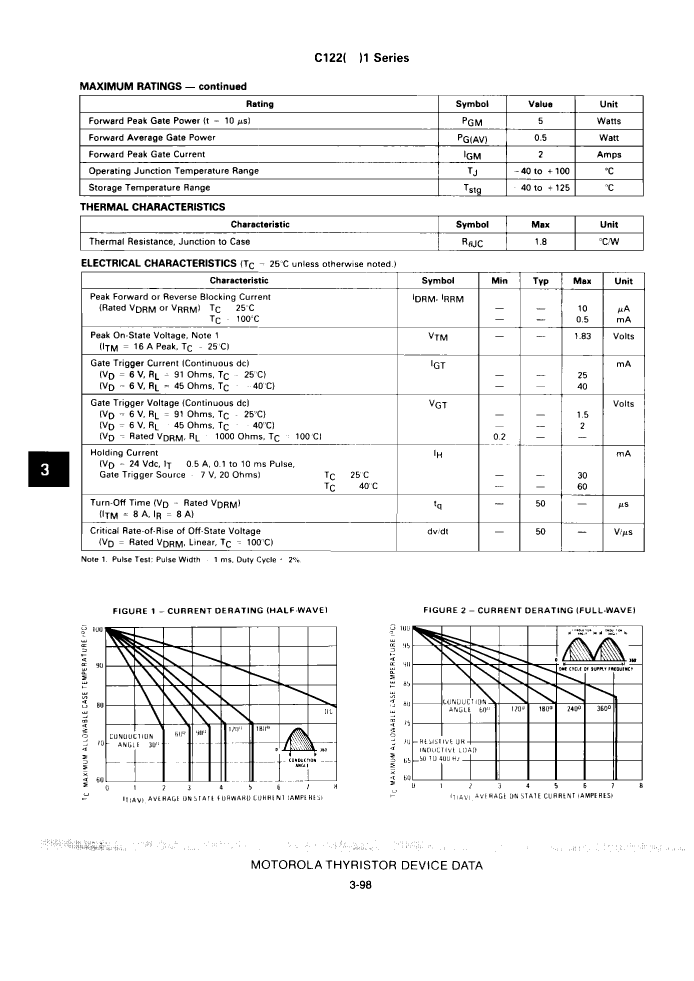

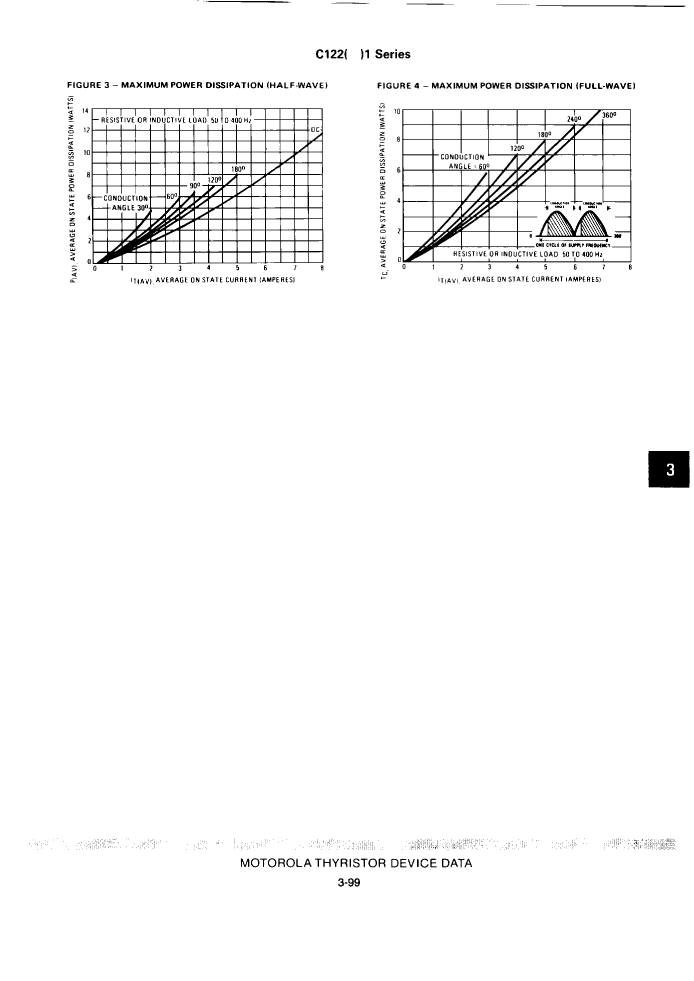

Parameter Name	Attribute value
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ANODE
Nominal circuit commutation break time	50 µs
Configuration	SINGLE
Maximum DC gate trigger current	25 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	30 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	8 A
Maximum repetitive peak off-state leakage current	10 µA
Off-state repetitive peak voltage	50 V
Repeated peak reverse voltage	50 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	SCR
Base Number Matches	1
