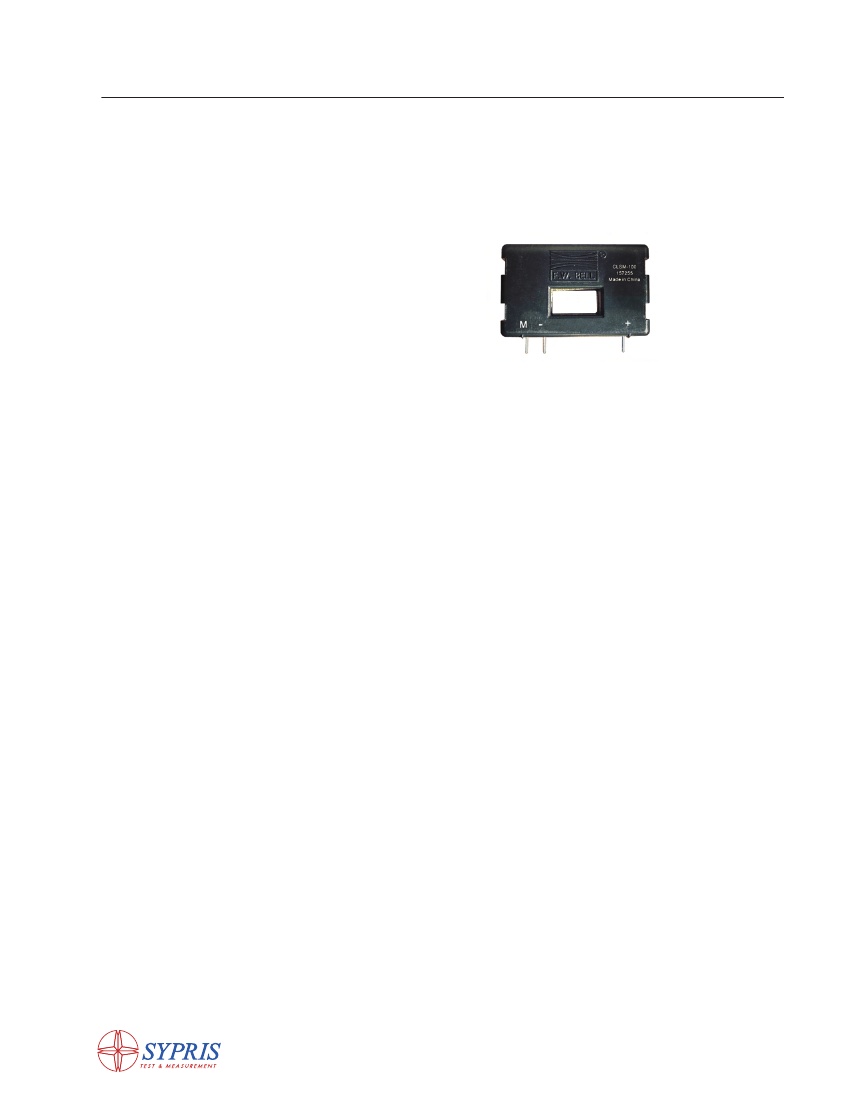

Model CLSM-100
Description
Closed Loop Hall Effect
The Model CLSM-100 is a closed loop Hall effect current sensor that
accurately measures DC and AC currents and provides electrical isolation
between the current carrying conductor and the output of the sensor.
Features
• Noncontact measurement of high current
• Measures DC, AC and impulse currents
• Very fast response and high accuracy
• High overload capacity
Applications
•
•
•
•
•
•
Variable speed drives for motors
Welding Equipment
Power supply Equipment
Measure and control system
Over current protection
Protection of power semiconductors
Electrical Specifications
CLSM-100
Nominal current (I
N
)
................................................................................................
±100
A
Current range
.....................................................................................................
0 to
±150
A
Nominal output current (I
M
)
......................................................................................
50
mA
Turns Ratio
...........................................................................................................
2000
/ 1
Measuring Resistance (R
M
)
.....................................................................................
0 to
80Ω
W
Overall accuracy at 25º C
....................................................................................
±0.5
%
of I
N
Supply voltage
(Vdc)............................................................................................
±15
to
±18
Current consumption
...................................................................................
15
mA +
output current
Accuracy-Dynamic
Performance
Zero current offset at 25ºC....................................................................................
<
±0.2mA
Offset current temperature drift (-20ºC to +85ºC) ................................................... <
±0.25mA
Linearity
..........................................................................................................
better than
±0.1%
Response time
.................................................................................................
better than
0.5µs
di / dt
............................................................................................................
better than
70A/µs
Frequency range
...............................................................................................
DC to
250KHz
(-3dB)
General Information
Operating temperature........................................................................................ -25ºC to +85ºC
Storage temperature
.........................................................................................
-40ºC to +100ºC
Package
..........................................................................................
flame retardant plastic case, UL94V-0
Isolation voltage
................................................................................................
5kV/50Hz/1
min.
Output reference.................................................. To obtain a positive output on
terminal M, input current
must flow in the direction of the arrow (conventional flow)
Weight ..................................................................................................................
23
grams
Mounting ...........................................................
Designed to mount directly on PCB via through hole connection pins
Aperture size ..........................................................................................
0.256"
x
0.512" (6.5
x
13 mm)
Notes:
1.
Busbar temperature should not exceed 100ºC.
2.
The dynamic performance is the best when the busbar fills the aperture.
3.
Due to continuous process improvement, all specifications are subject to change without notice.
