C122A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> C122A

C122A: DescriptionSilicon Controlled Rectifier, 8000mA I(T), 100V V(DRM); CategoryAnalog mixed-signal IC Trigger device; File Size329KB，6 Pages; ManufacturerNorth American Philips Discrete Products Div

Download Datasheet Parametric Compare View All

C122A Overview

Silicon Controlled Rectifier, 8000mA I(T), 100V V(DRM)

C122A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
Nominal circuit commutation break time	50 µs
Maximum DC gate trigger current	25 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	30 mA
JESD-609 code	e0
Maximum leakage current	0.5 mA
On-state non-repetitive peak current	90 A
Maximum on-state voltage	1.8 V
Maximum on-state current	8000 A
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	100 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	SCR
Base Number Matches	1

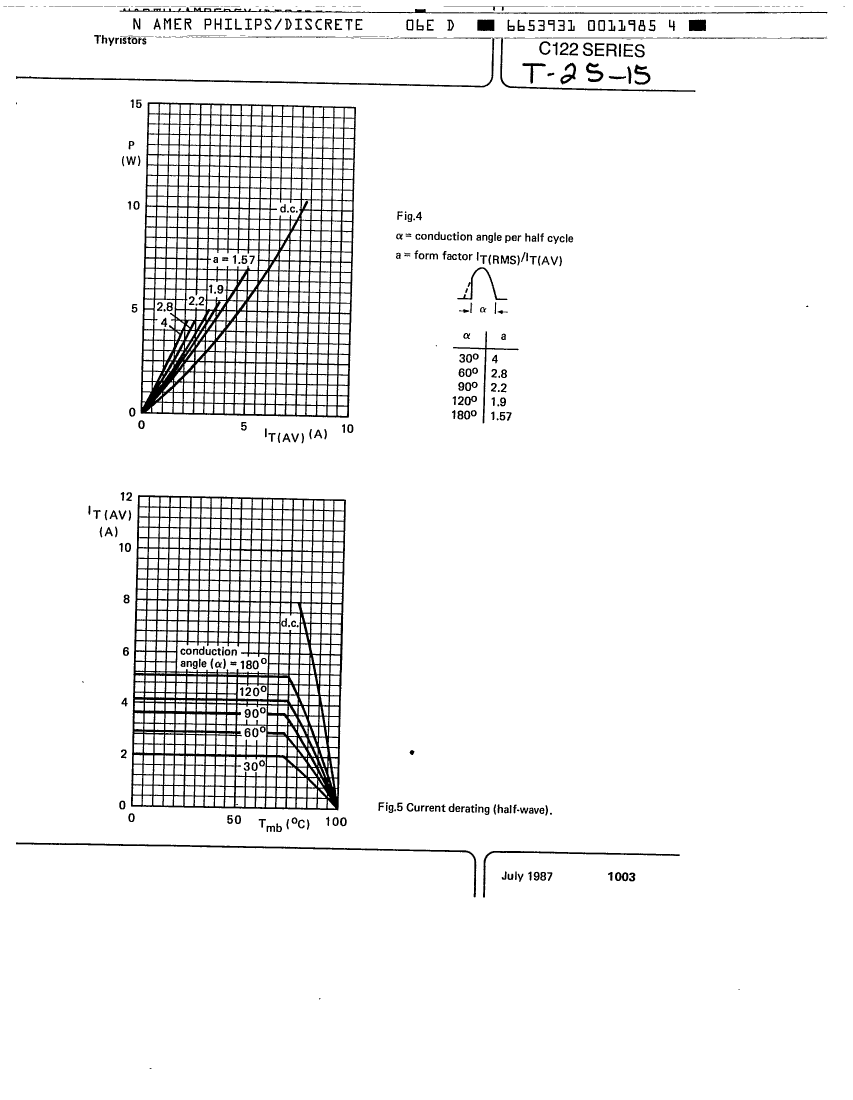

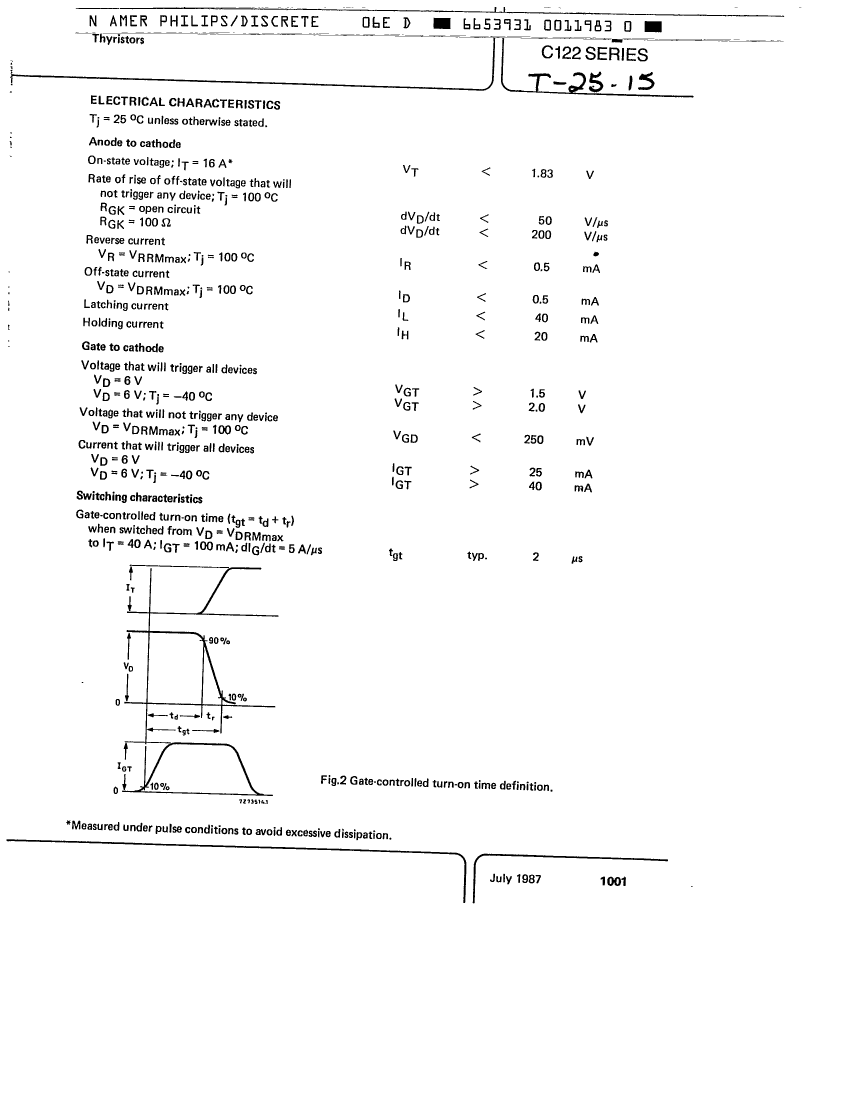

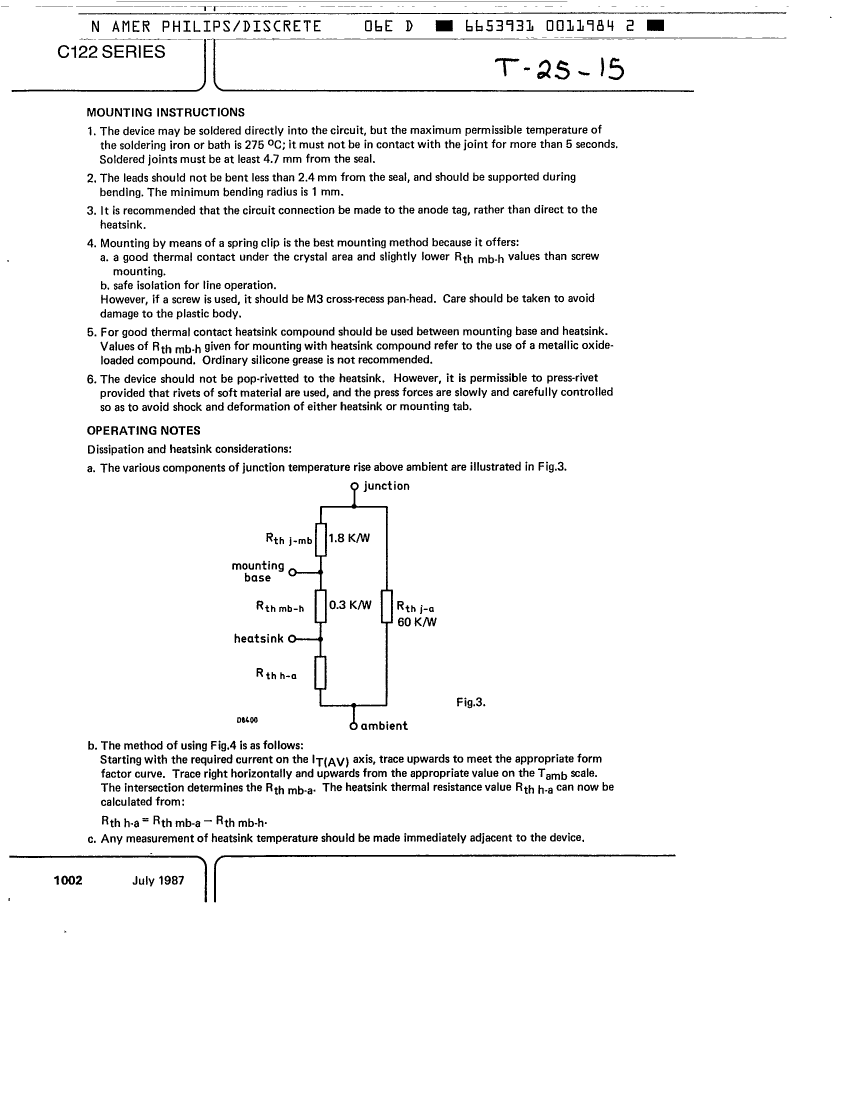

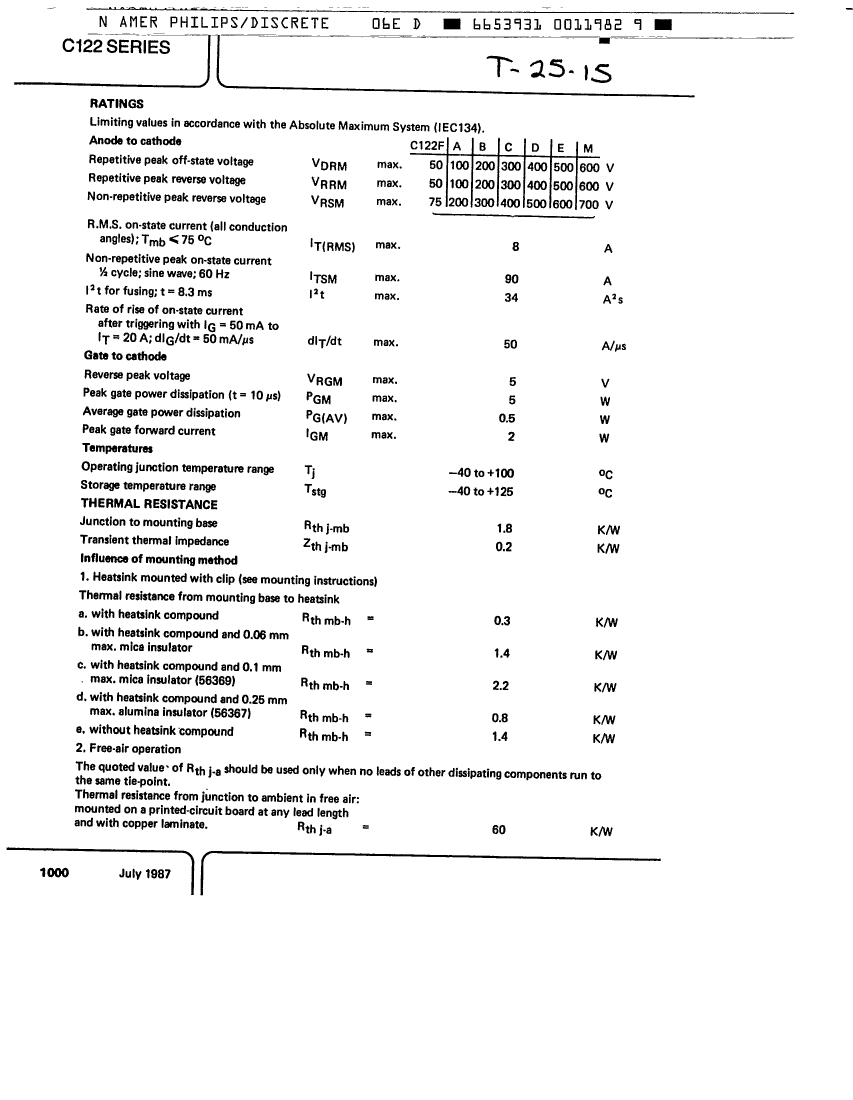

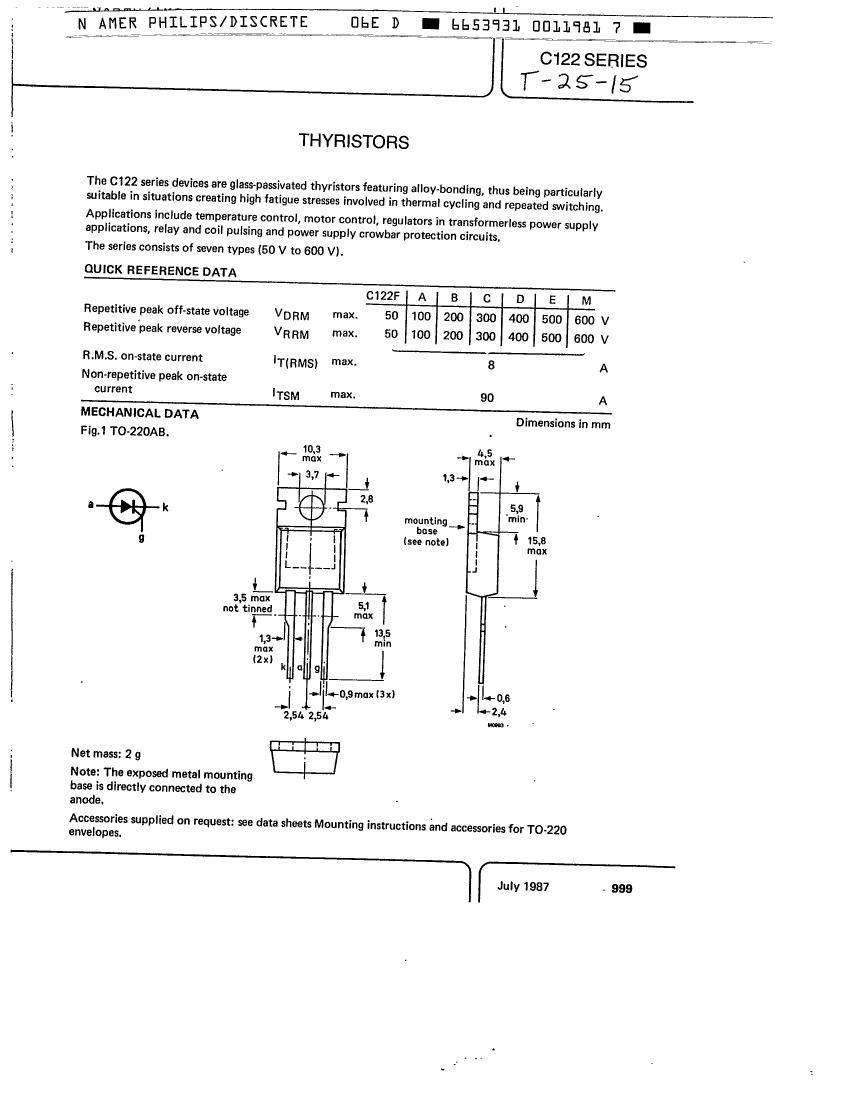

Preview

Download Datasheet

View All

C122A Related Products

	C122A	C122C	C122D	C122E	C122B	C122F	C122M
Description	Silicon Controlled Rectifier, 8000mA I(T), 100V V(DRM)	Silicon Controlled Rectifier, 8000mA I(T), 300V V(DRM)	Silicon Controlled Rectifier, 8000mA I(T), 400V V(DRM)	Silicon Controlled Rectifier, 8000mA I(T), 500V V(DRM)	Silicon Controlled Rectifier, 8000mA I(T), 200V V(DRM)	Silicon Controlled Rectifier, 8000mA I(T), 50V V(DRM)	Silicon Controlled Rectifier, 8000mA I(T), 600V V(DRM)
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Nominal circuit commutation break time	50 µs	50 µs	50 µs	50 µs	50 µs	50 µs	50 µs
Maximum DC gate trigger current	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	30 mA	30 mA	30 mA	30 mA	30 mA	30 mA	30 mA
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA
On-state non-repetitive peak current	90 A	90 A	90 A	90 A	90 A	90 A	90 A
Maximum on-state voltage	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V
Maximum on-state current	8000 A	8000 A	8000 A	8000 A	8000 A	8000 A	8000 A
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Off-state repetitive peak voltage	100 V	300 V	400 V	500 V	200 V	50 V	600 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1	1	1
