C10F datasheet, PDF - EEWORLD Datasheet

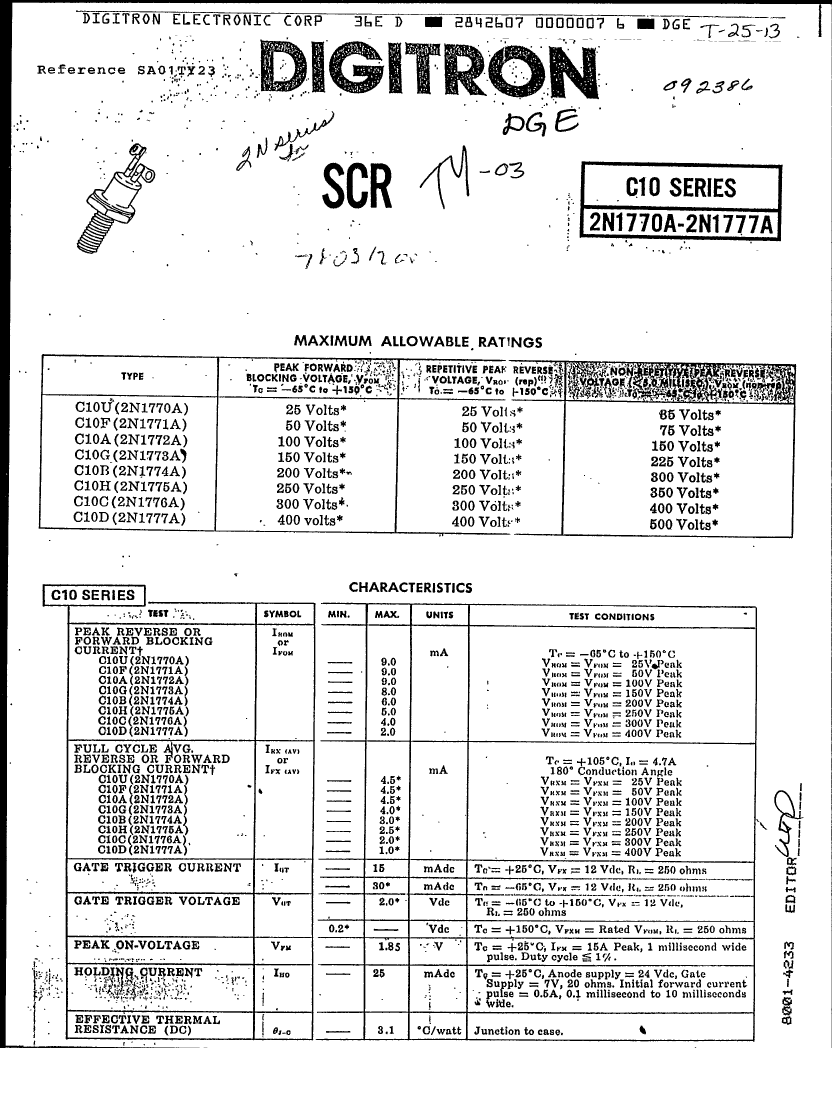

C10F: DescriptionSILICON CONTROLLED RECTIFIER,50V V(DRM),4.7A I(T),TO-208AB; CategoryAnalog mixed-signal IC Trigger device; File Size73KB，1 Pages; ManufacturerDigitron; Websitehttp://www.digitroncorp.com

Download Datasheet Parametric Compare View All

C10F Overview

SILICON CONTROLLED RECTIFIER,50V V(DRM),4.7A I(T),TO-208AB

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Critical rise rate of minimum off-state voltage	20 V/us
Maximum DC gate trigger current	15 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	25 mA
Maximum leakage current	9 mA
On-state non-repetitive peak current	60 A
Maximum on-state voltage	1.85 V
Maximum on-state current	4700 A
Maximum operating temperature	150 °C
Minimum operating temperature	-60 °C
Off-state repetitive peak voltage	50 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	C10F	C10A	C10G	C10B	C10U	C10H	C10D	C10C
Description	SILICON CONTROLLED RECTIFIER,50V V(DRM),4.7A I(T),TO-208AB	SILICON CONTROLLED RECTIFIER,100V V(DRM),4.7A I(T),TO-208AB	SILICON CONTROLLED RECTIFIER,150V V(DRM),4.7A I(T),TO-208AB	SILICON CONTROLLED RECTIFIER,200V V(DRM),4.7A I(T),TO-208AB	SILICON CONTROLLED RECTIFIER,25V V(DRM),4.7A I(T),TO-208AB	SILICON CONTROLLED RECTIFIER,250V V(DRM),4.7A I(T),TO-208AB	SILICON CONTROLLED RECTIFIER,400V V(DRM),4.7A I(T),TO-208AB	SILICON CONTROLLED RECTIFIER,300V V(DRM),4.7A I(T),TO-208AB
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Critical rise rate of minimum off-state voltage	20 V/us	20 V/us	20 V/us	20 V/us	20 V/us	20 V/us	20 V/us	20 V/us
Maximum DC gate trigger current	15 mA	15 mA	15 mA	15 mA	15 mA	30 mA	15 mA	15 mA
Maximum DC gate trigger voltage	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Maximum holding current	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA
Maximum leakage current	9 mA	9 mA	8 mA	6 mA	9 mA	5 mA	2 mA	4 mA
On-state non-repetitive peak current	60 A	60 A	60 A	60 A	60 A	60 A	60 A	60 A
Maximum on-state voltage	1.85 V	1.85 V	1.85 V	1.85 V	1.85 V	1.85 V	1.85 V	1.85 V
Maximum on-state current	4700 A	4700 A	4700 A	4700 A	4700 A	4700 A	4700 A	4700 A
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-60 °C	-60 °C	-60 °C	-60 °C	-60 °C	-55 °C	-60 °C	-60 °C
Off-state repetitive peak voltage	50 V	100 V	150 V	200 V	25 V	250 V	400 V	300 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1	1	1	-
