COM23-10-FREQ-TR: DescriptionCMOS Output Clock Oscillator, 2.5MHz Min, 66.666MHz Max; CategoryPassive components oscillator; File Size23KB，1 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

COM23-10-FREQ-TR Overview

CMOS Output Clock Oscillator, 2.5MHz Min, 66.666MHz Max

COM23-10-FREQ-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	COM23
Installation features	SURFACE MOUNT
Maximum operating frequency	66.666 MHz
Minimum operating frequency	2.5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
physical size	5mm x 3.2mm x 1.3mm
longest rise time	10 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Base Number Matches	1

Preview

Download Datasheet

View All

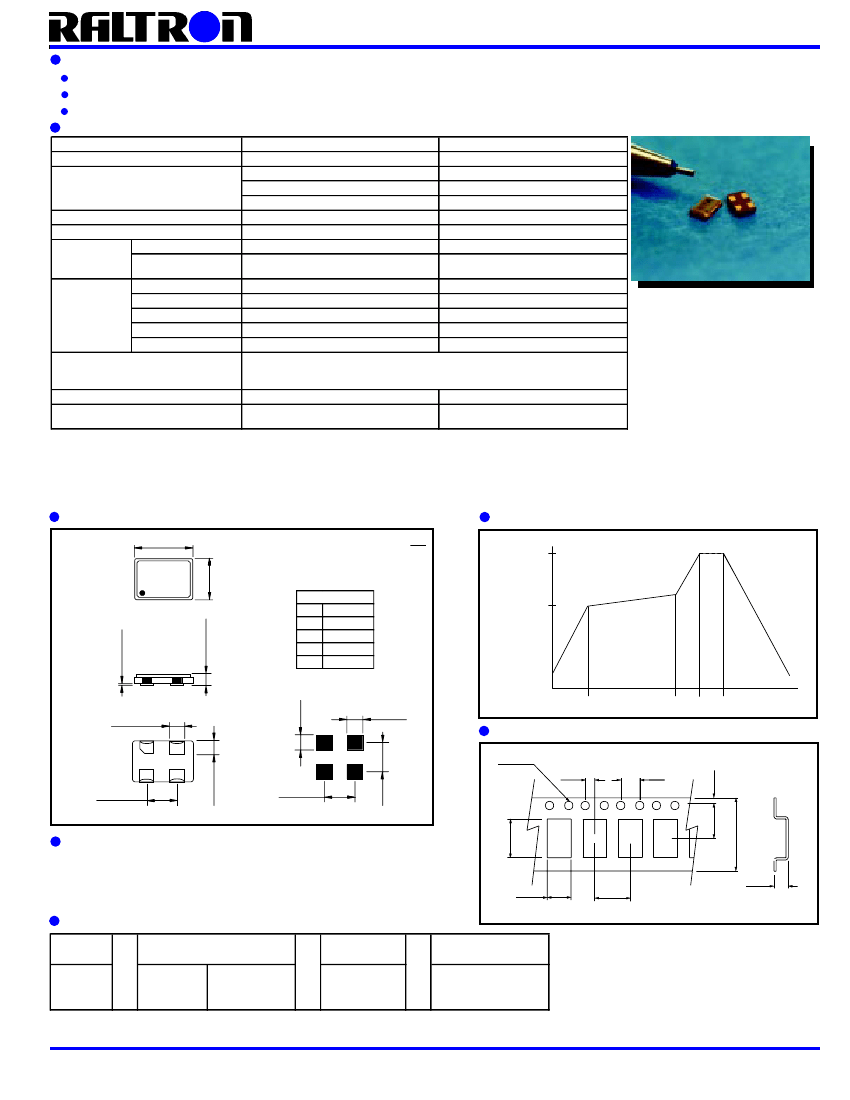

SURFACE MOUNT CRYSTAL OSCILLATORS

FEATURES

ULTRA SMALL PACKAGE

AVAILABLE IN 5.0 V OR 3.0 V

ENABLE/DISABLE FUNCTION

SPECIFICATIONS

SERIES

FREQUENCY RANGE

FREQUENCY STABILITY†

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE RANGE

VOLTAGE

INPUT

CURRENT (MAX)

SYMMETRY

RISE AND FALL TIME

LOGIC "0" LEVEL

LOGIC "1" LEVEL

LOAD

COM25

2.50 MHz TO 66.666 MHz

COM2510 : ±100 ppm

COM2505 : ±50 ppm

COM2503 : ±30 ppm

-10° C TO +70° C

-25° C TO +85° C

+5 VDC ±0.5 VDC

2.50 MHz TO 20.00MHz: 12 mA MAX

20.10 MHz TO 66.666 MHz: 30 mA MAX

40 TO 60% AT 0.5 VCC

8 ns MAX

VCC X 0.1 V MAX

VCC X 0.9 V MIN

15 pF

SERIES COM25 AND COM23

COM23

2.50 MHz TO 66.666 MHz

COM2310 : ±100 ppm

COM2305 : ±50 ppm

COM2303 : ±30 ppm

-10° C TO +70° C

-25° C TO +85° C

+3.3 VDC ±0.3 VDC

2.50 MHz TO 66.666MHz: 30 mA MAX

40 TO 60% AT 0.5 VCC

10 ns MAX

VCC X 0.1 V MAX

VCC X 0.9 V MIN

15 pF

OUTPUT

ENABLE/DISABLE FUNCTION

ENABLE/DISABLE TIME

STANDBY CURRENT

PIN 1: HIGH OR OPEN PIN 3: OSCILLATION

PIN 1: LOW PIN 3: HIGH IMPEDANCE

100 ns MAX

100 uA MAX

(CONTROL=L LEVEL VCC=5.0 V)

150 ns MAX

100 uA MAX

(CONTROL=L LEVEL VCC=3.3 V)

† INCLUSIVE OF 25°C TOLERANCE, OPERATING TEMPERATURE RANGE, VOLTAGE OR LOAD CHANGES,

AGING, SHOCK AND VIBRATION

OUTLINE DRAWING

.126 ± .004

5.0 ± 0.1

.197 ± .004

MARKING

AREA

Scale none Dimension in

mm

inch

REFLOW SOLDERING PROFILE

240 °C

REFLOW

3.2 ± 0.1

PIN CONNECTION

COM SERIES

FUNCTION

CONTROL

GROUND

OUTPUT

VCC

TEMPERATURE

PREHEATING

150 °C

COOLING

.051 MAX

1.3 MAX

1

2

3

4

.05 MAX

.002 MAX

25 °C

SOLDER PATTERN

100 s TYPICAL

TIME (SECONDS)

10 s

.059

1.5

1.2 ± 0.1

.047 ± .004

1

4

2.54 ± 0.1

.100 ± .004

2

1.6

.063

CARRIER TAPE DIMENSIONS

1.75

.069

5.5

.217

12 ± 0.2

.472 ± 0.008

8.0

.315

1.90

.075

1.5 DIA

.06 DIA

2.0

.079

4.0

.16

3

.039 ± .004

1.0 ± 0.1

2.54

.100

.098

2.5

PACKAGING

178 mm REEL DIAMETER, 12mm TAPE WIDTH, 8mm PITCH

QUANTITY: 1000 PIECES PER REEL

PART NUMBERING SYSTEM

SERIES

COM23

COM25

-

FREQUENCY

STABILITY

±100 PPM

10

±50 PPM

05

±30 PPM

03

FREQUENCY

-

IN MHz

-

TR

TAPE AND REEL

EXAMPLE: COM2503-32.000-TR

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com

5.5

.217

3.7

.146
