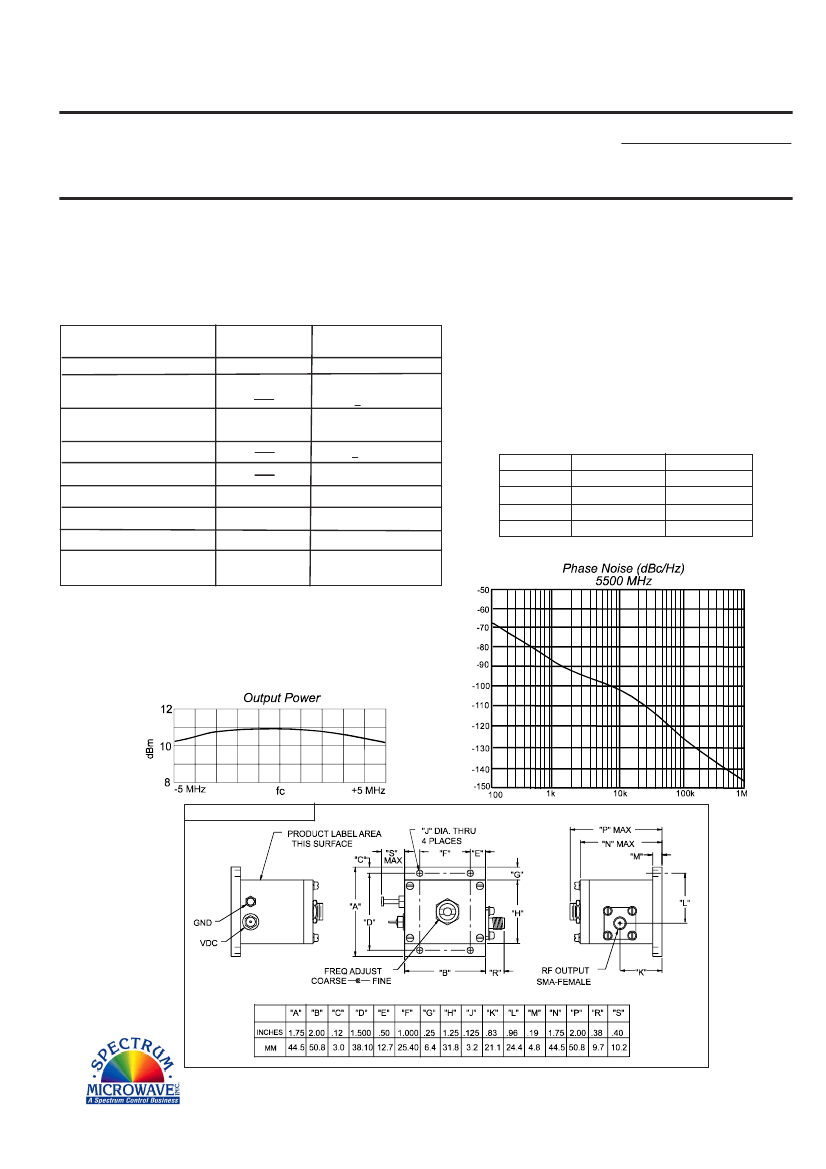

DIELECTRIC RESONATOR

OSCILLATOR

Features

MDR2100-5500

5500 - 6500 MHz

Rugged Construction for Extreme Environmental Conditions

High Frequency Stability

Free Running, Mechanically Tuned

Specifications

CHARACTERISTIC

Frequency

Mechanical Tuning

Bandwidth (MHz)

Frequency Stability

(ppm)/ ºC

Pulling, 12 dB RL (ppm)

Pushing (ppm/Volt)

Harmonics (dBc)

Spurious (dBc)

Output Power (dBm)

Power

Vdc

TYPICAL

Ta = +25 ºC

5500 - 6500 MHz

MIN/MAX

Ta = -20ºC to +65 ºC

5500 - 6500 MHz

+20 Min.

Absolute Maximum Ratings

Ambient Operating Temperature ............. -55ºC to +100 ºC

Storage Temperature .............................. -62ºC to +125 ºC

Case Temperature ............................................... +125 ºC

DC Voltage ....................................................... +24 Volts

5 Max.

+100 Max.

20 Max.

Typical Performance Data

Phase Noise

Offset

10 kHz

100 kHz

1 MHz

Typical

5500 MHz

-101

-126

-146

Typical

6500 MHz

-99

-124

-144

-20

-75

+11

+15

120

-15 Max.

-70 Max.

+10 Min.

+15

125 Max.

NOTES:

Care should always be taken to effectively ground the case of each unit.

1. Specifications labeled “min.” or “max.” are guaranteed in a 50 Ohm system over

the specified temperature range.

2. Averaged over the full temperature range.

3. Higher output power is available.

4. Alternate input voltage is available.

5. Package must be verified by Spectrum Microwave.

Mechanical Outline
