CC128Z-A3BF45-35.0000: DescriptionCMOS/TTL Output Clock Oscillator, 35MHz Nom, ROHS COMPLIANT PACKAGE-6; CategoryPassive components oscillator; File Size696KB，1 Pages; ManufacturerCardinal Components; Environmental Compliance

Download Datasheet Parametric View All

CC128Z-A3BF45-35.0000 Overview

CMOS/TTL Output Clock Oscillator, 35MHz Nom, ROHS COMPLIANT PACKAGE-6

CC128Z-A3BF45-35.0000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	1 PPM/YEAR
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	3.5%
JESD-609 code	e4
Manufacturer's serial number	CC128
Installation features	SURFACE MOUNT
Nominal operating frequency	35 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	CMOS/TTL
Output load	10 LS TTL, 15 pF
physical size	11.6mm x 11.4mm x 4.0mm
longest rise time	10 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

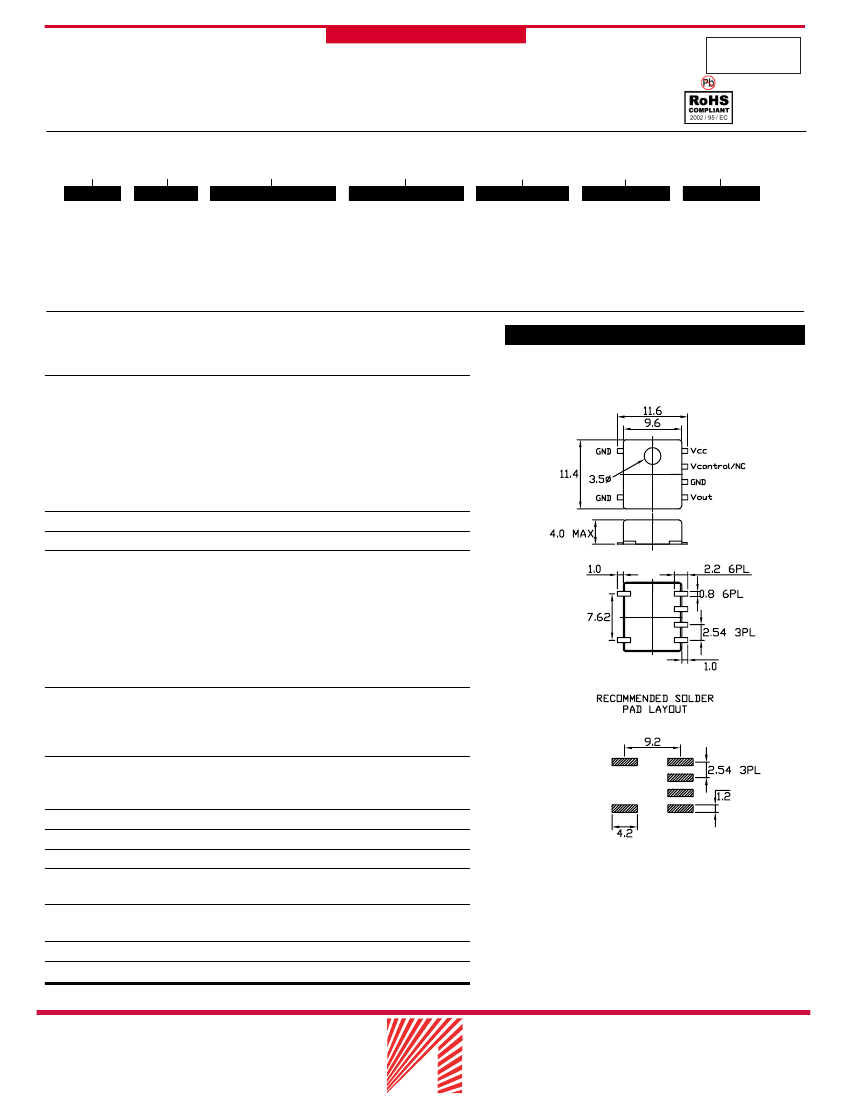

Surface Mount TCXO

• 4.0 mm height

• Tight stability availability

• TTL/HCMOS

CARDINAL COMPONENTS

Series

CC128

Part Numbering Example: CC128 L Z - A2 B2 45 - 22.5792

CC128

SERIES

CC128

L

VOLTAGE

Blank = 5V

L = 3.3V

Z

PACKAGING OPTIONS

Blank = Bulk

Z = Tape and Reel

A2

OPERATING TEMP.

A2 = -10°C ~+60°C

A3 = -30°C ~+75°C

A5 = -20°C ~+70°C

A9 = 0°C ~+50°C

AA = -10°C ~+70°C

AB = -30°C ~+70°C

AC = -30°C ~+60°C

AE = -40°C ~+80°C

B2

STABILITY

B1 = ±5.0 ppm

B2 = ±3.0 ppm

B3 = ±2.5 ppm

B4 = ±2.0 ppm

B5 = ±1.5 ppm

B9 = ±4.0 ppm

BB = ±4.5 ppm

BF = ±3.5 ppm

45

SYMMETRY

Blank = 40/60%

45 = 45/55%

22.5792

FREQUENCY

Speciﬁcations:

CC128

9.600 MHz to 35.000 MHz

Frequency Range:

Available Stability Options:

±5.0

±4.5

±4.0

±3.5

±3.0

±2.5

±2.0

±1.5

ppm

CC128

Output Series:

Input Voltage:

Operating Temperature

Range Options:

TTL/CMOS

+5.0 VDC ±5%

0°C to +50°C

-10°C to +60°C

-10°C to +70°C

-20°C to +70°C

-30°C to +60°C

-30°C to +70°C

-30°C to +75°C

-40°C to +80°C

TTL V

OL

= 0.4 V Max.

TTL V

OH

= 2.4 V Min.

HCMOS V

OL

= 10%V

DD

V Max.

HCMOS V

OH

= 90%V

DD

V Min.

±3.0 ppm Minimum

Output Voltage:

Frequency Trim Range

With Externally

Adjustable Trimmer:

Output Load:

Maximum Input Current:

Maximum Rise/Fall Time:

Duty Cycle:

Maximum Frequency

Aging at +25°C:

Storage Temperature:

Packaging:

10 LS TTL, 15 pf CMOS

20 mA

10 ns

40/60%

45/55%

± 1 ppm/yr

-40°C to +80°C

Tape and Reel (1K per Reel)

155 Route 46 West

Wayne, NJ 07470

Rev: T-090414-12

Cardinal Components, Inc.

T-11

TEL:

(973)785-1333

E-MAIL: sales@cardinalxtal.com

WEB: http://www.cardinalxtal.com
