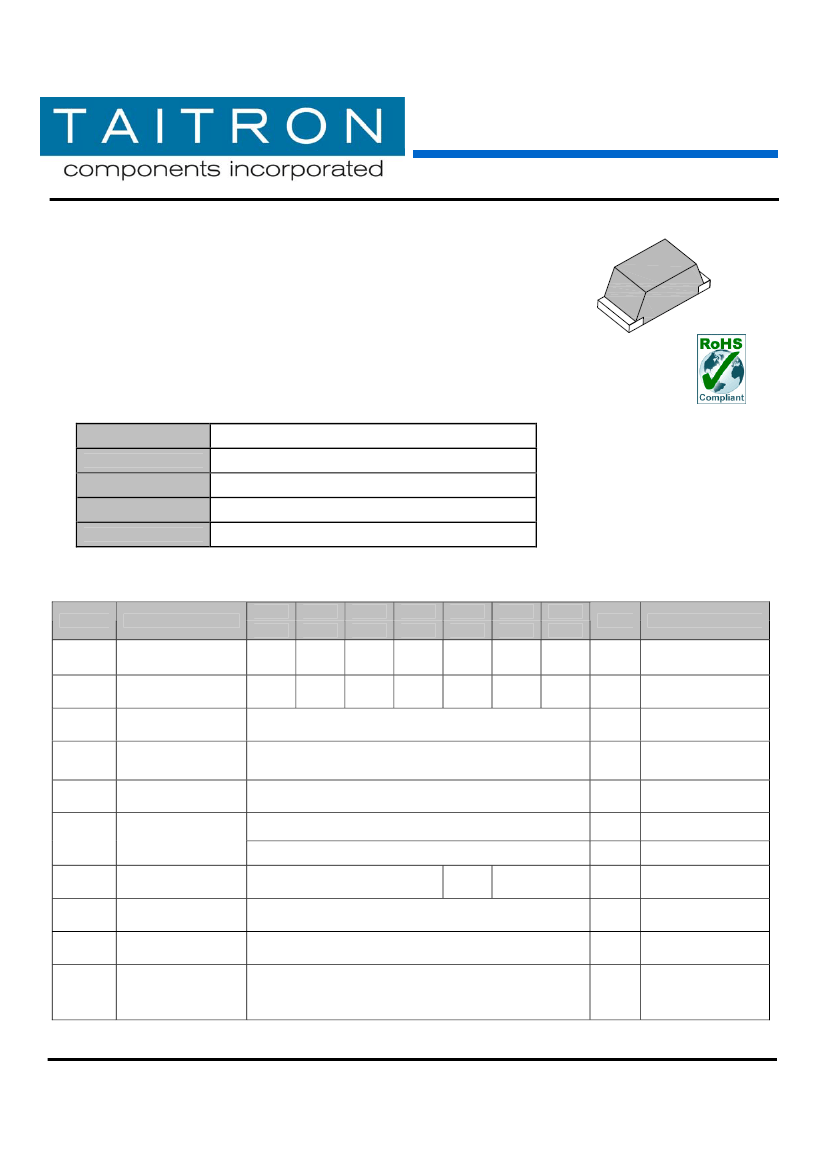

SURFACE MOUNT
FAST RECOVERY RECTIFIER
MFPR05S – MFPR10S
Surface Mount Fast Recovery Rectifier
Features
•
Low leakage current
•
For surface mounted applications
•
Epoxy Molding Compound has UL Flammability
Classification 94V-0
•
RoHS Compliance
MFP
Mechanical Data
Case:
Terminals:
Polarity:
Mounting Position:
Weight:
MFP / MINI-SMA, Molded plastic body
Solder plated, solderable per MIL-STD-750, Method 2026
Indicated by cathode band
Any
0.04 gram
Maximum Ratings and Electrical Characteristics
(T
A
=25ºC unless otherwise noted)
Symbol
Description
Max. Repetitive Peak
Reverse Voltage
Max. RMS Voltage
Max. Forward Voltage
Average Forward
Rectified Current
Peak Forward Surge
Current
Reverse Current
@ VR = VRRM
Max. Reverse
Recovery Time
Thermal Resistance
Diode Junction
Capacitance
150
42
15
MFPR
05S
50
35
MFPR
1S
100
70
MFPR
2S
200
140
MFPR
4S
400
280
1.2
1.0
30
5.0
100
250
500
MFPR
6S
600
420
MFPR
8S
800
560
MFPR
10S
1000
700
Unit
V
V
V
A
A
uA
uA
V
°C / W
pF
TA = 25°C
TA = 100°C
I
F =
0.5A, I
R
=
1.0A,
I
rr
= 0.25A.
Junction to ambient
F=1MHz
and V
R
= 4V
Conditions
V
RRM
V
RMS
V
F
I
F(AV)
I
FSM
I
R
See Fig.1
Trr
Rth
JA
C
J
Operating Junction
T
J,
T
STG
and Storage
Temperature Range
-55 to +150
°C
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-247-2232
Fax: (800)-TAITFAX
(800)-TAITRON
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. B/WW
Page 1 of 3
Surface Mount Fast Recovery Rectifier
MFPR05S – MFPR10S

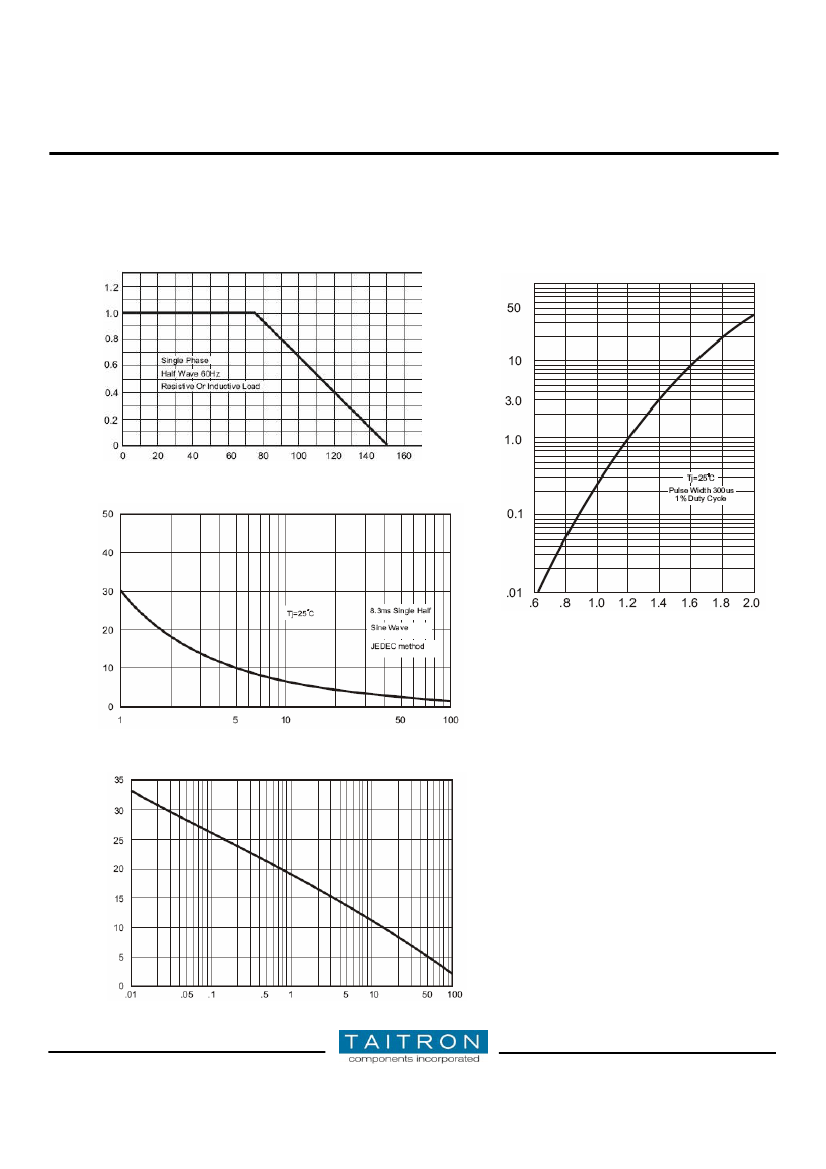

Typical Characteristics Curves
Average Forward Current, (A)
Fig.1- Forward Current Derating Curve
Fig.3- Typical Forward Characteristics
Ambient Temperature (°C)
Peak Forward Surge Current, (A)
Fig.2- Maximum Non-Repetitive Forward Surge Current
Instantaneous Forward Current, (A)
Forward Voltage, (V)
Number of Cycles at 60Hz
Fig.4-Typical Junction Capacitance
Junction Capacitance, (pF)
Reverse Voltage, (V)
Rev. B/WW
www.taitroncomponents.com
Page 2 of 3
Surface Mount Fast Recovery Rectifier
MFPR05S – MFPR10S

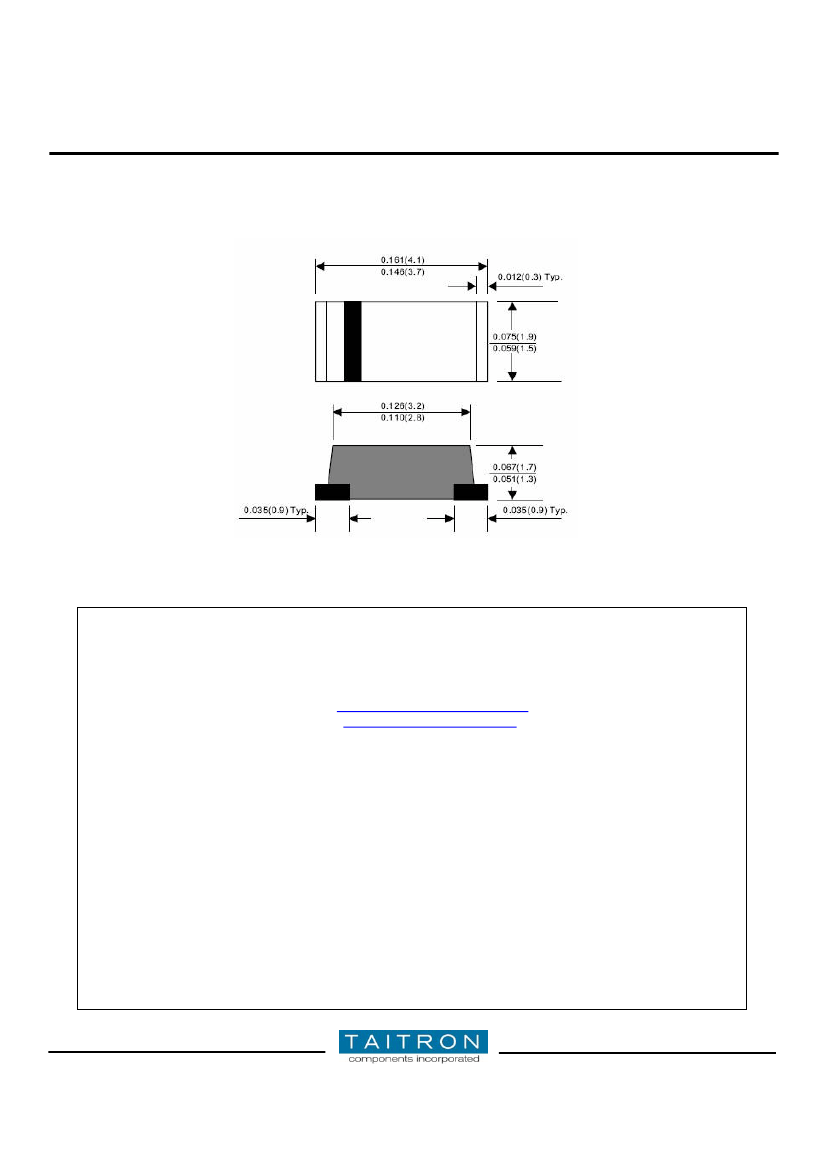

Dimensions in inches (mm)
