CO15-100-FREQ-EXT-TTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CO15-100-FREQ-EXT-TTR

CO15-100-FREQ-EXT-TTR: DescriptionCMOS/TTL Output Clock Oscillator, 0.5MHz Min, 100MHz Max; CategoryPassive components oscillator; File Size41KB，2 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

CO15-100-FREQ-EXT-TTR Overview

CMOS/TTL Output Clock Oscillator, 0.5MHz Min, 100MHz Max

CO15-100-FREQ-EXT-TTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
maximum descent time	10 ns
Frequency Adjustment - Mechanical	YES
frequency stability	100%
Manufacturer's serial number	CO15
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	100 MHz
Minimum operating frequency	0.5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS/TTL
Output load	10 TTL, 15 pF
physical size	20.8mm x 13.2mm x 5.08mm
longest rise time	10 ns
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

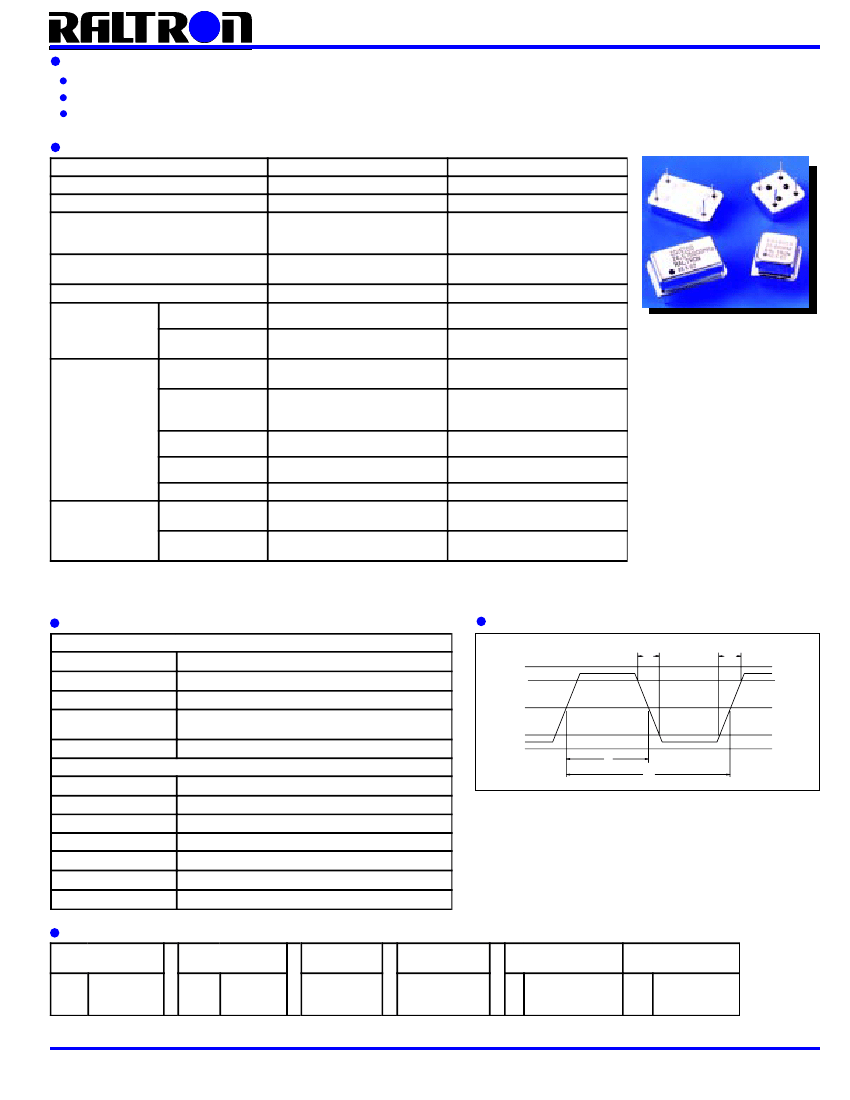

THROUGH HOLE CLOCK OSCILLATORS - 3 STATE HCMOS COMPATIBLE

FEATURES

WIDE FREQUENCY RANGE

EXCELLENT FOR 16 AND 32 BIT MPU’S

3-STATE FUNCTION

SPECIFICATIONS

SERIES

PACKAGE

FREQUENCY RANGE

FREQUENCY STABILITY†

CO15

14 PIN DIP

500 KHz TO 100.00 MHz

CO15100 : ±100 PPM

CO15050 : ±50 PPM

CO15025 : ±25 PPM

0° C TO + 70° C STANDARD

-40° CTO + 85° C EXTENDED

-55° C TO +125° C

+5 VDC ±0.5 VDC

60 mA MAX

40 TO 60% NORMAL

45 TO 55% TIGHT

10 ns MAX - 500 KHz TO 25.00 MHz

6ns MAX - 25.10 MHz TO 70.00 MHz

4 ns MAX - 70.1 MHz TO 100.00 MHz

+0.5 VDC MAX (10% VDD)

+4.5 V MIN (90% VDD)

1-10 TTL OR 15 pF CMOS

HIGH OR OPEN

LOW

ENABLE : HIGH

DISABLE (LOW) : HIGH IMPEDANCE

C019

8 PIN DIP

500 KHz TO 100.00 MHz

CO19100 : ±100 PPM

CO19050 : ±50 PPM

CO19025 : ±25 PPM

0° C TO + 70° C STANDARD

-40° CTO + 85° C EXTENDED

-55° C TO +125° C

+5 VDC ±0.5 VDC

60 mA MAX

40 TO 60% NORMAL

45 TO 55% TIGHT

10 ns MAX - 500 KHz TO 25.00 MHz

6ns MAX - 25.10 MHz TO 70.00 MHz

4 ns MAX - 70.1 MHz TO 100.00 MHz

+0.5 VDC MAX (10% VDD)

+4.5 V MIN (90% VDD)

1-10 TTL OR 15 pF CMOS

HIGH OR OPEN

LOW

ENABLE : HIGH

DISABLE(LOW) : HIGH IMPEDANCE

SERIES CO15 AND CO19

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE RANGE

VOLTAGE

INPUT

CURRENT

SYMMETRY

RISE AND FALL TIME

(0.5 - 4.5 VDC)

OUTPUT

LOGIC "0" LEVEL

LOGIC "1" LEVEL

LOAD††

ENABLE/DISABLE

FUNCTION

CONTROL (PIN 1)

OUTPUT (PIN 8 OR 5)

† FREQUENCY STABILITY INCLUSIVE OF ROOM TOLERANCE , FREQUENCY STABILITY OVER TEMPERATURE,

10% POWER SUPPLY VARIATION, AGING, SHOCK, AND VIBRATION

†† OUTPUT LOADS ALSO AVAILABLE AT 15 pF, 30 pF AND 50 pF. CONSULT RALTRON FOR SPECIFICATIONS

ENVIRONMENTAL AND TECHNICAL CONDITIONS

ENVIRONMENTAL

TEMPERATURE CYCLE

SHOCK

VIBRATION

RESISTANCE TO

SOLDERING HEAT

HUMIDITY

MIL-STD 883, METHOD 1010, 10 CYCLES -20° C TO 85° C

MIL-STD-202, METHOD 213, TEST CONDITION C

MIL-STD-202, METHOD 204, TEST CONDITION A

MIL-STD-202, METHOD 210, TEST CONDITION B

OUTPUT WAVEFORM

VCC

"1" LEVEL

+4.5 VDC

1/2 VCC

+2.5 VDC

"0" LEVEL

+0.5 VDC

85% RELATIVE HUMIDITY AT 85° C 250 HOURS

MECHANICAL

0 VDC

GROSS LEAK TEST

FINE LEAK TEST

TERMINAL STRENGTH

MARKING INK

MIL-STD-883, METHOD 1014, TEST CONDITION C

MIL-STD-883, METHOD 1014, TEST CONDITION A

MIL-STD-202, METHOD 211, TEST CONDITION A AND C

EPOXY, HEAT CURED.

MOISTURE RESISTANCE MIL-STD 202, METHOD 106, OMIT STEP 7B

SOLDERABILITY

SOLVENT RESISTANCE

MIL-STD-202, METHOD 208, 95% COVERAGE

MIL-STD-202, METHOD 215

PART NUMBERING SYSTEM

SERIES

CO15

CO19

(14 PIN DIP)

(8 PIN DIP)

FREQUENCY

STABILITY

100

050

025

±100 PPM

±50 PPM

±25 PPM

IN MHz

FREQUENCY

EXT

EXTENDED

TEMPERATURE

TIGHT SYMMETRY

SYMMETRY

OPTIONS

TR TAPE AND REEL

GW GULL WING

EXAMPLE: CO15100-12.000-EXT, CO19050-45.000-T

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com
