CTX4EZ-A1B3-FREQ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> CTX4EZ-A1B3-FREQ

Preview

CTX4EZ-A1B3-FREQ: DescriptionClipped Sine Output Oscillator, 12MHz Min, 19.68MHz Max, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size678KB，1 Pages; ManufacturerCardinal Components; Environmental Compliance

Download Datasheet Parametric View All

CTX4EZ-A1B3-FREQ Overview

Clipped Sine Output Oscillator, 12MHz Min, 19.68MHz Max, ROHS COMPLIANT PACKAGE-4

CTX4EZ-A1B3-FREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	YES
frequency stability	2.5%
Manufacturer's serial number	CTX4
Installation features	SURFACE MOUNT
Maximum operating frequency	19.68 MHz
Minimum operating frequency	12 MHz
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	1 V
physical size	11.4mm x 9.6mm x 4.0mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

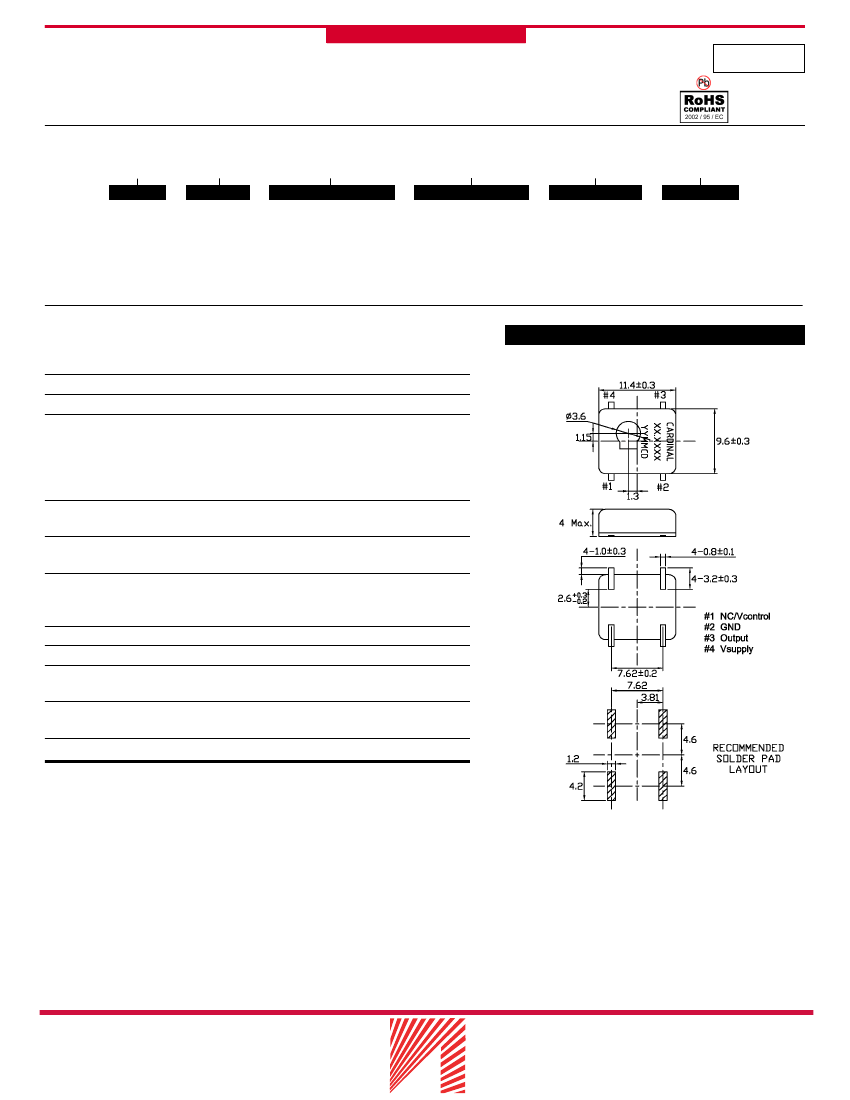

Surface Mount TCXO

• 4.0 mm max. height

• Wide temperature range

CARDINAL COMPONENTS

• Various input supply voltage options

• Eutectic reflow soldering possible

CTX4

Part Numbering Example: CTX4 L Z - A3 B3 - 15.360

CTX4

SERIES

CTX4

L

VOLTAGE

Blank = 5V

B = 4.0V

C = 3.7V

L = 3.3V

E = 3.0V

Z

PACKAGING OPTIONS

Z = Tape and Reel

A3

OPERATING TEMP.

A1=-10°C ~ +50°C

A2=-10°C ~ +60°C

A3=-30°C ~ +75°C

A4=-40°C ~ +75°C

B3

STABILITY

B3 = ±2.5 ppm

15.360

FREQUENCY

Specifications:

Frequency Range:

Output Series:

Input Voltage:

12.000 MHz to 19.680 MHz

Clipped Sine

+5.0 VDC ± 5%

+4.0 VDC ± 5%

+3.7 VDC ± 5%

+3.3 VDC ± 5%

+3.0 VDC ± 5%

-30°C to +75°C

Available Stability Options:

±2.5 ppm

CTX4

Standard

Operating Temperature

Range Options:

Output Voltage:

Frequency Trim Range

With Externally

Adjustable Trimmer:

Output Load:

Maximum Input Current:

Maximum Frequency

Aging at +25°C:

Freq. Stability Vs. Change

of Input Voltage of ±5%:

Packaging:

Standard

1.0 Volt Peak to Peak

Minimum

±3.0 ppm Minimum

10K OHM Parallel with 10 pf

2.0 mA

±1.0 ppm/yr

±0.3 ppm

Tape and Reel (1K per Reel)

155 Route 46 West

Wayne, NJ 07470

Rev:

T-090414-12

Cardinal Components, Inc.

T-8

TEL:

(973)785-1333

E-MAIL: sales@cardinalxtal.com

WEB: http://www.cardinalxtal.com
