CC532LZ-B245-33.333TS datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> CC532LZ-B245-33.333TS

Preview

CC532LZ-B245-33.333TS: DescriptionHCMOS Output Clock Oscillator, 33.333MHz Nom, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size675KB，1 Pages; ManufacturerCardinal Components; Environmental Compliance

Download Datasheet Parametric View All

CC532LZ-B245-33.333TS Overview

HCMOS Output Clock Oscillator, 33.333MHz Nom, ROHS COMPLIANT PACKAGE-4

CC532LZ-B245-33.333TS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Manufacturer's serial number	CC532
Installation features	SURFACE MOUNT
Nominal operating frequency	33.333 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.0mm
longest rise time	10 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

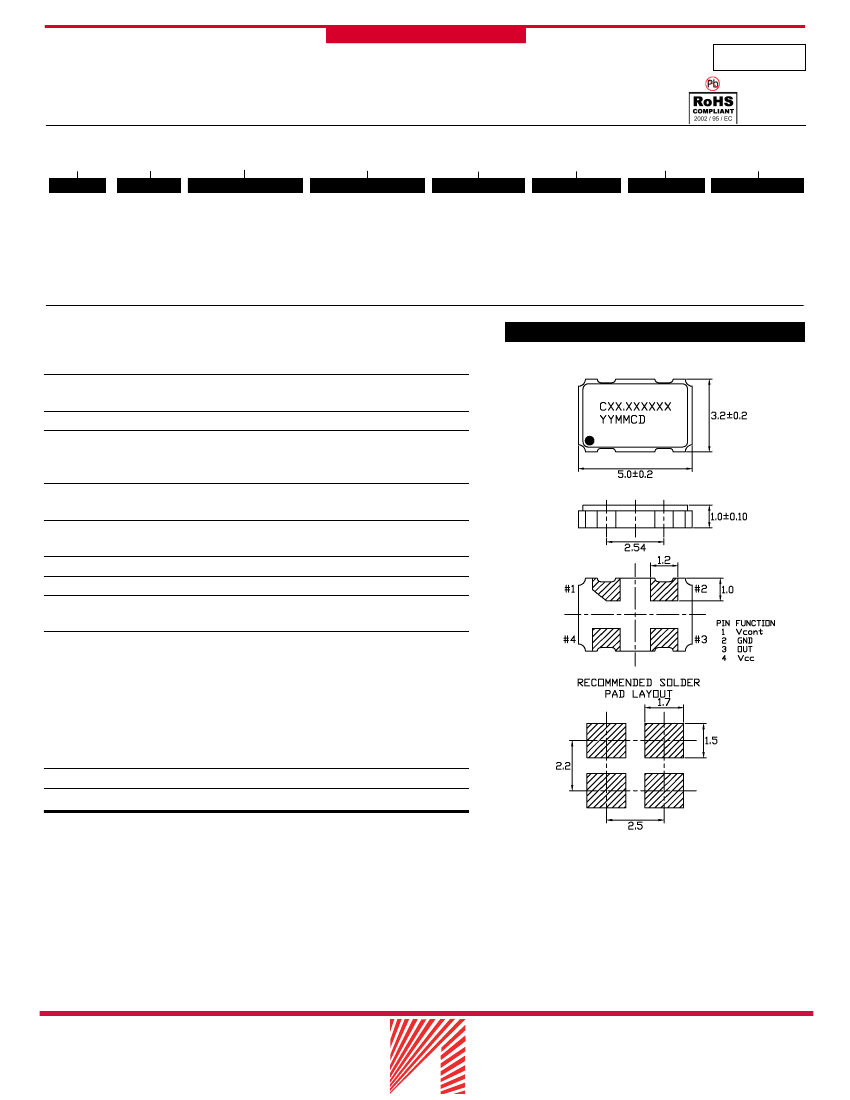

Surface Mount Clock Oscillator

• 5.0 x 3.2 x 1.0 mm (L x W x H)

• Low power consumption

CARDINAL COMPONENTS

• Tight stability available

• Tristate capable

Series CC532

Part Numbering Example: CC532 L Z - A B2 45 - 33.333 TS

CC532

SERIES

CC532

L

Z

A

B2

45

33.333

TS

VOLTAGE

Blank = 5V

L = 3.3V

E = 3.0V

OPERATING TEMP.

ADDED FEATURES

BLANK = BULK PACK Blank = 0°C ~ +70°C

Z = TAPE AND REEL

A1=-10°C ~ +70°C

STABILITY

Blank = ±100 ppm

B2 = ± 50 ppm

FREQUENCY

SYMMETRY

TRI STATE

Blank = 40/60%

Tri State Standard

45 = 45/55%

Specifications:

Frequency Range:

8.00 MHz to 67.000 MHz

Available Stability Options:

±100 ppm

±50 ppm

Output Series:

Input Voltage:

HCMOS

+5.0 VDC ±10%

+3.3 VDC ±10%

+3.0 VDC ±10%

-10°C to +70°C

HCMOS V

OL

= 10% V

DD

V Max.

HCMOS V

OH

= 90% V

DD

V Min.

15 pf

10 ns

40/60%

45/55%

+5 VDC Input

+0.80 VDC Max. to Disable

+3.60 VDC Min. to Enable

or open to Enable

+3.3 VDC Input

+0.80 VDC Max. to Disable

+2.20 VDC Min. to Enable

or open to Enable

-40°C to +85°C

Tape and Reel (1K per Reel)

CC532

Standard

Operating Temperature

Range Options:

Output Voltage:

Output Load:

Maximum Rise/Fall Time:

Duty Cycle:

Tristate Input:

Storage Temperature:

Packaging:

.

155 Route 46 West

Wayne, NJ 07470

Rev: C-090414-11

Cardinal Components, Inc.

O-3

TEL:

(973)785-1333

E-MAIL: sales@cardinalxtal.com

WEB: http://www.cardinalxtal.com
