COM12505-FREQ-T-TR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> COM12505-FREQ-T-TR

COM12505-FREQ-T-TR: DescriptionHCMOS Output Clock Oscillator, 1.544MHz Min, 60MHz Max, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size367KB，1 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

COM12505-FREQ-T-TR Overview

HCMOS Output Clock Oscillator, 1.544MHz Min, 60MHz Max, ROHS COMPLIANT PACKAGE-4

COM12505-FREQ-T-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TAPE AND REEL
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Maximum operating frequency	60 MHz
Minimum operating frequency	1.544 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 1.0mm
longest rise time	5 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

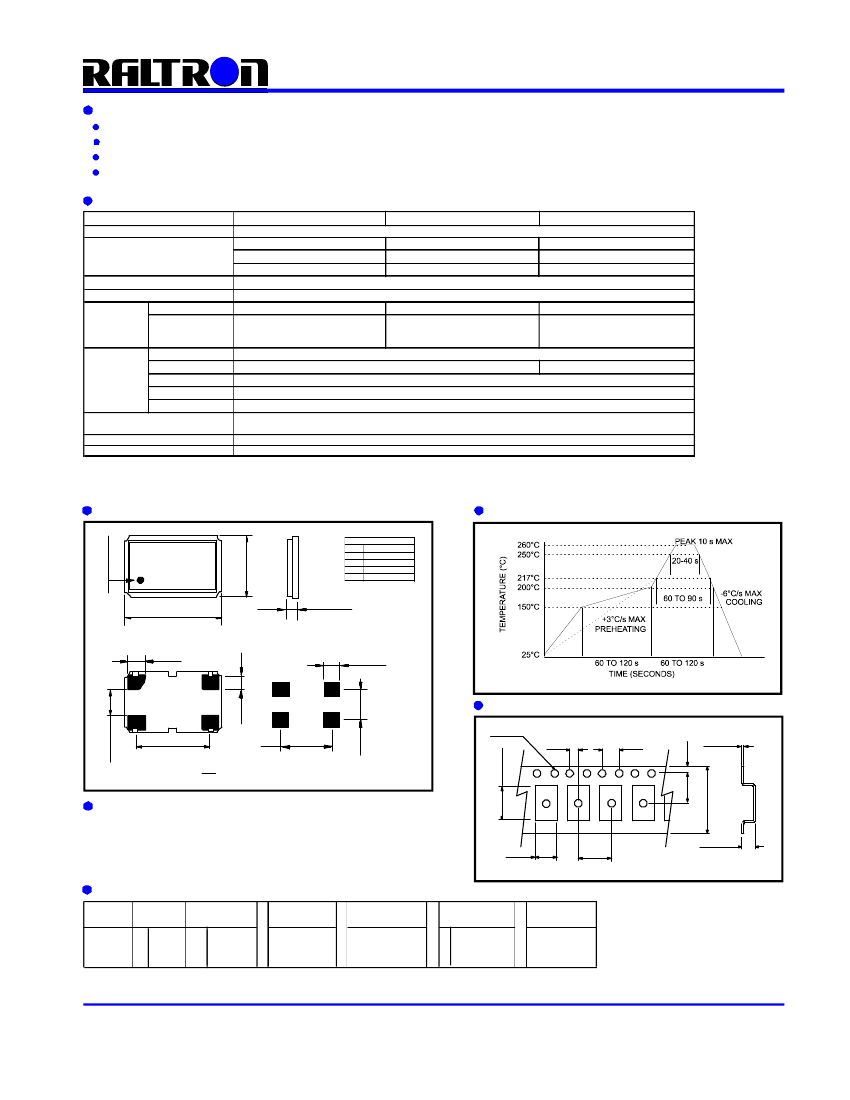

SURFACE MOUNT CRYSTAL OSCILLATORS

FEATURES

ULTRA SMALL PACKAGE OF 3.2 x 2.5 x 1.0mm TYPICAL

LOW SUPPLY VOLTAGE OF 1.8 AND 2.5 VDC AVAILABLE

STANDBY FUNCTION

LEAD FREE / RoHS COMPLIANT

SPECIFICATIONS

SERIES

FREQUENCY RANGE

COM11810 : ±100 ppm

FREQUENCY STABILITY **

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE RANGE

VOLTAGE

INPUT

CURRENT (MAX)

SYMMETRY

OUTPUT

RISE / FALL TIME

LOGIC "0" LEVEL

LOGIC "1" LEVEL

LOAD

ENABLE/DISABLE FUNCTION

START UP TIME

STANDBY CURRENT

COM11805 : ±50 ppm

COM118025 : ±25 ppm

COM118

COM125

1.544 MHz TO 60.000 MHz

COM12510 : ±100 ppm

COM12505 : ±50 ppm

COM125025 : ±25 ppm

-10°C TO +70°C (-40°C TO +85°C AVAILABLE)

COM13

COM1310 : ±100ppm

COM1305 : ±50ppm

COM13025 : ±25ppm

SERIES COM1

-55° C TO +125° C

+1.8 VDC ±5%

+2.5 VDC ±5%

+3.3 VDC ±10%

1.544 MHz TO 9.99MHz: 6 mA MAX

1.544 MHz TO 9.99MHz: 7 mA MAX

1.544 MHz TO 9.99MHz: 5 mA MAX

10.00 MHz TO 31.99 MHz: 6 mA MAX 10.00 MHz TO 31.99 MHz: 8 mA MAX 10.00 MHz TO 31.99 MHz: 10 mA MAX

32.00 MHz TO 60.00 MHz: 15mA MAX 32.00 MHz TO 60.00 MHz: 20mA MAX 32.00 MHz TO 60.00 MHz: 20mA MAX

40 TO 60% AT 50% VDD (45 TO 55% AVAILABLE)

5 ns MAX

VCC X 0.1 V MAX

VCC X 0.9 V MIN

15 pF (HCMOS)

PIN 1: HIGH OR OPEN PIN 3: OSCILLATION

PIN 1: LOW PIN 3: HIGH IMPEDANCE

10 ms MAX

10 µA MAX

20 ns MAX

** INCLUSIVE OF 25°C TOLERANCE, OPERATING TEMPERATURE RANGE, VOLTAGE OR LOAD CHANGES,

AGING, SHOCK AND VIBRATION. CONSULT FACTORY FOR TIGHTER STABILITY OPTIONS.

OUTLINE DRAWING

PIN 1 LOCATION

REFLOW SOLDERING PROFILE

.099 ± .008

COM1 SERIES

FUNCTION

ENABLE/DISABLE

GROUND

OUTPUT

SUPPLY VOLTAGE

MARKING

AREA

2.5 ± 0.2

3.2 ± 0.2

.126 ± .008

1.0 MAX

.040 MAX

0.9

.035

1.4

.055

0.65

.026

CARRIER TAPE DIMENSIONS

1.75

.069

.039 ±.004

1.0 ± 0.1

2.1±0.2

.083±.008

3.4 ± 0.1

.134 ± .004

2.2

.087

inch

.063

1.6

1.0 DIA

.04 DIA

2.0

.079

4.0

.160

.25 ± .05

.010±.002

Scale none Dimensio n in

SOLDER PATTERN

PACKAGING

178 mm REEL DIAMETER, 8mm TAPE WIDTH, 4mm PITCH

QUANTITY: 1000 PIECES PER REEL

2.7

.106

4.0

.160

PART NUMBERING SYSTEM

SUPPLY FREQUENCY

SERIES VOLTAGE

STABILITY

COM1

1.8V

2.5V

3.3V

±100 PPM -

±50 PPM

025

±25 PPM

FREQUENCY

IN MHz

EXT

EXTENDED

TEMPERATURE

45% TO 55%

DUTY CYCLE

TAPE & REEL

EXAMPLES:

COM1305-25.000-EXT-T-TR

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com

REV. A 3/1/05

3.6

.142

8.0 ± 0.2

.315 ± .008

1.4 ± 0.1
