CO53EH-FREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> CO53EH-FREQ

CO53EH-FREQ: DescriptionTTL Output Clock Oscillator, 0.01MHz Min, 69.999MHz Max, HALF SIZE, DIP-4; CategoryPassive components oscillator; File Size104KB，1 Pages; ManufacturerCal Crystal Lab Inc / Comclok Inc; Websitehttps://www.transko.com

Download Datasheet Parametric View All

CO53EH-FREQ Overview

TTL Output Clock Oscillator, 0.01MHz Min, 69.999MHz Max, HALF SIZE, DIP-4

CO53EH-FREQ Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	15%
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	69.999 MHz
Minimum operating frequency	0.01 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
Oscillator type	TTL
Output load	10 TTL
physical size	13.21mm x 13.21mm x 6.1mm
longest rise time	10 ns
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	47.5/52.5 %
Base Number Matches	1

Preview

Download Datasheet

View All

Cal Crystal Lab, Inc. / Comclok, Inc. 800-333-9825

1156 North Gilbert Street • Anaheim, CA 92801

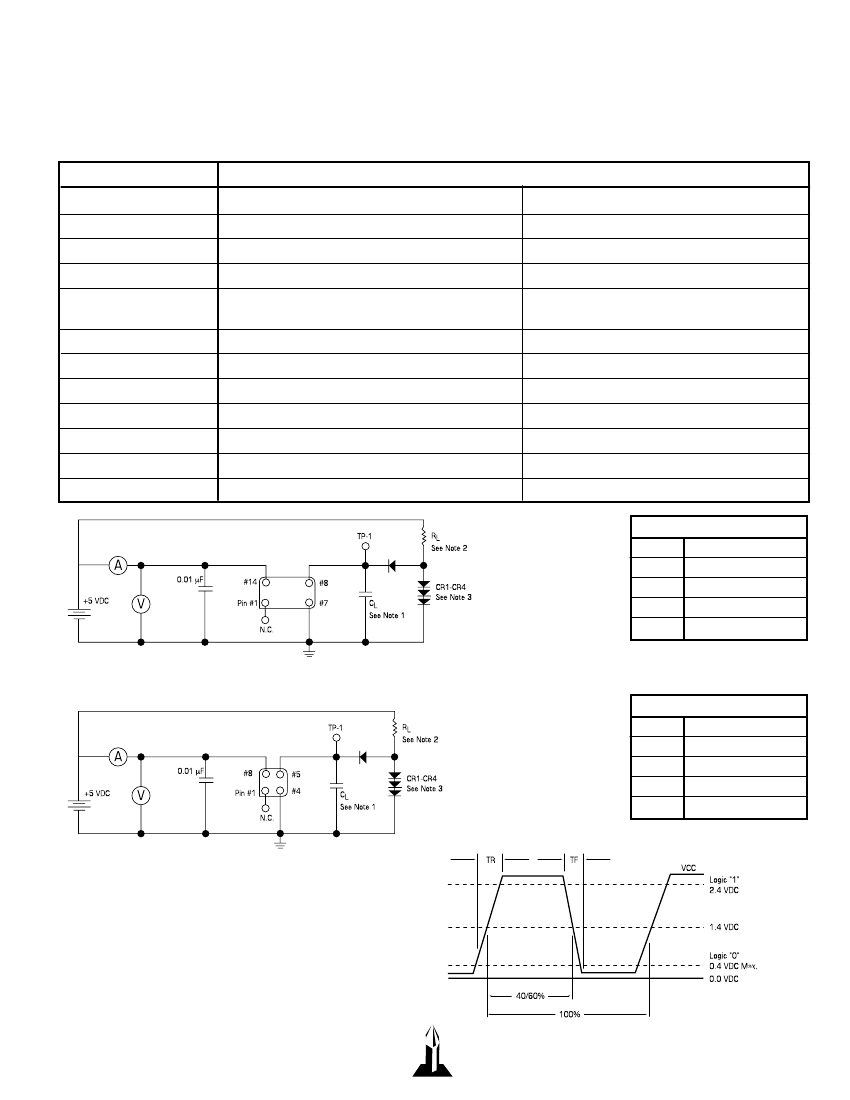

TTL CLOCK OSCILLATORS

(FULL & HALF SIZE)

MODEL CO

5.0VDC

Model

Frequency Range

Frequency Stability

Operating Temperature Range

Storage Temperature Range

Current Consumption

Supply Voltage

Symmetry

Rise & Fall Time (Tr & Tf)

Logic “1”

Logic “0”

Output Load (Max)

Aging

10kHz ~ 69.999MHz

100ppm Standard, Optional Tolerances Available

C ~+70

C Extended Temperature Ranges Available

-55

C ~+125

10.0KHz ~ 23.999MHz:

15mA Max

24.000MHz ~ 69.999MHz: 30mA Max

+5 VDC

10%

60/40 @ 50% Vcc, Optional Tolerances Available

10 nSec Max

2.4 VDC Min

0.4 VDC Max

10TTL

< 5ppm per year

70MHz ~ 160.0MHz

100ppm Standard, Optional Tolerances Available

C ~+70

C Extended Temperature Ranges Available

-55

C ~+125

70.0MHz ~ 99.999MHz:

30mA Max

100.00MHz ~ 129.9MHz: 35mA Max

130.00MHz ~ 160.00MHz: 40mA Max

+5 VDC

10%

60/40 @ 50% Vcc, Optional Tolerances Available

4 nSec Max

2.4 VDC Min

0.4 VDC Max

2TTL Other Loads Available

< 5ppm per year

FULL SIZE TTL

PINS CONNECTIONS

N.C.

GND

OUTPUT

+5 VDC

±10%

FULL SIZE TEST CIRCUIT

HALF SIZE TTL

PINS CONNECTIONS

N.C.

GND

OUTPUT

+5 VDC

±10%

HALF SIZE TEST CIRCUIT

NOTE: 1. C

Capacitance includes probe and test jig (15pF typical)

2. R

= 400Ω - 10 TTL

2kΩ - 10 LSTTL

3. All diodes are 1N941, 1N43064 or equivalent
