CM1660
Praetorian
™
L-C LCD and Camera EMI Filter
Array with ESD Protection
Features
•
•
•
•
•
•
Four, six and eight channels of EMI filtering with
integrated ESD protection
Pi-style EMI filters in a capacitor-resistor-capacitor
(C-R-C) network
±15kV
ESD protection on each channel
(IEC 61000-4-2 Level 4, contact discharge)
±30kV
ESD protection on each channel (HBM)
Greater than -35dB attenuation (typical) at 1 GHz
uDFN package with 0.50mm lead pitch:
• 4-ch. = 8-lead uDFN
• 6-ch. = 12-lead uDFN
• 8-ch. = 16-lead uDFN
Tiny uDFN package size:
• 8-lead: 2.00mm x 2.00mm x 0.5mm
• 12-lead: 3.00mm x 1.35mm x 0.5mm
• 16-lead: 4.00mm x 1.60mm x 0.5mm
•
•
Increased robustness against vertical impacts
during manufacturing process
Lead-free version
Applications
•
•
•
•
•
•
LCD and Camera data lines in mobile handsets
I/O port protection for mobile handsets, notebook
computers, PDAs etc.
EMI filtering for data ports in cell phones, PDAs or
notebook computers.
Wireless handsets
Handheld PCs/PDAs
LCD and camera modules
•
Electrical Schematic
17nH
FILTER+ESDn*
15pF
15pF
FILTER+ESDn*
GND
* See Package/Pinout Diagram
for expanded pin information.
1 of 4, 6 or 8 EMI/RFI Filter Channels
with Integrated ESD Protection
© 2007 California Micro Devices Corp. All rights reserved.
06/29/07
490 N. McCarthy Blvd., Milpitas, CA 95035-5112
●
Tel: 408.263.3214
●
Fax: 408.263.7846
●
www.cmd.com
1
Issue X-1
CM1660

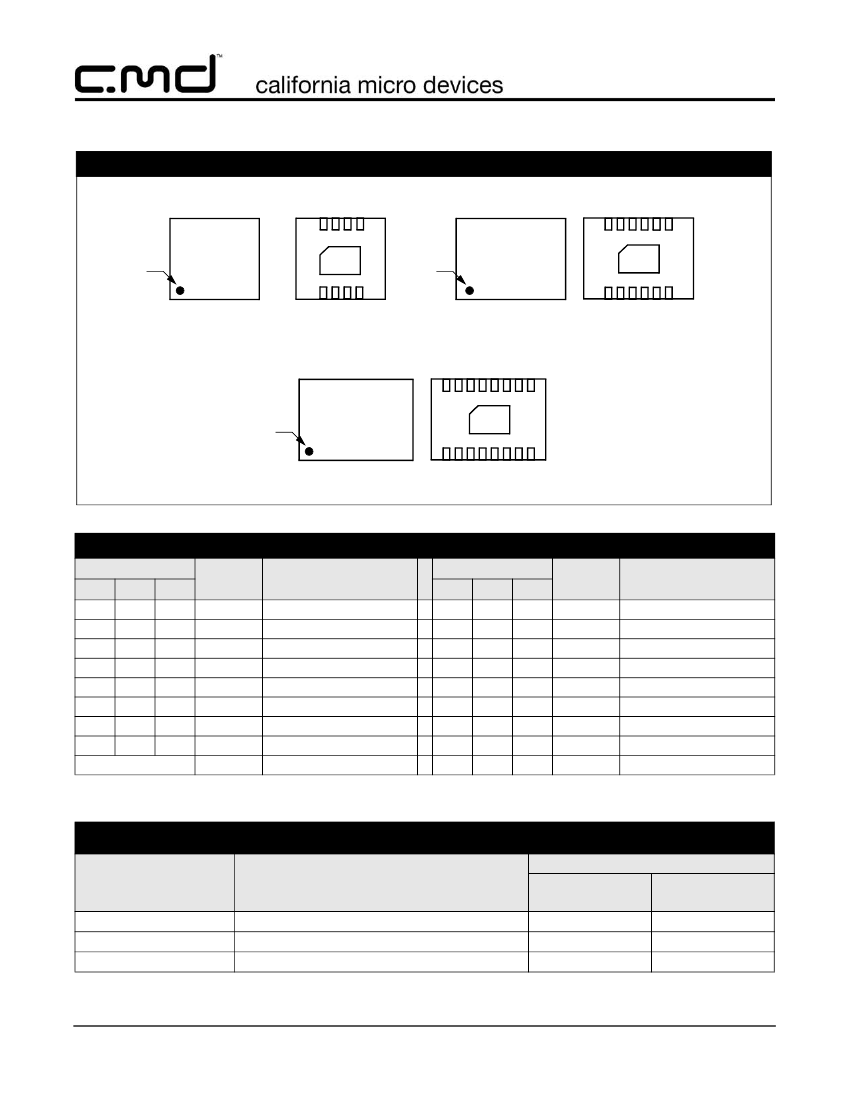

PACKAGE / PINOUT DIAGRAMS
TOP VIEW
(Pins Down View)
8 7 6 5
BOTTOM VIEW
(Pins Up View)
1 2 3 4
TOP VIEW
(Pins Down View)
12 11 10 9 8 7
BOTTOM VIEW
(Pins Up View)
1 2 3 4 5 6
Pin 1
Marking
Part
Marking
GND
PAD
Pin 1
Marking
Part
Marking
GND
PAD
1 2 3 4
8 7 6 5
1 2 3 4 5
6
12 11 10 9 8 7
CM1660-04DE
8 Lead uDFN Package
TOP VIEW
(Pins Down View)
16 15 14 13 12 11 10 9
CM1660-06DE
12 Lead uDFN Package
BOTTOM VIEW
(Pins Up View)
1 2 3 4 5 6 7
8
Pin 1
Marking
Part
Marking
GND
PAD
1 2 3 4 5
6 7
8
16 15 14 13 12 11 10 9
Notes:
1) These drawings are not to scale.
CM1660-08DE
16 Lead uDFN Package
PIN DESCRIPTIONS
DEVICE PIN(s)
-04
1
2
3
4
-06
1
2
3
4
5
6
-08
1
2
3
4
5
6
7
8
GND PAD
NAME
FILTER1
FILTER2
FILTER3
FILTER4
FILTER5
FILTER6
FILTER7
FILTER8
GND
DESCRIPTION
Filter + ESD Channel 1
Filter + ESD Channel 2
Filter + ESD Channel 3
Filter + ESD Channel 4
Filter + ESD Channel 5
Filter + ESD Channel 6
Filter + ESD Channel 7
Filter + ESD Channel 8
Device Ground
DEVICE PIN(s)
-04
8
7
6
5
-06
12
11
10
9
8
7
-08
16
15
14
13
12
11
10
9
NAME
FILTER1
FILTER2
FILTER3
FILTER4
FILTER5
FILTER6
FILTER7
FILTER8
DESCRIPTION
Filter + ESD Channel 1
Filter + ESD Channel 2
Filter + ESD Channel 3
Filter + ESD Channel 4
Filter + ESD Channel 5
Filter + ESD Channel 6
Filter + ESD Channel 7
Filter + ESD Channel 8
Ordering Information
PART NUMBERING INFORMATION
Lead-free Finish
Pins
8
12
16
Package
uDFN-8
uDFN-12
uDFN-16
Ordering Part
Number
1
CM1660-04DE
CM1660-06DE
CM1660-08DE
Part Marking
ME
P60E
P608E
Note 1: Parts are shipped in Tape & Reel form unless otherwise specified.
© 2007 California Micro Devices Corp. All rights reserved.
2
490 N. McCarthy Blvd., Milpitas, CA 95035-5112
●
Tel: 408.263.3214
●
Fax: 408.263.7846
●
www.cmd.com
06/29/07
Issue X-1
CM1660
CM1660
Specifications
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Storage Temperature Range
Current per Inductor
DC Package Power Rating
RATING
-65 to +150
30
500
UNITS
°C
mA
mW
STANDARD OPERATING CONDITIONS
PARAMETER
Operating Temperature Range
RATING
-40 to +85
UNITS
°C
ELECTRICAL OPERATING CHARACTERISTICS
(SEE NOTE1)
SYMBOL
L
C
TOTAL
C
V
DIODE
I
LEAK
V
SIG
PARAMETER
Channel Inductance
Total Channel Capacitance
Capacitance C1
Standoff Voltage
Diode Leakage Current (reverse bias)
Signal Clamp Voltage
Positive Clamp
Negative Clamp
In-system ESD Withstand Voltage
a) Human Body Model, MIL-STD-883, Method
3015
b) Contact Discharge per IEC 61000-4-2 Level 4
Dynamic Resistance
Positive
Negative
Roll-off Frequency at -6dB Attenuation
Z
SOURCE
=50Ω, Z
LOAD
=50Ω
At 2.5VDC Reverse
Bias, 1MHz, 30mVAC
At 2.5VDC Reverse
Bias, 1MHz, 30mVAC
I
DIODE
=10μA
V
DIODE
=+3.3V
I
LOAD
= 10mA
I
LOAD
= -10mA
Notes 2, 3 and 4
±30
±15
2.3
0.9
350
kV
kV
Ω
Ω
MHz
5.6
-1.5
24
CONDITIONS
MIN
TYP
17
30
15
6.0
0.1
6.8
-0.8
1.0
9.0
-0.4
36
MAX
UNITS
nH
pF
pF
V
μA
V
V
V
ESD
R
DYN
f
R
Note 1: T
A
=25
°
C unless otherwise specified.
Note 2: ESD applied to input and output pins with respect to GND, one at a time.
Note 3: Clamping voltage is measured at the opposite side of the EMI filter to the ESD pin (i.e. if ESD is applied to pin A1 then
clamping voltage is measured at pin C1). Unused pins are left open.
Note 4: These parameters are guaranteed by design and characterization.
© 2007 California Micro Devices Corp. All rights reserved.
06/29/07
490 N. McCarthy Blvd., Milpitas, CA 95035-5112
●
Tel: 408.263.3214
●
Fax: 408.263.7846
●
www.cmd.com
3
Issue X-1
CM1660

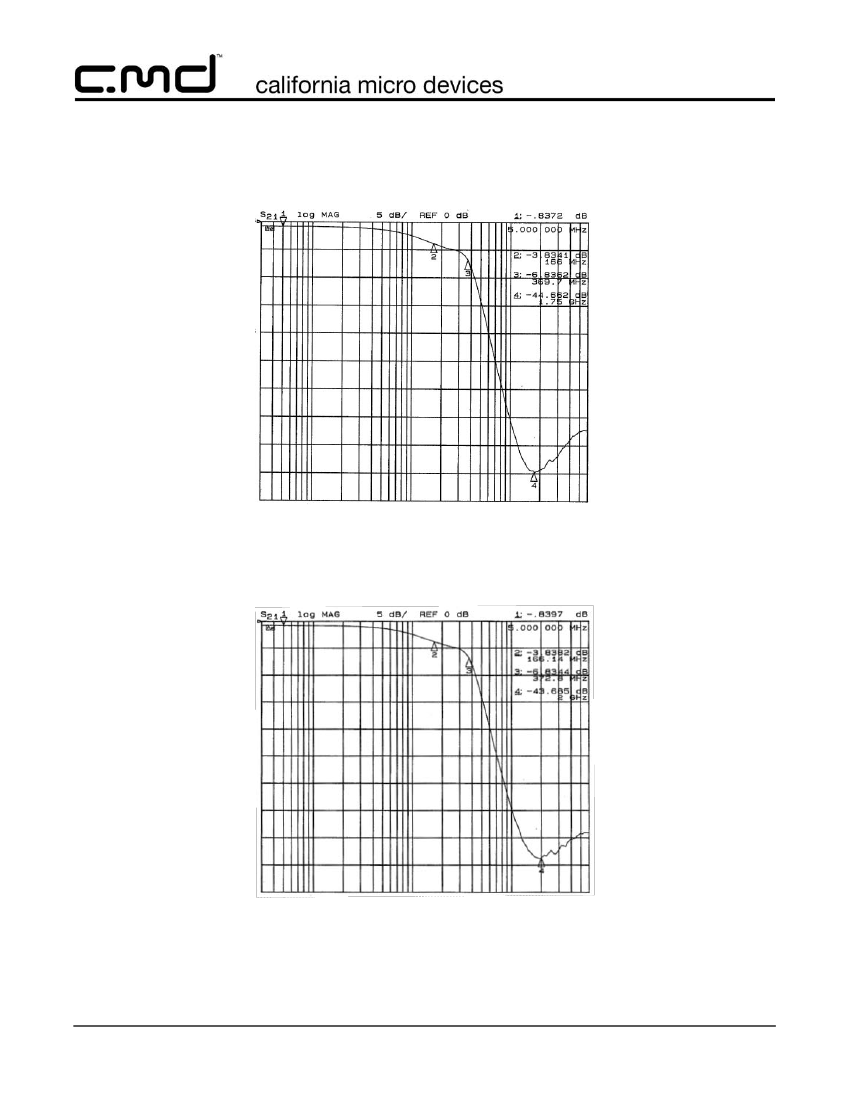

Performance Information
Typical Filter Performance (T
A
=25°C, DC Bias=0V, 50 Ohm Environment)
0 dB
-10 dB
-20 dB
-30 dB
-40 dB
-50 dB
3
10
100
FREQUENCY (MHz)
1000
2000
6000
Figure 1. Typical EMI Filter Performance (4 Channel – Filter 1)
0 dB
-10 dB
-20 dB
-30 dB
-40 dB
-50 dB
3
10
100
FREQUENCY (MHz)
1000
2000
6000
Figure 2. Typical EMI Filter Performance (4 Channel – Filter 2)
© 2007 California Micro Devices Corp. All rights reserved.
4
490 N. McCarthy Blvd., Milpitas, CA 95035-5112
●
Tel: 408.263.3214
●
Fax: 408.263.7846
●
www.cmd.com
06/29/07
Issue X-1
CM1660
CM1660

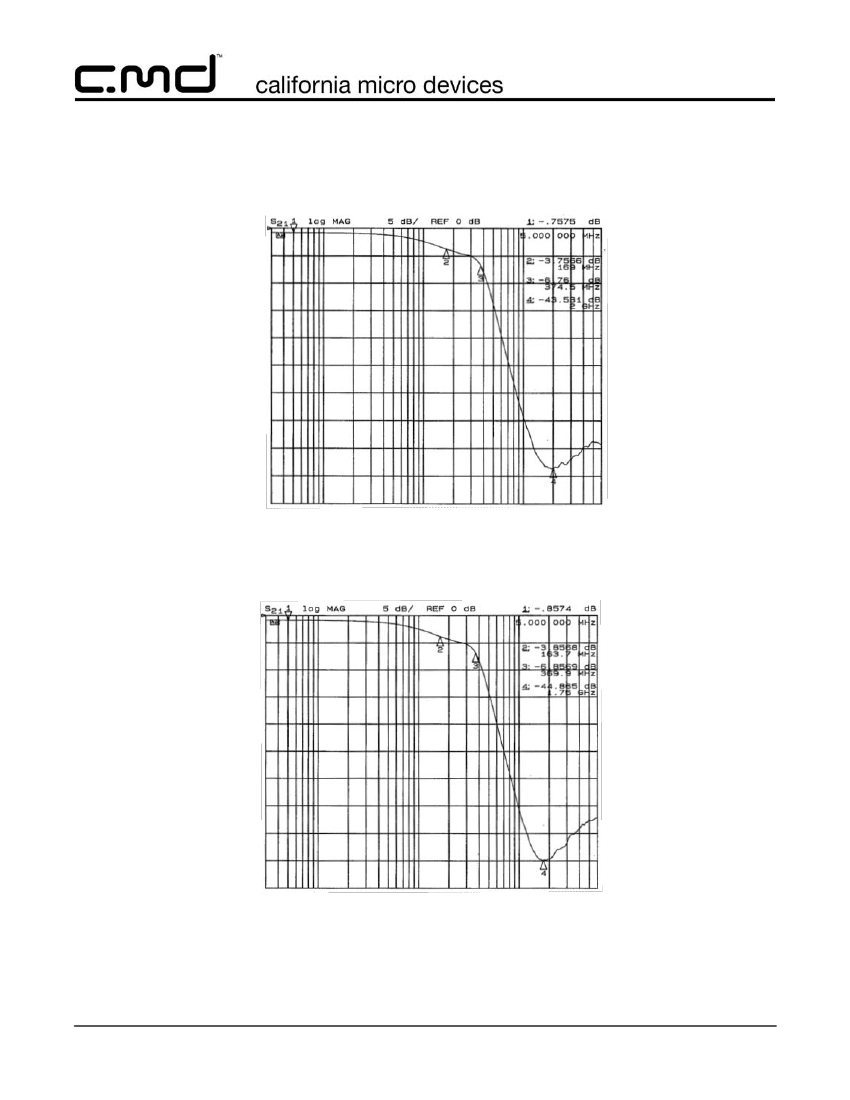

Performance Information (cont’d)
Typical Filter Performance (T
A
=25°C, DC Bias=0V, 50 Ohm Environment)
0 dB
-10 dB
-20 dB
-30 dB
-40 dB
-50 dB
3
10
100
FREQUENCY (MHz)
1000
2000
6000
Figure 3. Typical EMI Filter Performance (4 Channel – Filter 3)
0 dB
-10 dB
-20 dB
-30 dB
-40 dB
-50 dB
3
10
100
FREQUENCY (MHz)
1000
2000
6000
Figure 4. Typical EMI Filter Performance (4 Channel – Filter 4)
© 2007 California Micro Devices Corp. All rights reserved.
06/29/07
490 N. McCarthy Blvd., Milpitas, CA 95035-5112
●
Tel: 408.263.3214
●
Fax: 408.263.7846
●
www.cmd.com
5
