CM1620
LCD and Camera EMI Filter Array with ESD Protection
Features
•
•
•
•
•
•
Six or eight channels of EMI filtering with
integrated ESD protection
Pi-style EMI filters in a capacitor-resistor-capacitor
(C-R-C) network
±15kV
ESD protection on each channel
(IEC 61000-4-2 Level 4, contact discharge)
±30kV
ESD protection on each channel (HBM)
Greater than -25dB attenuation (typical) at 1GHz
NuDFN package with 0.40mm lead pitch:
• 12-lead: 2.5mm x 1.20mm x 0.50mm
• 16-lead: 3.5mm x 1.20mm x 0.50mm
Lead-free finishing
Applications
•
•
•
•
•
•
Applications
LCD and camera data lines in mobile handsets
I/O port protection for mobile handsets, notebook
computers, PDAs, etc.
EMI filtering for data ports in cell phones, PDAs or
notebook computers
Wireless handsets
Handheld PCs/PDAs
•
Electrical Schematic
100Ω
FILTER+ESDn*
8.5pF
FILTER+ESDn*
R
8.5pF
C
GND
C
1 of 6 or 8 EMI/RFI + ESD Channels
* See Package/Pinout Diagram
for expanded pin information.
© 2007 California Micro Devices Corp. All rights reserved.
490 N. McCarthy Blvd., Milpitas, CA 95035-5112
●
Tel: 408.263.3214
Issue A – 11/21/07
●
Fax: 408.263.7846
●
www.cmd.com
1
CM1620
PACKAGE / PINOUT DIAGRAMS
TOP VIEW
TOP VIEW
12 11 10 9 8 7
Part Marking
16 15 14 13 12 11 10 9
Part Marking
Pin 1
Marking
Pin 1
Marking
1 2 3 4 5 6
12-Lead NuDFN Package
CM1620-06DE
1 2 3 4 5 6 7 8
16-Lead NuDFN Package
CM1620-08DE
Note: These drawings are not to scale.
16-PIN DESCRIPTIONS
DEVICE PIN(s)
-06
1
2
3
4
5
6
–
–
–
-08
1
2
3
4
5
6
7
8
GND
PAD
NAME
FILTER1
FILTER2
FILTER3
FILTER4
FILTER5
FILTER6
FILTER7
FILTER8
GND
DESCRIPTION
Filter + ESD Channel 1
Filter + ESD Channel 2
Filter + ESD Channel 3
Filter + ESD Channel 4
Filter + ESD Channel 5
Filter + ESD Channel 6
Filter + ESD Channel 7
Filter + ESD Channel 8
Device Ground
DEVICE PIN(s)
-06
12
11
10
9
8
7
–
–
-08
16
15
14
13
12
11
10
9
NAME
FILTER1
FILTER2
FILTER3
FILTER4
FILTER5
FILTER6
FILTER7
FILTER8
DESCRIPTION
Filter + ESD Channel 1
Filter + ESD Channel 2
Filter + ESD Channel 3
Filter + ESD Channel 4
Filter + ESD Channel 5
Filter + ESD Channel 6
Filter + ESD Channel 7
Filter + ESD Channel 8
Ordering Information
PART NUMBERING INFORMATION
Lead-free Finish
Pins
12
16
Package
NuDFN-12
NuDFN-16
Ordering Part Number
1
CM1620-06DE
CM1620-08DE
Part Marking
P20
P208
Note 1: Parts are shipped in Tape & Reel form unless otherwise specified.
© 2007 California Micro Devices Corp. All rights reserved.
2
490 N. McCarthy Blvd., Milpitas, CA 95035-5112
●
Tel: 408.263.3214
Issue A – 11/21/07
●
Fax: 408.263.7846
●
www.cmd.com
CM1620
Specifications
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Storage Temperature Range
DC Power per Resistor
DC Package Power Rating
RATING
–65 to +150
100
500
UNITS
°C
mW
mW
STANDARD OPERATING CONDITIONS
PARAMETER
Operating Temperature Range
RATING
–40 to +85
UNITS
°C
ELECTRICAL OPERATING CHARACTERISTICS
(NOTE1)
SYMBOL
R
C
TOTAL
C
V
DIODE
I
LEAK
V
SIG
V
ESD
PARAMETER
Resistance
Total Channel Capacitance
Capacitance C
Standoff Voltage
Diode Leakage Current (reverse bias)
Signal Clamp Voltage
In-system ESD Withstand Voltage
a) Human Body Model, MIL-STD-883,
Method 3015
b) Contact Discharge per IEC 61000-4
2 Level 4
Dynamic Resistance
Positive
Negative
Cut-off Frequency
Z
SOURCE
= 50Ω, Z
LOAD
= 50Ω
Absolute Attenuation @ 1GHz from 0dB
Level
6GHz from 0dB Level
Channel R = 100Ω,
Channel C = 17pF
Z
SOURCE
= 50Ω, Z
LOAD
= 50Ω,
DC Bias = 0V; See notes 1, 4, 5.
Z
SOURCE
= 50Ω, Z
LOAD
= 50Ω,
DC Bias = 0V; See notes 1, 4, 5.
At 2.5VDC Reverse Bias, 1MHz,
30mVAC
At 2.5VDC Reverse Bias, 1MHz,
30mVAC
I
DIODE
= 10μA
V
DIODE
=
+
3.3V
I
LOAD
= 10mA
See notes 2 and 3.
±30
±15
kV
kV
5.6
CONDITIONS
MIN
80
14
TYP
100
17
8.5
6.0
0.1
6.8
1.0
9.0
MAX
120
22
UNITS
Ω
pF
pF
V
μA
V
R
DYN
2.3
0.9
200
-30
-25
Ω
Ω
MHz
dB
dB
f
C
A
1GHz
A
800MHz -
Absolute Attenuation @ 800MHz to
6GHz
Note 1:
Note 2:
Note 3:
Note 4:
Note 5:
T
A
=25
°
C unless otherwise specified.
ESD applied to input and output pins with respect to GND, one at a time.
These parameters are guaranteed by design and characterization.
Attenuation / RF curves characterized by a network analyzer using microprobes.
These parameters are NOT guaranteed by design, characterization and production.
© 2007 California Micro Devices Corp. All rights reserved.
490 N. McCarthy Blvd., Milpitas, CA 95035-5112
●
Tel: 408.263.3214
Issue A – 11/21/07
●
Fax: 408.263.7846
●
www.cmd.com
3
CM1620
Performance Information
Typical Filter Performance (T
A
=25°C, DC Bias=0V, 50 Ohm Environment)

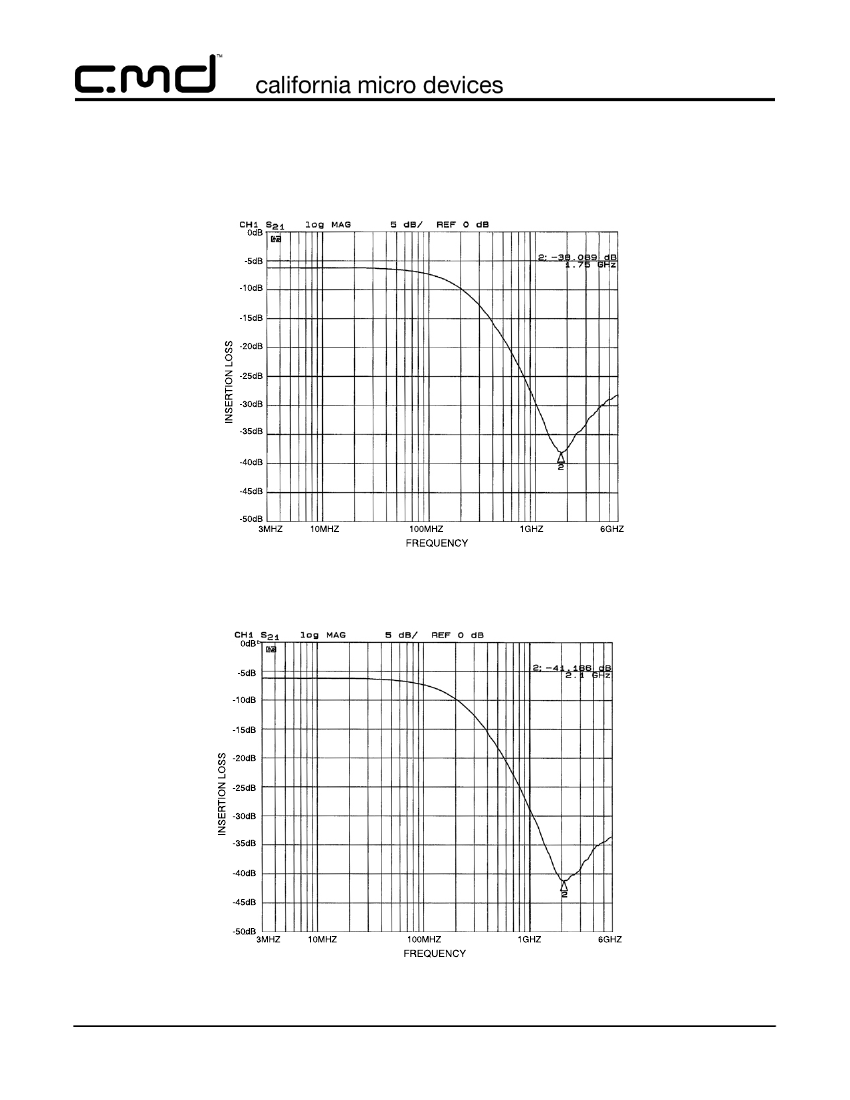

Figure 1. Insertion Loss vs. Frequency (FILTER1 Input to GND, CM1620-06DE)
Figure 2. Insertion Loss vs. Frequency (FILTER2 Input to GND, CM1620-06DE)
© 2007 California Micro Devices Corp. All rights reserved.
4
490 N. McCarthy Blvd., Milpitas, CA 95035-5112
●
Tel: 408.263.3214
Issue A – 11/21/07
●
Fax: 408.263.7846
●
www.cmd.com
CM1620
Performance Information (cont’d)

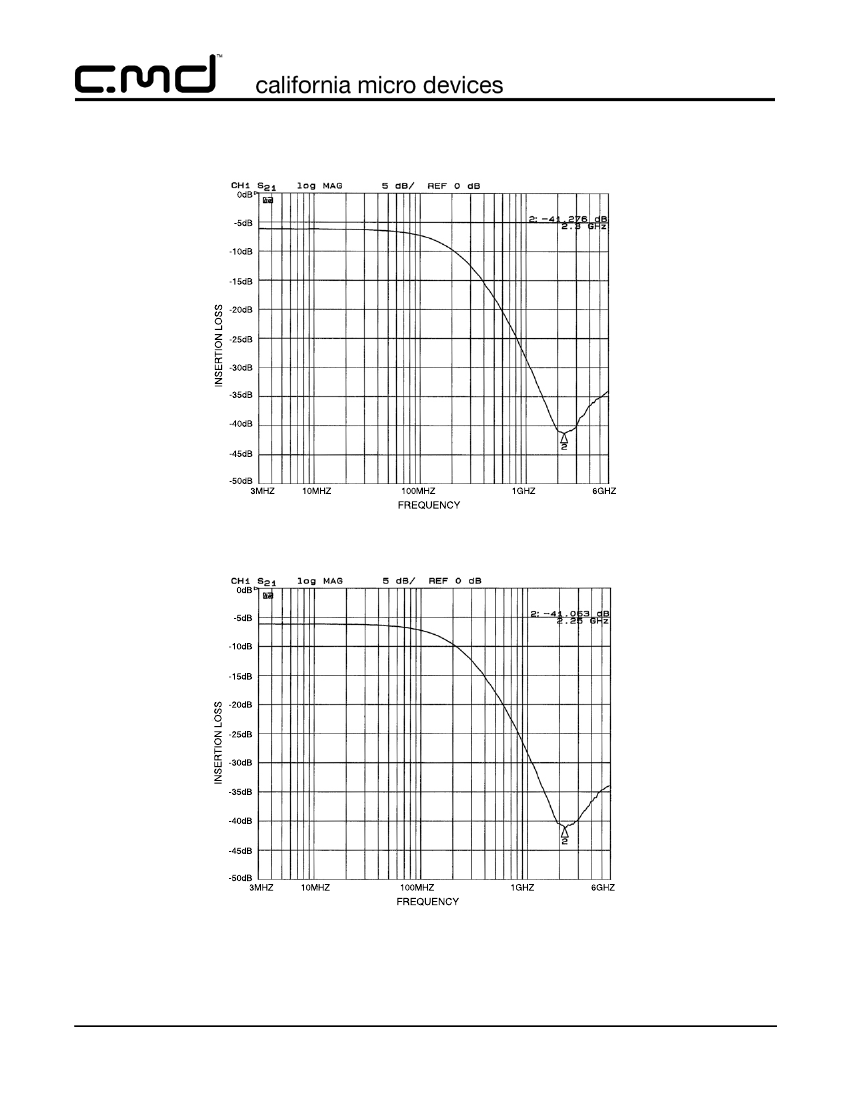

Figure 3. Insertion Loss vs. Frequency (FILTER3 Input to GND, CM1620-06DE)
Figure 4. Insertion Loss vs. Frequency (FILTER4 Input to GND, CM1620-06DE)
© 2007 California Micro Devices Corp. All rights reserved.
490 N. McCarthy Blvd., Milpitas, CA 95035-5112
●
Tel: 408.263.3214
Issue A – 11/21/07
●
Fax: 408.263.7846
●
www.cmd.com
5
