CERAFILr (Filters/Traps/Discriminators) for Audio/Visual Equipment
CERAFILr 10.7MHz for FM-IF Tuners
9 . 0 ma x .
E I AJ
C OD E
1. Little dispersion of amplitude characteristics and
phase characteristics (G. D. T. characteristics)
2. The SFELA10M7G_X series has G. D. T. characteristics
and is useful for obtaining low distortion.
SFELA10M7F_L series, in these ceramic filters,
being in harmony with flatness of G. D. T.,
roundness of the amplitude and selectivity
characteristics, therefore, these ceramic filters
are suitable to high-grade stereo tuners. Even in
mismatching conditions, they can keep little
distortion because of low Qm of ceramic material.
The SFELA10M7FA0G series is based on
SFELA10M7FA00/GA00/HA00, and it obtains high
selectivity with low loss.
There is little dispersion of amplitude and
G. D. T. characteristics, and low distortion rate
can be obtained.
3. All products are inspected the flatness of G. D. T.
characteristics.
7.0±2.0
0. 5
±
0. 1
0. 3
±
0 .1
2.5±0.2 2.5±0.2
4.0 max.
(1) : Input
(2) : Ground
(3) : Output
(in mm)
5. 0
±
1 .0
s

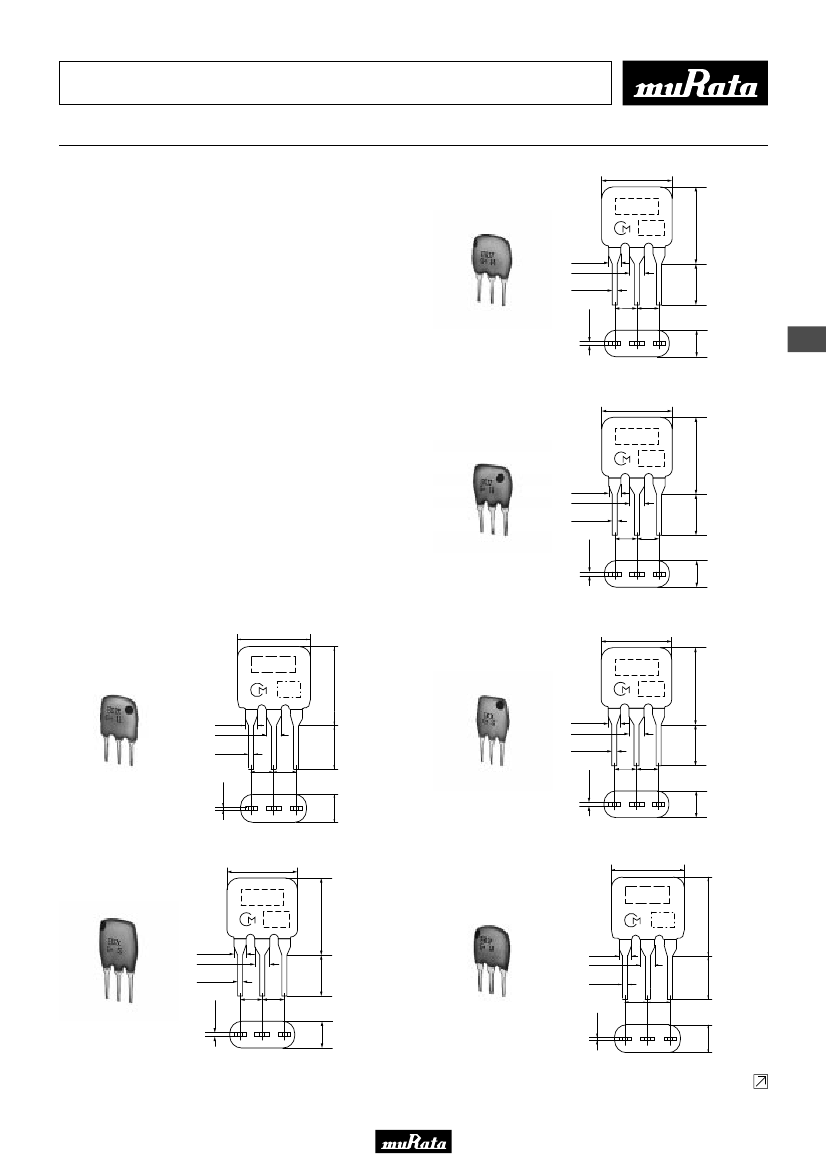

Features
1 . 3 8
±
0. 2
1. 7
±
0 . 1
10. 0 ma x.
SFELA10M7 series for FM-receivers are monolithic type
ceramic filters which use the thickness expander mode
of the piezoelectric ceramic.
MARKING
SFELA10M7JAXE-B0
10
(3)
(2 )
(1)
9 .0 m a x .
E I AJ
C OD E
0.5
±
0.1
0. 3
±
0 . 1
2.5±0.2 2.5±0.2
4.0 max.
(1) : Input
(2) : Ground
(3) : Output
(in mm)
SFELA10M7HAXD-B0
(3)
(2 )
(1)
9.0 max.
EIAJ
CODE
E I AJ
C OD E
5.0±1.0
0.5±0.1
0.5
±
0.1
0 . 3
±
0 .1
2.5±0.2 2.5±0.2
0.3±0.1
3.0±1.0
2.5±0.2 2.5±0.2
4.0 max.
(1) : Input
(2) : Ground
(3) : Output
(in mm)
SFELA10M7HA0G-B0
(1) : Input
(2) : Ground
(3) : Output
(in mm)
SFELA10M7GAXX-B0
(3)
(2)
(1)
( 3)
(2 )
(1 )
9 .0 ma x .
7.0±2.0
1 1 .0 m a x .
MA R K IN G
E I AJ
C OD E
MARKING
EIAJ
CODE
5. 0
±
1 . 0
2.5±0.2 2.5±0.2
5.0±1.0
7.0±2.0
1.38±0.2
1.7±0.1
1. 3 8
±
0 . 2
1.7
±
0.1
0. 5
±0
.1
5.0
±
1.0
1 .3 8± 0 . 2
1 .7
±0
.1
1.38±0.2
1.7±0.1
0.5±0.1
0 .3
±
0 . 1
2.5±0.2 2.5±0.2
0.3±0.1
4.0 max.
(1) : Input
(2) : Ground
(3) : Output
(in mm)
11.0 max.
MARKING
7.0±2.0
M A RK IN G
5. 0
±
1 . 0
1.38
±
0.2
1 . 7± 0 . 1
10 . 0 ma x.
M A RK IN G
3.0±1.0
SFELA10M7GAXA-B0
SFELA10M7GALP03-B0
(1) : Input
(2) : Ground
(3) : Output
(in mm)
( 3)
(2)
(1)
(3)
(2)
(1)
Continued on the following page.
31
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specificaions approval sheet for product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the before ordering.
P50E.pdf 03.4.16
Continued from the preceding page.
7.0±2.0
7.0±2.0
MARKING
7.0±2.0
EIAJ
CODE
MARKING
EIAJ
CODE
1.38±0.2
1.7±0.1
5.0±1.0
0.5±0.1
1.38±0.2
1.7±0.1
0.5±0.1
5.0±1.0
2.5±0.2 2.5±0.2
3.0±1.0
3.0±1.0
(1) : Input
(2) : Ground
(3) : Output
(in mm)
(3)
(2)
(1)
0.3±0.1
2.5±0.2 2.5±0.2
0.3±0.1
7.0±2.0
SFELA10M7GALM-B0
SFELA10M7GA0G-B0
(1) : Input
(2) : Ground
(3) : Output
(in mm)
(3)
(2)
(1)
7.0±2.0
7.0±2.0
7.0±2.0
EIAJ
CODE
EIAJ
CODE
1.38±0.2
1.7±0.1
5.0±1.0
0.5±0.1
1.38±0.2
1.7±0.1
0.5±0.1
5.0±1.0
2.5±0.2 2.5±0.2
3.0±1.0
3.0±1.0
(1) : Input
(2) : Ground
(3) : Output
(in mm)
(3)
(2)
(1)
0.3±0.1
2.5±0.2 2.5±0.2
0.3±0.1
7.0±2.0
10
MARKING
MARKING
SFELA10M7FALL-B0
SFELA10M7FA0G-B0
(1) : Input
(2) : Ground
(3) : Output
(in mm)
(3)
(2)
(1)

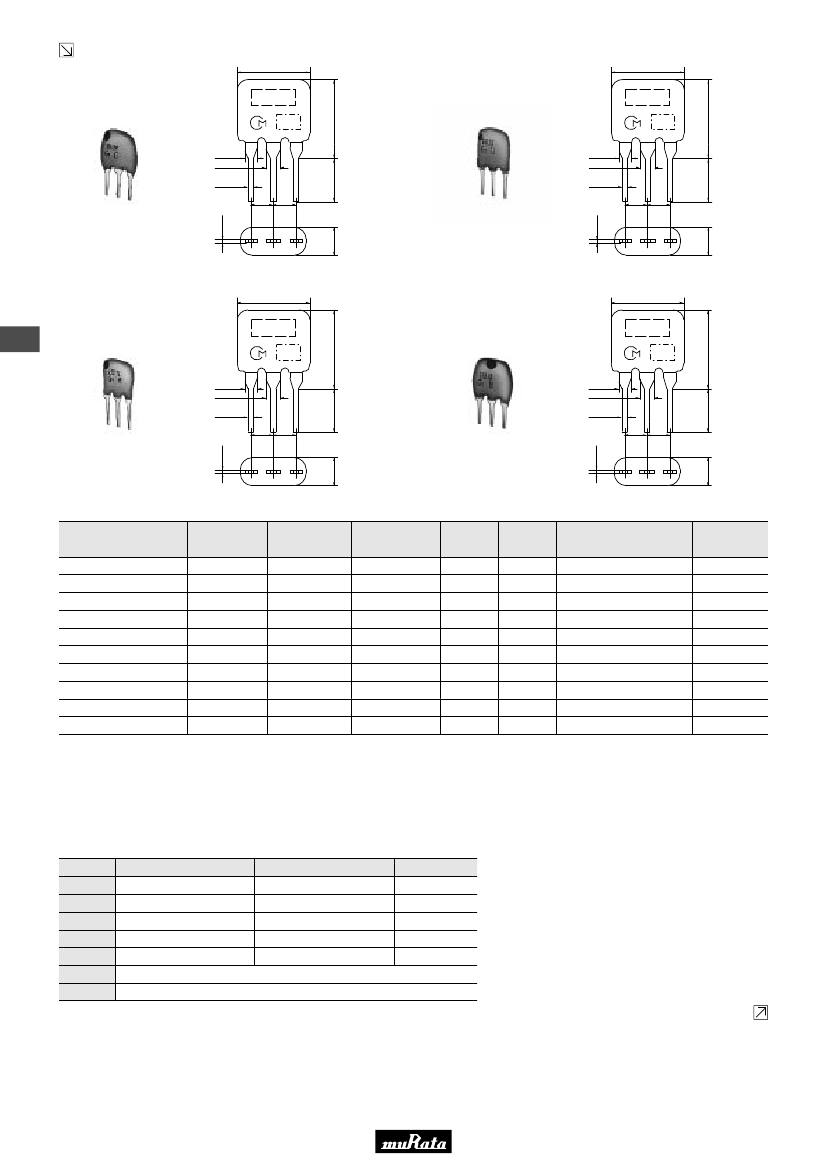

Part Number
SFELA10M7JAXE-B0
SFELA10M7HAXD-B0
SFELA10M7HA0G-B0
SFELA10M7GAXX-B0
SFELA10M7GAXA-B0
SFELA10M7GALM-B0
SFELA10M7GA0G-B0
SFELA10M7FALL-B0
SFELA10M7FA0G-B0
Center
3dB Bandwidth
Frequency (fo)
(kHz)
(MHz)
10.700
±30kHz
10.700
±30kHz
10.700
±30kHz
10.700
±30kHz
10.700
±30kHz
10.700
±30kHz
10.700
±30kHz
10.700
±30kHz
10.700
±30kHz
150
±30kHz
180
±30kHz
180
±40kHz
250
±40kHz
220
±40kHz
250
±50kHz
230
±50kHz
230
±50kHz
280
±50kHz
280
±50kHz
Attenuation
(kHz)
500 max.
530 max.
520 max.
670 max.
610 max.
650 max.
600 max.
600 max.
700 max.
650 max.
Insertion
Spurious
Loss
Attenuation
(dB)
(dB)
14.0 max.
14.0 max.
7.0 max.
12.0 max.
12.5 max.
10.0 max.
9.0
±2.0dB
7.0 max.
7.0
±2.0dB
4.0
±2.0dB
35 min.
33 min.
40 min.
25 min.
30 min.
30 min.
30 min.
40 min.
25 min.
30 min.
GDT Bandwidth
(kHz)
fo±50 min.[within 0.15µsec.]
fo±60 min.[within 0.15µsec.]
fo±45 min.[within 0.5µsec.]
fo±110 min.[within 0.2µsec.]
fo±80 min.[within 0.15µsec.]
fo±65 min.[within 0.25µsec.]
fo±60 min.[within 0.25µsec.]
fo±60 min.[within 0.5µsec.]
fo±70 min.[within 0.25µsec.]
fo±85 min.[within 0.5µsec.]
Input/Output
Impedance
(ohm)
330
330
330
330
330
330
330
330
330
330
SFELA10M7GALP03-B0
10.700
±30kHz
Attenuation Bandwidth : at 20dB loss point
Area of Spurious Attenuation : [within 9MHz to 12MHz]
Insertion Loss: at minimum loss point
Center frequency (fo) defined by the center of 3dB bandwidth.
The order quantity should be an integral multiple of the "Minimum Quantity" shown in the package page.
s
Standard Center Frequency Rank Code
CODE
D
B
A
C
E
Z
M
30kHz Step
10.64MHz±30kHz
10.67MHz±30kHz
10.70MHz±30kHz
10.73MHz±30kHz
10.76MHz±30kHz
25kHz Step
10.650MHz±25kHz
10.675MHz±25kHz
10.700MHz±25kHz
10.725MHz±25kHz
10.750MHz±25kHz
Combination A,B,C,D,E
Combination A,B,C
Continued on the following page.
Color Code
Black
Blue
Red
Orange
White
32
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specificaions approval sheet for product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the before ordering.
P50E.pdf 03.4.16
Continued from the preceding page.
s
Test Circuit
(1) : Input
(2) : Output
(3) :Ground
R
1
(1)
(2)
(3)
Rg
R
2
S.S.G
C
RF
Voltmeter
Rg + R
1
= R
2
= Input and Output Impedance
C = 10pF (Including stray capacitance and input
capacitance of RF voltmeter.)
s

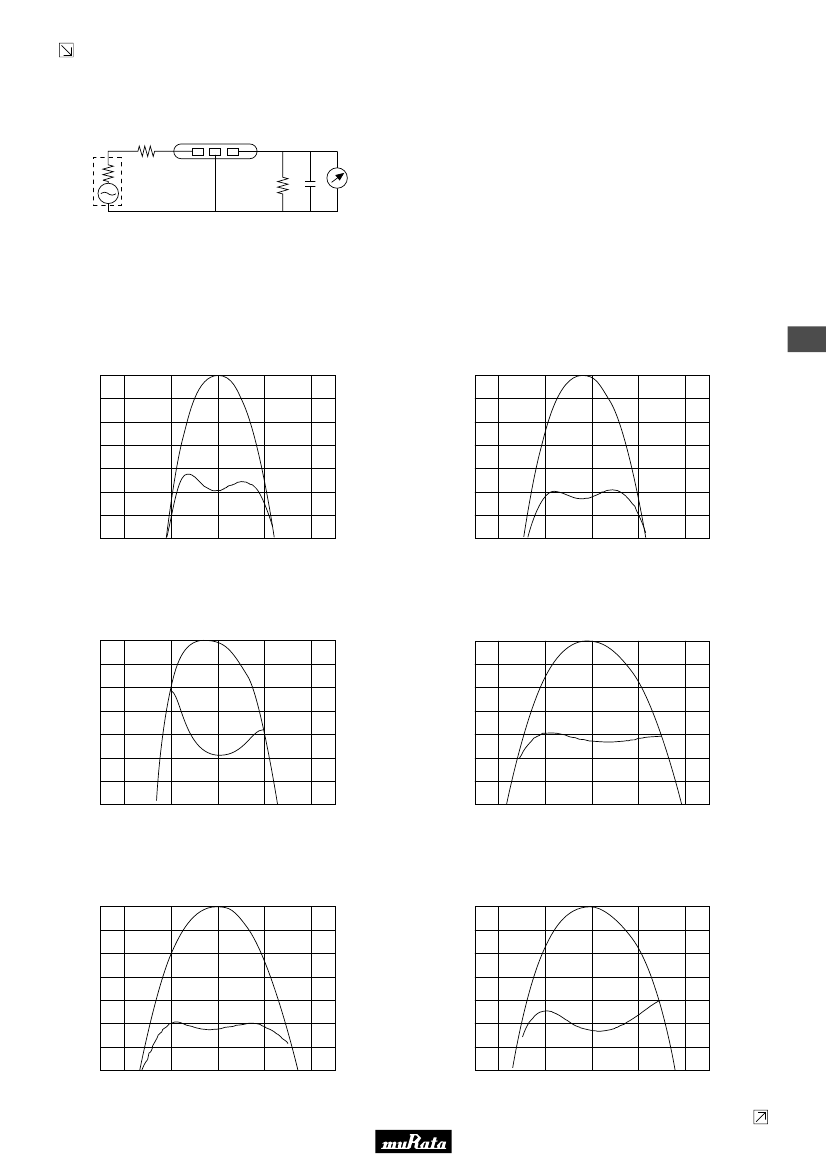

Frequency Characteristics
SFELA10M7JAXE-B0
0
1
2
Attenuation (dB)
3
4
5
6
7
5.00
4.75
4.50
Attenuation (dB)
G.D.T. (µsec.)
4.25
4.00
3.75
3.50
3.25
0
1
2
3
4
5
6
7
10
SFELA10M7HAXD-B0
4.50
4.25
4.00
3.75
3.50
3.25
3.00
2.75
G.D.T. (µsec.)
G.D.T. (µsec.)
G.D.T. (µsec.)
10.500
10.600
10.700
Frequency (MHz)
10.800
10.900
10.500
10.600
10.700
Frequency (MHz)
10.800
10.900
SFELA10M7HA0G-B0
0
1
2
Attenuation (dB)
3
4
5
6
7
6.00
5.50
5.00
4.50
4.00
3.50
3.00
2.50
Attenuation (dB)
G.D.T. (µsec.)
0
1
2
3
4
5
6
7
SFELA10M7GAXX-B0
3.25
3.00
2.75
2.50
2.25
2.00
1.75
1.50
10.500
10.600
10.700
Frequency (MHz)
10.800
10.900
10.500
10.600
10.700
Frequency (MHz)
10.800
10.900
SFELA10M7GAXA-B0
0
1
2
Attenuation (dB)
3
4
5
6
7
3.75
3.50
3.25
3.00
2.75
2.50
2.25
2.00
Attenuation (dB)
G.D.T. (µsec.)
0
1
2
3
4
5
6
7
SFELA10M7GALP03-B0
3.75
3.50
3.25
3.00
2.75
2.50
2.25
2.00
10.500
10.600
10.700
Frequency (MHz)
10.800
10.900
10.500
10.600
10.700
Frequency (MHz)
10.800
10.900
Continued on the following page.
33
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specificaions approval sheet for product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the before ordering.
P50E.pdf 03.4.16
Continued from the preceding page.
s
Frequency Characteristics
SFELA10M7GALM-B0
0
1
2
Attenuation (dB)
3
4
5
6
7
4.00
3.75
3.50
Attenuation (dB)
G.D.T. (µsec.)
3.25
3.00
2.75
2.50
2.25
0
1
2
3
SFELA10M7GA0G-B0
6.00
5.50
5.00
4.50
G.D.T. (µsec.)
G.D.T. (µsec.)
4
5
6
7
4.00
3.50
3.00
2.50
10.500
10.600
10.700
Frequency (MHz)
10.800
10.900
10.500
10.600
10.700
Frequency (MHz)
10.800
10.900
10
SFELA10M7FALL-B0
0
1
2
Attenuation (dB)
3
4
5
6
7
3.25
3.00
2.75
Attenuation (dB)
G.D.T. (µsec.)
2.50
2.25
2.00
1.75
1.50
0
1
2
3
SFELA10M7FA0G-B0
5.00
4.50
4.00
3.50
4
5
6
7
3.00
2.50
2.00
1.50
10.500
10.600
10.700
Frequency (MHz)
10.800
10.900
10.500
10.600
10.700
Frequency (MHz)
10.800
10.900
s

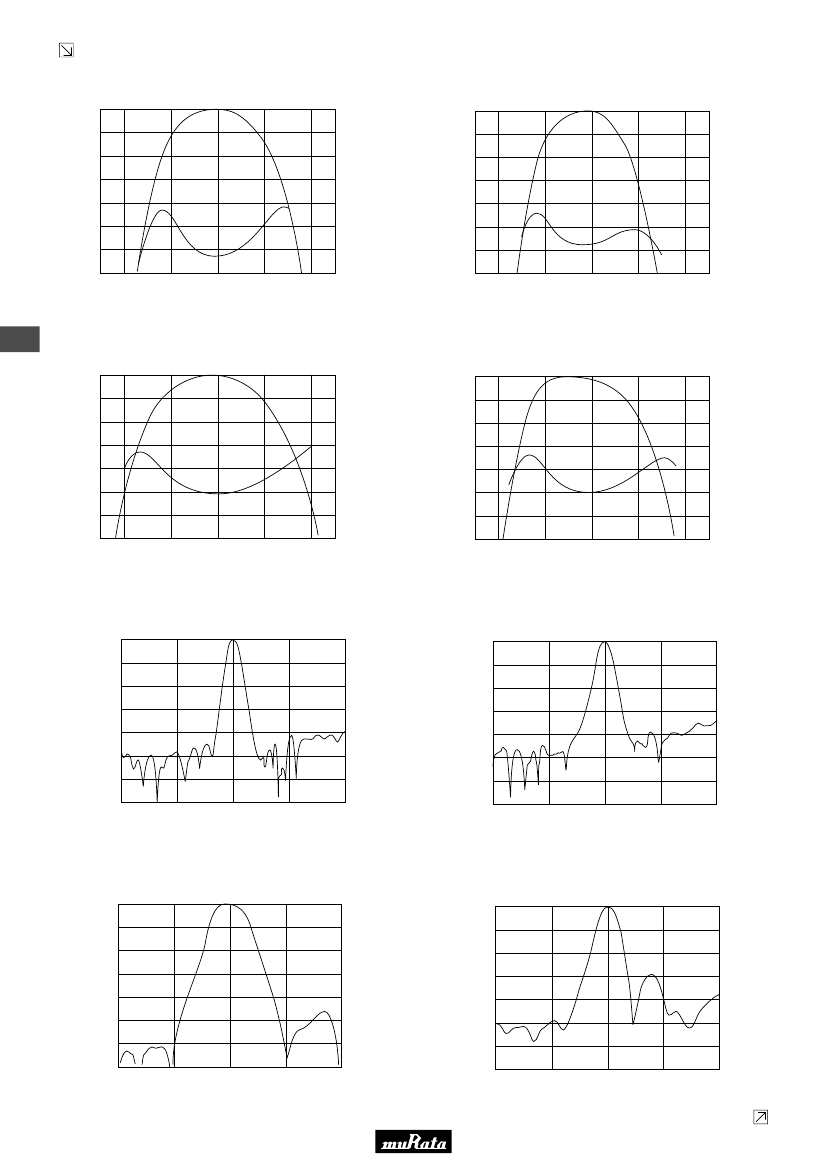

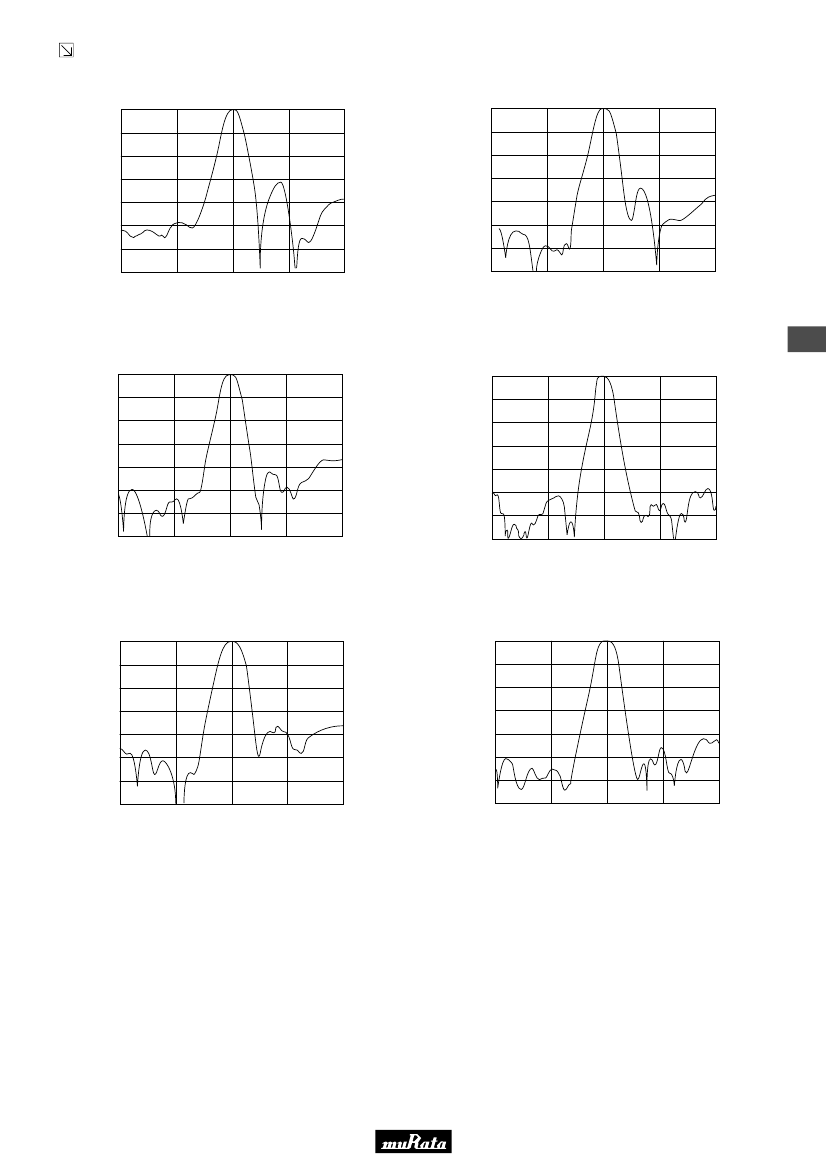

Frequency Characteristics (Spurious)
SFELA10M7JAXE-B0
0
10
20
Attenuation (dB)
30
40
50
60
70
8.700
Attenuation (dB)
0
10
20
30
40
50
60
70
8.700
SFELA10M7HAXD-B0
9.700
10.700
Frequency (MHz)
11.700
12.700
9.700
10.700
Frequency (MHz)
11.700
12.700
SFELA10M7HA0G-B0
0
10
20
Attenuation (dB)
30
40
50
60
70
9.900
Attenuation (dB)
0
10
20
30
40
50
60
70
8.700
SFELA10M7GAXX-B0
10.300
10.700
Frequency (MHz)
11.100
11.500
9.700
10.700
Frequency (MHz)
11.700
12.700
Continued on the following page.
34
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specificaions approval sheet for product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the before ordering.
I am a beginner in microcontrollers. Everyone says that you can just use a development board after reading a book. The problem is: 1. There are many types on the market. I hope to find one that is mor...
MOV P2, #0A0H MOV R0, #01H MOV A, #10 MOV @RO, A means to transfer the data 10H in accumulator A to the address unit of the external data memory with page A0H and address 01H in the page, that is, it ...
I am going to make a chip ADS8320 recently, which needs to use SPI. This chip has only three pins connected to STM32, namely CLK, MISO, CS, but no MOSI pin. Its operation needs the clock of the host t...
[i=s] This post was last edited by jameswangsynnex on 2015-3-3 20:00 [/i] If I use a DC power supply to charge a mobile phone battery, what voltage should I use and how long should it take to charge? ...
I didn’t go into it in depth for a while, I just watched the routine and used it twice!I had nothing to do at home on the weekend, so I took a good look at the MSP430 clock system! It feels very flexi...
For many years, the demon beast HMI has been causing chaos in the human world, confusing people's vision and hearing!Almost no one knows when it entered the human world?According to various secret boo...
When the WDP500-2A plane grating monochromator is used to test the emission wavelength of a high-power laser diode at different currents, the matching of the laser diode has the disadvantages of lo...[Details]
0 Introduction
With the development of my country's economy, the number of motor vehicles continues to increase. The growth of existing roads and other hardware facilities can no longer meet t...[Details]
This paper designs a dot matrix LED text display screen that is easy to update, expandable, and low-cost. The way to reduce costs is
① Use the Bluetooth data transmission function of mobile ph...[Details]
Instrument stepper motor
The stepper motor is an open-loop control element that converts electrical pulse signals into angular displacement or linear displacement. In the case of non...[Details]
PV inverter manufacturer SMA has launched its first DC arc fault circuit interrupter (AFCI) PV inverter and has received UL certification.
The new SunnyBoy AFCI inverter models include 3000-US...[Details]
0 Introduction
With the rise and continuous improvement of the solid-state lighting industry, light-emitting diodes (LEDs) have become an alternative lighting technology and are gr...[Details]
In today's body control module (BCM) designs, savvy engineers are moving away from electromechanical relays whenever possible. Their next step is to eliminate fuses. But is eliminating fuses a nece...[Details]
Motors are important products that convert electrical energy into mechanical energy to achieve automation, and they are widely used in industrial control, medical electronics, white a...[Details]
Spatial Division Multiplexing (SDM) MIMO processing can significantly improve spectrum efficiency and thus greatly increase the capacity of wireless communication systems. Spatial Division Multip...[Details]
LED light sources have many environmental advantages, but early products still have certain technical bottlenecks in heat dissipation and high brightness design that cannot be broken through....[Details]
Traditional
virtual instruments
consist of a data acquisition
board
based on PCI bus and
corresponding software. However, with
the rapid development of
computer
network techno...[Details]
Key Points
1. Now, in addition to high-end smartphones and tablets, users also expect to use touch screens in other applications, and they are gradually appearing in cars and instruments.
...[Details]
introduction
When it comes to the production of mobile phone lithium-ion batteries, the first thing that comes to mind is Japan's industrialized mechanical assembly line, NOKIO, MOTOLROLA's st...[Details]
The automotive power electronics market has grown rapidly as comfort and active safety features become more common. As traditional mechanical functions shift to electronic applications, the demand ...[Details]
Currently, high-frequency and high-efficiency DCDC converters are increasingly used in automotive electronic systems.
High switching frequency can use smaller power inductors and output filter...[Details]
Embedded System
京公网安备 11010802033920号
EEWORLD
