CIC10 Series (1608/ EIA 0603)
APPLICATION
Noise Suppression in power line
FEATURES
CIC series is used for high current. (~ 3A)
0.6~0.8mm
RECOMMENDED LAND PATTERN
0.6~0.8mm
0.6~0.8mm
0.6~0.8mm

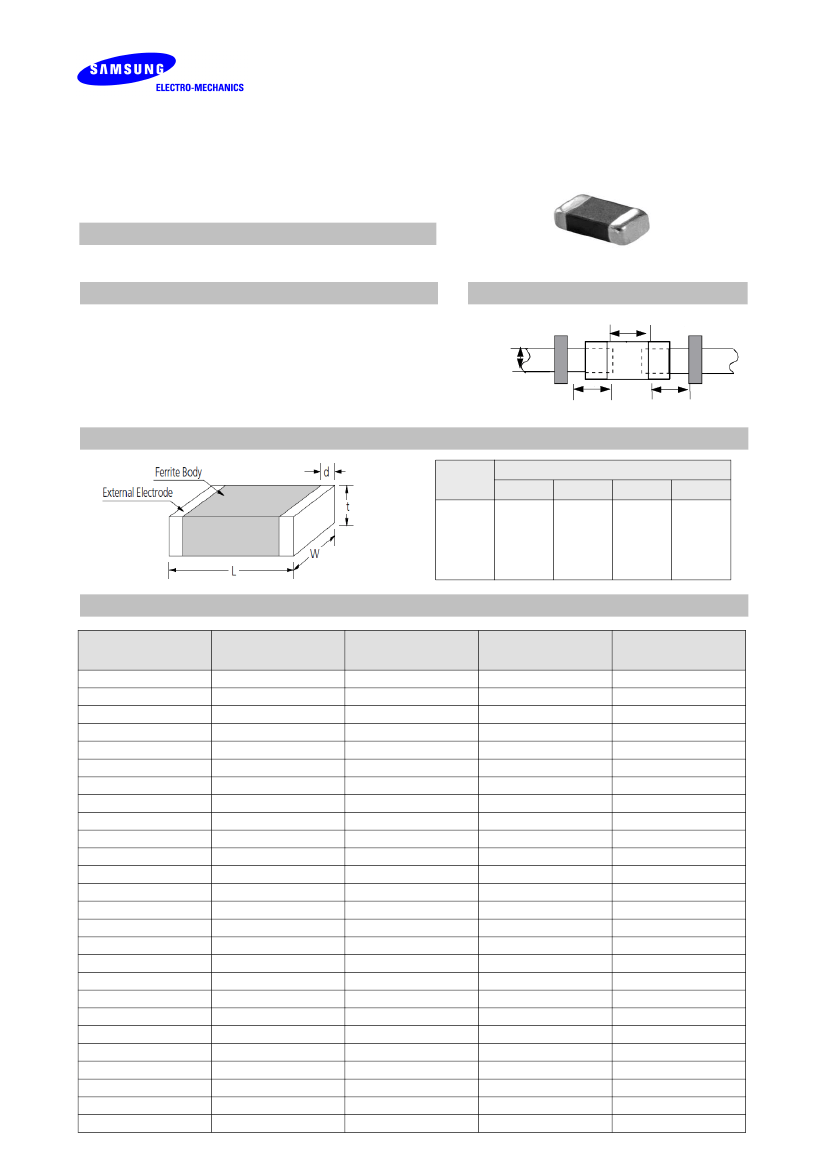

DIMENSION
Type
Dimension [mm]
L
W
t
d
10
1.6±0.15 0.8±0.15 0.8±0.15
0.3±0.2

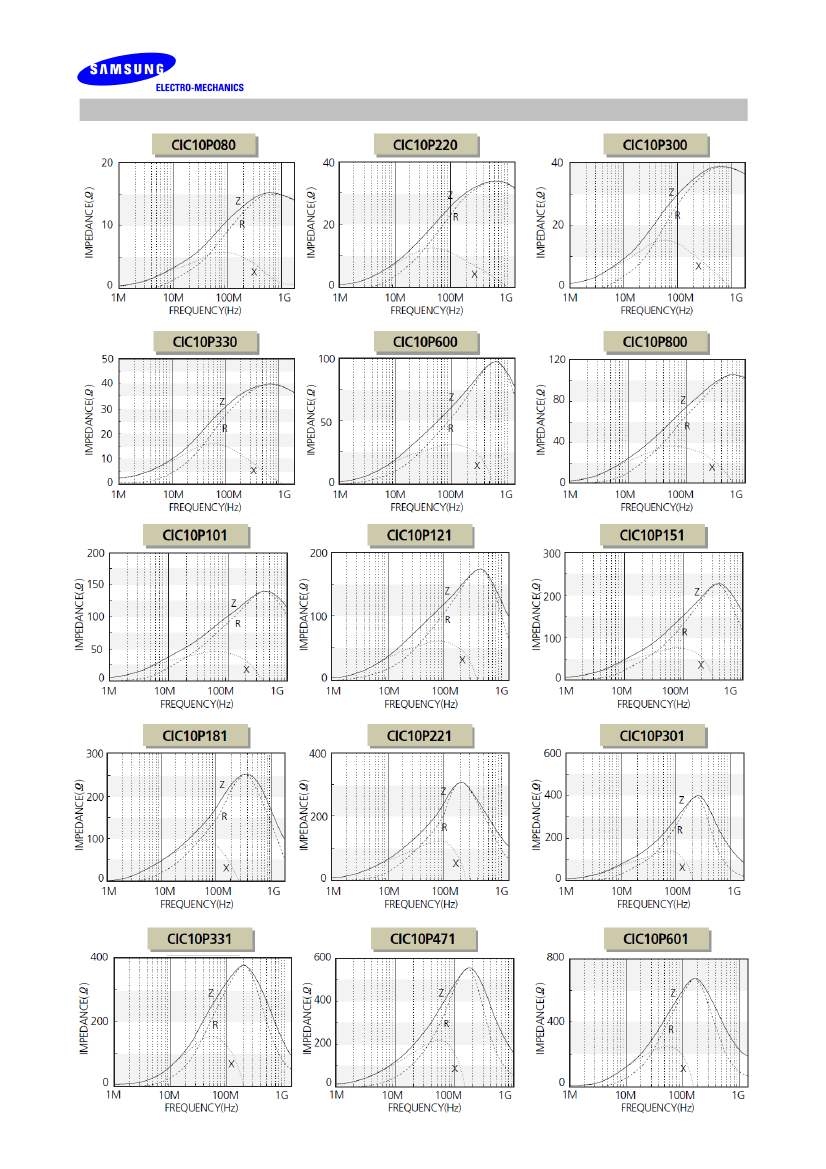

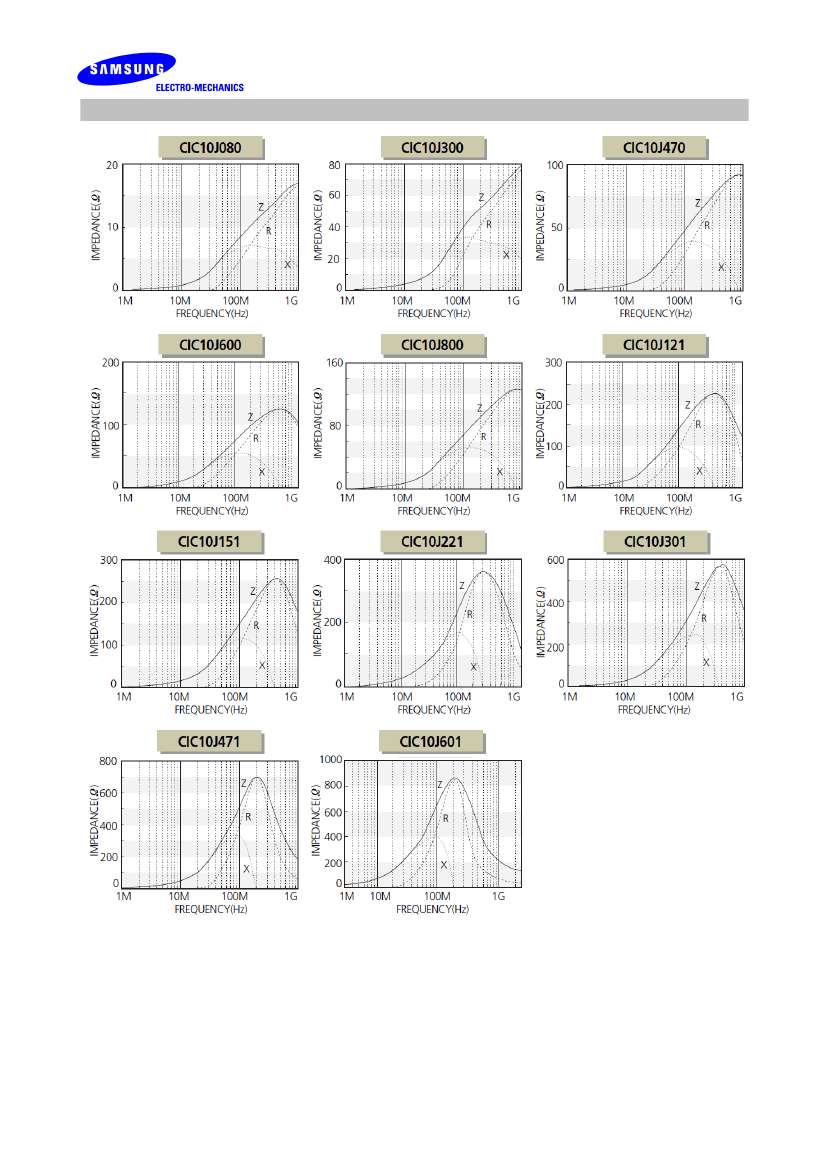

DESCRIPTION
Part no.
CIC10P080
CIC10P220
CIC10P300
CIC10P330
CIC10P600
CIC10P800
CIC10P101
CIC10P121
CIC10P151
CIC10P181
CIC10P221
CIC10P301
CIC10P331
CIC10P471
CIC10P601
CIC10J080
CIC10J300
CIC10J470
CIC10J600
CIC10J800
CIC10J121
CIC10J151
CIC10J221
CIC10J301
CIC10J471
CIC10J601
Thickness
(mm)
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
0.80±0.15
Impedance
(Ω)±25%@100MHz
8
22
30
33
60
80
100
120
150
180
220
300
330
470
600
8
30
47
60
80
120
150
220
300
470
600
DC Resistance
(Ω) Max.
0.03
0.025
0.025
0.025
0.05
0.05
0.05
0.05
0.09
0.09
0.10
0.12
0.14
0.15
0.15
0.02
0.03
0.05
0.05
0.10
0.10
0.15
0.15
0.15
0.15
0.15
Rated Current
(mA) Max.
3000
3000
3000
3000
2500
2000
2000
2000
1500
1500
1400
1200
1200
1200
1200
3000
3000
2000
2000
2000
2000
1500
1500
800
800
750
Ver. 201306
PRODUCT IDENTIFICATION
CI
(1)
(1)
(3)
(5)
(6)
(7)
C
(2)
10
(3)
P
(4)
080
(5)
N
(6)
C
(7)
Chip Beads
(2) For High current(C:~3A)
Dimension
(4) Material Code
Nominal impedance (080:8Ω, 221:220Ω )
Thickness option(N:Standard, A:Thinner than standard, B:Thicker than standard)
Packaging(C:paper tape, E:embossed tape)

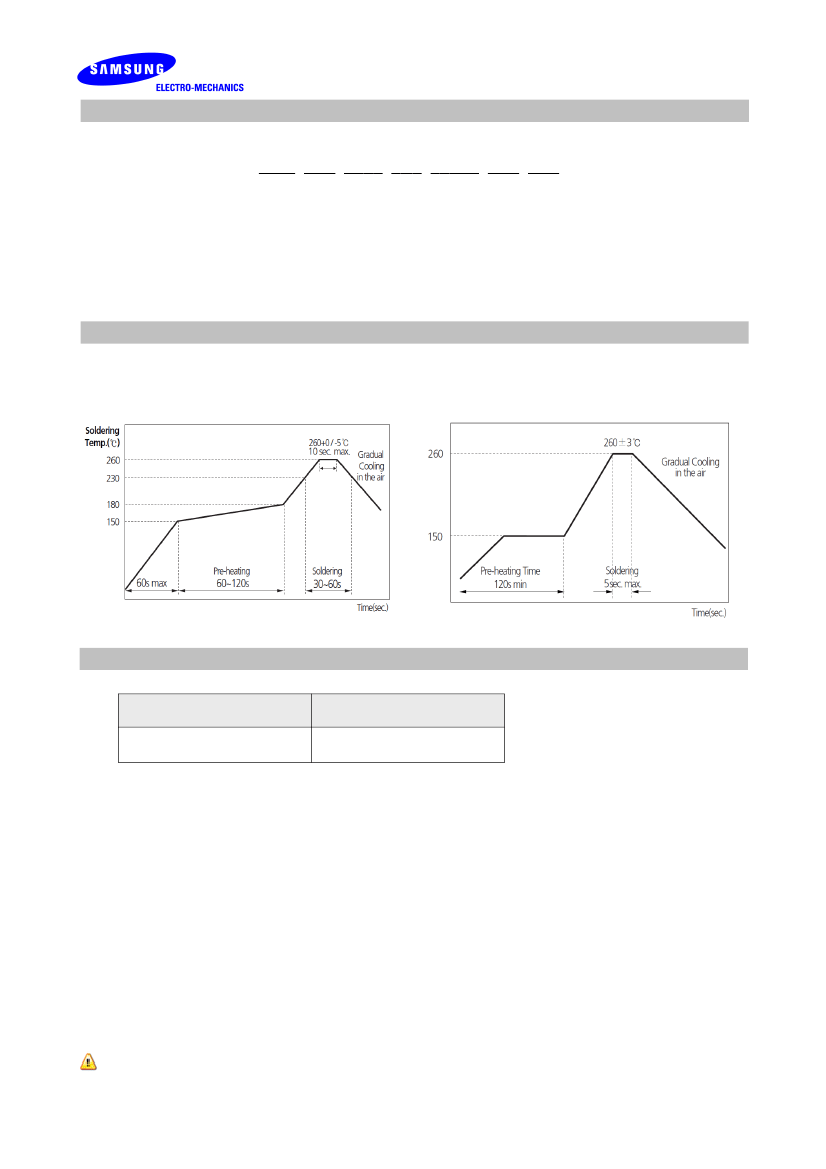

RECOMMENDED SOLDERING CONDITION
REFLOW SOLDERING
FLOW SOLDERING
PACKAGING
Packaging Style
Card Board Taping
Quantity(pcs/reel)
4000
