CEM2611 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> CEM2611

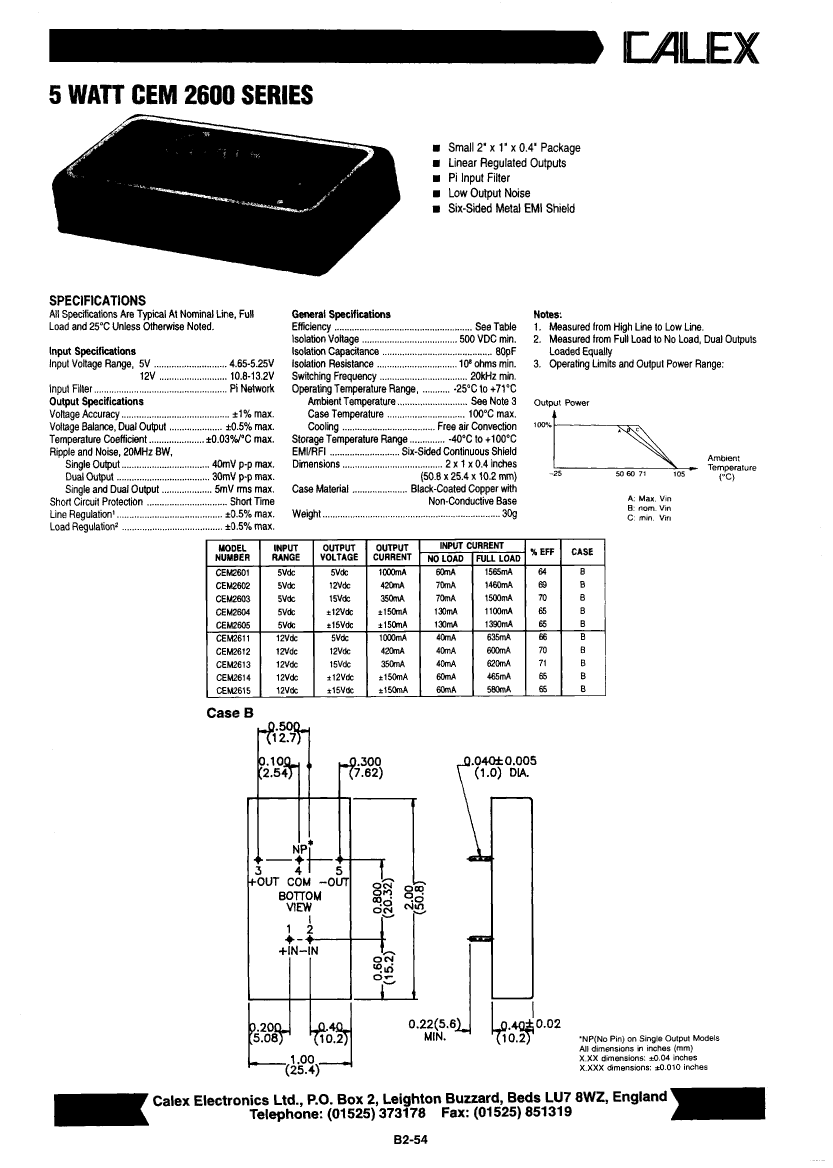

CEM2611: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid; CategoryPower/power management The power supply circuit; File Size54KB，1 Pages; ManufacturerCalex Mfg Co Inc.

Download Datasheet Parametric Compare View All

CEM2611 Overview

DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid

CEM2611 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	66%
Maximum input voltage	13.2 V
Minimum input voltage	10.8 V
Nominal input voltage	12 V
JESD-30 code	R-XDIP-P5
Maximum grid adjustment rate	0.5%
Maximum load regulation	0.5%
Number of functions	1
Output times	1
Number of terminals	5
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Maximum output voltage	5.05 V
Minimum output voltage	4.95 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	IN-LINE
Protect	CURRENT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	5 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

CEM2611 Related Products

	CEM2611	CEM2603	CEM2601	CEM2604	CEM2605	CEM2614	CEM2613	CEM2615	CEM2602	CEM2612
Description	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	66%	70%	64%	65%	65%	65%	71%	65%	69%	70%
Maximum input voltage	13.2 V	5.25 V	5.25 V	5.25 V	5.25 V	13.2 V	13.2 V	13.2 V	5.25 V	13.2 V
Minimum input voltage	10.8 V	4.65 V	4.65 V	4.65 V	4.65 V	10.8 V	10.8 V	10.8 V	4.65 V	10.8 V
Nominal input voltage	12 V	5 V	5 V	5 V	5 V	12 V	12 V	12 V	5 V	12 V
JESD-30 code	R-XDIP-P5	R-XDIP-P5	R-XDIP-P5	R-XDIP-P5	R-XDIP-P5	R-XDIP-P5	R-XDIP-P5	R-XDIP-P5	R-XDIP-P5	R-XDIP-P5
Maximum grid adjustment rate	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%
Maximum load regulation	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%
Number of functions	1	1	1	1	1	1	1	1	1	1
Output times	1	1	1	2	2	2	1	2	1	1
Number of terminals	5	5	5	5	5	5	5	5	5	5
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum output voltage	5.05 V	15.15 V	5.05 V	12.12 V	15.15 V	12.12 V	15.15 V	15.15 V	12.12 V	12.12 V
Minimum output voltage	4.95 V	14.85 V	4.95 V	11.88 V	14.85 V	11.88 V	14.85 V	14.85 V	11.88 V	11.88 V
Nominal output voltage	5 V	15 V	5 V	12 V	15 V	12 V	15 V	15 V	12 V	12 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Protect	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum total power output	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1	1	-	-	-	-
