Chip Bead
For High Current
CIC41 Series (4516/ EIA 1806)
APPLICATION
Noise Suppression in power line
FEATURES
CIC series is used for high current. (~ 3A)
1.2~2.0mm
RECOMMENDED LAND PATTERN
2.7~3.3mm
1.4~2.4mm
1.4~2.4mm

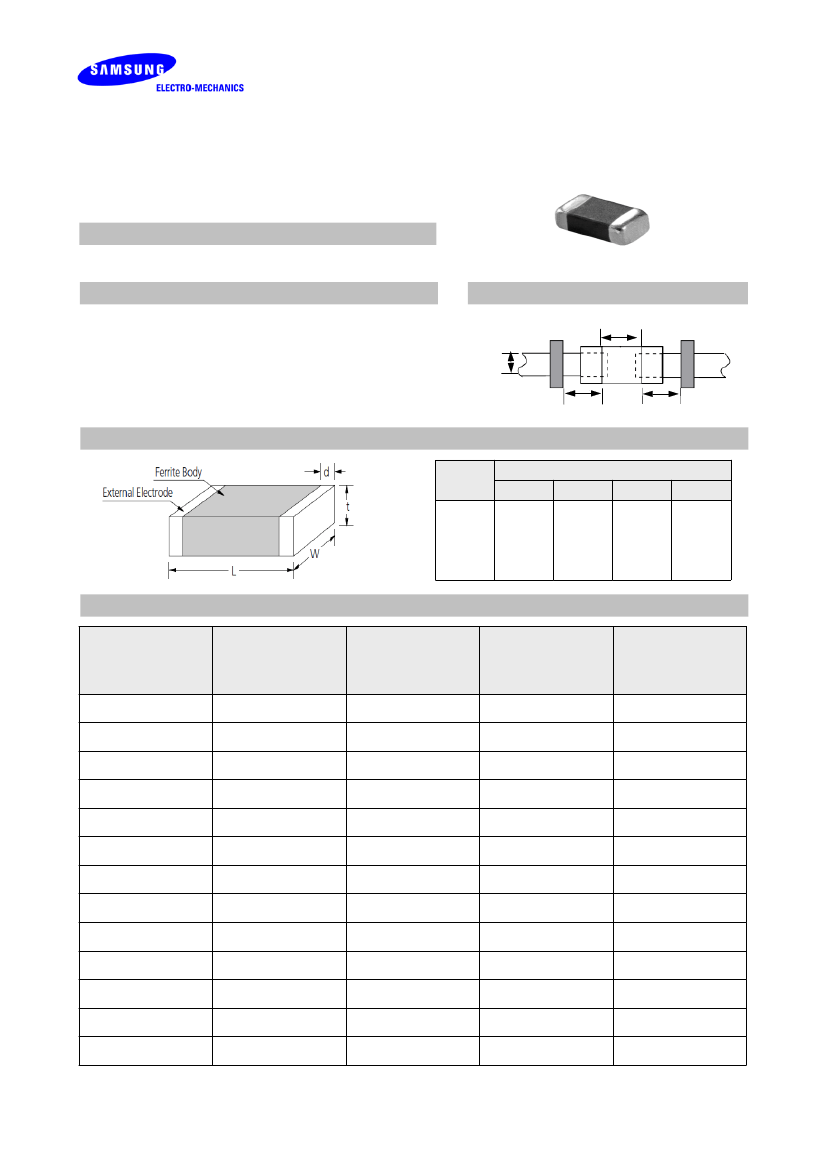

DIMENSION
Type
Dimension [mm]
L
W
t
d
41
4.5±0.2
1.6±0.2
1.6±0.2
0.5±0.3
DESCRIPTION
Thickness
(mm)
Impedance
(
Ω
)±25%@100MHz
DC Resistance
(
Ω
) Max.
Rated Current
(mA) Max.
Part no.
CIC41P260
CIC41P600
CIC41P750
CIC41P800
CIC41P910
CIC41P111
CIC41P121
CIC41P151
CIC41P181
CIC41P221
CIC41P301
CIC41P471
CIC41P601
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
26
60
75
80
91
110
120
150
180
220
300
470
600
0.01
0.01
0.01
0.01
0.025
0.025
0.025
0.025
0.025
0.05
0.05
0.05
0.08
6000
6000
6000
6000
3000
3000
3000
3000
3000
2000
2000
2000
1500
Ver 201208
Part no.
Thickness
(mm)
Impedance
(
Ω
)±25%@100MHz
DC Resistance
(
Ω
) Max.
Rated Current
(mA) Max.
CIC41J400
CIC41J600
CIC41J800
CIC41J910
CIC41J121
CIC41J151
CIC41J221
CIC41J301
CIC41J471
CIC41J601
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
1.6±0.2
40
60
80
91
120
150
220
300
470
600
0.01
0.01
0.01
0.02
0.03
0.03
0.04
0.04
0.04
0.04
6000
6000
6000
6000
3000
3000
2500
2500
2500
2500

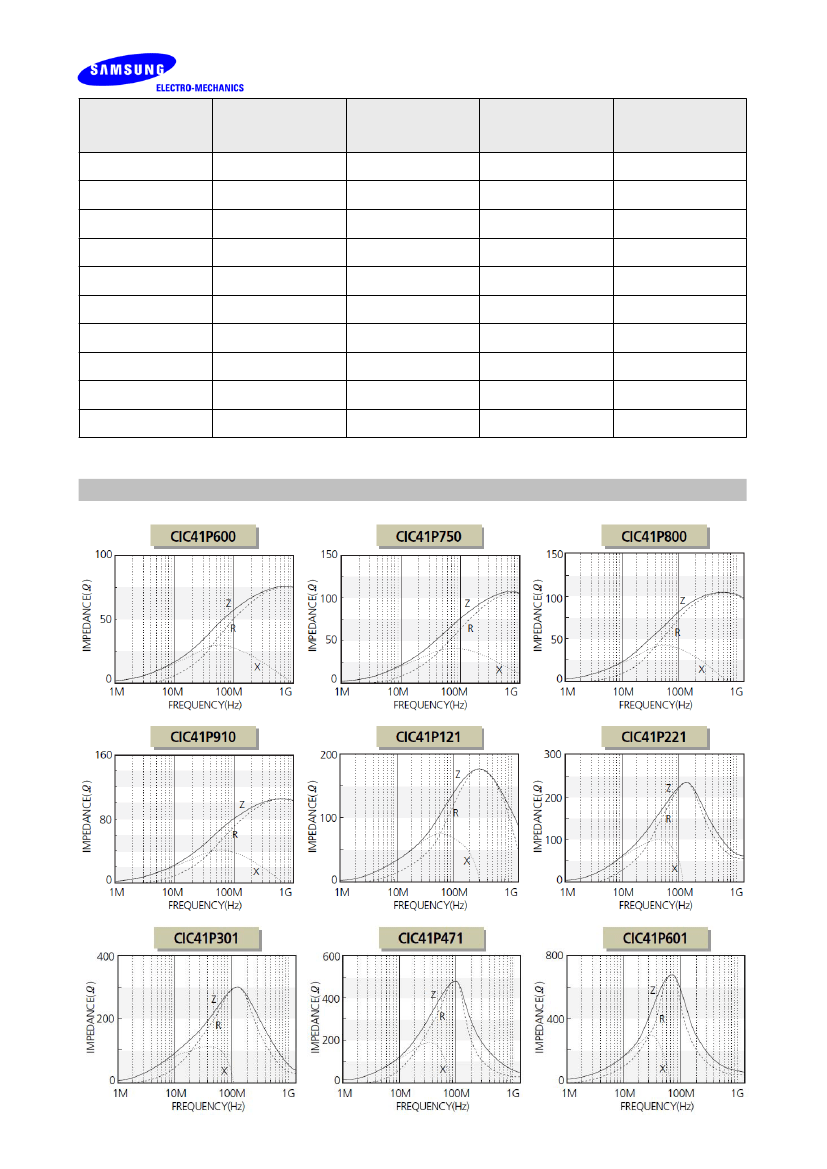

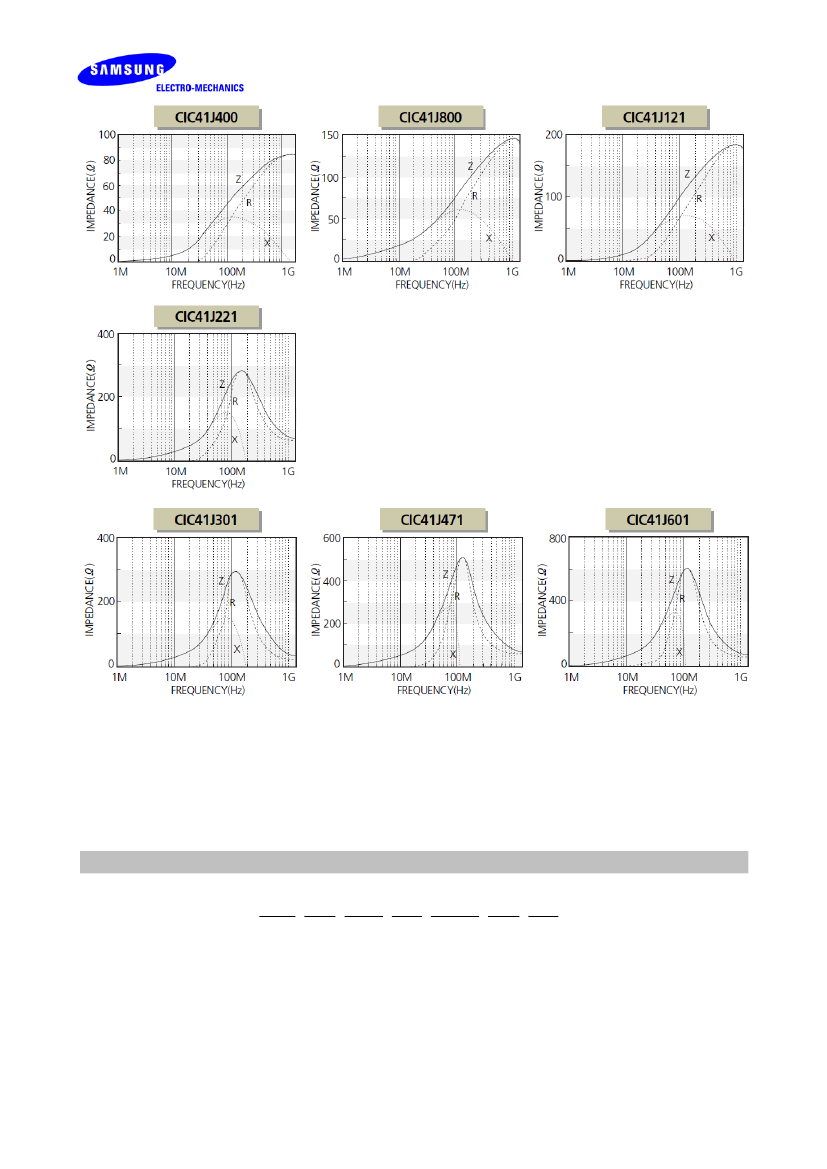

CHARACTERISTIC DATA
Ver 201208
PRODUCT IDENTIFICATION
CI
(1)
(1)
(3)
(5)
(6)
(7)
C
(2)
41 P
(3) (4)
121
(5)
N E
(6) (7)
Chip Beads
(2) For High current(C:~3A)
Dimension
(4) Material Code
Nominal impedance (300:30
Ω
, 121:120
Ω
)
Thickness option(N:Standard, A:Thinner than standard, B:Thicker than standard)
Packaging(C:paper tape, E:embossed tape)
Ver 201208

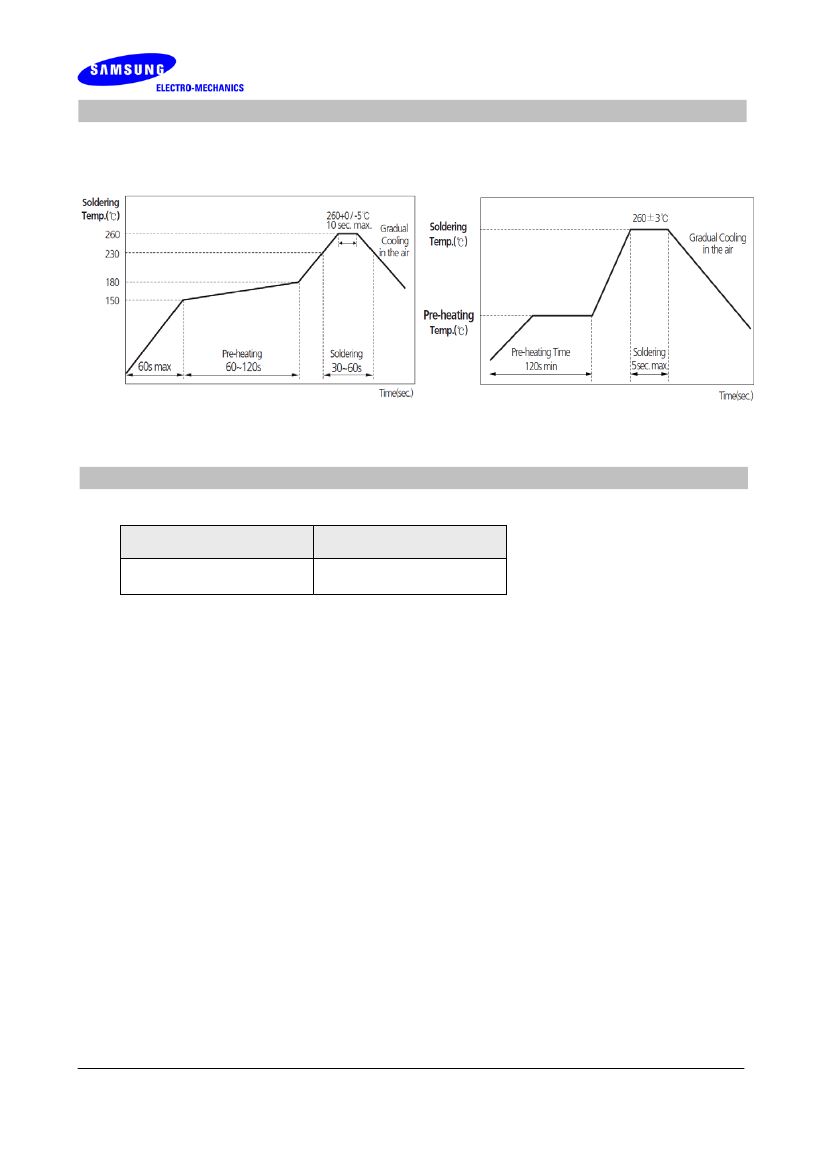

RECOMMENDED SOLDERING CONDITION
REFLOW SOLDERING
FLOW SOLDERING
PACKAGING
Packaging Style
Embossed Taping
Quantity(pcs/reel)
1,000
■
NOTICE :All specifications are subject to change without previous notice. Please contact with
product representatives or engineers to check specifications.
