CTDD1906S-2409D-1 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> CTDD1906S-2409D-1

CTDD1906S-2409D-1: DescriptionDC-DC Unregulated Power Supply Module, 2 Output, 1W, Hybrid, PLASTIC PACKAGE-6/5; CategoryPower/power management The power supply circuit; File Size75KB，2 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric Compare View All

CTDD1906S-2409D-1 Overview

DC-DC Unregulated Power Supply Module, 2 Output, 1W, Hybrid, PLASTIC PACKAGE-6/5

CTDD1906S-2409D-1 Parametric

Parameter Name	Attribute value
Parts packaging code	MODULE
package instruction	,
Contacts	6/5
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ADDITIONAL -9V OUPTUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	26.4 V
Minimum input voltage	21.6 V
Nominal input voltage	24 V
JESD-30 code	R-PSMA-T5
Maximum load regulation	15%
Number of functions	1
Output times	2
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	9 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum total power output	1 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

DC/DC Converters

ctparts.com

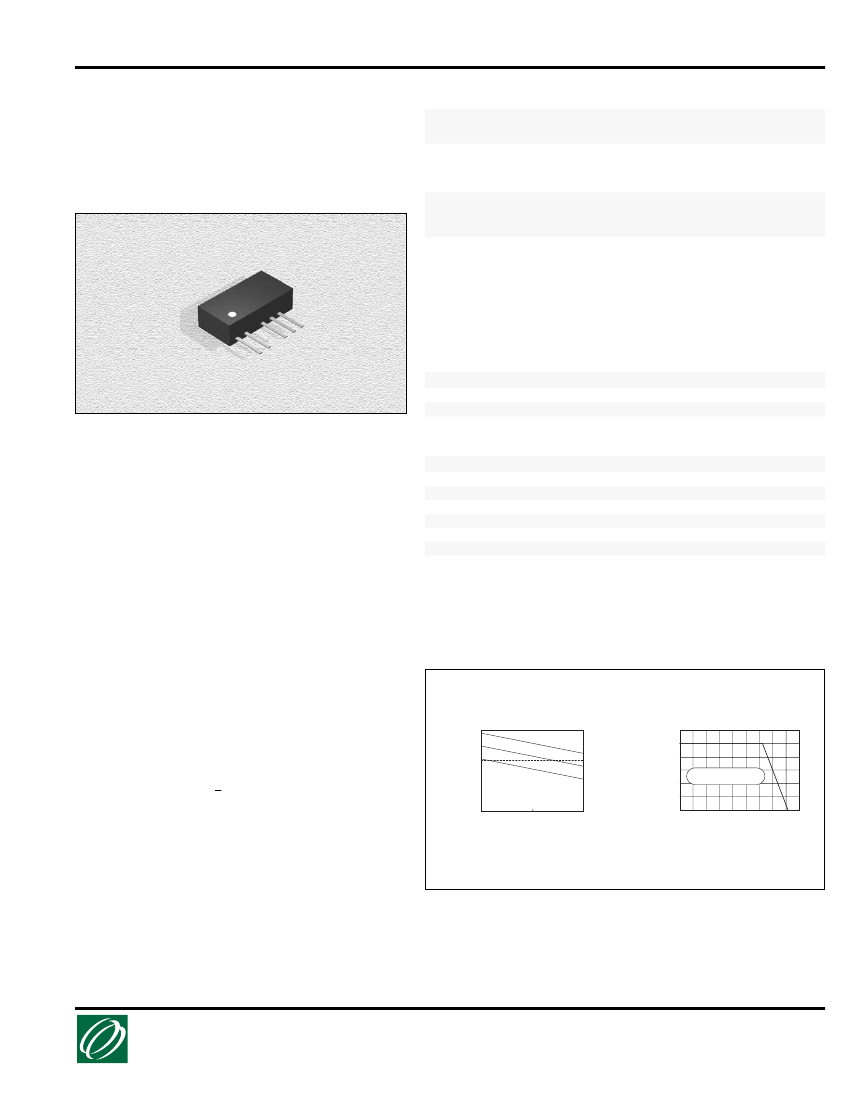

SPECIFICATIONS

CTDD1906S-D Series

Fixed Input Isolated & Unregulated

1W Output, Dual Output

Part

Number

CTDD1906S-0505D-1

CTDD1906S-0509D-1

CTDD1906S-0512D-1

CTDD1906S-0515D-1

CTDD1906S-1205D-1

CTDD1906S-1209D-1

CTDD1906S-1212D-1

CTDD1906S-1215D-1

CTDD1906S-2405D-1

CTDD1906S-2409D-1

CTDD1906S-2412D-1

CTDD1906S-2415D-1

Vin Nom.

5VDC

12VDC

24VDC

Input Range

4.5-5.5VDC

10.8-13.2VDC

21.6-26.4VDC

Vout

±5VDC

±9VDC

±12VDC

±15VDC

±5VDC

±9VDC

±12VDC

±15VDC

±5VDC

±9VDC

±12VDC

±15VDC

Iout

Max.

(mA)

100

Iout

Min.

(mA)

Effi(Typ.)

72%

75%

78%

73%

75%

79%

72%

76%

79%

80%

Not shown at actual size.

ISOLATION SPECIFICATIONS

Item

Isolation Voltage

Isolation Resistance

Test Condition

Tested for 1 minute

Test at 500VDC

MIN

1000

TYP

MAX

Units

VDC

MΩ

FEATURES

Efficiency:

To 85%

Temperature Range:

-40°C to 85°C

Isolation:

1KVDC

Power Density:

0.85W/cm

Package:

UL94-V0

Miscellaneous:

No heatsink required. No external components

required. Industry standard pinout. Pin compatible with MSB

series. Small footprint. Custom service available.

Samples available.

Item

Output Power

Line regulation

Load regulation

Output voltage accuracy

Temperature drift

Output ripple

Switching frequency

OUTPUT SPECIFICATIONS

Test Condition

For Vin change of 1%

10% to 100% full load

See tolerance envelope graph

100% full load

20MHz Bandwidth

Full load, nominal input

100

150

0.03

200

%/°C

mVp-p

KHz

MIN

0.1

TYP

MAX

1.2

Units

Note:

1. All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output unless

otherwise specified.

TYPICAL CHARACTERISTICS

CHARACTERISTICS

Short Circuit Protection:

1 second

Temperature Rise at Full Load:

25°C Max. 15°C Typ.

Cooling:

Free air convection

Operating Temperature Range:

-40°C to +85°C

Storage Temperature Range:

-50°C to +125°C

Storage Humidity Range:

< 95%

Case Material:

Plastic (UL94-V0)

MTBF:

>1,000,000 hours

Tolerance Envelope Graph

Temperature Derating Graph

+10%

+5%

Nominal

Voltage

120

100

Typic

l Load

Line

+2.5%

-2.5%

-7.5%

Output Voltage(%)

Output Power(%)

10%

50%

100%

-40

Safe Operating Area

120

Output Current(%)

Ambient Temperature(°C)

12.08.04

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL

CTDD1906S-2409D-1 Related Products

	CTDD1906S-2409D-1	CTDD1906S-2405D-1	CTDD1906S-1209D-1	CTDD1906S-1212D-1	CTDD1906S-0512D-1	CTDD1906S-2415D-1	CTDD1906S-1215D-1	CTDD1906S-0505D-1	CTDD1906S-2412D-1	CTDD1906S-0509D-1
Description	DC-DC Unregulated Power Supply Module, 2 Output, 1W, Hybrid, PLASTIC PACKAGE-6/5	DC-DC Unregulated Power Supply Module, 2 Output, 1W, Hybrid, PLASTIC PACKAGE-6/5	DC-DC Unregulated Power Supply Module, 2 Output, 1W, Hybrid, PLASTIC PACKAGE-6/5	DC-DC Unregulated Power Supply Module, 2 Output, 1W, Hybrid, PLASTIC PACKAGE-6/5	DC-DC Unregulated Power Supply Module, 2 Output, 1W, Hybrid, PLASTIC PACKAGE-6/5	DC-DC Unregulated Power Supply Module, 2 Output, 1W, Hybrid, PLASTIC PACKAGE-6/5	DC-DC Unregulated Power Supply Module, 2 Output, 1W, Hybrid, PLASTIC PACKAGE-6/5	DC-DC Unregulated Power Supply Module, 2 Output, 1W, Hybrid, PLASTIC PACKAGE-6/5	DC-DC Unregulated Power Supply Module, 2 Output, 1W, Hybrid, PLASTIC PACKAGE-6/5	DC-DC Unregulated Power Supply Module, 2 Output, 1W, Hybrid, PLASTIC PACKAGE-6/5
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Contacts	6/5	6/5	6/5	6/5	6/5	6/5	6/5	6/5	6/5	6/5
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ADDITIONAL -9V OUPTUT AVAILABLE	ADDITIONAL -5V OUPTUT AVAILABLE	ADDITIONAL -9V OUPTUT AVAILABLE	ADDITIONAL -12V OUPTUT AVAILABLE	ADDITIONAL -12V OUPTUT AVAILABLE	ADDITIONAL -15V OUPTUT AVAILABLE	ADDITIONAL -15V OUPTUT AVAILABLE	ADDITIONAL -5V OUPTUT AVAILABLE	ADDITIONAL -12V OUPTUT AVAILABLE	ADDITIONAL -9V OUPTUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	26.4 V	26.4 V	13.2 V	13.2 V	5.5 V	26.4 V	13.2 V	5.5 V	26.4 V	5.5 V
Minimum input voltage	21.6 V	21.6 V	10.8 V	10.8 V	4.5 V	21.6 V	10.8 V	4.5 V	21.6 V	4.5 V
Nominal input voltage	24 V	24 V	12 V	12 V	5 V	24 V	12 V	5 V	24 V	5 V
JESD-30 code	R-PSMA-T5	R-PSMA-T5	R-PSMA-T5	R-PSMA-T5	R-PSMA-T5	R-PSMA-T5	R-PSMA-T5	R-PSMA-T5	R-PSMA-T5	R-PSMA-T5
Maximum load regulation	15%	15%	15%	15%	15%	15%	15%	15%	15%	15%
Number of functions	1	1	1	1	1	1	1	1	1	1
Output times	2	2	2	2	2	2	2	2	2	2
Number of terminals	5	5	5	5	5	5	5	5	5	5
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Nominal output voltage	9 V	5 V	9 V	12 V	12 V	15 V	15 V	5 V	12 V	9 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum total power output	1 W	1 W	1 W	1 W	1 W	1 W	1 W	1 W	1 W	1 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1	1	1	1	1	-
