CIRC331AAA105 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Optical fiber> CIRC331AAA105

CIRC331AAA105: DescriptionCirculator, 1X3 Port, LC-Pigtailed-1m; CategoryWireless rf/communication Optical fiber; File Size146KB，2 Pages; ManufacturerGould Fiber Optics

Download Datasheet Parametric View All

CIRC331AAA105 Overview

Circulator, 1X3 Port, LC-Pigtailed-1m

CIRC331AAA105 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
body width	5.6 mm
Body length or diameter	55 mm
Connection Type	LC-PIGTAILED-1m
Fiber optic equipment types	CIRCULATOR
Fiber type	SMF-28-250UM
Maximum insertion loss	0.9 dB
Minimum isolation	50 dB
Maximum operating temperature	60 °C
Minimum operating temperature
Nominal operating wavelength	1310 nm
Maximum optical input power	300 mW
Maximum polarization dependent loss	0.15 dB
Port configuration	1X3
minimum return loss	50 dB
Base Number Matches	1

Preview

Download Datasheet

View All

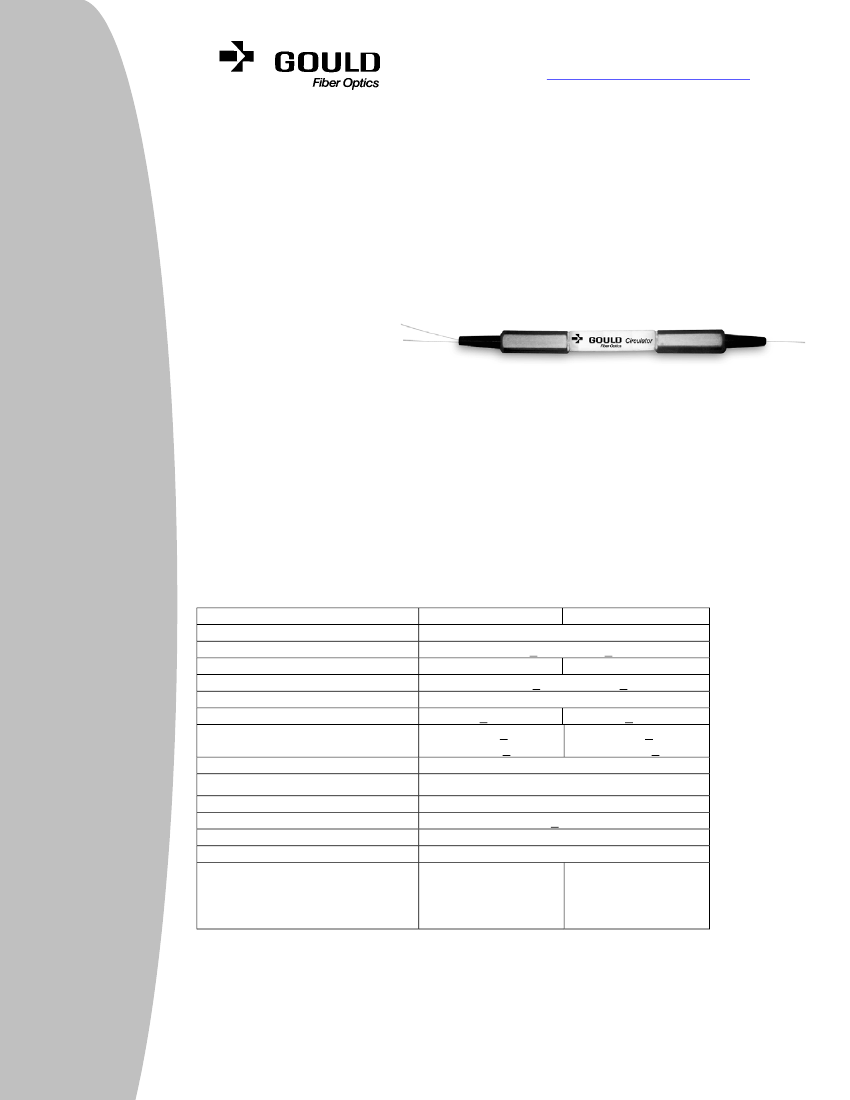

www.gouldfo.com

T hi s i s th e N e w Po w e r of Go u l d

1121 Benfield Blvd., Millersville, MD 21108

Toll Free: 800-54-GOULD

VOICE: 410.987.5600 FAX: 410.987.1201

EMAIL: info@gouldfo.com WEB: www.gouldfo.com

PRODUCT DESCRIPTION

Gould’s polarization-independent, multi-port optical circulator features high isolation, low

insertion loss, low polarization dependent loss and excellent stability. Key applications include

WDM networks, bi-directional fiber transmission systems, optical fiber amplifiers and fiber

dispersion compensation and OTDR.

FEATURES

High Isolation

Low Cross Talk

Low Insertion Loss

Low Polarization Dependent Loss

Epoxy-Free Optical Path

DATA SHEET

Fiber Optic Circulator

APPLICATIONS

WDM Networks

Bi-directional fiber transmission systems

Optical fiber amplifiers

Fiber dispersion compensation and OTDR

OPTICAL PARAMETERS

1550nm or 1310nm, 3 or 4 Port

Port Number

Wavelength range (nm)

Bandwidth (nm)

Transmission Direction

Insertion loss (dB)

Return Loss (dB)

Peak Isolation (dB)

PDL (dB)

PMD (ps)

Maximum Optical Power (mW)

Fiber Type

Crosstalk (dB)

Operating Temperature (

Storage Temperature (

Dimensions (mm)

1310 or 1550

1310 + 30 or 1550 + 30

Port 1-2, 2-3

Port 1-2, 2-3, 3-4

P Grade:<0.8, A Grade: <0.9

>50

>45

P Grade:<0.1,

A Grade: <0.15

A Grade: <0.2

Typ 0.05

300

Corning SMF-28

<-50

0 to 60

-40 to 85

55x 5.6x5.6(250µm

63x 5.6x5.6(250µm

fiber)

69x5.6x5.6 (900µm

77x5.6x5.6 (900µm

fiber)

10/20/03
