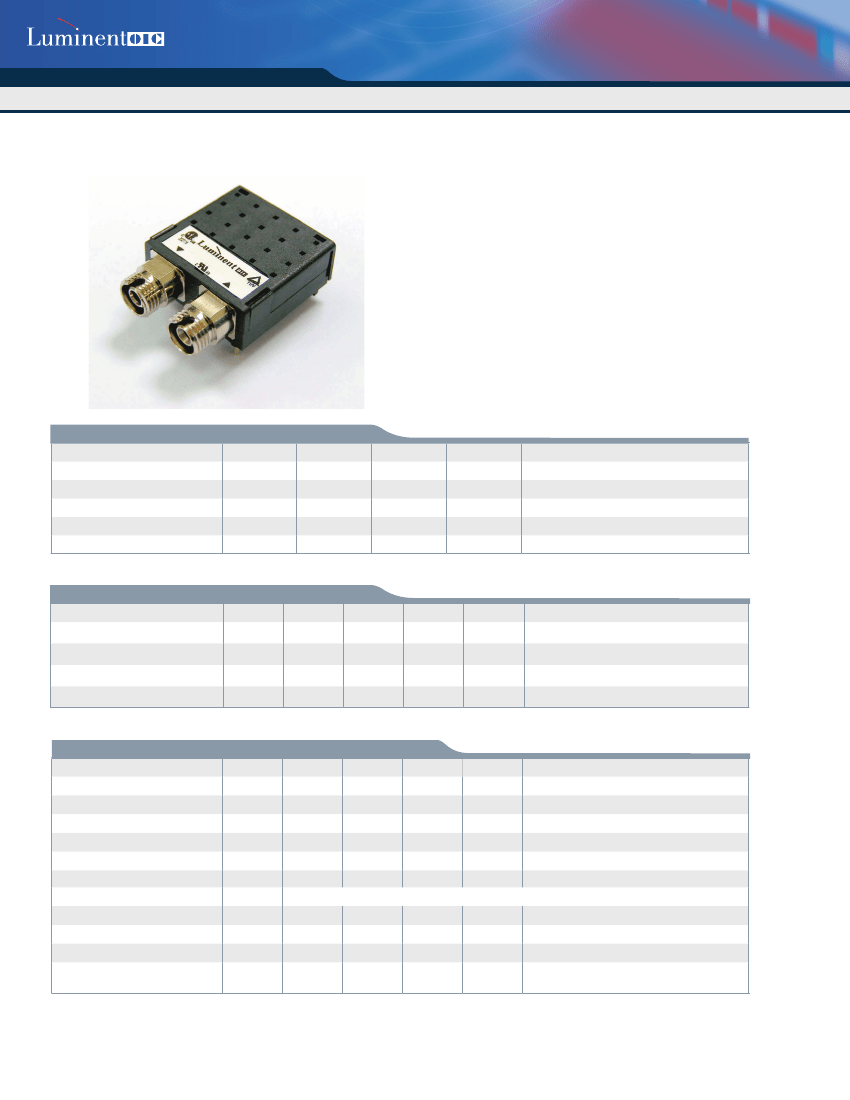

622 Mbps Single Mode Transceiver

C-13-622-T(3)-SFC

Features

• FC Duplex Single Mode Transceiver

• Industry Standard 1x9 Footprint

• Complies with SONET OC-12 SDH STM-4

• Single +3.3V/+5V Power Supply

• OperatingTemperature Range: 0 to 70ºC

• LVPECL/PECL Differential Inputs and Outputs

• LVPECL/PECL Signal Detection Output

• Wave Solderable and Aqueous Washable

• Uncooled laser diode with MQW structure

• Complies with Telcordia (Bellcore) GR-468-CORE

• SONET OC-12 Application

• RoHS compliance available

Absolute Maximum Rating

Parameter

Power Supply Voltage

Output Current

Soldering Temperature

Storage Temperature

Symbol

out

Min.

-40

Max.

3.6

260

Unit

ºC

C-13-622-T3-SFC

C-13-622-T-SFC

Note

10 seconds on leads only

stg

Recommended Operating Condition

Parameter

Power Supply Voltage

Operating Temperature (Case)

Data Rate

Symbol

opr

Min.

3.1

4.75

Typ.

3.3

622

Max.

3.5

5.25

Unit

ºC

Mbps

C-13-622-T3-SFC

C-13-622-T-SFC

Note

Transmitter Speciﬁcations

Parameter

Optical

Optical Transmit Power

Output center Wavelength

Output Spectrum Width

Extinction Ratio

Output Eye

Optical Rise Time

Optical Fall Time

Relative Intensity Noise

Total Jitter

Symbol

∆λ

rms

RIN

Min

-15

-3

1274

8.2

Typical

1310

Max

-8

1356

2.5

1.2

-120

0.55

Unit

dBm

dB/Hz

RMS(σ)

C-13-622-T(3)-SFC

Notes

C-13-622-T(3)-SFC4

Compliant with ITU-T G.957/STM-4 Eye Mask

10% to 90% Values

Measured with 2

-1 PRBS with 72 ones and

72 zeros.

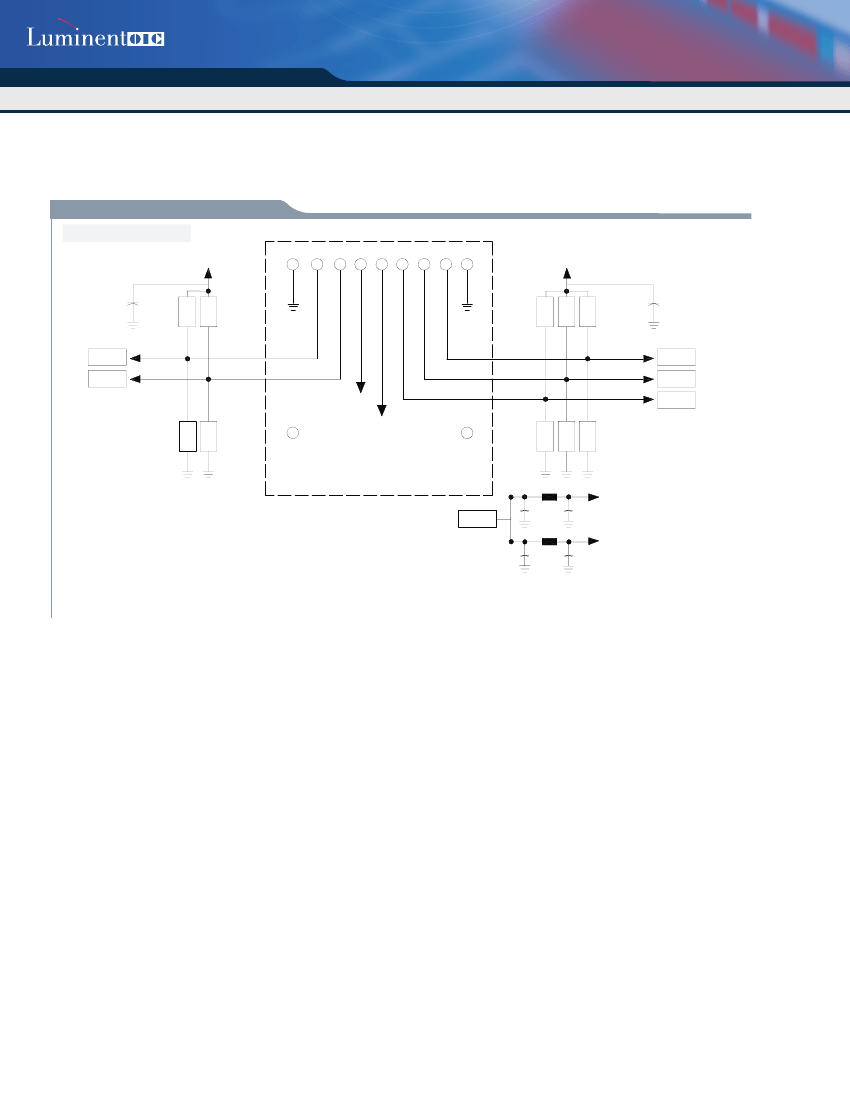

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS802-Oct1606

Rev. A.2

C-13-622-T-SFC Related Products

	C-13-622-T-SFC	C-13-622-T3-SFC	C-13-622-T3-SFC4	C-13-622-T3-SFC4-G5	C-13-622-T3-SFC-G5	C-13-622-T-SFC4	C-13-622-T-SFC4-G5	C-13-622-T-SFC-G5
Description	Transceiver, 1274nm Min, 1356nm Max, 622Mbps(Tx), 622Mbps(Rx), FC Connector, Through Hole Mount	Transceiver, 1274nm Min, 1356nm Max, 622Mbps(Tx), 622Mbps(Rx), FC Connector, Through Hole Mount	Transceiver, 1274nm Min, 1356nm Max, 622Mbps(Tx), 622Mbps(Rx), FC Connector, Through Hole Mount	Transceiver, 1274nm Min, 1356nm Max, 622Mbps(Tx), 622Mbps(Rx), FC Connector, Through Hole Mount, PACKAGE-9	Transceiver, 1274nm Min, 1356nm Max, 622Mbps(Tx), 622Mbps(Rx), FC Connector, Through Hole Mount, PACKAGE-9	Transceiver, 1274nm Min, 1356nm Max, 622Mbps(Tx), 622Mbps(Rx), FC Connector, Through Hole Mount	Transceiver, 1274nm Min, 1356nm Max, 622Mbps(Tx), 622Mbps(Rx), FC Connector, Through Hole Mount, PACKAGE-9	Transceiver, 1274nm Min, 1356nm Max, 622Mbps(Tx), 622Mbps(Rx), FC Connector, Through Hole Mount, PACKAGE-9
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Other features	1 X 9 ARRAY, IT ALSO OPERATE FROM WAVELENGTH 1100NM TO 1600NM	1 X 9 ARRAY, IT ALSO OPERATE FROM WAVELENGTH 1100NM TO 1600NM	1 X 9 ARRAY, IT ALSO OPERATE FROM WAVELENGTH 1100NM TO 1600NM	1 X 9 ARRAY, IT ALSO OPERATE FROM WAVELENGTH 1100NM TO 1600NM	1 X 9 ARRAY, IT ALSO OPERATE FROM WAVELENGTH 1100NM TO 1600NM	1 X 9 ARRAY, IT ALSO OPERATE FROM WAVELENGTH 1100NM TO 1600NM	1 X 9 ARRAY, IT ALSO OPERATE FROM WAVELENGTH 1100NM TO 1600NM	1 X 9 ARRAY, IT ALSO OPERATE FROM WAVELENGTH 1100NM TO 1600NM

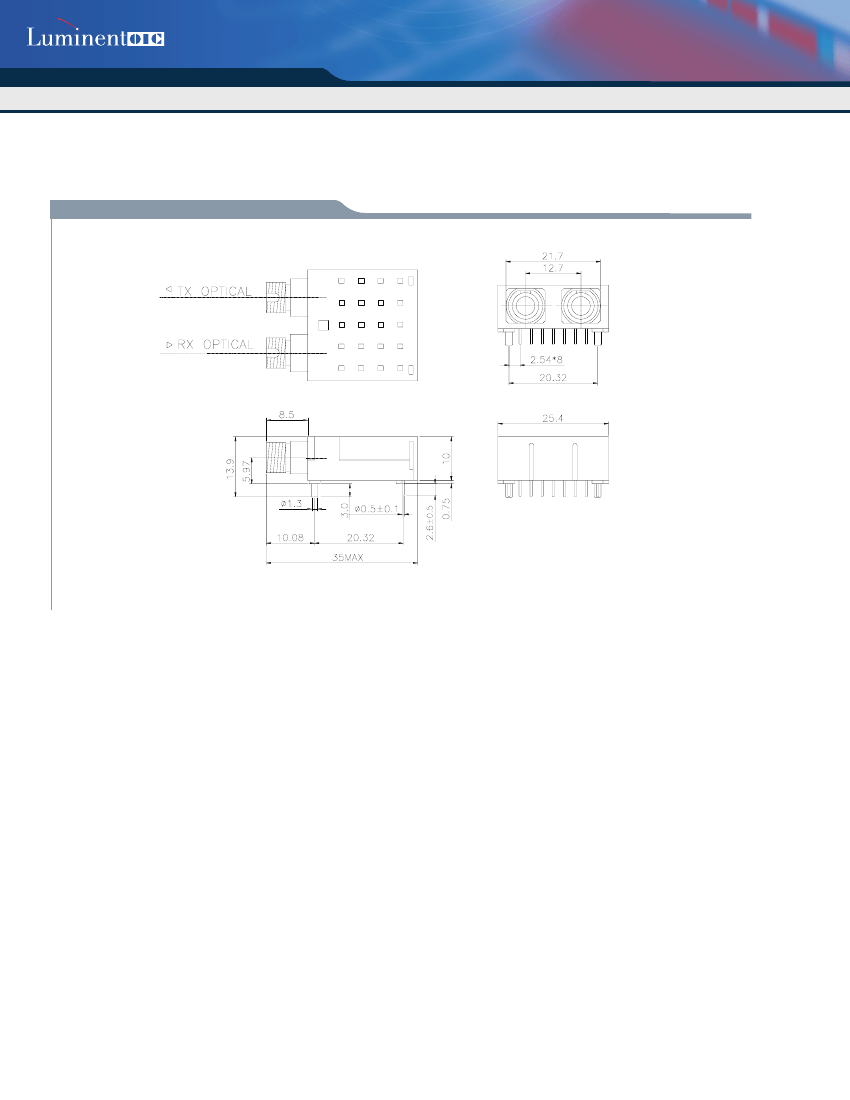

body width	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm
body height	10.75 mm	10.75 mm	10.75 mm	10.75 mm	10.75 mm	10.75 mm	10.75 mm	10.75 mm
Body length or diameter	26.5 mm	26.5 mm	26.5 mm	26.5 mm	26.5 mm	26.5 mm	26.5 mm	26.5 mm
Communication standards	GR-468, OC-12, SDH, SONET, STM-4	GR-468, OC-12, SDH, SONET, STM-4	GR-468, OC-12, SDH, SONET, STM-4	GR-468, OC-12, SDH, SONET, STM-4	GR-468, OC-12, SDH, SONET, STM-4	GR-468, OC-12, SDH, SONET, STM-4	GR-468, OC-12, SDH, SONET, STM-4	GR-468, OC-12, SDH, SONET, STM-4
Connection Type	FC CONNECTOR	FC CONNECTOR	FC CONNECTOR	FC CONNECTOR	FC CONNECTOR	FC CONNECTOR	FC CONNECTOR	FC CONNECTOR
Data rate (receive)	622 Mbps	622 Mbps	622 Mbps	622 Mbps	622 Mbps	622 Mbps	622 Mbps	622 Mbps
Data rate (send)	622 Mbps	622 Mbps	622 Mbps	622 Mbps	622 Mbps	622 Mbps	622 Mbps	622 Mbps
Fiber optic equipment types	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER
Fiber type	SMF	SMF	SMF	SMF	SMF	SMF	SMF	SMF
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Maximum operating wavelength	1356 nm	1356 nm	1356 nm	1356 nm	1356 nm	1356 nm	1356 nm	1356 nm
Minimum operating wavelength	1274 nm	1274 nm	1274 nm	1274 nm	1274 nm	1274 nm	1274 nm	1274 nm
Nominal operating wavelength	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm
Nominal optical power output	0.005 mW	0.005 mW	0.794 mW	0.794 mW	0.005 mW	0.794 mW	0.794 mW	0.005 mW
Sensitivity	-28 dBm	-28 dBm	-28 dBm	-28 dBm	-28 dBm	-28 dBm	-28 dBm	-28 dBm
Maximum supply voltage	5.25 V	3.5 V	3.5 V	3.5 V	3.5 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	3.1 V	3.1 V	3.1 V	3.1 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	3.3 V	3.3 V	3.3 V	3.3 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1	-	-	-
Maker	-	Source Photonics	Source Photonics	Source Photonics	Source Photonics	Source Photonics	Source Photonics	Source Photonics
