C-15-DFB-E-LAD-HT datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> C-15-DFB-E-LAD-HT

C-15-DFB-E-LAD-HT: DescriptionDFB Laser Diode Emitter, 1535nm Min, 1565nm Max, 1250Mbps, TO-18, Through Hole Mount, TO-18, HEREMATICAL SEALED PACKAGE-4; CategoryWireless rf/communication Optical fiber; File Size1MB，6 Pages; ManufacturerSource Photonics

Download Datasheet Parametric View All

C-15-DFB-E-LAD-HT Overview

DFB Laser Diode Emitter, 1535nm Min, 1565nm Max, 1250Mbps, TO-18, Through Hole Mount, TO-18, HEREMATICAL SEALED PACKAGE-4

C-15-DFB-E-LAD-HT Parametric

Parameter Name	Attribute value
package instruction	TO-18
Reach Compliance Code	unknown
body height	3.3 mm
Body length or diameter	3.85 mm
Built-in features	MONITOR PHOTODIODE
data rate	1250 Mbps
maximum descent time	0.5 ns
Fiber optic equipment types	DFB LASER DIODE EMITTER
Installation features	THROUGH HOLE MOUNT
Number of channels	1
Maximum operating temperature	85 °C
Minimum operating temperature
Maximum operating wavelength	1565 nm
Minimum operating wavelength	1535 nm
Nominal operating wavelength	1550 nm
Package form	TO-18
Rise Time	0.5 ns
Spectral width	1 nm
Maximum supply voltage	1.5 V
Nominal supply voltage	1.2 V
surface mount	NO
Minimum threshold current	50 mA
Transmission type	DIGITAL
Base Number Matches	1

Preview

Download Datasheet

View All

1550nm MQW-DFB Laser Diode

C-15-DFB-E-XX-HT

Features

• Uncooled laser diode with MQW structure

• 5mW CW operation at 0 to +85ºC

• High temperature operation without active cooling

• Hermetically sealed active component

• Built-in InGaAs monitor photodiode

• Complies with Bellcore TA-NWT-000983

• Single frequency operation with high SMSR

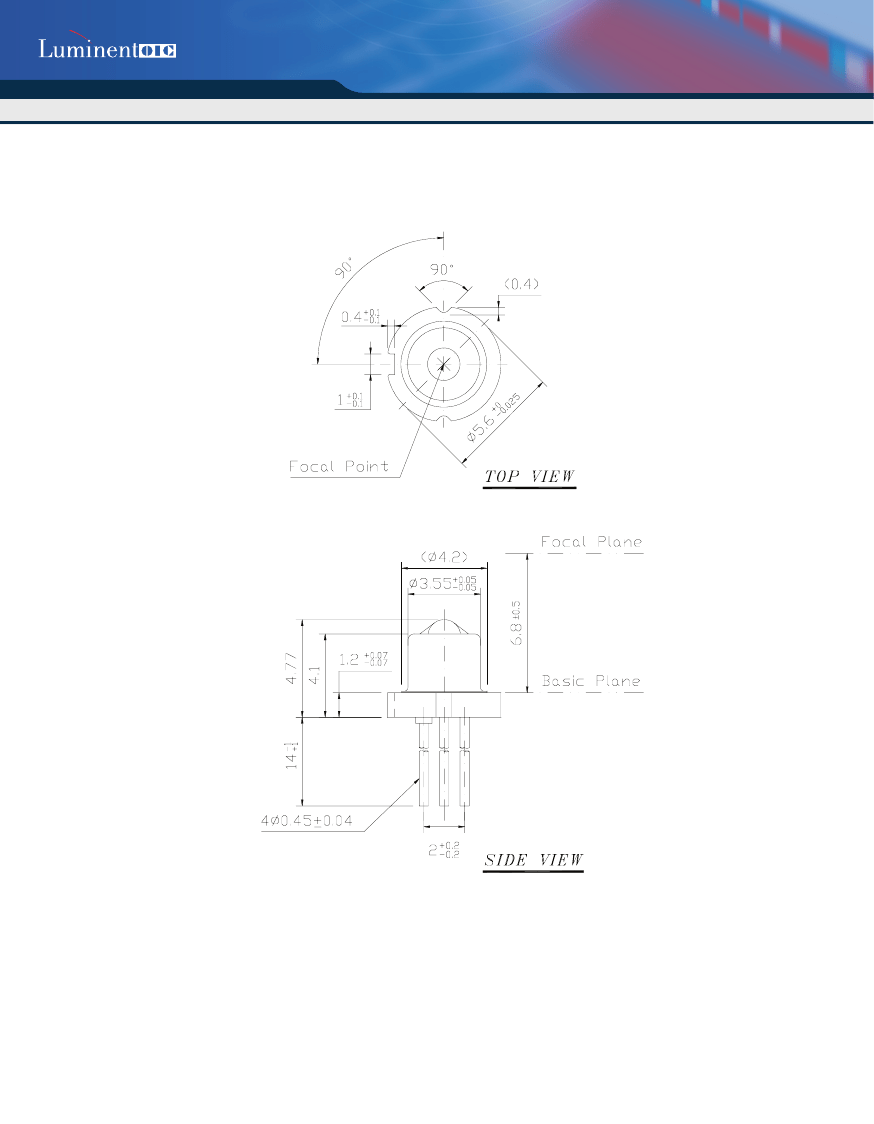

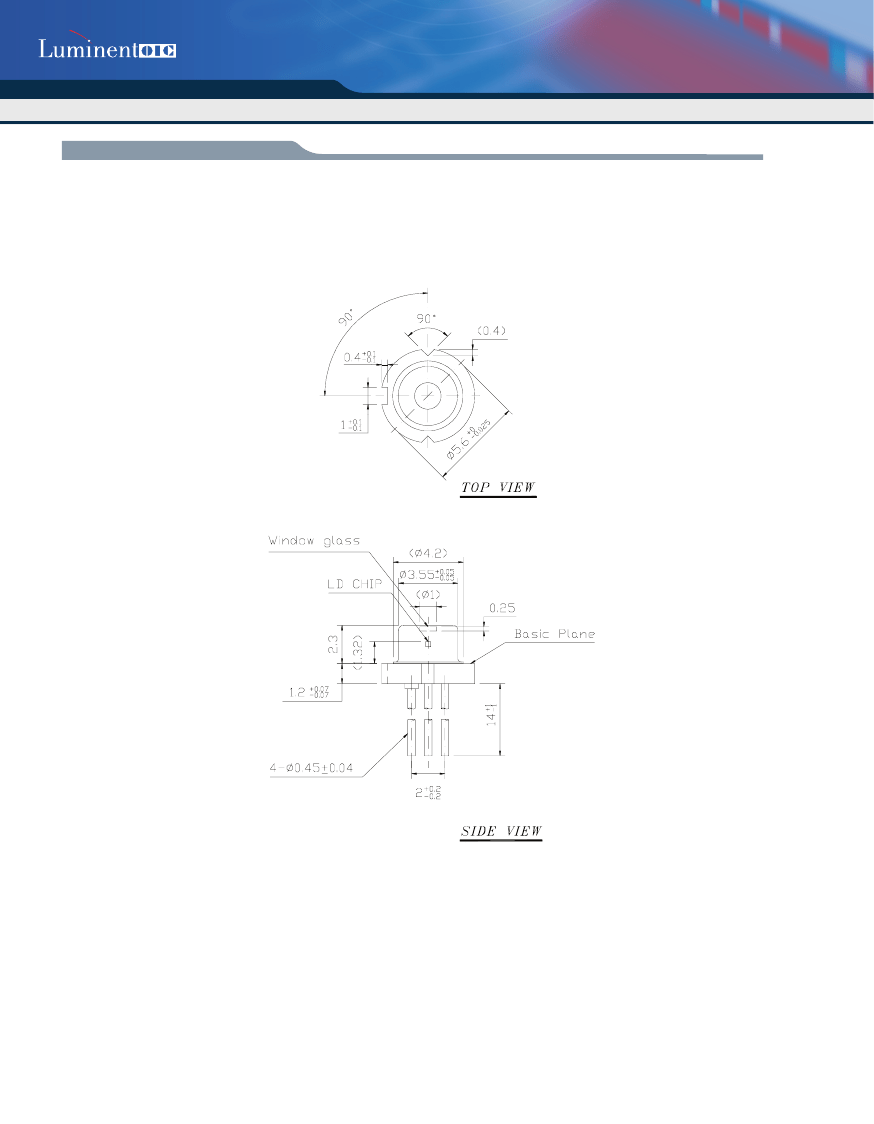

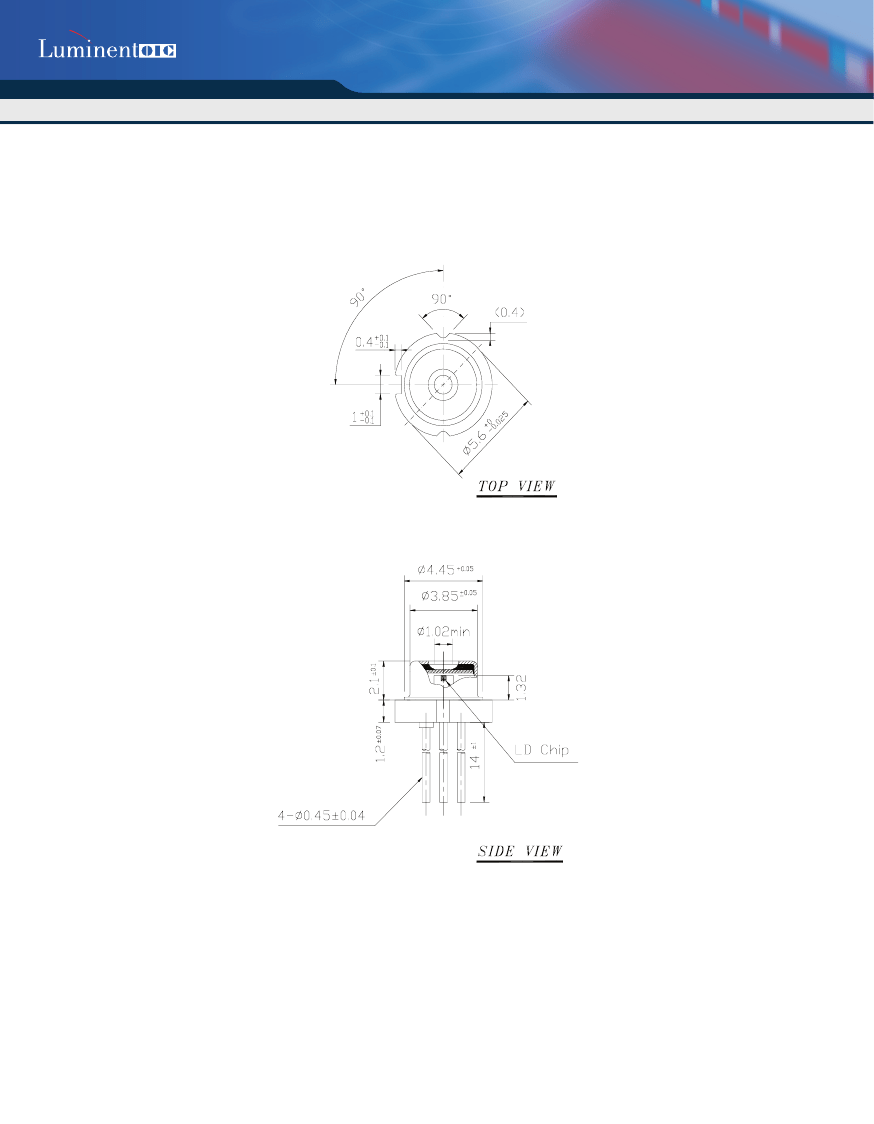

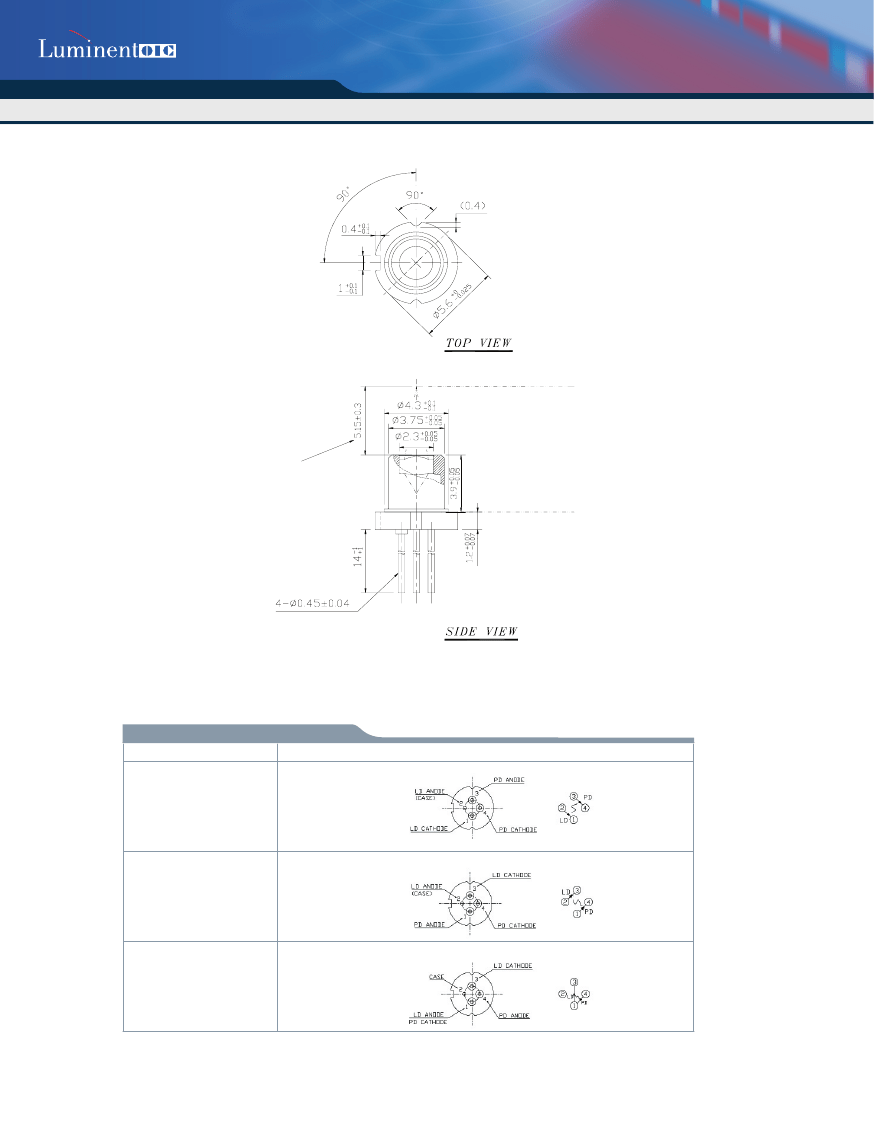

• To-18 package with a flat window cap or a ball lens cap

Absolute Maximum Rating (Tc=25ºC)

Parameter

Optical Output Power

LD Reverse Voltage

LD Forward Current

PD Reverse Voltage

PD Forward Current

Operating Temperature

Storage Temperature

Symbol

RLD

FLD

RPD

FPD

opr

stg

Value

6(CW)

150

0 to +85

-40 to +100

Unit

ºC

Optical and Electrical Characteristics( Tc=85ºC )

Parameter

Threshold Current

Optical Output Power

Symbol

Min

Typical

Max

Unit

Test Condition

CW, I=I

+60mA *

CW, I=I

+60mA Ball Lens Cap

* For Low profile flat window cap / Aspherical cap / Flat window cap

Optical and Electrical Characteristics( Tc=25ºC )

Parameter

Slope Efficiency

Flat window cap

Ball lens cap

Threshold Current

Optical Output Power

Peak Wavelength

Side Mode Suppression Ratio

Forward Voltage

Temperature dependence of

peak wavelength

Beam Divergence

Rise/Fall Time

Spectral Width (-20dB)

PD Monitor Current

PD Dark Current

PD Capacitance

LUMINENTOIC.COM

Symbol

∆λ

/∆Τ

⊥

/ t

∆λ

DARK

Min

0.15

0.12

1535

0.08

100

Typical

0.25

0.18

1550

1.2

0.1

200

Max

1565

1.5

0.12

0.5

1200

0.1

Unit

mW/mA

nm/ºC

deg.

µA

Test Condition

CW,P

=5mW

CW, kink free

CW,P

=5mW

CW,P

=5mW (0 to 85ºC)

CW,P

=5mW

CW,P

=5mW (0 to 85ºC)

CW,P

=5mW,FWHM

bias

,10-90%

CW,P

=5mW

CW,P

=5mW, V

RPD

=2V

RPD

1MH

LUMNDS798-NOV1504

rev. A.0

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
