CLS4D14-330NB: DescriptionGeneral Purpose Inductor, 33uH, 30%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size44KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CLS4D14-330NB Overview

General Purpose Inductor, 33uH, 30%, 1 Element, SMD, ROHS COMPLIANT

CLS4D14-330NB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	560 Ω
Nominal inductance(L)	33 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CLS4D14
Number of functions	1
Number of terminals	4
Maximum rated current	0.42 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL IN-LINE
Terminal shape	GULL WING
Test frequency	0.1 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

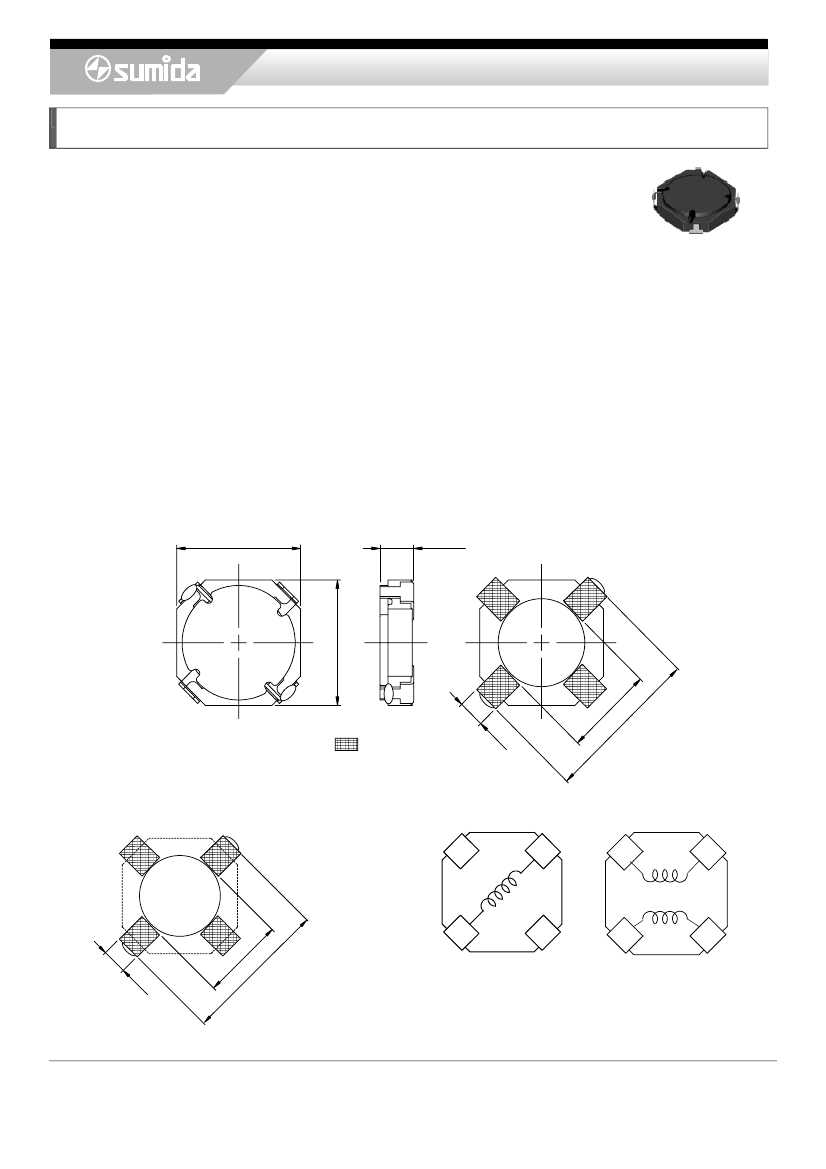

Power Inductor & 2 in 1 Transformer< SMD Type: CLS Series >

Type: CLS4D14

◆

Product Description

・4.9×4.9mm

Max.(L×W),1.5mm Max. Height.

・4

Terminal pins’ type gives a flexible design as inductors or transformers

(SEPIC,ZETA circuit)

・Custom

design is available.

◆

Feature

・Max.

Operating frequency 1MHz, Max.

・Ideally

used in portable devices such as Mobilephone,DSC/DVC,MP3,PDA, etc as DC-DC

Converter inductors, specially suitable for White LED drive.

・It

is possible to output high voltage and get sufficient accuracy which is hard to obtain with an

ordinary inductor.

・RoHS

Compliance

◆

Dimensions (mm)

4. 6

-0 .2

３

２

4.6

-0.2

+0.3

+ 0.3

1 . 5 Ma x.

４

１

1.

3.

3

5.

4

Electrode

0

◆

Land Pattern (mm)

◆

Schematics (Bottom)

2

3

S 2

3

1

2

.9

6.

2

4

S 1

4

For Inductor

For 2 in 1 Transformer

1.

4

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/2
