CTS6-251J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CTS6-251J

CTS6-251J: DescriptionGeneral Purpose Inductor, 250uH, 5%, 1 Element, AXIAL LEADED; CategoryPassive components inductor; File Size71KB，1 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric Compare View All

CTS6-251J Overview

General Purpose Inductor, 250uH, 5%, 1 Element, AXIAL LEADED

CTS6-251J Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.17 Ω
Nominal inductance(L)	250 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CTS6
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Maximum rated current	1.33 A
Shape/Size Description	TUBULAR PACKAGE
shield	YES
surface mount	NO
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	5%
Base Number Matches	1

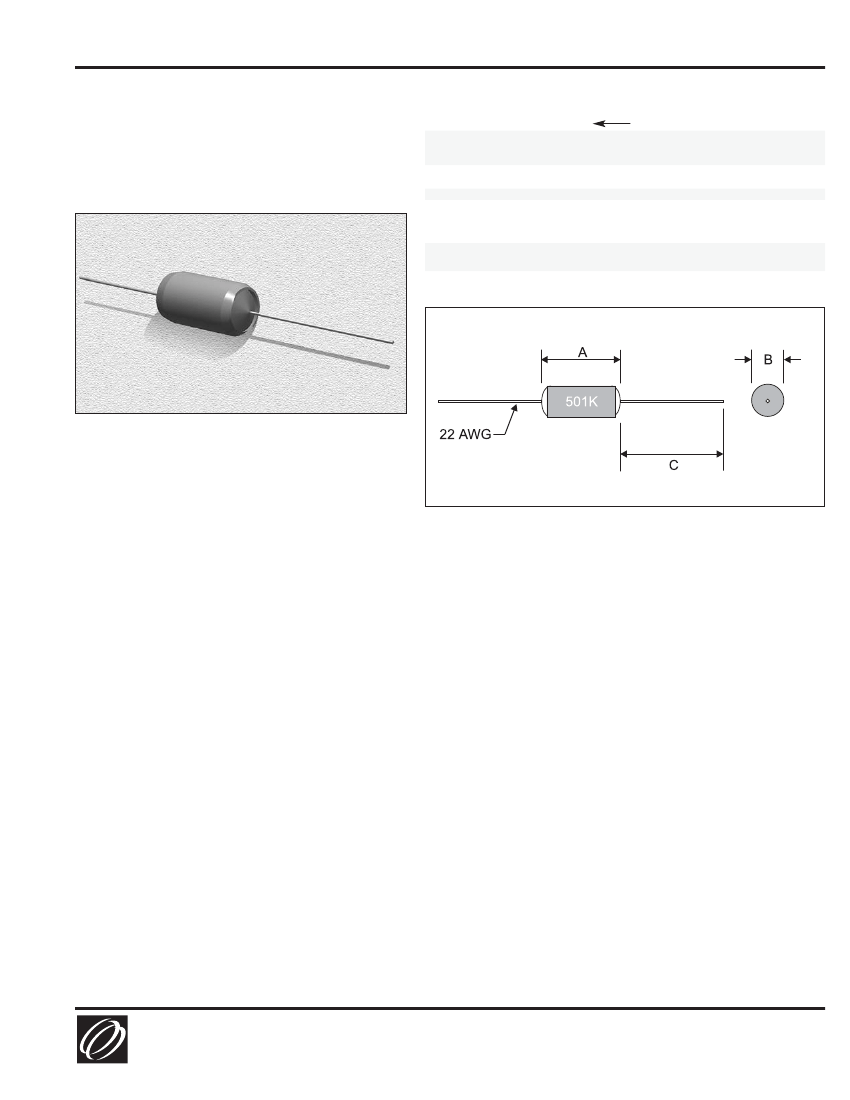

Preview

Download Datasheet

View All

Ver. 8.3

Shielded Inductors - Axial

ctparts.com

SPECIFICATIONS

CTS6 Series

From 250 µH to 1,000 µH

Part

Number

CTS6-251K

CTS6-501K

CTS6-102K

Please specify tolerance code when ordering.

CTS6-1R0_

J = ±5%, K = ±10%

Inductance

(µH)

250

500

1000

L Test

Freq.

(kHz)

1.0

INCR

Curr.

(mA)

DCR

Max.

(ohms)

0.17

0.39

0.80

D.C.

Curr

(mA)

1330

880

610

Not shown at actual size.

PHYSICAL DIMENSIONS

Size

inches

Max.

13.5 ± 0.25

0.53 ± 0.010

Max.

6.86 ± 0.25

0.27 ± 0.010

Typ.

29.2

1.15

22 AWG

0.6430

0.02535

CHARACTERISTICS

Description:

Axial leaded molded (shielded) inductor

Applications:

Used for high reliability applications. Vital for

telecommunication applications. Ideal for various RF applications

Operating Temperature:

-20°C to +80°C

Inductance Tolerance:

±10% & ±20%

Current Rating:

Based on 0.43 watt power dissipation for

approximately 20°C temperature rise

Packaging:

Bulk Pack, 200 pieces per bag,

Tape & Reel, 1,000 pieces per reel

Marking:

Printed with part value

Testing:

Inductance is measured on an HP4285A at 1 kHz

Leads:

Soft copper and pre-tinned

Incremental Current:

The current at which the inductance will be

decreased by 5% from its initial (Zero DC) value

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

07.10.03

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL

173

CTS6-251J Related Products

	CTS6-251J	CTS6-501K	CTS6-501J	CTS6-102K	CTS6-251K	CTS6-102J
Description	General Purpose Inductor, 250uH, 5%, 1 Element, AXIAL LEADED	General Purpose Inductor, 500uH, 10%, 1 Element, AXIAL LEADED	General Purpose Inductor, 500uH, 5%, 1 Element, AXIAL LEADED	General Purpose Inductor, 1000uH, 10%, 1 Element, AXIAL LEADED	General Purpose Inductor, 250uH, 10%, 1 Element, AXIAL LEADED	General Purpose Inductor, 1000uH, 5%, 1 Element, AXIAL LEADED
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.17 Ω	-	0.39 Ω	0.8 Ω	-	0.8 Ω
Nominal inductance(L)	250 µH	-	500 µH	1000 µH	-	1000 µH
Inductor Applications	RF INDUCTOR	-	RF INDUCTOR	RF INDUCTOR	-	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CTS6	-	CTS6	CTS6	-	CTS6
Number of functions	1	-	1	1	-	1
Number of terminals	2	-	2	2	-	2
Maximum operating temperature	80 °C	-	80 °C	80 °C	-	80 °C
Minimum operating temperature	-20 °C	-	-20 °C	-20 °C	-	-20 °C
Maximum rated current	1.33 A	-	0.88 A	0.61 A	-	0.61 A
Shape/Size Description	TUBULAR PACKAGE	-	TUBULAR PACKAGE	TUBULAR PACKAGE	-	TUBULAR PACKAGE
shield	YES	-	YES	YES	-	YES
surface mount	NO	-	NO	NO	-	NO
Terminal location	AXIAL	-	AXIAL	AXIAL	-	AXIAL
Terminal shape	WIRE	-	WIRE	WIRE	-	WIRE
Test frequency	0.001 MHz	-	0.001 MHz	0.001 MHz	-	0.001 MHz
Tolerance	5%	-	5%	10%	-	5%
Base Number Matches	1	1	1	1	-	-
