Wire-wound Chip Inductors - Open
ctparts.com
CT0805HS Series
From 2.2 nH to 1000 nH
Not shown at actual size.
SPECIFICATIONS
Please specify tolerance code when ordering.
CT0805HS-330_
F = ±1%, G = ±2%, J = ±5%, K = ±10%, M = ±20%
* = K or M only ** = J, K or M only *** = G, J, K or M only
Part
Number
CT0805HS-020_*
CT0805HS-030_**
CT0805HS-060_**
CT0805HS-080_**
CT0805HS-120_***
CT0805HS-150_**
CT0805HS-180_***
CT0805HS-220_***
CT0805HS-270_***
CT0805HS-330_
CT0805HS-390_
CT0805HS-470_
CT0805HS-560_
CT0805HS-680_
CT0805HS-820_
CT0805HS-101_
CT0805HS-121_
CT0805HS-151_
CT0805HS-181_
CT0805HS-221_***
CT0805HS-271_***
CT0805HS-331_***
CT0805HS-391_***
CT0805HS-471_**
CT0805HS-561_**
CT0805HS-621_**
CT0805HS-681_**
CT0805HS-751_**
CT0805HS-821_**
CT0805HS-911_**
CT0805HS-102_**
Inductance
(nH)
2.2
3.3
6.8
8.2
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
620
680
750
820
910
1000
L Test
Freq.
(MHz)
250
250
250
250
250
250
250
250
250
250
250
200
200
200
150
150
150
100
100
100
100
100
100
50
25
25
25
25
25
25
25
Q
Fact.
Min.
40
30
50
50
50
50
50
55
60
60
60
60
60
60
60
60
50
50
50
45
40
40
35
33
23
23
23
23
23
22
20
Q Test
Freq.
(MHz)
1500
1500
1000
1000
500
500
500
500
500
500
500
500
500
500
500
500
250
250
250
250
250
250
250
100
50
50
50
50
50
50
50
SRF
Min.
(MHz)
>6000
>6000
5000
4800
4100
2900
3300
2600
2500
2200
2100
1750
1650
1500
1400
1200
1200
1000
950
850
680
660
560
430
350
330
300
280
250
230
200
DCR
Max.
(Ω)
Ω
0.1
0.08
0.11
0.19
0.15
0.17
0.20
0.22
0.25
0.27
0.29
0.31
0.32
0.38
0.42
0.46
0.51
0.56
0.64
0.70
1.00
1.40
1.50
1.72
1.90
1.95
2.05
2.10
2.30
2.40
2.50
Rated
DC
(mA)
600
600
600
600
600
600
600
500
500
500
500
500
500
500
400
400
400
400
400
400
350
310
290
250
230
200
190
180
180
160
150
CHARACTERISTICS
Description:
SMD ceramic core wire-wound chip inductor
Applications:
LC resonant circuits such as oscillator and signal
generators, impedance matching, circuit isolation, RF filters, disk
drives and computer peripherals, audio and video equipment, TV,
radio and telecommunication equipment
Operating Temperature: -40°C to +125°C
Inductance Tolerance: ±1%, ±2%, ±5%, ±10%, ±20%
Testing: Inductance and Q are tested on an HP4287A at specified
frequency
Packaging:
Tape & Reel
Marking:
Reels are marked with inductance code and tolerance
Coated:
Epoxy resin on top of the part to permanently set the coil
Miscellaneous:
Parts are also available with a clear plastic cap.
Other values available
Additional Information:
Additional electrical & physical
information available upon request
Samples available. See website for ordering information.

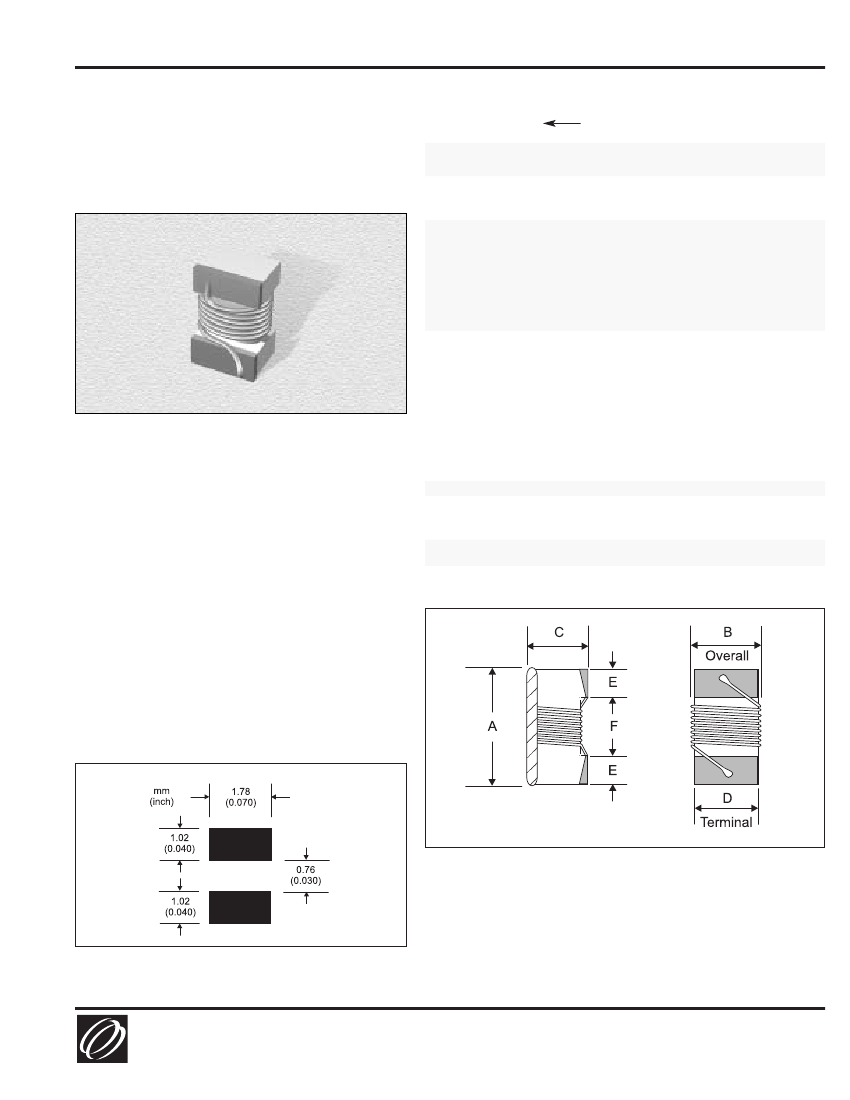

PHYSICAL DIMENSIONS
Size
mm
inches
A
Max.
2.2
0.086
B
Max.
1.64
0.068
C
Max.
1.45
0.057
D
1.27
0.05
E
0.5
0.02
F
1.03
0.04
PAD LAYOUT
05.23.03
Technologies
Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2003 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
