CTDSS1005F-102M

Description
General Purpose Inductor, 1uH, 20%, 1 Element, SMD, ROHS COMPLIANT
CategoryPassive components    inductor
File Size167KB,1 Pages
ManufacturerCT [ Central Technologies ]
Environmental Compliance
Download Datasheet Parametric View All

CTDSS1005F-102M Overview

General Purpose Inductor, 1uH, 20%, 1 Element, SMD, ROHS COMPLIANT

CTDSS1005F-102M Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
DC Resistance0.01 Ω
Nominal inductance(L)1 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberCTDSS1005F
Number of functions1
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-25 °C
Minimum quality factor (at nominal inductance)23
Maximum rated current6.5 A
self resonant frequency140 MHz
Shape/Size DescriptionCYLINDRICAL PACKAGE
shieldYES
special characteristicsQ IS MEASURED AT 7.96 MHZ
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.001 MHz
Tolerance20%
Base Number Matches1
Power Inductors - Shielded
ctparts.com
CTDSS1005F Series
From 1.0 µH to 3,300 µH
Part
Number
CTDSS1005F-102M
CTDSS1005F-152M
CTDSS1005F-222M
CTDSS1005F-302M
CTDSS1005F-332M
CTDSS1005F-472M
CTDSS1005F-682M
CTDSS1005F-702M
CTDSS1005F-103M
CTDSS1005F-123M
CTDSS1005F-153M
CTDSS1005F-183L
CTDSS1005F-223L
CTDSS1005F-273L
CTDSS1005F-333L
CTDSS1005F-393L
CTDSS1005F-473L
CTDSS1005F-563L
CTDSS1005F-683L
CTDSS1005F-823L
CTDSS1005F-104K
CTDSS1005F-124K
CTDSS1005F-154K
CTDSS1005F-184K
CTDSS1005F-224K
CTDSS1005F-274K
CTDSS1005F-334K
CTDSS1005F-394K
CTDSS1005F-474K
CTDSS1005F-564K
CTDSS1005F-684K
CTDSS1005F-824K
CTDSS1005F-105K
CTDSS1005F-125K
CTDSS1005F-155K
CTDSS1005F-185K
CTDSS1005F-225K
CTDSS1005F-275K
CTDSS1005F-335K
Not shown at actual size.
SPECIFICATIONS
Part numbers indicate available inductance tolerance.
K = ±10%, L = ±15%, M = ±20%
* Temperature rise 45°C Max.
L Test
Freq.
(kHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Q
Fact.
Min.
23
24
25
25
24
25
22
22
48
45
40
35
42
40
40
40
35
35
35
35
35
30
28
28
30
30
30
25
40
40
37
37
65
58
53
65
55
55
50
Q Test
Freq.
(MHz)
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
.796
.796
.796
.796
.796
.796
.796
.796
.796
.796
.796
.796
.252
.252
.252
.252
.252
.252
.252
SRF
Norm.
(MHz)
140
100
90
80
70
50
31
32
30
25
20
19
18
17
15
13
12
11
9
8
8
7
6
6
5
5
5
4
3
3
3
3
2
2
2
1
1
1
1
DCR
Max.
Ω
(Ω)
.01
.02
.03
.03
.03
.04
.05
.06
.07
.08
.09
.09
.10
.12
.16
.18
.19
.21
.34
.38
.42
.46
.52
.70
.80
1.1
1.2
1.4
1.6
1.8
2.3
2.6
3.2
3.6
5.2
5.7
6.5
8.6
10
Rated
DC
(A)
6.5*
5.6*
3.1
2.9
3.8*
2.5
2.8*
2.2
2.0
1.8
1.7
1.6
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.8
0.7
0.6
0.6
0.5
0.5
0.4
0.4
0.3
0.3
0.3
0.3
0.2
0.2
0.2
0.2
0.2
0.1
0.1
0.1
Inductance
(µH)
1.0
1.5
2.2
3.0
3.3
4.7
6.8
7.0
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
Compliant
RoHS
CHARACTERISTICS
Description:
SMD (shielded) power inductor
Applications:
Ideal for high performance DC/DC converter
applications, computers, LCD displays and telecommunication
equipment. Especially those requiring shielding and low profiles
Operating Temperature:
-25°C to +105°C
Inductance Tolerances:
±10%, ±15%, ±20%
Testing:
Inductance and Q are tested on an HP4284A or
HP4285A at specified frequency
Packaging:
Tape & Reel
Marking:
Parts are marked with inductance code
Rated Current:
Based on temp. rise &
Δ
L/L0A =10% Max.
Storage Temperature:
-40°C to +125°C
Temperature Rise:
40°C Max. (* 45°C Max.)
Resistance to solder heat:
260°C 10 sec
Miscellaneous:
RoHS Compliant.
Magnetically shielded
Additional Information:
Additional electrical & physical
information available upon request
Samples available. See website for ordering information.

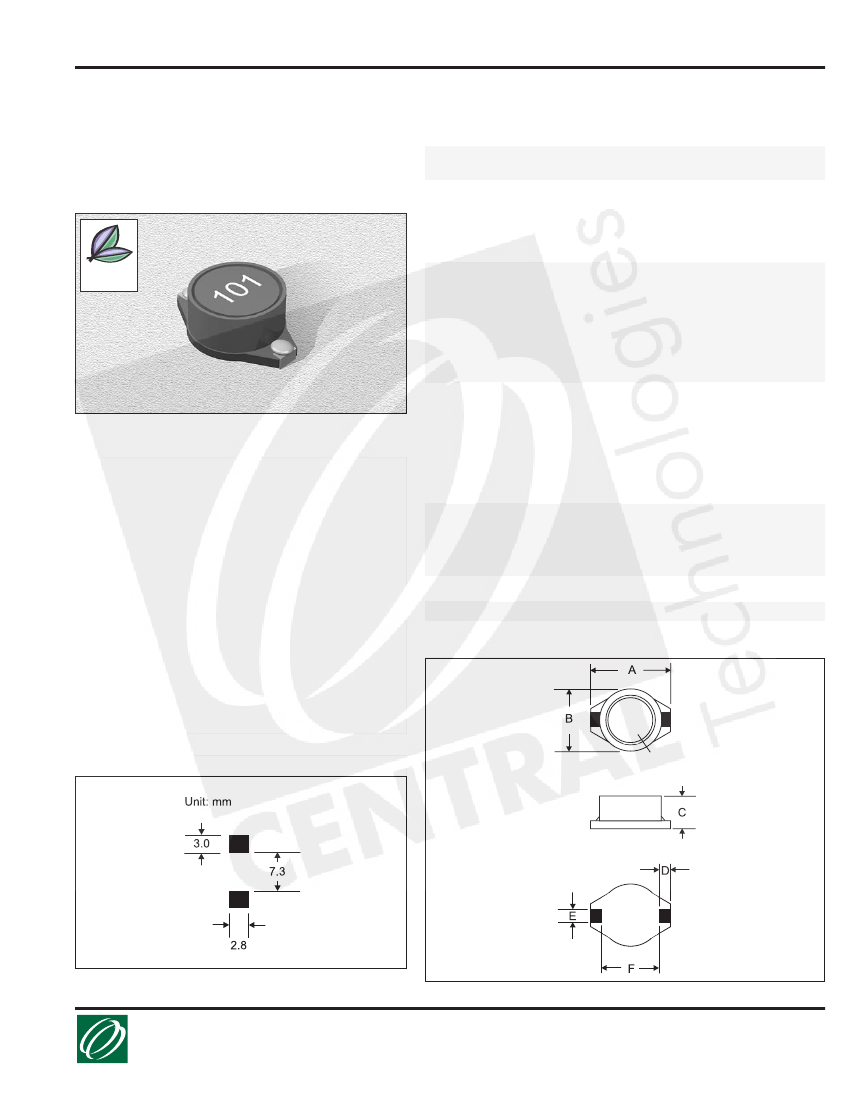

PHYSICAL DIMENSIONS
