Wire-wound Chip Power Inductors for Telecommunications Infrastructure and Industrial Equipment / Medical Devices (CB series)[CBC]
CBC2016T1R5M8

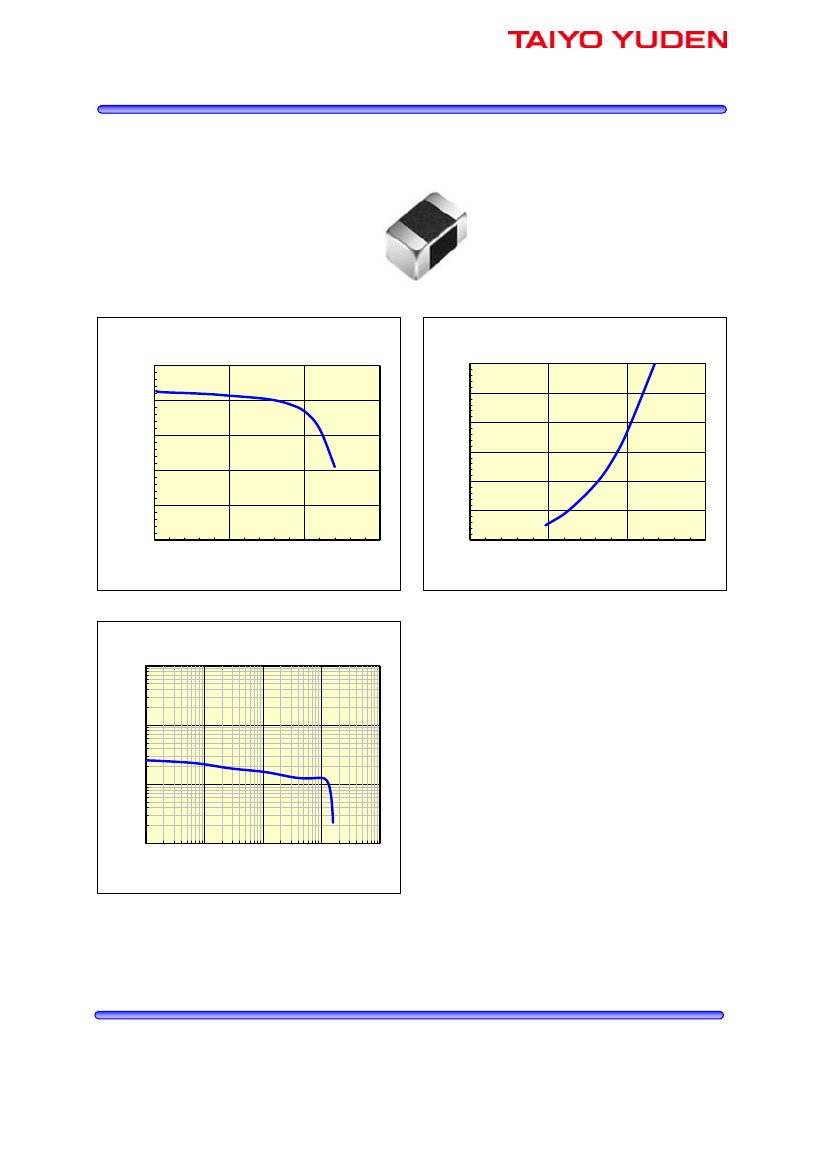

Features
Item Summary
1.5uH±20%, 0.775A, 0806/2016 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 2000pcs
Products characteristics table
Inductance
Case Size (EIA/JIS)
Rated Current (max)
Saturation Current (max)
Temperature Rise Current (max)
DC Resistance (max)
DC Resistance (typ)
LQ Measuring Frequency
Self Resonant Frequency (min)
Operating Temp. Range
Temperature characteristic
(Inductance change)
RoHS Compliance (10 subst.)
REACH Compliance (201 subst.)
Halogen Free
Soldering
Yes
Yes
Yes
Reflow
1.5 uH ± 20 %
0806/2016
0.775 A
1 A (⊿L=30%)
0.775 A (⊿T=20℃)
0.195 Ω
0.15 Ω
7.96 MHz
80 MHz
-40 to +105 ℃
(Including-self-generated heat)
± 25 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
2.0 ±0.2 mm
1.6 ±0.2 mm
1.6 ±0.2 mm
0.5 ±0.2 mm
2020.01.17
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
■
