C.PI-1365-0R7: DescriptionGeneral Purpose Inductor, 0.7uH, 30%, 1 Element, Nickel-zinc Ferrite-Core, SMD,; CategoryPassive components inductor; File Size108KB，2 Pages; ManufacturerNEC TOKIN ( KEMET Corporation ); Websitehttp://www.kemet.com

Download Datasheet Parametric Compare View All

C.PI-1365-0R7 Overview

General Purpose Inductor, 0.7uH, 30%, 1 Element, Nickel-zinc Ferrite-Core, SMD,

C.PI-1365-0R7 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
core material	NICKEL-ZINC FERRITE
DC Resistance	0.0011 Ω
Nominal inductance(L)	0.7 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	C.PI
Number of functions	1
Number of terminals	3
Maximum rated current	30 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

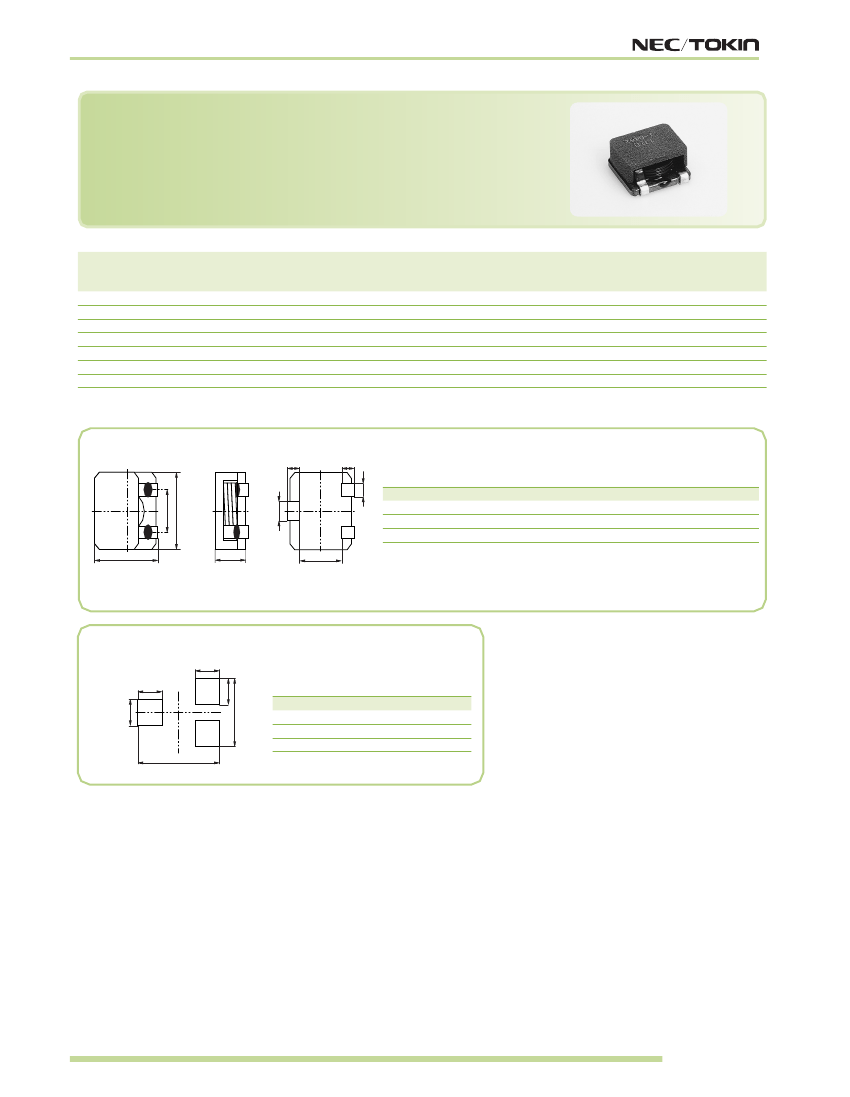

SMD-Type

Large-Current Choke Coils

C½PI Series

Model

C½PI-1350-0R7

C½PI-1350-1R2

C½PI-1365-0R7

C½PI-1365-1R2

C½PI-1050-0R6

C½PI-1050-1R0

C½PI-1050-1R6

●Rated

current：Inductance drop 20% at rated current.

Inductance

（μH）

at DC 0A, 100KHz

0.7±30%

1.2±30%

0.7±30%

1.2±30%

0.6±30%

1.0±30%

1.6±30%

DC resistance

RDC(mΩ)max. (typ.)

1.5(1.3)

2.5(2.1)

1.1(1.3)

1.7(1.4)

2.9(2.5)

4.0(3.5)

Rated current

（A）

30.0

17.0

30.0

25.0

17.0

15.0

13.0

Shape and Dimensions

F

G

H

C½PI-1350

Series

C½PI-1365

Series

C½PI-1050

Series

I

D

W

13.2 13.5

10.0 10.0

T

E

C

8.5 5.0 max. 2.4

8.5 6.5 max. 2.4

6.0 5.0 max. 1.8

F

2.2

1.3

G

2.5

2.0

H

2.0

1.4

8.5

6.2

C

W

D

T

E

[mm]

Rcecommended Land Pattern

J

C½PI-1350

Series

C½PI-1365

Series

C½PI-1050

Series

J

4.0

3.5

K

12.3

10.1

L

15.2

11.5

[mm]

L

K

Choke Coils VOL.02

C.PI-1365-0R7 Related Products

	C.PI-1365-0R7	C.PI-1050-1R0	C.PI-1350-0R7	C.PI-1050-1R6	C.PI-1050-0R6	C.PI-1365-1R2	C.PI-1350-1R2
Description	General Purpose Inductor, 0.7uH, 30%, 1 Element, Nickel-zinc Ferrite-Core, SMD,	General Purpose Inductor, 1uH, 30%, 1 Element, SMD,	General Purpose Inductor, 0.7uH, 30%, 1 Element, Nickel-zinc Ferrite-Core, SMD,	General Purpose Inductor, 1.6uH, 30%, 1 Element, SMD,	General Purpose Inductor, 0.6uH, 30%, 1 Element, SMD,	General Purpose Inductor, 1.2uH, 30%, 1 Element, Nickel-zinc Ferrite-Core, SMD,	General Purpose Inductor, 1.2uH, 30%, 1 Element, Nickel-zinc Ferrite-Core, SMD,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.0011 Ω	0.0029 Ω	0.0015 Ω	0.004 Ω	0.0017 Ω	0.0017 Ω	0.0025 Ω
Nominal inductance(L)	0.7 µH	1 µH	0.7 µH	1.6 µH	0.6 µH	1.2 µH	1.2 µH
Inductor Applications	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	C.PI	C.PI	C.PI	C.PI	C.PI	C.PI	C.PI
Number of functions	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum rated current	30 A	15 A	30 A	13 A	17 A	25 A	17 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	30%	30%	30%	30%	30%	30%	30%
core material	NICKEL-ZINC FERRITE	-	NICKEL-ZINC FERRITE	-	-	NICKEL-ZINC FERRITE	NICKEL-ZINC FERRITE
Terminal location	DUAL ENDED	-	DUAL ENDED	-	-	DUAL ENDED	DUAL ENDED
Maker	-	-	-	NEC TOKIN ( KEMET Corporation )	NEC TOKIN ( KEMET Corporation )	NEC TOKIN ( KEMET Corporation )	NEC TOKIN ( KEMET Corporation )
