CT0402CSF-43NJ: DescriptionGeneral Purpose Inductor, 0.043uH, 5%, 1 Element, Ceramic-Core, SMD, 0402, CHIP, 0402, ROHS COMPLIANT; CategoryPassive components inductor; File Size347KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CT0402CSF-43NJ Overview

General Purpose Inductor, 0.043uH, 5%, 1 Element, Ceramic-Core, SMD, 0402, CHIP, 0402, ROHS COMPLIANT

CT0402CSF-43NJ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	0402
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	0402
core material	CERAMIC
DC Resistance	0.5 Ω
Nominal inductance(L)	0.043 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	CT0402CSF
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	26
Maximum rated current	0.3 A
self resonant frequency	2100 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 250 MHZ
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	250 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

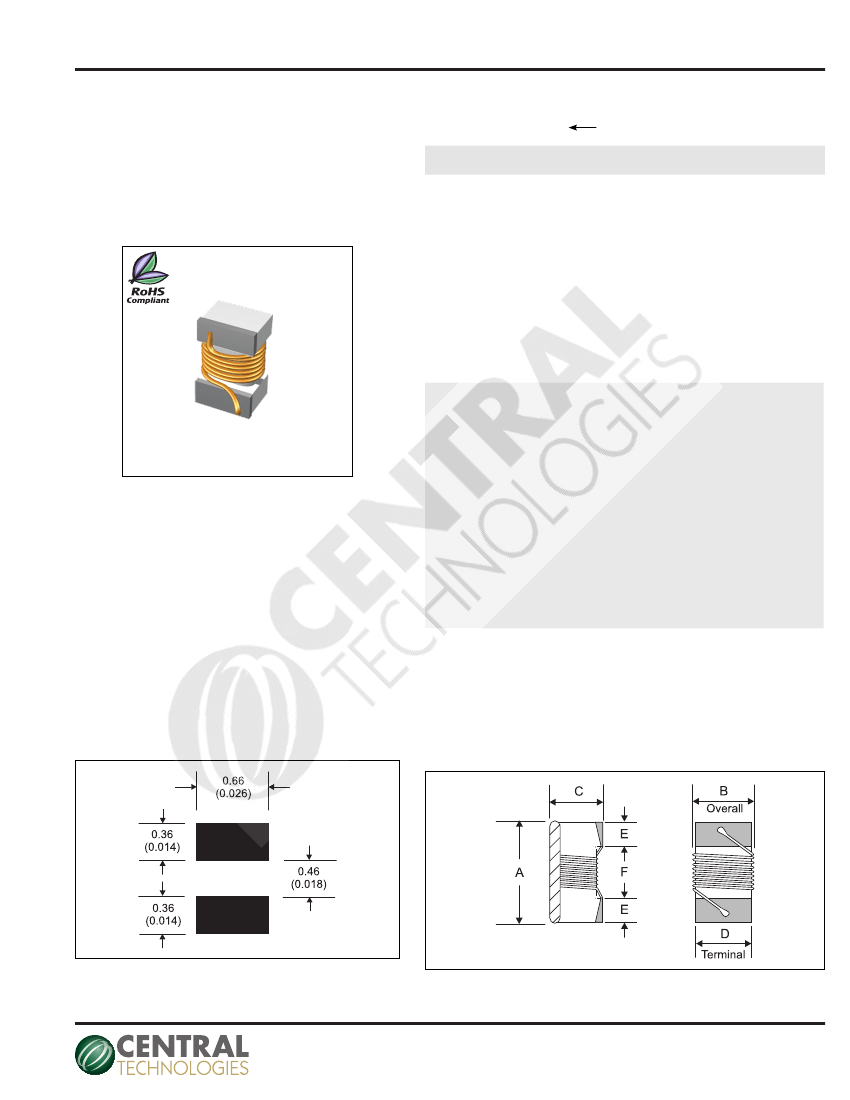

Wire-wound Chip Inductors - Open

www.ctparts.com

From 1.0 nH to 120 nH

ENGINEERING KIT #5F

CT0402CSF

Series

Part

Number

CT0402CSF-1N0K

CT0402CSF-1N9K

CT0402CSF-2N0K

CT0402CSF-2N2K

CT0402CSF-2N4K

CT0402CSF-2N7K

CT0402CSF-3N3_*

CT0402CSF-3N6_*

CT0402CSF-3N9_*

CT0402CSF-4N3_*

CT0402CSF-4N7_*

CT0402CSF-5N1_*

CT0402CSF-5N6_*

CT0402CSF-5N8_*

CT0402CSF-6N2_*

CT0402CSF-6N8_*

CT0402CSF-7N5_*

CT0402CSF-8N2_*

CT0402CSF-8N7_*

CT0402CSF-9N0_*

CT0402CSF-9N5_*

CT0402CSF-10N_

CT0402CSF-11N_

CT0402CSF-12N_

CT0402CSF-13N_

CT0402CSF-15N_

CT0402CSF-16N_

CT0402CSF-18N_

CT0402CSF-19N_

CT0402CSF-20N_

CT0402CSF-22N_

CT0402CSF-23N_

CT0402CSF-24N_

CT0402CSF-27N_

CT0402CSF-30N_

CT0402CSF-33N_

CT0402CSF-36N_

CT0402CSF-39N_

CT0402CSF-40N_

CT0402CSF-43N_

CT0402CSF-47N_

CT0402CSF-51N_

CT0402CSF-56N_

CT0402CSF-62N_

CT0402CSF-68N_

CT0402CSF-82N_*

CT0402CSF-R10_*

CT0402CSF-R12_*

Please specify tolerance code when ordering.

CT0402CS-3N6_

G = ±2%, H = ±3%, J = ±5%, K = ±10%

* J or K only

L Test

Q

Q Test

SRF

Inductance

Freq.

Fact.

Freq.

Min.

(nH)

(MHz)

Min.

(MHz)

1.0

1.9

2.0

2.2

2.4

2.7

3.3

3.6

3.9

4.3

4.7

5.1

5.6

5.8

6.2

6.8

7.5

8.2

8.7

9.0

9.5

10

11

12

13

15

16

18

19

20

22

23

24

27

30

33

36

39

40

43

47

51

56

62

68

82

100

120

250

13

16

19

17

18

20

21

20

23

24

18

22

18

25

24

26

24

26

22

26

24

26

22

26

250

>6000

5800

4800

4400

4100

4160

4000

3700

3600

3200

3000

3040

3000

2700

2720

2700

2500

2200

2240

2100

2000

1900

1620

1700

1300

1200

SPECIFICATIONS

DCR

Max.

(W)

.04

.07

.06

.11

.08

.083

.08

.14

.20

.10

.20

.18

.21

.25

.20

.25

.36

.30

.36

.41

.46

.44

.50

.55

.77

1.12

1.1

1.33

1.87

2.35

Rated

DC

(mA)

1000

1040

840

800

760

680

480

680

480

600

560

480

375

400

375

320

310

320

300

260

200

100

180

160

140

Not Shown at Actual Size

CHARACTERISTICS

Description:

SMD ceramic core wire-wound chip inductor.

Applications:

Telecommunication equipment, mobile phones,

small size pagers, computers, printers and relevant equipment.

Also, audio & video applications, the automotive electronics

industry and high frequency applications.

Operating Temperature:

-40°C to +125°C

Inductance Tolerance:

±2%, ±3%, ±5%, ±10%

Testing:

Inductance and Q are tested on an HP4287A at

250MHz.

Packaging:

Tape & Reel.

Marking:

Reels are marked with inductance code and tolerance.

Additional Information:

Additional electrical & physical

information available upon request.

Samples available. See website for ordering information.

PHYSICAL DIMENSIONS

Size

mm

inches

A

1.0±0.1

0.04± 0.004

B

0.68±0.1

0.03±0.004

C

0.55±0.05

0.02±0.001

D

0.55±0.05

0.02±0.001

E

0.2±0.05

0.007±0.001

F

0.6

0.02

PAD LAYOUT

Unit: mm

(inch)

CT Magnetics reserves the right to make improvements or change specifications without notice

Manufacturer of Passive Components

800-684-5322 Inside US

949-453-1811 Outside US

REV 07.12.12
