CT646CYF-102M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CT646CYF-102M

CT646CYF-102M: DescriptionGeneral Purpose Inductor, 1000uH, 20%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size123KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CT646CYF-102M Overview

General Purpose Inductor, 1000uH, 20%, 1 Element, SMD, ROHS COMPLIANT

CT646CYF-102M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	4.1 Ω
Nominal inductance(L)	1000 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	CT646CYF
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Maximum rated current	0.17 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

Power Inductors - Shielded

ctparts.com

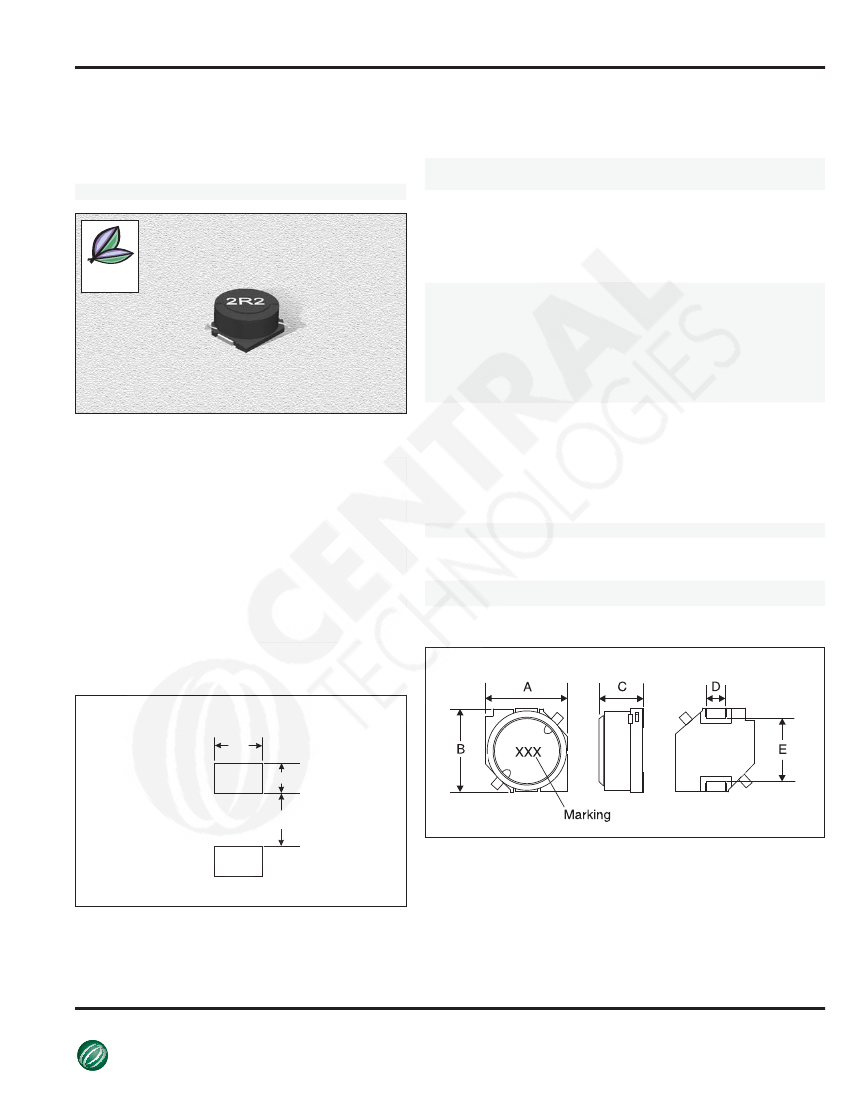

CT646CYF Series

From 1.0 µH to 1000 µH

ENGINEERING KIT #36

Not shown at actual size.

SPECIFICATIONS

Part numbers are marked to indicate tolerance available.

M = ±20%

* Maximum allowable DC current is that which causes a 10% inductance reduction from the initial

value, or coil temperature to rise by 40°C, whichever is smaller. (Reference ambient temperature 20°C).

Part

Number

CT646CYF-1R0M

CT646CYF-1R2M

CT646CYF-1R5M

CT646CYF-2R2M

CT646CYF-3R3M

CT646CYF-4R7M

CT646CYF-5R6M

CT646CYF-6R8M

CT646CYF-8R2M

CT646CYF-100M

CT646CYF-120M

CT646CYF-150M

CT646CYF-180M

CT646CYF-220M

CT646CYF-270M

CT646CYF-330M

CT646CYF-390M

CT646CYF-470M

CT646CYF-560M

CT646CYF-680M

CT646CYF-820M

CT646CYF-101M

CT646CYF-121M

CT646CYF-151M

CT646CYF-181M

CT646CYF-221M

CT646CYF-271M

CT646CYF-331M

CT646CYF-391M

CT646CYF-471M

CT646CYF-561M

CT646CYF-681M

CT646CYF-821M

CT646CYF-102M

Inductance

(µH)

1.0

1.2

1.5

2.2

3.3

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

470

560

680

820

1000

L Test

Freq.

(kHz)

100

DCR

Max.

(Ω)

0.023

0.025

0.027

0.030

0.035

0.041

0.044

0.047

0.048

0.050

0.070

0.080

0.090

0.110

0.150

0.170

0.180

0.200

0.280

0.320

0.350

0.400

0.440

0.730

0.780

0.940

1.250

1.400

1.520

1.700

2.390

2.500

3.000

4.100

*Rated

(A)

2.88

2.85

2.61

2.46

2.28

2.08

2.00

1.94

1.80

1.68

1.54

1.39

1.26

1.13

1.02

0.84

0.80

0.76

0.64

0.60

0.57

0.50

0.47

0.40

0.39

0.33

0.31

0.27

0.25

0.22

0.20

0.18

0.17

Compliant

RoHS

CHARACTERISTICS

Description:

SMD (shielded) power inductor

Applications:

Ideal for a variety of DC/DC converter applications

and low profile use

Operating Temperature:

-30°C to +100°C

Inductance Tolerance:

±20%

Testing:

Inductance is tested on an HP4285A at 100 kHz

Packaging:

Tape & Reel

Marking:

Parts are marked with inductance code

Miscellaneous:

RoHS Compliant.

Magnetically shielded

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

PHYSICAL DIMENSIONS

Size

inches

Max.

7.4

0.29

Max.

7.4

0.29

Max.

5.5

0.22

2.0±0.2

0.08±0.008

Max.

5.4

0.21

PAD LAYOUT

Unit: mm

3.0

2.0

4.4

07.30.08

CENTRAL

Manufacturer of Passive Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
