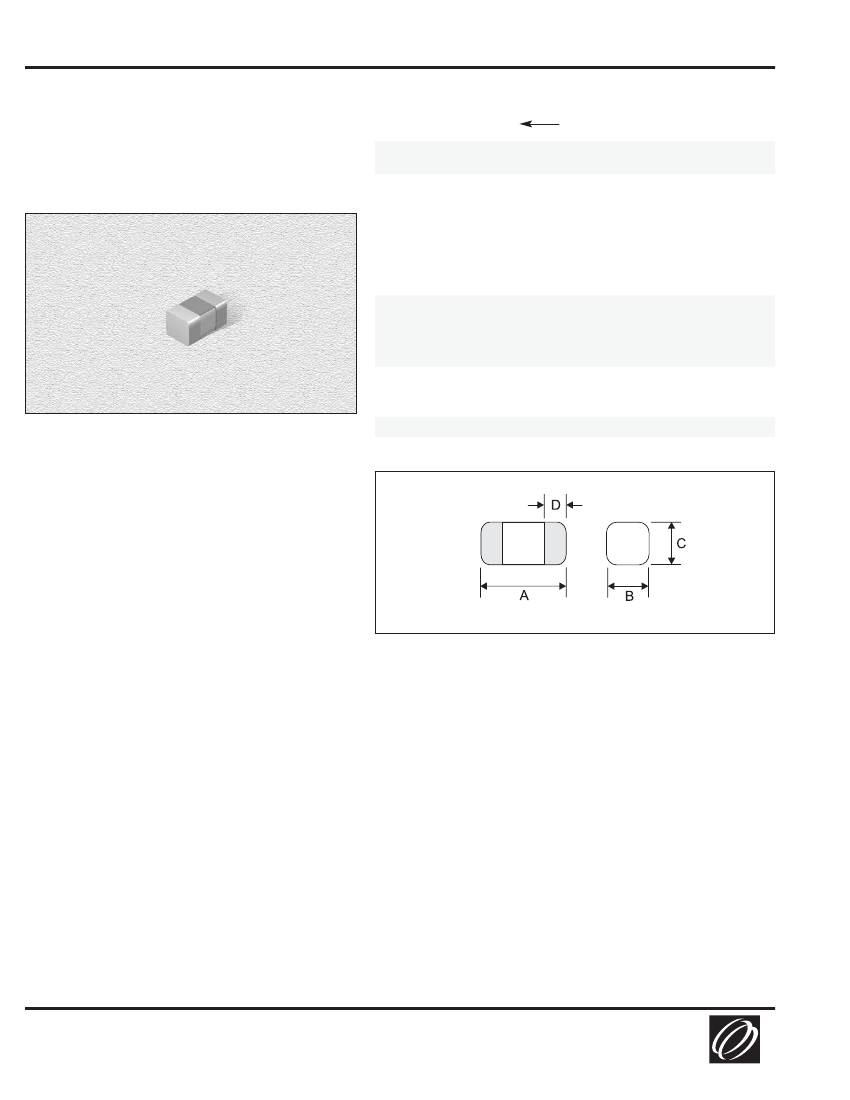

Multi-layer Chip Inductors - Ceramic
SPECIFICATIONS
Please specify tolerance code when ordering.
CT0201-3N3_
S = ±0.3nH, J = ±5%, K = ±10%
* S or K only ** J or K only
Part
Number
CT0201-1N0S
CT0201-1N2S
CT0201-1N5S
CT0201-1N8S
CT0201-2N2S
CT0201-2N7S
CT0201-3N3_*
CT0201-3N9_*
CT0201-4N7_*
CT0201-5N6_*
CT0201-6N8_**
CT0201-8N2_**
CT0201-10N_**
CT0201-12N_**
CT0201-15N_**
CT0201-18N_**
CT0201-22N_**
CT0201-27N_**
CT0201-33N_**
Inductance
(nH)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
L Test
Freq.
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Q
Fact
Min.
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
6
6
Q Test
Freq.
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
SRF
TYp.
(MHz)
7000
6800
6500
6300
6000
5600
5300
5000
4400
4200
3800
3500
3100
2800
2500
2200
1800
1600
1400
DCR
Max.
Ω
(Ω)
.12
.15
.18
.22
.26
.32
.38
.45
0.5
0.6
0.7
0.9
1.2
1.3
1.4
1.5
1.8
2.0
2.3
Ver. 8.3
CT0201 Series
From 1.0 nH to 33 nH
DCR
Typ.
Ω
(Ω)
.06
.10
.12
.14
.15
.17
.19
.23
.27
.29
.30
.52
.58
0.6
0.7
0.8
1.0
1.2
1.5
IDC
Max.
(mA)
300
300
300
290
270
270
240
210
210
210
210
200
200
190
130
120
110
100
100
Not shown at actual size.
PHYSICAL DIMENSIONS
CHARACTERISTICS
Description:
Ceramic core, multi-layer chip inductor for high
frequency
Applications:
Portable telephones, PMS, pagers and
miscellaneous high-frequency circuits
Operating Temperature:
-40°C to +100°C
Inductance Tolerance:
±0.3nH, ± 5%, ±10%
Testing:
Inductance and Q are tested on an HP4287A at
100 MHz
Packaging:
Tape & Reel
Marking:
Reels are marked inductance code and tolerance
Additional Information:
Additional electrical & physical
information available upon request
Samples available. See website for ordering information.
Size
mm
inches
A
0.6±0.03
0.02±0.001
B
0.3±0.03
0.01±0.001
C
0.3±0.03
0.01±0.001
D
0.1~0.2
0.004~0.008
12.14.01
Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2003 by CT Magnetics, DBA Central Technologies. All rights reserved.
16
CT Magnetics reserves the right to make improvements or change specifications without notice
