CDEIR8D38FNP-100NB: DescriptionGeneral Purpose Inductor, 10uH, 30%, 1 Element, Nickel-zinc-Core, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size98KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CDEIR8D38FNP-100NB Overview

General Purpose Inductor, 10uH, 30%, 1 Element, Nickel-zinc-Core, SMD, ROHS COMPLIANT

CDEIR8D38FNP-100NB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
core material	NICKEL-ZINC
DC Resistance	0.0438 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDEIR
Number of functions	1
Number of terminals	2
Maximum rated current	3.4 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

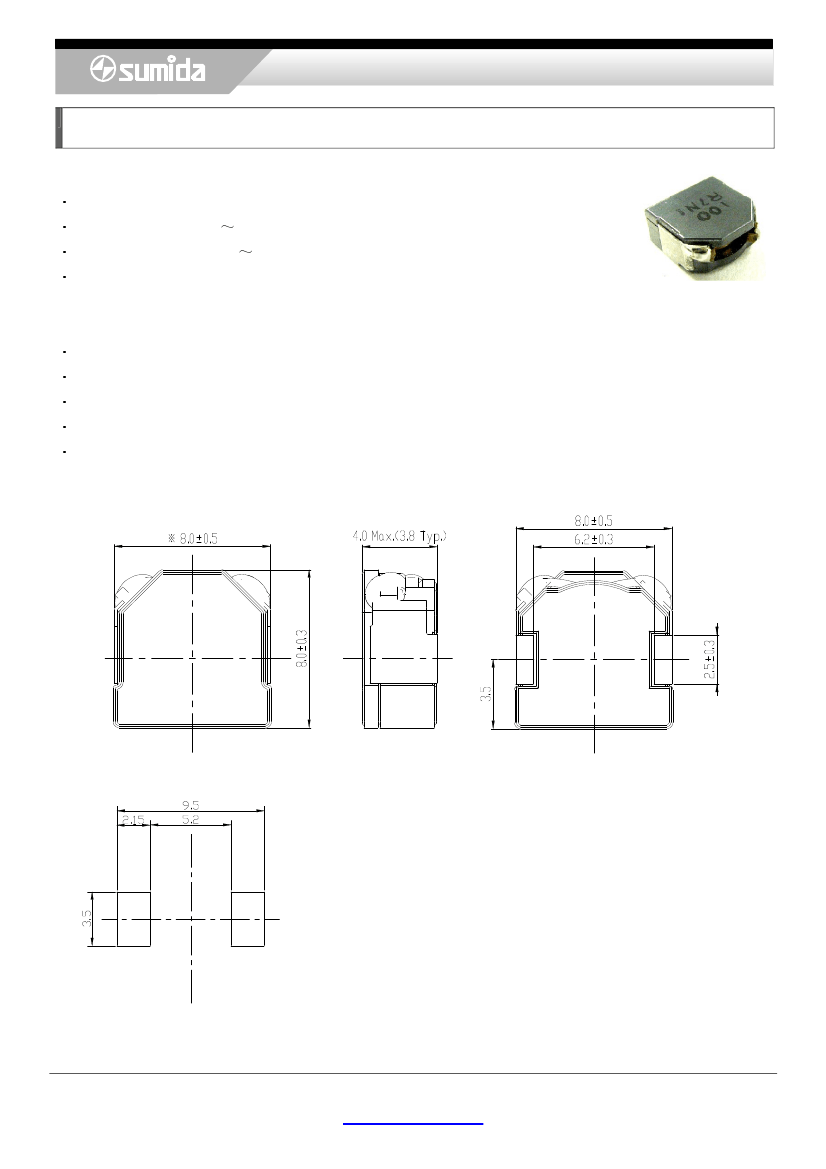

Power Inductors <SMD Type: CDEIR Series>

Type: CDEIR8D38F

◆

Product Description

8.5×8.3mm Max.(L×W), 4.0mm Max. Height.

Inductance range: 4.0 22.0µH.

Rated current range: 2.2 4.8A.

Custom design is available.

◆

Feature

Magnetically shielded construction.

Low DCR, flat wire used.

Low core loss in high frequency, Ni-Zn core used.

Ideally used in Notebook, PDA and other device.

RoHS compliance.

◆

Dimensions (mm)

◆

Land Pattern (mm)

Please refer to the sales offices on our website for a representative near you

½

・

www.sumida.com

1/2

CDEIR8D38FNP-100NB Related Products

	CDEIR8D38FNP-100NB	CDEIR8D38FNP-180NB	CDEIR8D38FNP-7R6NB	CDEIR8D38FNP-4R0NB	CDEIR8D38FNP-120NB	CDEIR8D38FNP-220NB	CDEIR8D38FNP-150NB	CDEIR8D38FNP-6R3NB	CDEIR8D38FNP-5R1NB
Description	General Purpose Inductor, 10uH, 30%, 1 Element, Nickel-zinc-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 18uH, 30%, 1 Element, Nickel-zinc-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 7.6uH, 30%, 1 Element, Nickel-zinc-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 4uH, 30%, 1 Element, Nickel-zinc-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 12uH, 30%, 1 Element, Nickel-zinc-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 22uH, 30%, 1 Element, Nickel-zinc-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 15uH, 30%, 1 Element, Nickel-zinc-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 6.3uH, 30%, 1 Element, Nickel-zinc-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 5.1uH, 30%, 1 Element, Nickel-zinc-Core, SMD, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	NICKEL-ZINC	NICKEL-ZINC	NICKEL-ZINC	NICKEL-ZINC	NICKEL-ZINC	NICKEL-ZINC	NICKEL-ZINC	NICKEL-ZINC	NICKEL-ZINC
DC Resistance	0.0438 Ω	0.0831 Ω	0.034 Ω	0.0232 Ω	0.0667 Ω	0.0883 Ω	0.0702 Ω	0.0307 Ω	0.0259 Ω
Nominal inductance(L)	10 µH	18 µH	7.6 µH	4 µH	12 µH	22 µH	15 µH	6.3 µH	5.1 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDEIR	CDEIR	CDEIR	CDEIR	CDEIR	CDEIR	CDEIR	CDEIR	CDEIR
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum rated current	3.4 A	2.3 A	3.8 A	4.8 A	2.5 A	2.2 A	2.4 A	4.1 A	4.6 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	30%	30%	30%	30%	30%	30%	30%	30%	30%
Base Number Matches	1	1	1	1	1	1	-	-	-
